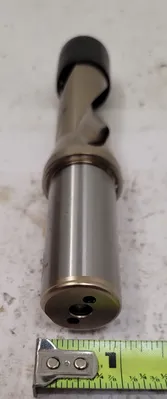

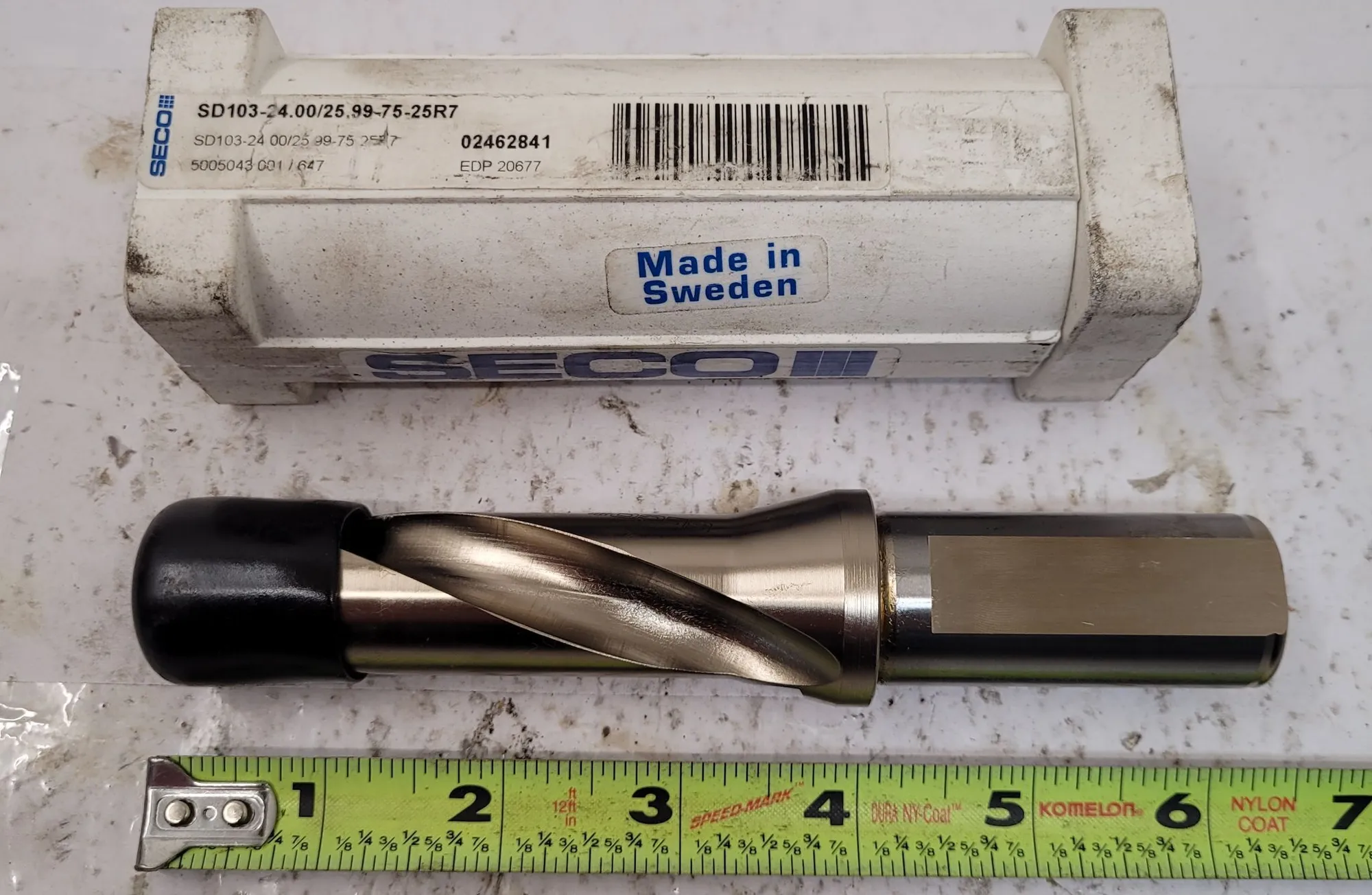

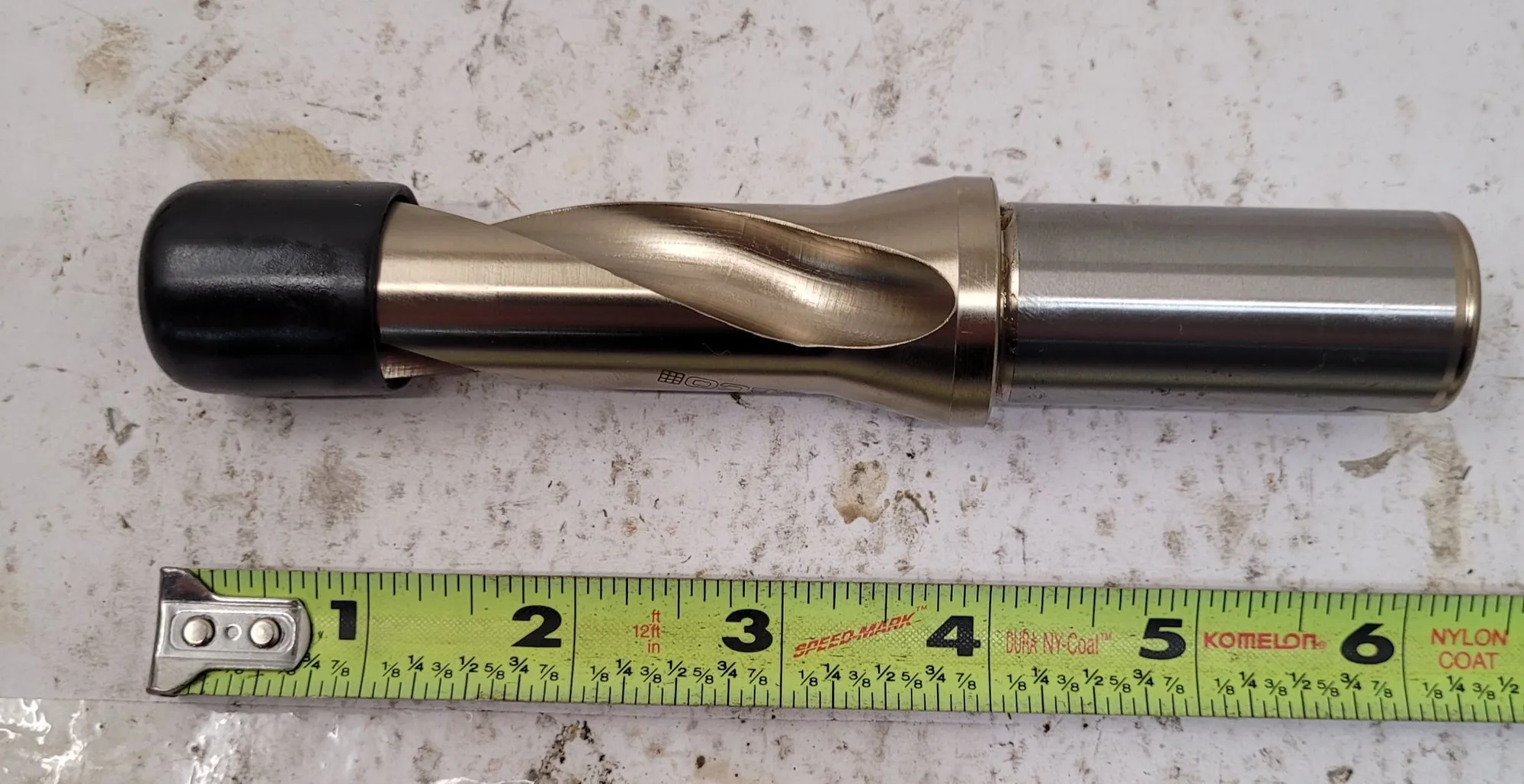

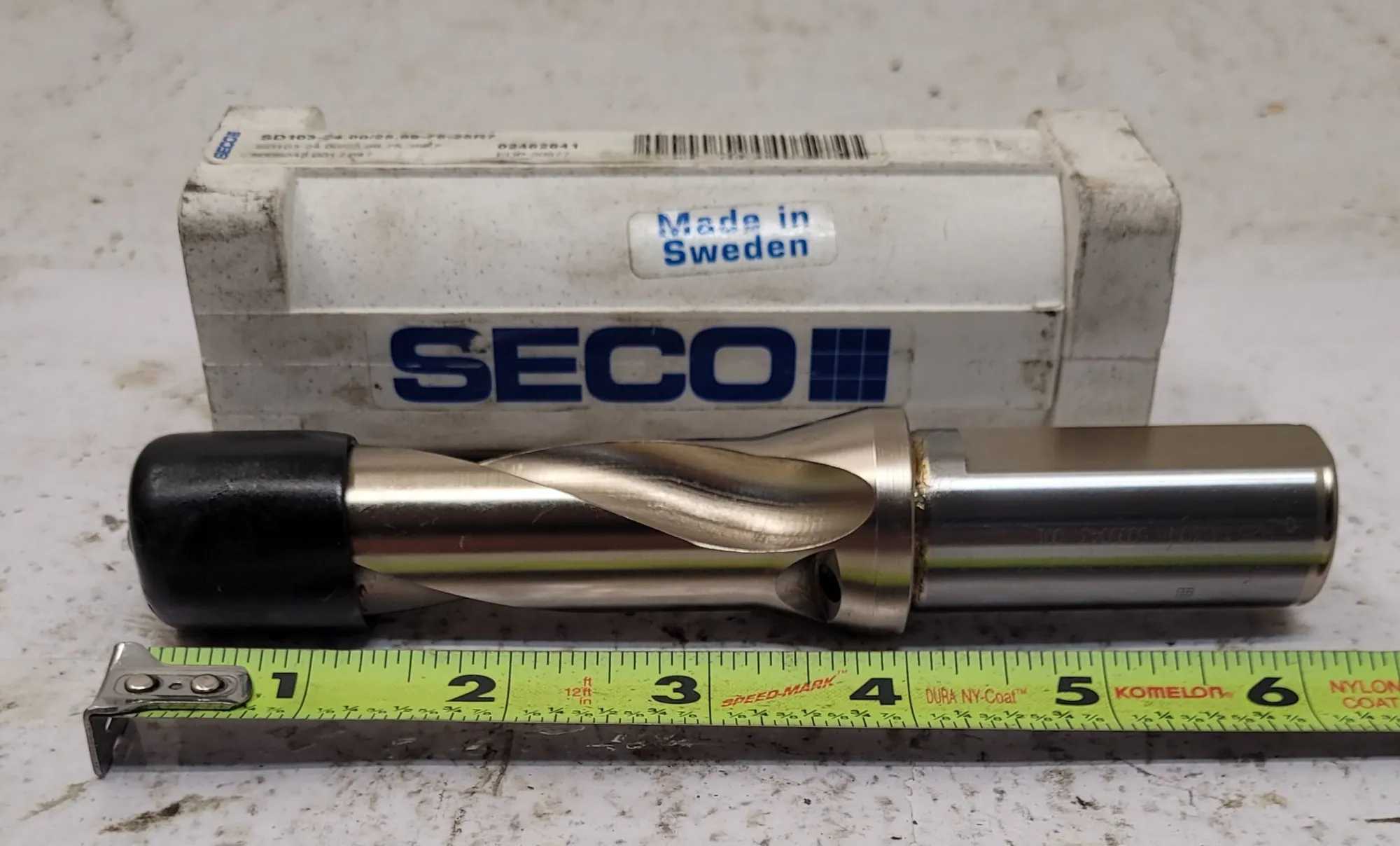

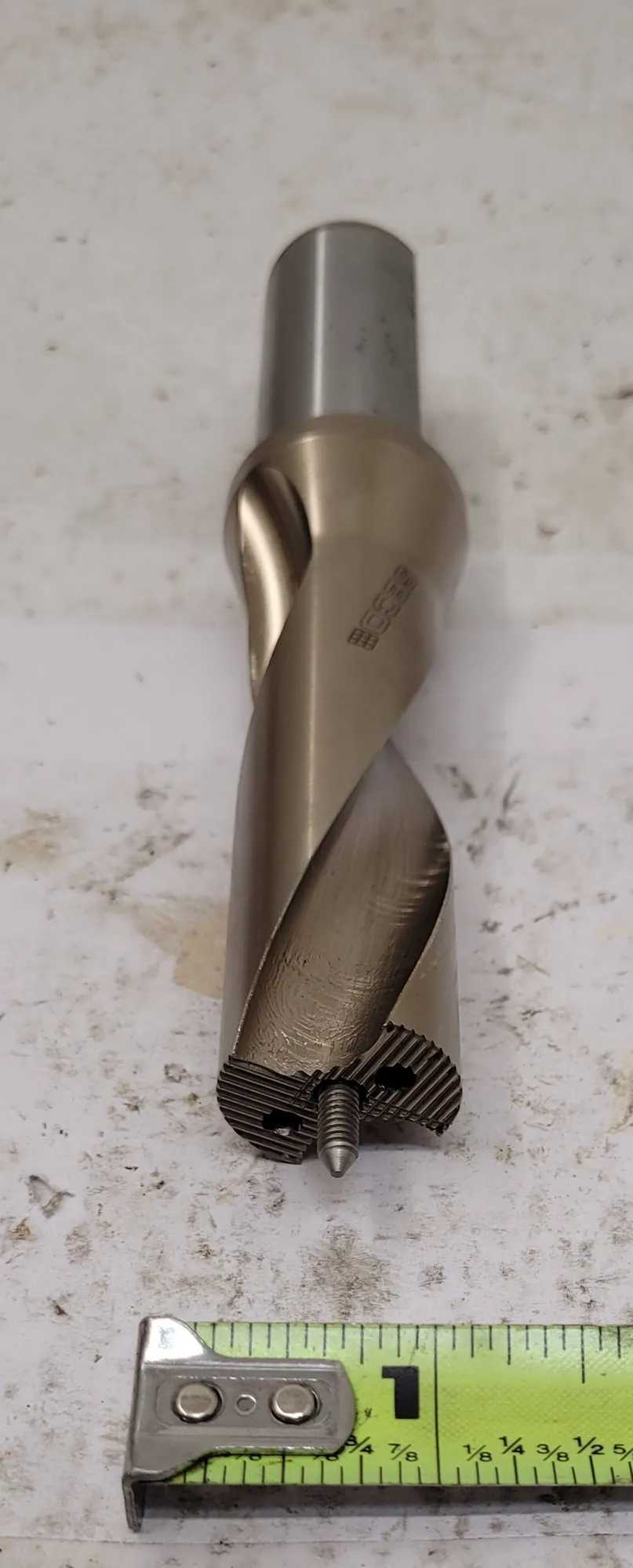

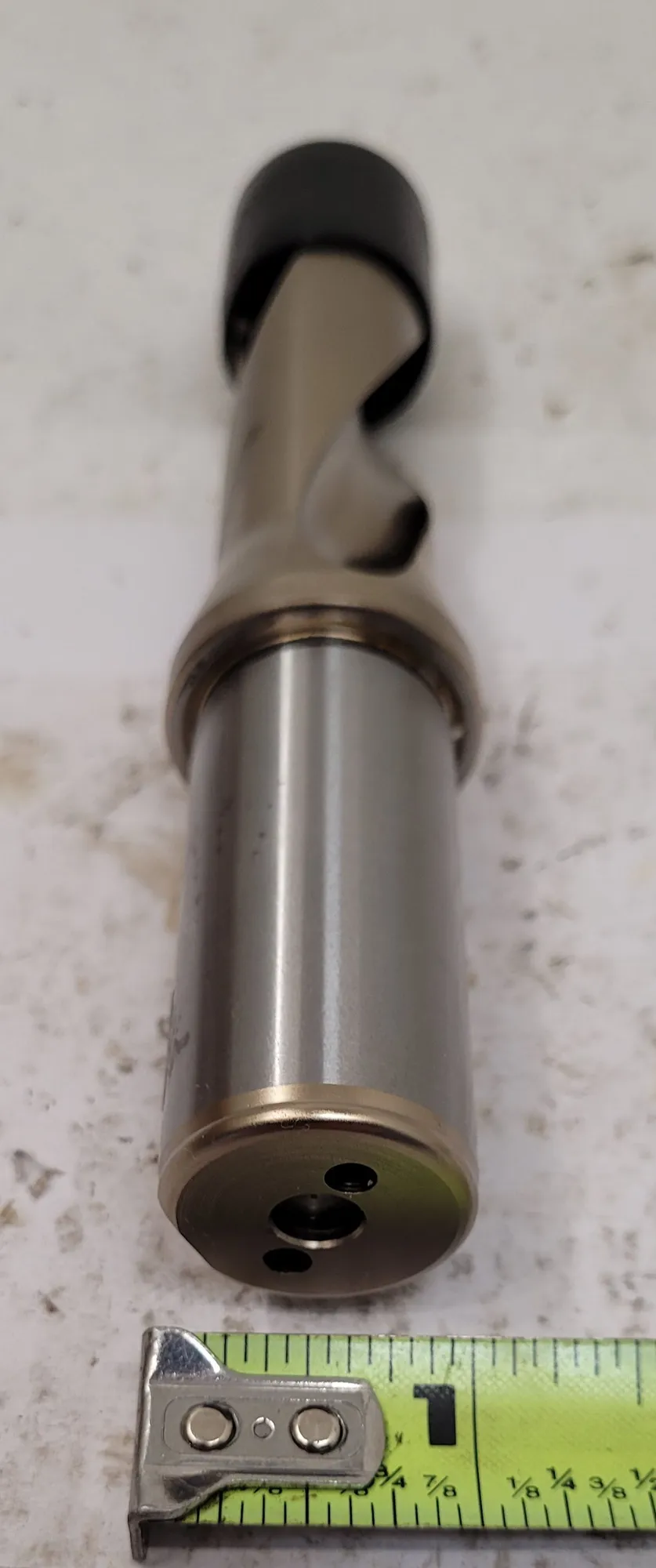

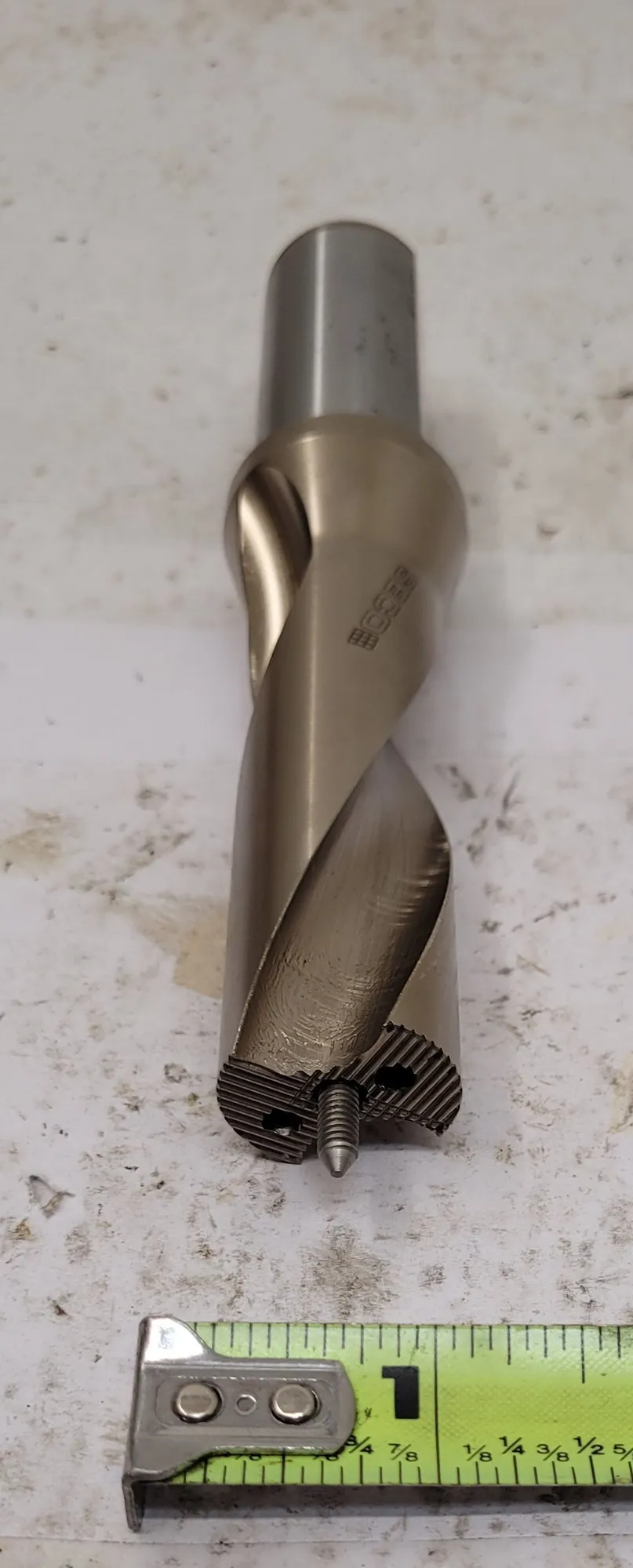

Seco SD103 Crownloc Indexable Drill, Model SD103-24.00/25.99-75-25R7

The Seco SD103 Crownloc Indexable Drill, Model SD103-24.00/25.99-75-25R7, is a precision drilling tool designed for optimal performance in various applications. It features a body diameter of 0.925 inches and offers a cutting diameter range from 0.945 inches to 1.023 inches, allowing for versatile drilling capabilities. The drill has an overall length of 6.476 inches, with a functional length secondary of 4.272 inches. The shank diameter is 0.984 inches, and the shank length measures 2.205 inches, providing stability and compatibility with various machine setups. The flange diameter is 1.220 inches, ensuring secure attachment during operation. The usable length of the drill is 2.953 inches, with a maximum usable length of 3.484 inches, offering flexibility for different drilling depths. This indexable drill is engineered for precision and efficiency, making it a reliable choice for demanding drilling tasks.
