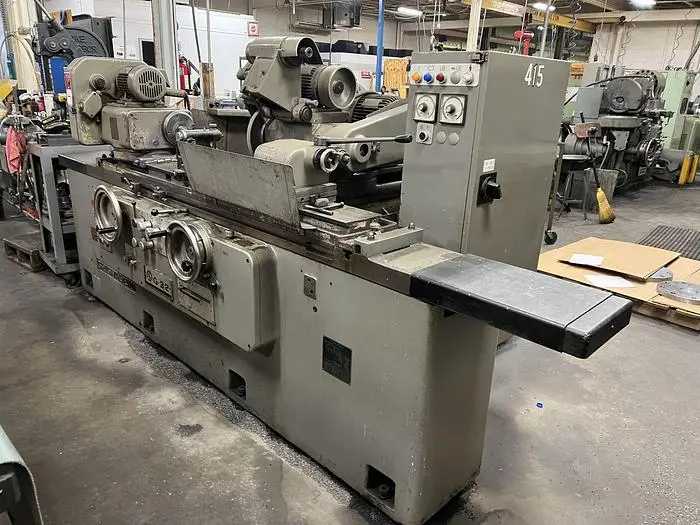

Shigiya GUA30-100 12.6" x 40" Universal Cylindrical Grinder W/Internal Attachment

The Shigiya Model GUA30-100 Universal Cylindrical Grinder is a hydraulic automatic infeed machine featuring a 12.6" maximum swing over the table and a 40" nominal distance between centers, accommodating workpieces up to 287 lbs. It is equipped with a swing-down internal attachment and an automatic grinding cycle including rapid wheel approach, automatic infeed, sizing spark-out, and rapid wheel retract. Key specifications include a maximum grinding diameter of 11", a 46" work table stroke, and a table swivel range of 10 degrees. The grinding wheel measures 14" in diameter with a 5" hole and accepts widths from 1" to 2". The machine features a swiveling workhead (120 degrees) with live/dead spindle functionality, and a table-mounted dresser. Power is supplied by a 5 HP grinding wheelhead spindle motor and a 0.4 HP workhead spindle motor. Workhead spindle speeds range from 20 to 380 RPM. Electrical requirements are 230/460/3/60. The approximate weight is 6850 lbs.
