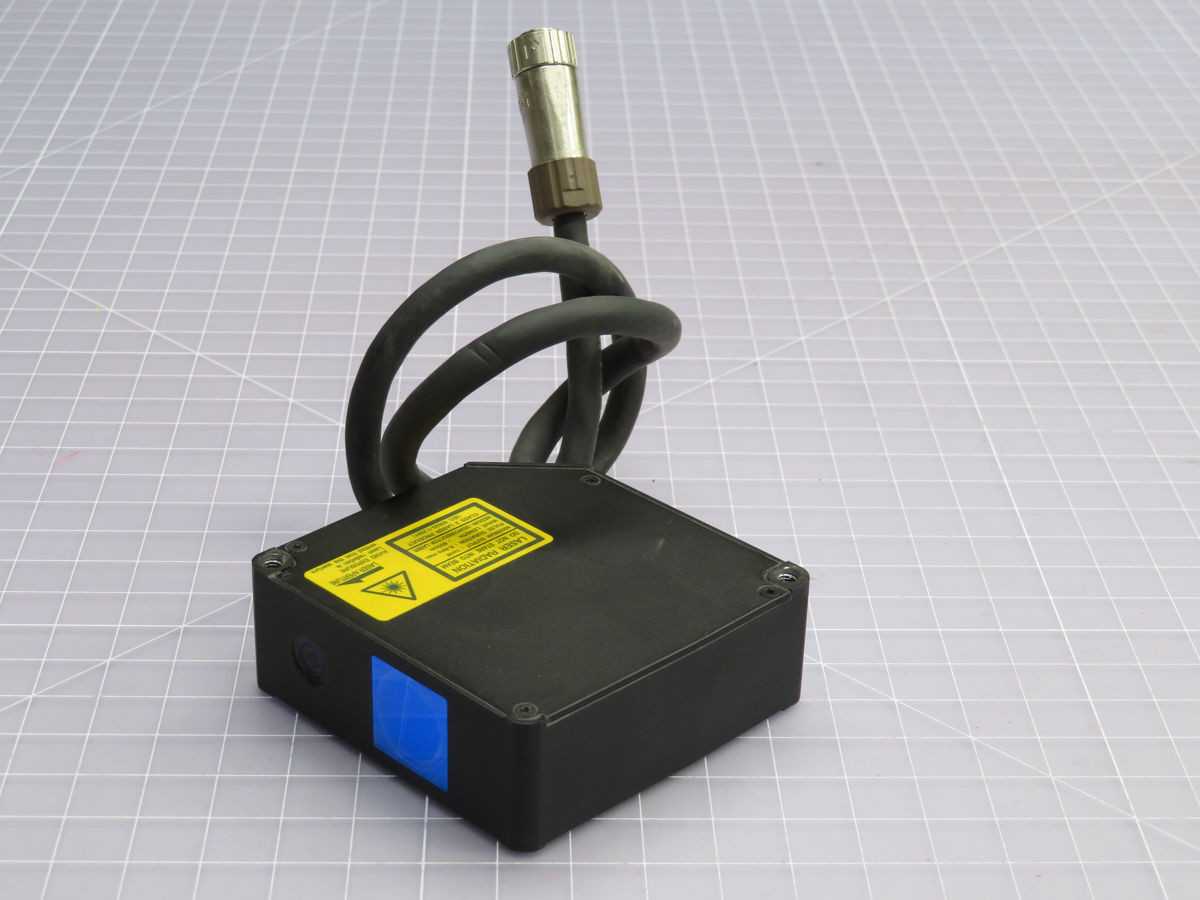

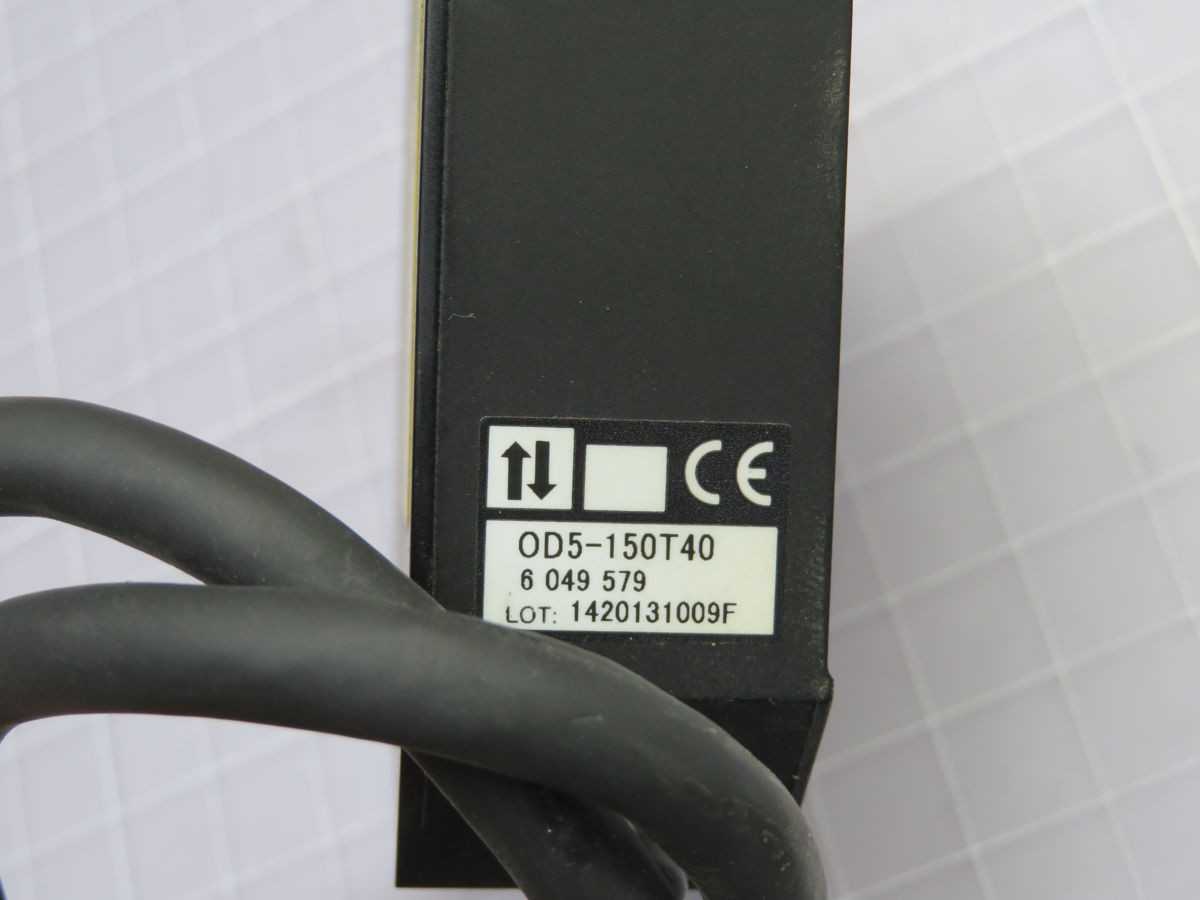

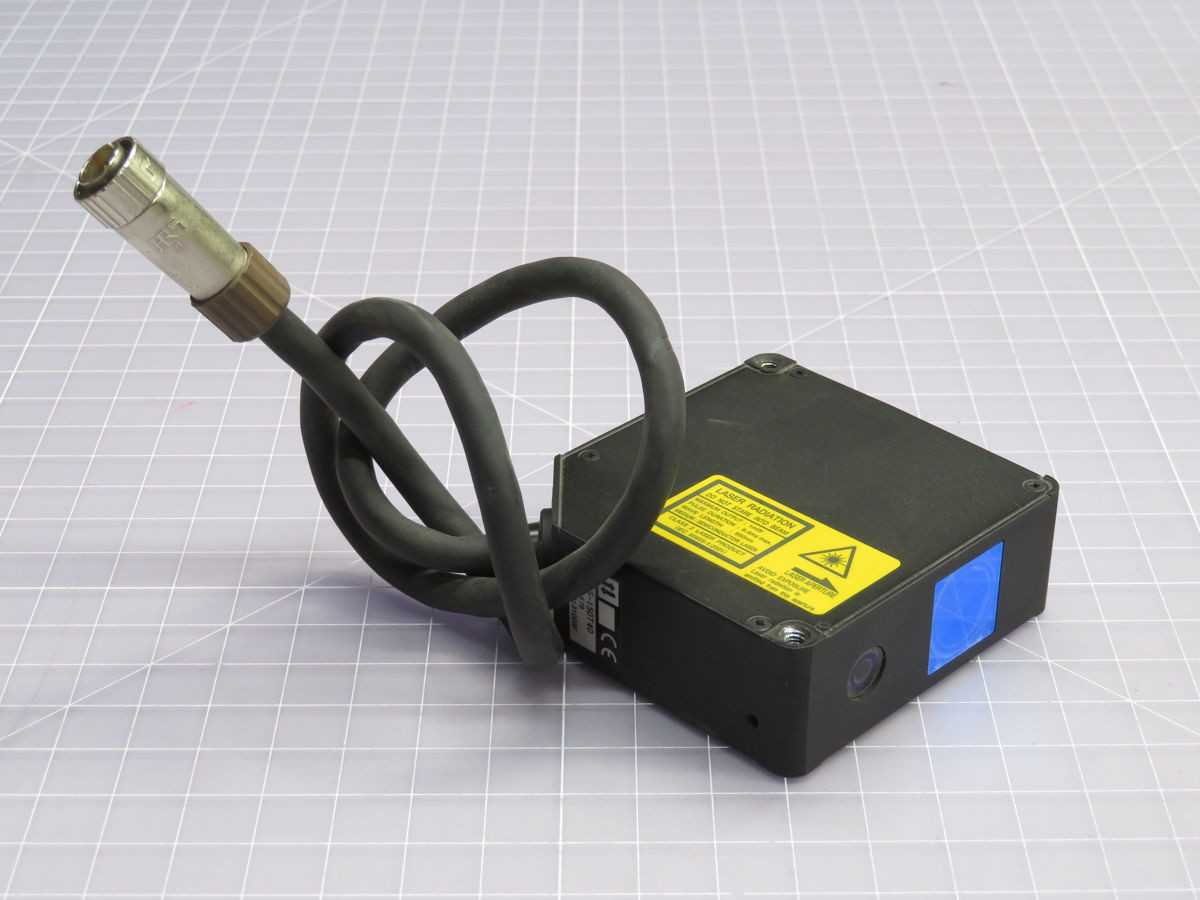

SICK OD5-150T40 LASER SENSOR, 150-400 MM RANGE, 0.05-1 UM RES, 1 UM REPEAT, IP67

THE SICK OD5-150T40 IS A LASER DISTANCE SENSOR EMPLOYING OPTICAL TRIANGULATION FOR NON-CONTACT MEASUREMENT. IT PROVIDES A MEASUREMENT RANGE SPANNING 150 MM TO 400 MM, WITH A RESOLUTION ADJUSTABLE FROM 0.05 ΜM TO 1 ΜM AND A REPEATABILITY OF 1 ΜM. THE TYPICAL ACCURACY ACHIEVED IS ±0.05% OF THE MEASUREMENT RANGE. THIS DEVICE UTILIZES A CLASS 2 RED LASER WITH A WAVELENGTH OF 655 NM AS ITS LIGHT SOURCE. OUTPUT OPTIONS INCLUDE ONE SELECTABLE ANALOG OUTPUT (0-10 V, -10-+10 V, OR 4-20 MA) AND TWO CONFIGURABLE DIGITAL OUTPUTS (PNP/NPN, NORMALLY OPEN/CLOSED). THE RESPONSE TIME IS ADJUSTABLE FROM 1 MS TO 10 MS. IT OPERATES ON A SUPPLY VOLTAGE OF 15 V DC TO 30 V DC, WITH A CURRENT CONSUMPTION OF LESS THAN 100 MA WITHOUT LOAD. THE SENSOR FEATURES AN ALUMINUM DIE-CAST HOUSING WITH AN IP67 ENCLOSURE RATING AND OPERATES WITHIN A TEMPERATURE RANGE OF –10 °C TO +50 °C, CONNECTING VIA AN M12, 12-PIN MALE CONNECTOR.
