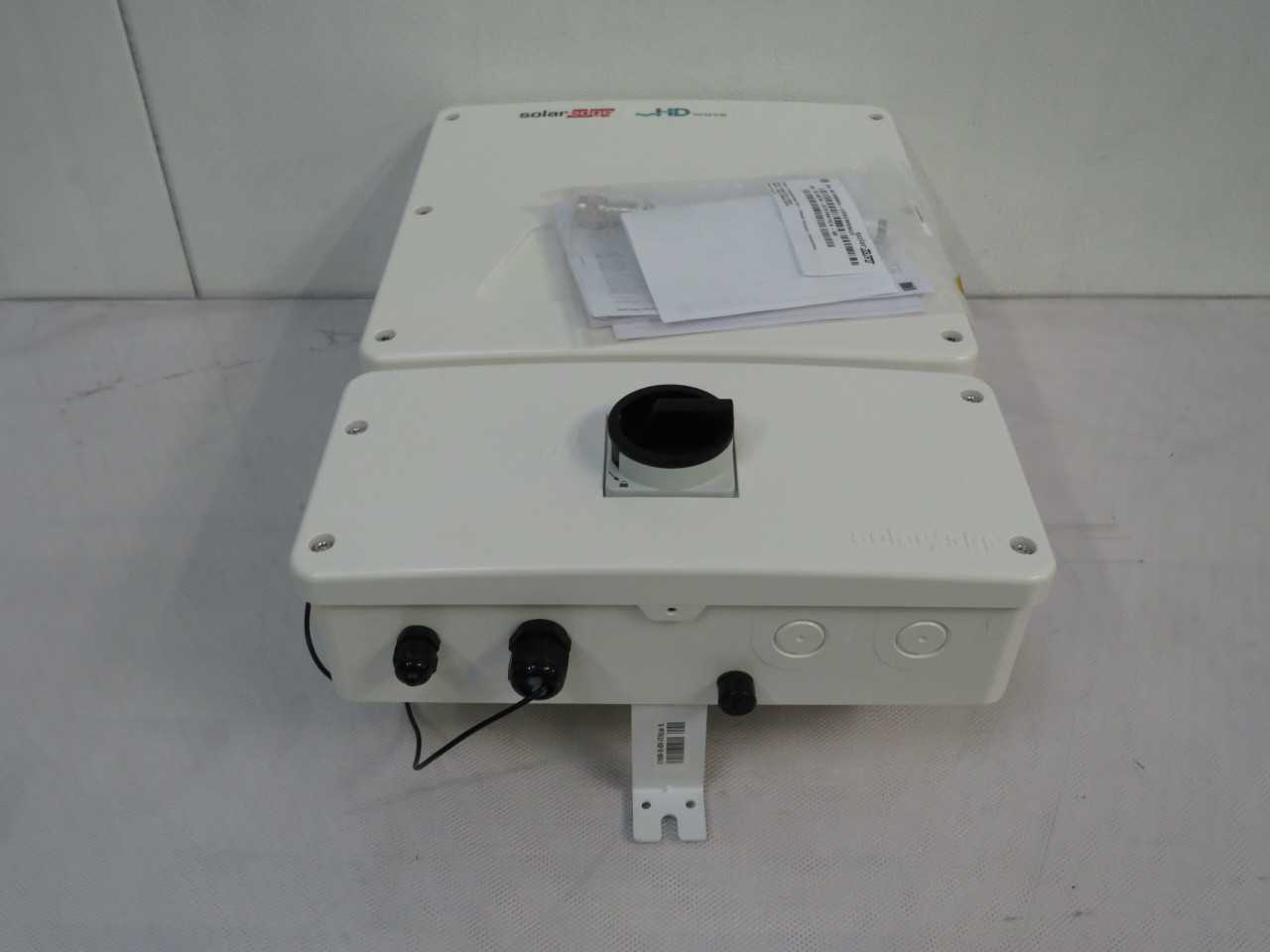

SOLAREDGE SE10000H-US INVERTER, 10,000W AC, 15,500W DC, 99.2% EFFICIENCY, 11.5 KG WEIGHT

THE SOLAREDGE SE10000H-US HD WAVE INVERTER FEATURES A RATED AC POWER OUTPUT OF 10,000W AT A NOMINAL AC OUTPUT VOLTAGE OF 240V, DELIVERING A MAX CONTINUOUS AC OUTPUT CURRENT OF 42A. IT ACCOMMODATES A MAXIMUM DC POWER INPUT OF 15,500W, WITH A MAXIMUM DC INPUT VOLTAGE OF 480V AND A NOMINAL DC INPUT VOLTAGE OF 400V. THE UNIT ACHIEVES A PEAK INVERTER EFFICIENCY OF 99.2% AND A CEC WEIGHTED EFFICIENCY OF 99%. NIGHTTIME POWER CONSUMPTION IS LESS THAN 2.5W. THIS INVERTER HAS AN INTEGRATED DC DISCONNECT AND INCLUDES A SCREEN FOR LOCAL MONITORING. ITS DIMENSIONS ARE 17.7 X 14.6 X 7.8 INCHES (450 X 370 X 198 MM), WITH A WEIGHT OF 25.4 LBS (11.5 KG). THE ENCLOSURE PROVIDES NEMA 3R PROTECTION, SUITABLE FOR OUTDOOR AND INDOOR INSTALLATION, AND UTILIZES NATURAL CONVECTION FOR COOLING. OPERATING TEMPERATURE RANGE IS -4°F TO +140°F (-20°C TO +60°C).
