Summit 18-3X80 Gap Bed Engine Lathe, 18" Swing, 80" Centers, 10 HP, 2000 RPM

Asking Price:
$11,750.00

Financing From: $195/mo

Get pre-approved in minutes — no credit impact

Apply

Delivery Options

Rigging · Included

Loading · Included

Shipping · Buyer or

Removal Deadline · 30 days

Related Assets

See All Machining assets

Product Description

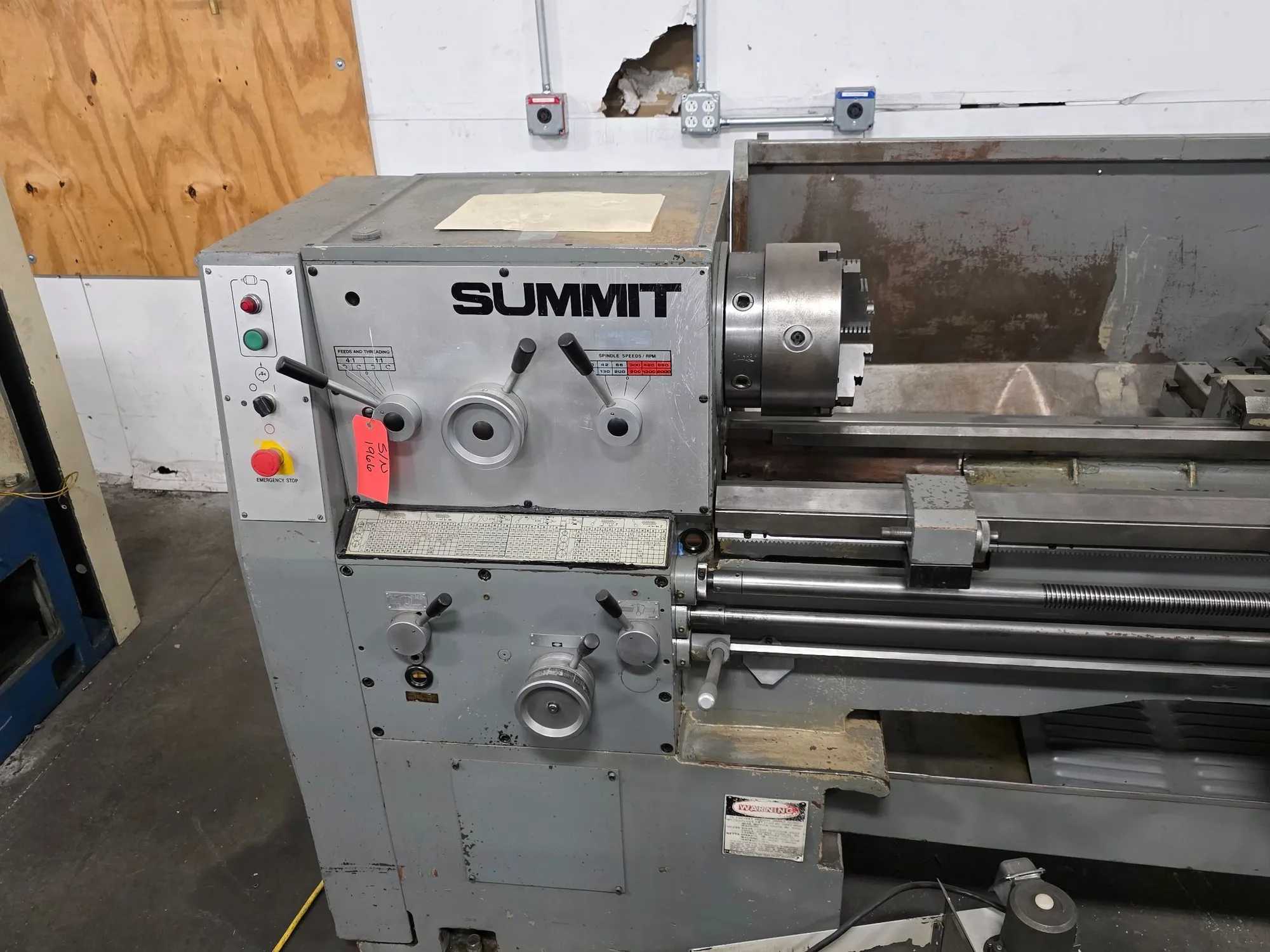

For sale: Used 18-3 x 80 Summit Gap Bed Engine Lathe w/Taper. Features 10" 3-jaw chuck, 4-way toolpost, quickchange toolpost, coolant tank, inch/metric threads, and taper attachment. Main motor: 10 HP, 220V/440V, 3-phase. Dimensions: 134"L x 44"W x 63"H. Swing - 18" Gap Swing - 26" Centers - 80" Spindle Bore - 3" Power - 10 hp Taper - +/- 10 degrees Dimensions - 134" L x 44" W x 63" H Weight - 7,100 18-3 x 80 Summit Gap Bed Engine Lathe w/Taper 10" 3 Jaw Chuck 4 Way Toolpost Quickchange Toolpost w/Holders Coolant tank w/pump Inch/Metric Threads Thread Dial Taper Attachment, +/- 10 Degrees, 15-3/4" Maximum Turning Length Per Setting Capacities Swing Over Bed: 18" (or 18-1/4") Swing Over Cross Slide: 9-1/2" Swing Over Gap: 26" Distance Between Centers: 80" Headstock Spindle Bore (Hole Thru): 3" (or 3-1/8") Spindle Nose: D1-8 Camlock Spindle Speeds (No./Range: 12 speeds, 30-2000 RPM) Tailstock 5MT in Tailstock Travel of Spindle Barrel: 9-1/2" Bed Width of Bed: 15-3/4" Hardness: 42-48 HRC (Hardened and ground ways) Motors & Power Main Motor: 10 HP Electrics: 220V, 3-phase Dimensions 134" L x 44" W x 63" H Weight Approx.: 7,100 lbs 18-3 x 80 Summit Gap Bed Engine Lathe w/Taper 10" 3 Jaw Chuck 4 Way Toolpost Quickchange Toolpost w/Holders Coolant tank w/pump Inch/Metric Threads Thread Dial Taper Attachment, +/- 10 Degrees, 15-3/4" Maximum Turning Length Per Setting Capacities Swing Over Bed: 18" (or 18-1/4") Swing Over Cross Slide: 9-1/2" Swing Over Gap: 26" Distance Between Centers: 80" Headstock Spindle Bore (Hole Thru): 3" (or 3-1/8") Spindle Nose: D1-8 Camlock Spindle Speeds (No./Range: 12 speeds, 30-2000 RPM) Tailstock 5MT in Tailstock Travel of Spindle Barrel: 9-1/2" Bed Width of Bed: 15-3/4" Hardness: 42-48 HRC (Hardened and ground ways) Motors & Power Main Motor: 10 HP Electrics: 220V, 3-phase Dimensions 134" L x 44" W x 63" H Weight Approx.: 7,100 lbs 18-3 x 80 Summit Gap Bed Engine Lathe w/Taper 10" 3 Jaw Chuck 4 Way Toolpost Quickchange Toolpost w/Holders Coolant tank w/pump Inch/Metric Threads Thread Dial Taper Attachment, +/- 10 Degrees, 15-3/4" Maximum Turning Length Per Setting Capacities Swing Over Bed: 18" (or 18-1/4") Swing Over Cross Slide: 9-1/2" Swing Over Gap: 26" Distance Between Centers: 80" Headstock Spindle Bore (Hole Thru): 3" (or 3-1/8") Spindle Nose: D1-8 Camlock Spindle Speeds (No./Range: 12 speeds, 30-2000 RPM) Tailstock 5MT in Tailstock Travel of Spindle Barrel: 9-1/2" Bed Width of Bed: 15-3/4" Hardness: 42-48 HRC (Hardened and ground ways) Motors & Power Main Motor: 10 HP Electrics: 220V, 3-phase Dimensions 134" L x 44" W x 63" H Weight Approx.: 7,100 lbs https://www.youtube.com/watch?v=ju45DE9VQCI

Core Specifications

Manufacturer: SUMMIT

Model: 18-3X80

Dimensions: 134 in L x 44 in W x 63 in H

Weight: 7,100 lb

Packaging Type: 1 Piece

Condition: Good - Item functions as originally intended, shows minimal signs of wear.
