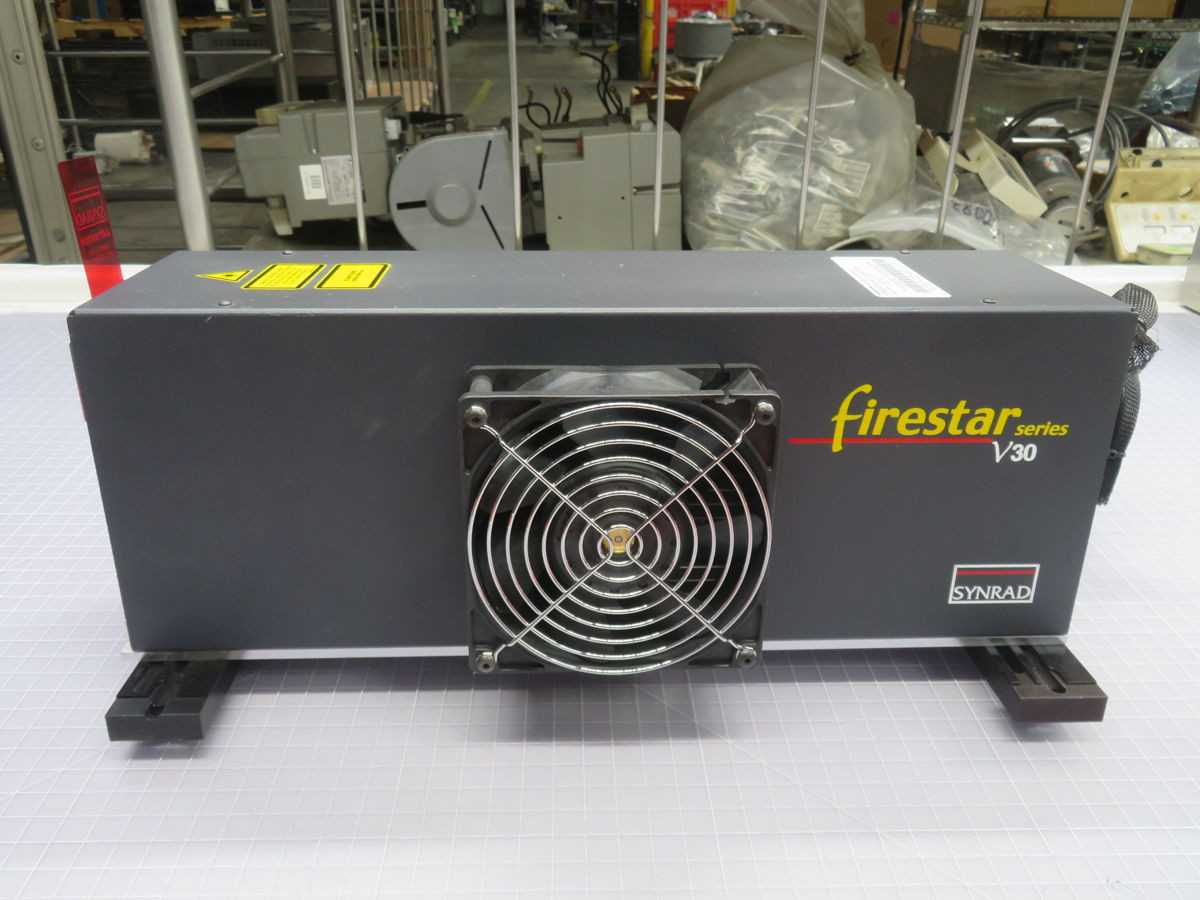

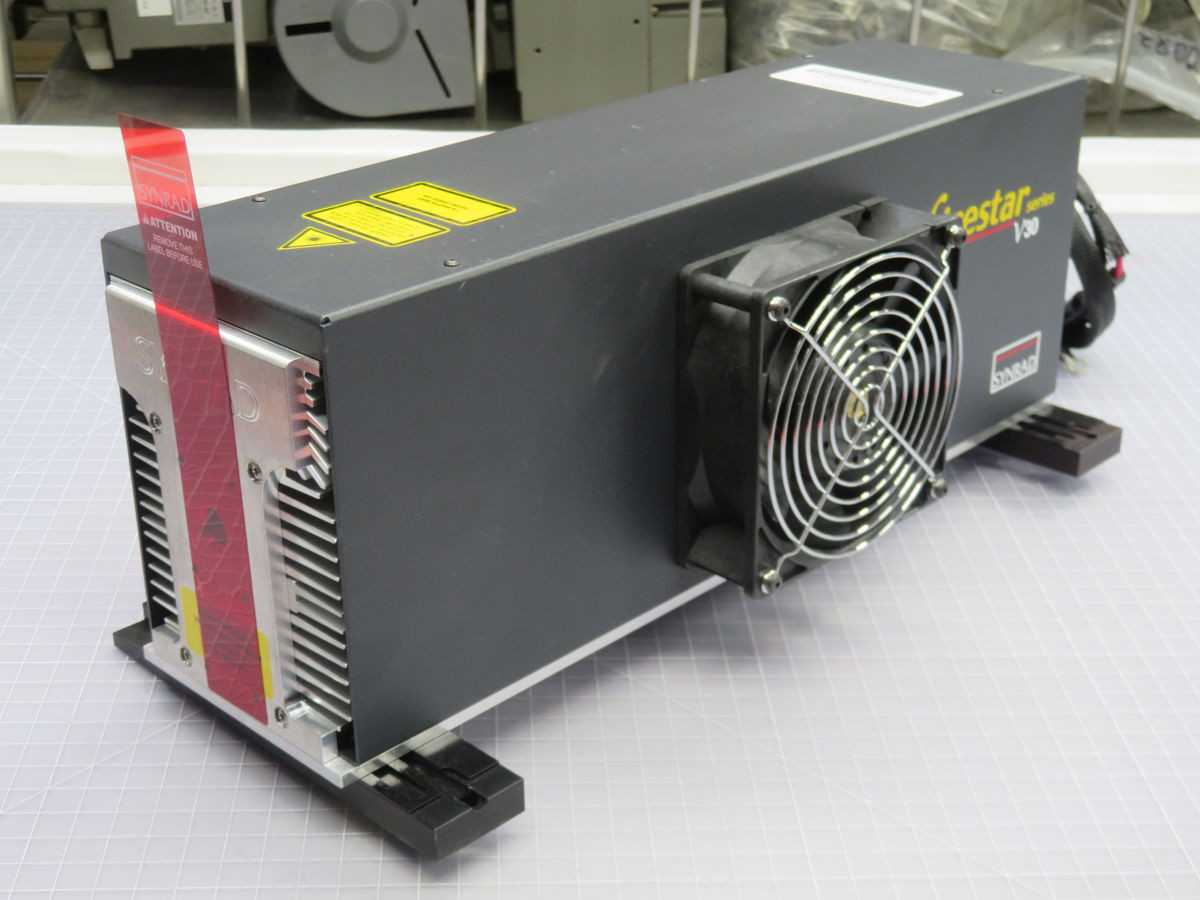

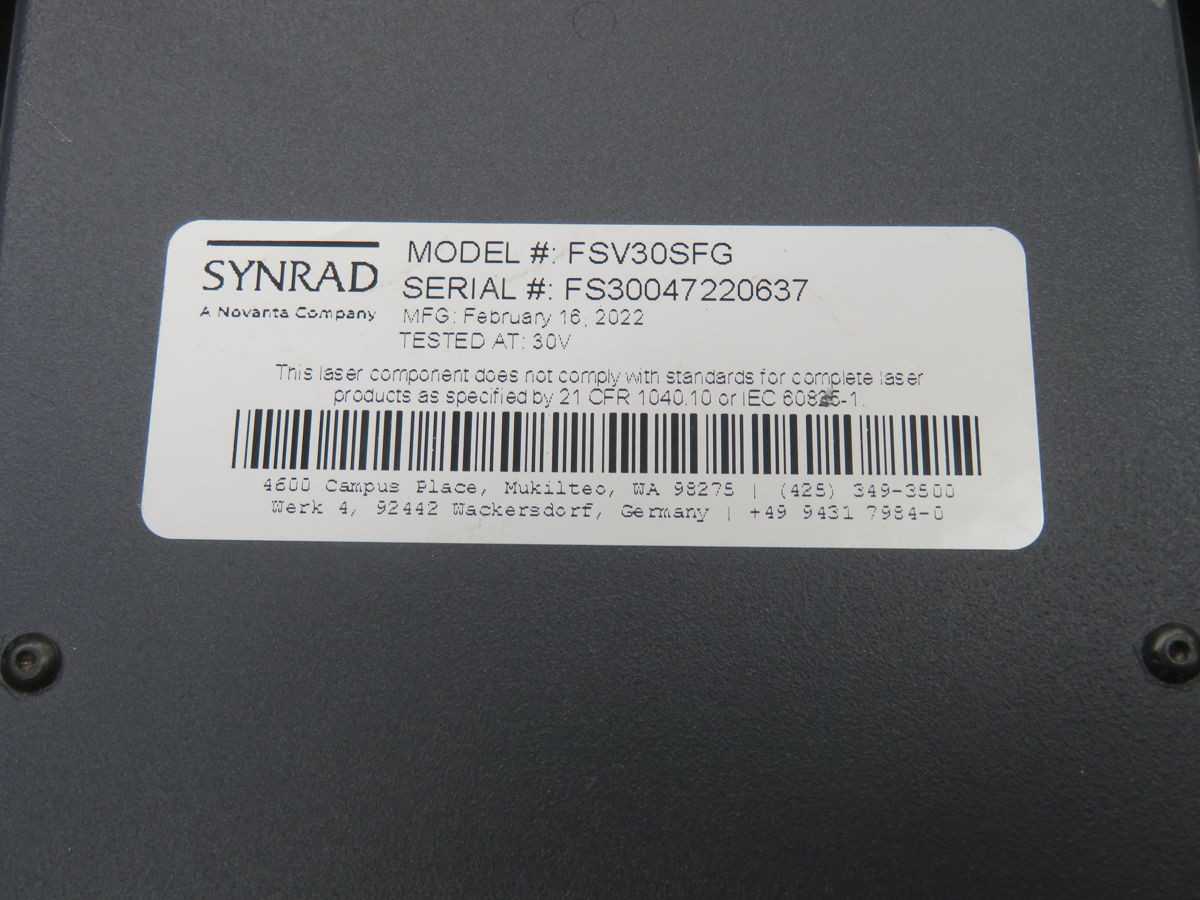

Synrad FSV30SFG Lasers, 30W Power, 10.6ΜM Wavelength, M² < 1.2 Bq, 1.5mm Bd, 3.5MRAD Div

The Synrad FSV30SFG is a 30-watt sealed CO2 laser, representing a specific configuration within the Firestar V30 series. This laser operates at a wavelength of 10.6 Μm, delivering an output power of 30 watts. It is characterized by a high-quality circular beam with an M² beam quality factor of less than 1.2, a 1.5 mm beam diameter at the aperture, and a full-angle beam divergence of approximately 3.5 MRAD. Primarily engineered for industrial marking, engraving, and coding systems, the unit features a compact and rugged design. It supports modulation rates up to 50 kHz and utilizes air-cooling, requiring a 30 VDC input for the laser head.
