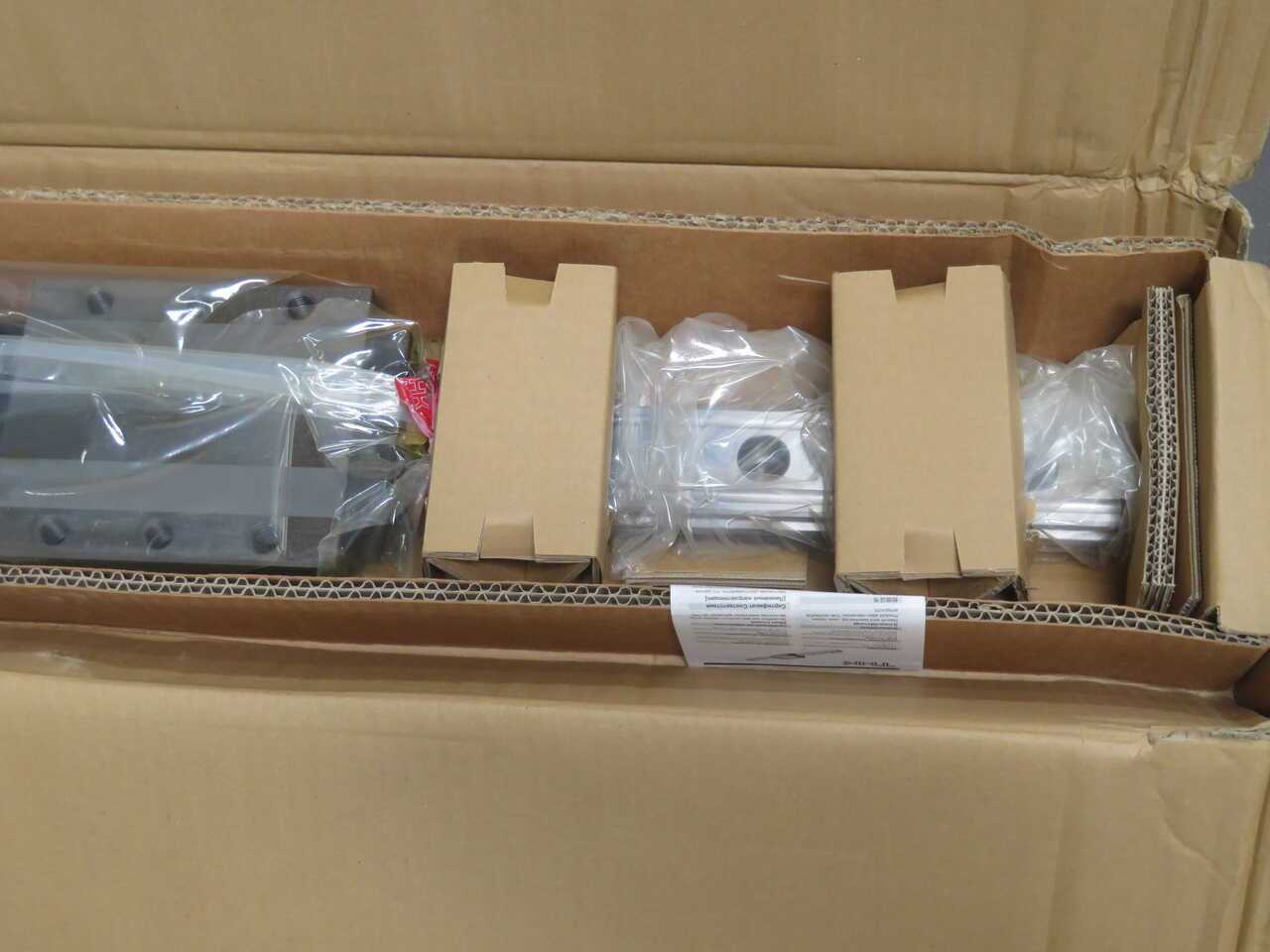

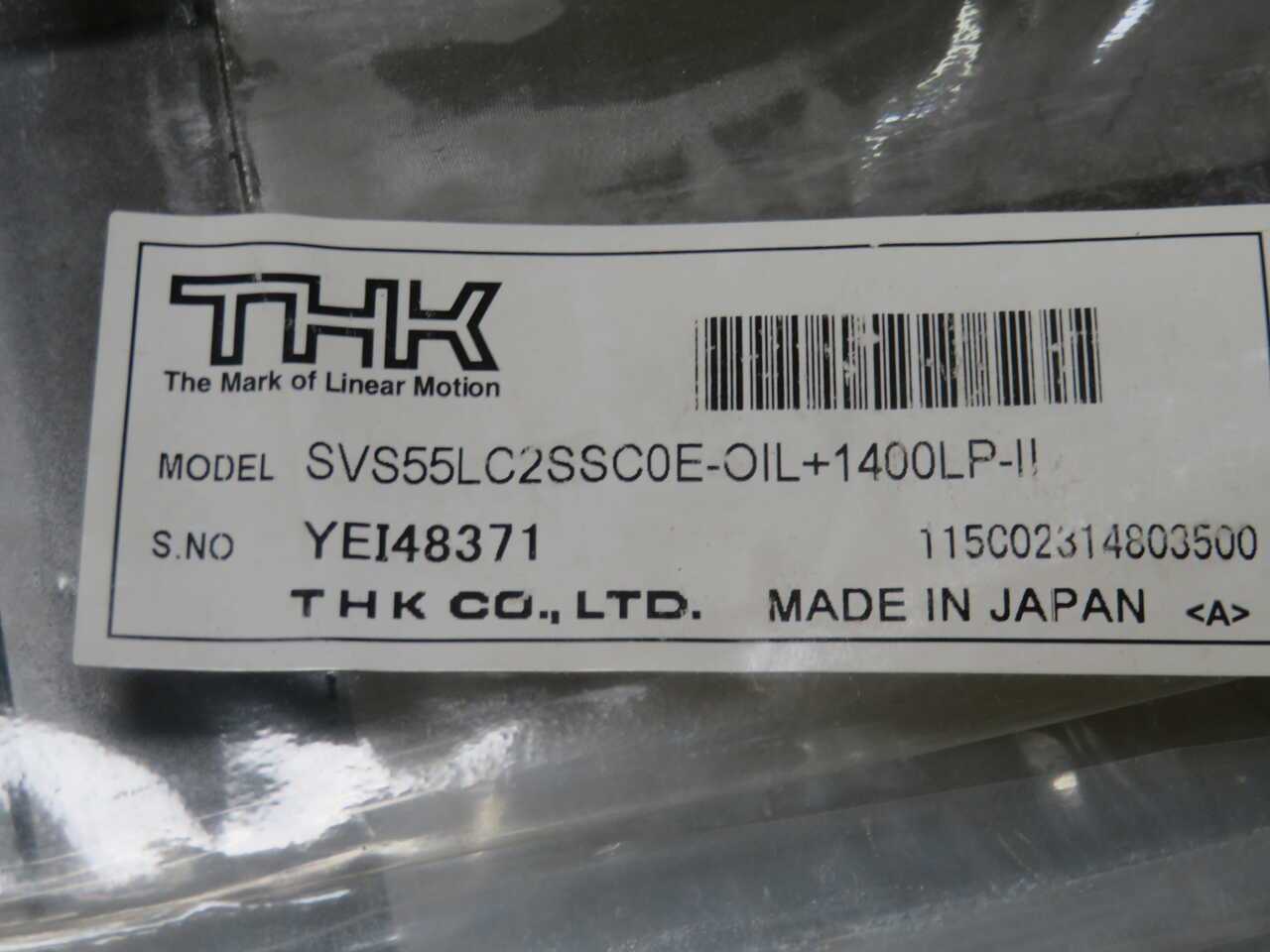

THK SVS55LC2SSC0E-OIL+1400LP-II LM GUIDE, 200.5X140X63 MM, CAGED BALL LINEAR MOTION BLOCK

THE THK SVS55LC IS A HIGH-RIGIDITY, CAGED BALL LINEAR MOTION (LM) GUIDE DESIGNED FOR SUPER-HEAVY LOADS AND HIGH DAMPING IN MACHINE TOOL APPLICATIONS. UTILIZING A FOUR-WAY EQUAL LOAD DESIGN, EACH ROW OF BALLS IS POSITIONED AT A 45-DEGREE CONTACT ANGLE, ENABLING UNIFORM LOAD RATINGS IN RADIAL, REVERSE-RADIAL, AND LATERAL DIRECTIONS FOR VERSATILE MOUNTING ORIENTATIONS. THE MODEL FEATURES DEEP CIRCULAR-ARC RACEWAY GROOVES THAT APPROXIMATE THE BALL DIAMETER, WHICH INCREASES THE BALL CONTACT AREA UNDER LOAD TO ENHANCE LOAD-CARRYING CAPACITY AND VIBRATION DAMPING. THIS SPECIFIC MODEL, SVS55LC, FEATURES A LONGER BLOCK LENGTH OF 200.5 MM, A WIDTH OF 140 MM, AND A HEIGHT OF 63 MM TO DELIVER A SIGNIFICANTLY INCREASED BASIC DYNAMIC AND STATIC LOAD RATING COMPARED TO STANDARD CONFIGURATIONS. SVS MODELS INCORPORATE CAGED BALL TECHNOLOGY TO ELIMINATE FRICTION BETWEEN BALLS, ENSURING LONG-TERM MAINTENANCE-FREE OPERATION, REDUCED NOISE, AND EXCEPTIONALLY SMOOTH, HIGH-ACCURACY LINEAR MOTION.
