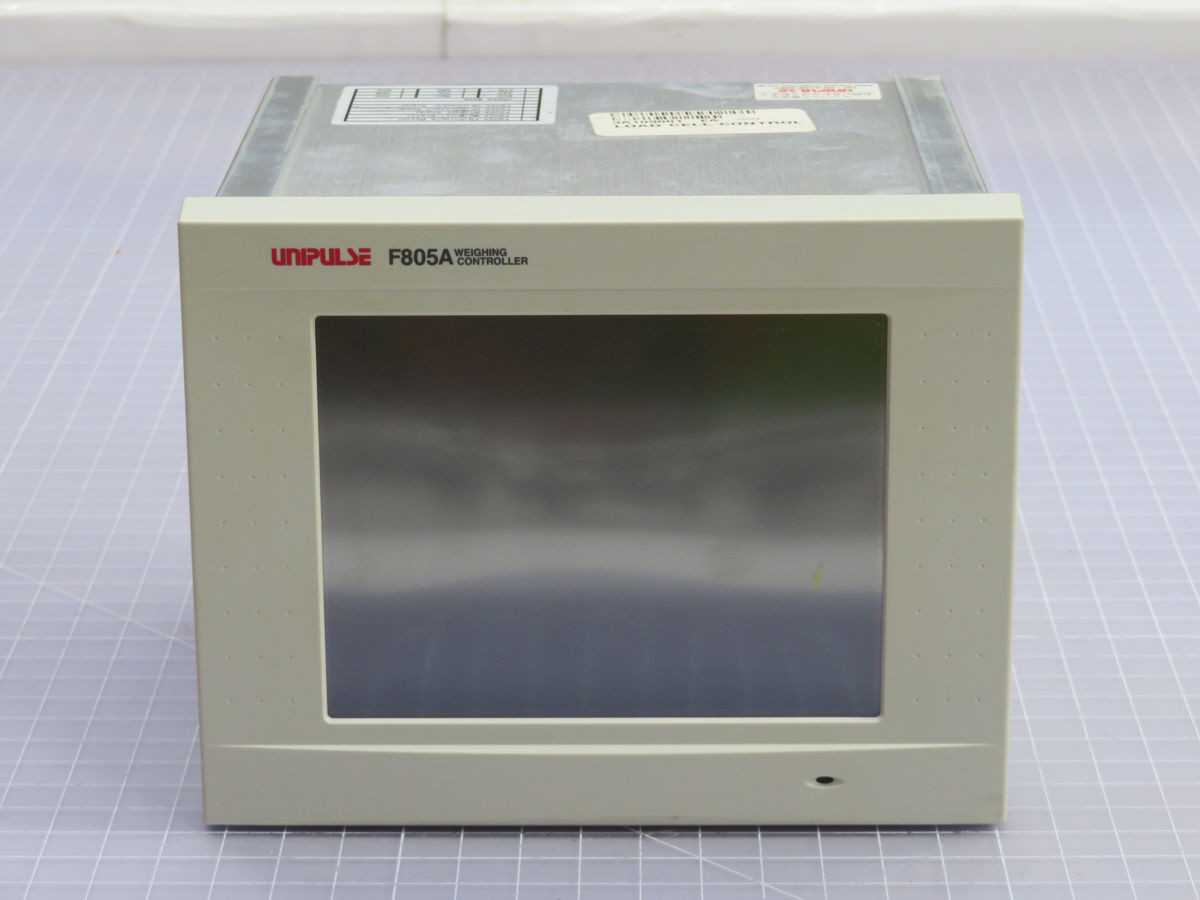

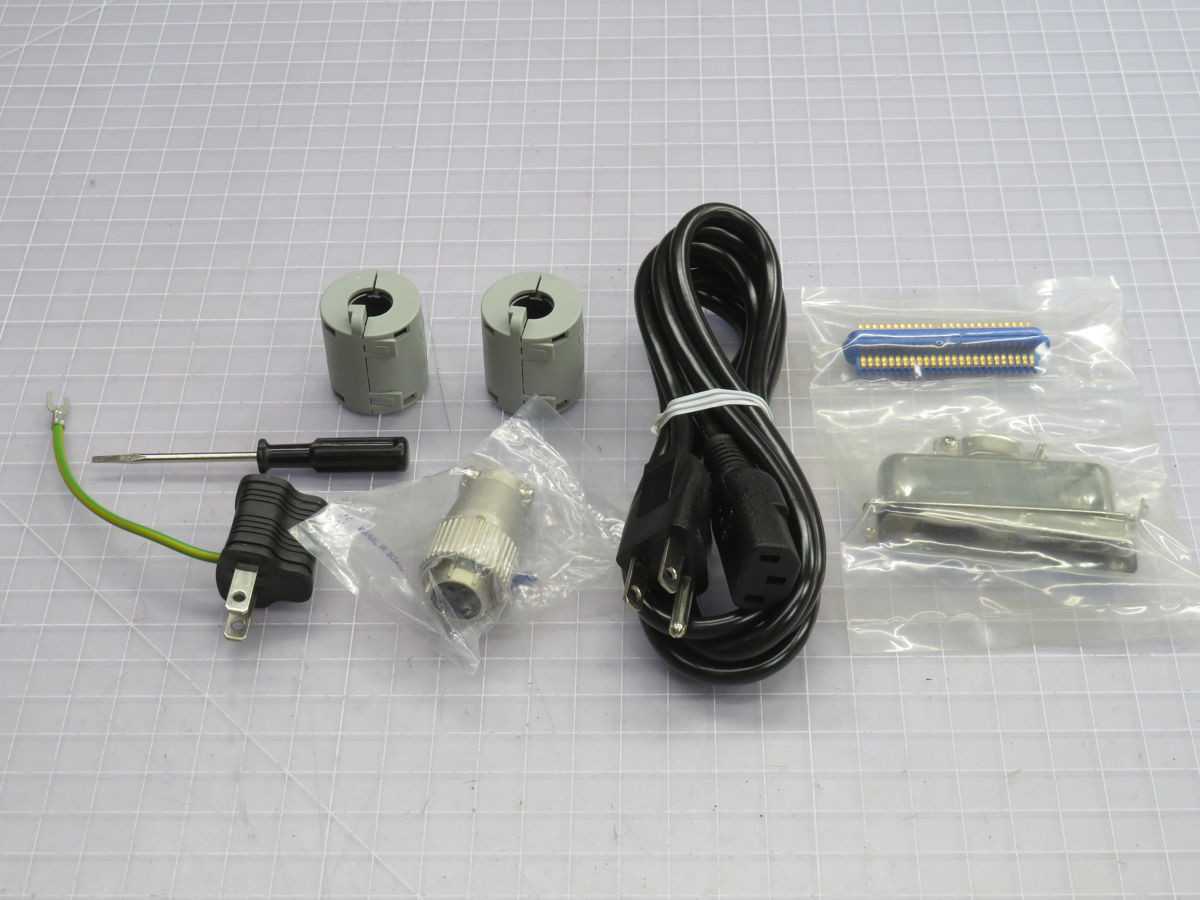

UNIPULSE F805A CONTROL PANELS INTERFACES, WEIGHING CONTROLLER, 24-BIT A/D, 8 DI/8 DO, RS-232C/485

THE UNIPULSE F805A IS A WEIGHING CONTROLLER DESIGNED FOR PRECISE MEASUREMENT AND CONTROL APPLICATIONS. IT INCORPORATES A 24-BIT SIGMA-DELTA A/D CONVERTER WITH A SAMPLING RATE OF 200 TIMES PER SECOND, OFFERING AN INPUT SENSITIVITY OF 0.3ΜV/D AND A NON-LINEARITY OF 0.01% OF FULL SCALE. THE CONTROLLER SUPPORTS LOAD CELL EXCITATION AT DC10V, 120MA, ACCOMMODATING UP TO FOUR 350Ω LOAD CELLS. IT FEATURES 8 PHOTO-COUPLER ISOLATED DIGITAL INPUTS AND 8 PHOTO-COUPLER ISOLATED OPEN COLLECTOR DIGITAL OUTPUTS, RATED FOR DC30V, 100MA. STANDARD COMMUNICATION INTERFACES INCLUDE RS-232C AND RS-485. OPTIONAL COMMUNICATION AND I/O MODULES ARE AVAILABLE, SUCH AS BCD OUTPUT, ANALOG OUTPUT (4-20MA/0-10V), CC-LINK, DEVICENET, PROFIBUS-DP, AND ETHERNET. THE DEVICE UTILIZES A 7-SEGMENT, 7-DIGIT VACUUM FLUORESCENT DISPLAY (VFD) FOR DATA PRESENTATION. POWER REQUIREMENTS ARE 100-240V AC, 50-60HZ, WITH A MAXIMUM POWER CONSUMPTION OF 20W. ITS OPERATING TEMPERATURE RANGE IS -5 TO +40 °C, WITH PHYSICAL DIMENSIONS OF 96 X 96 X 146 MM FOR A 92 X 92 MM PANEL CUTOUT.
