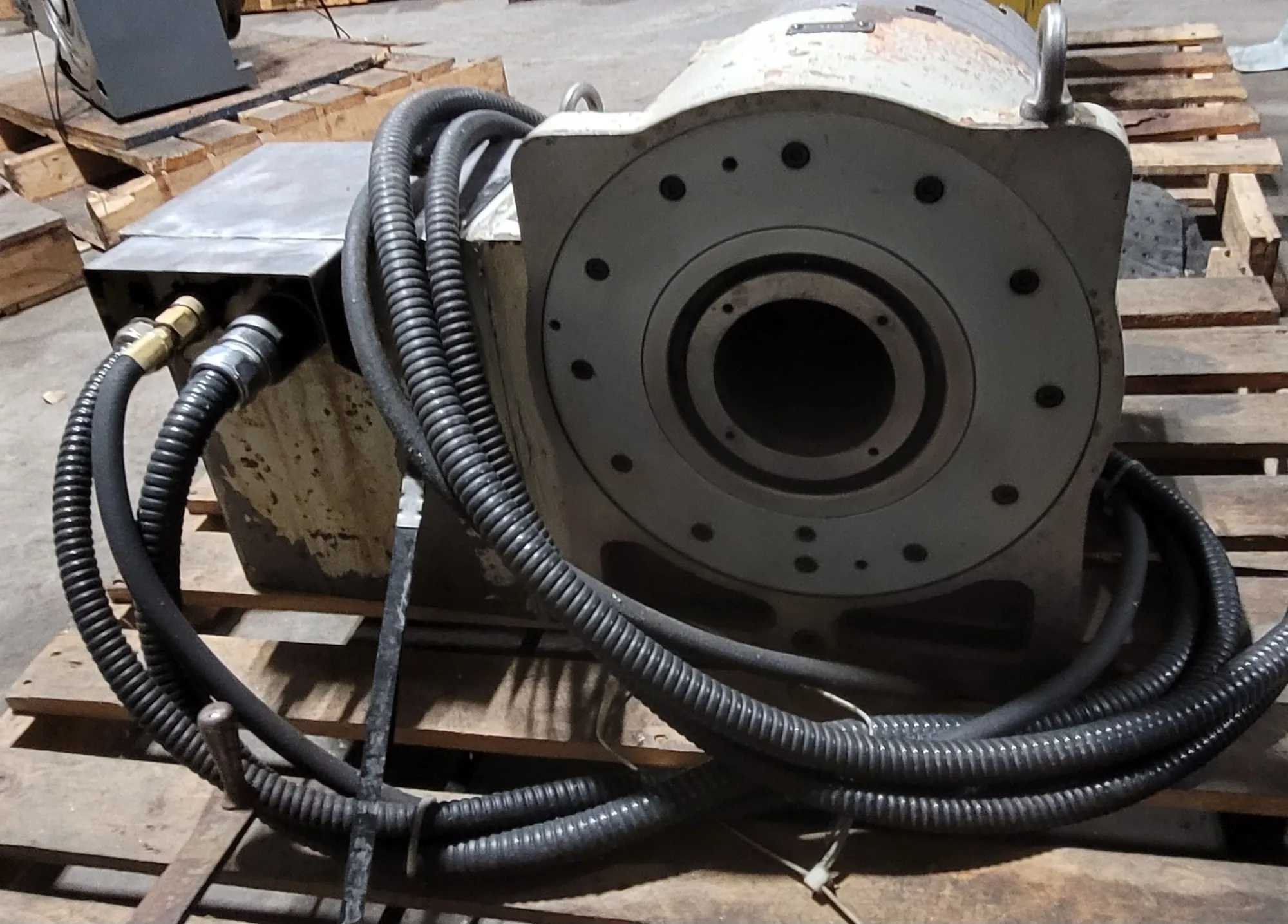

YUASA DMNC-32001 ROTARY TABLE, 12.6 INCH TABLE, 36 RPM, 550 LBS LOAD, 12 INCH 4-JAW CHUCK

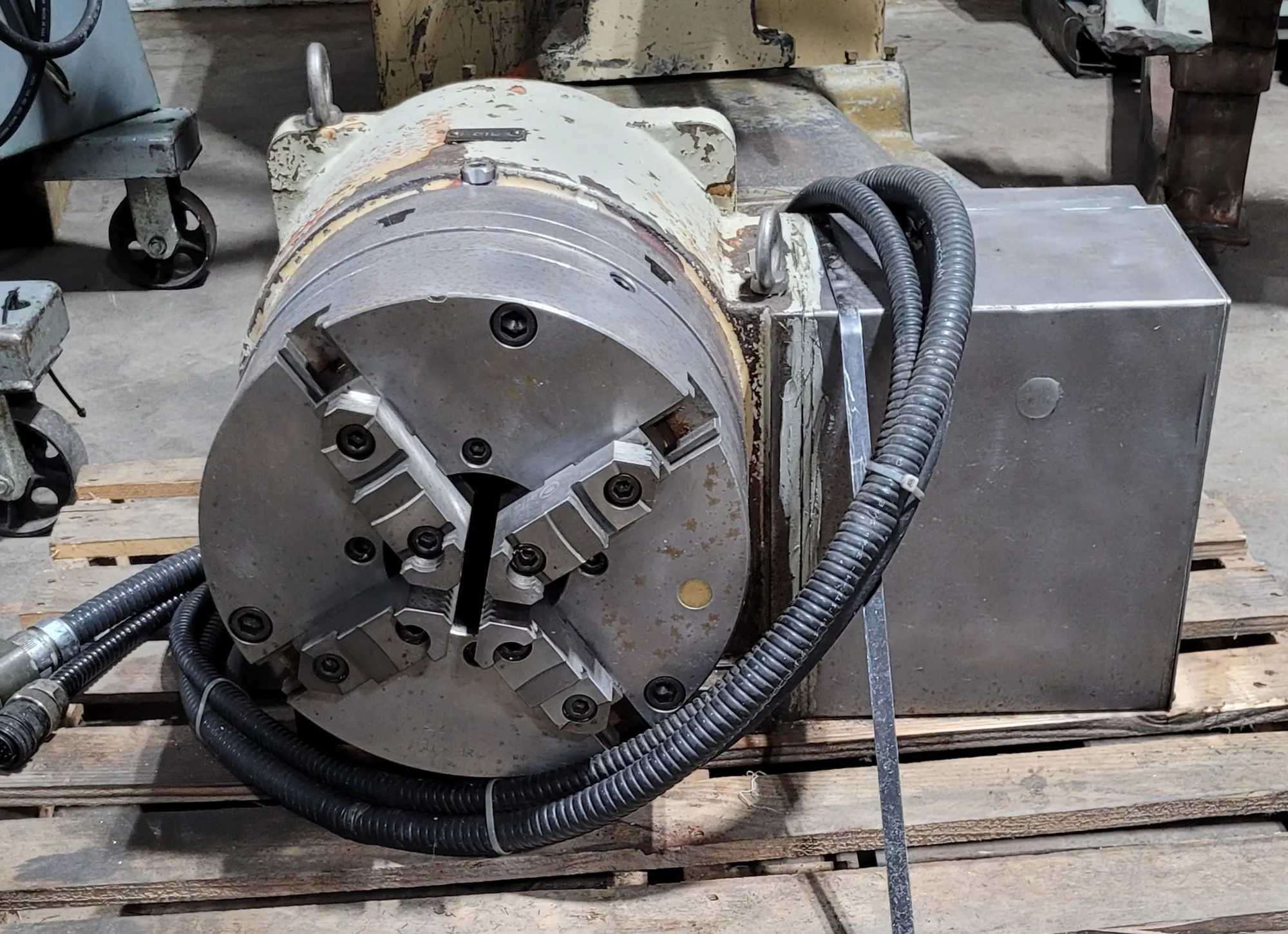

THE YUASA MODEL DMNC-32001 IS A ROTARY TABLE DESIGNED FOR BOTH HORIZONTAL AND VERTICAL OPERATIONS, FEATURING A 12.6-INCH (APPROXIMATELY 320 MM) TABLE DIAMETER AND A T-SLOTTED SURFACE. THIS HIGH-PRECISION UNIT UTILIZES ULTRA-PRECISION SPLIT WORM GEAR TECHNOLOGY AND IS POWERED BY A 1.36 HP MOTOR, ACHIEVING A MAXIMUM ROTATION SPEED OF 36 RPM. IT HAS A CENTER HEIGHT OF 219.96 MM (8.66 INCHES) AND A MAXIMUM HORIZONTAL LOAD CAPACITY OF 250 KG (APPROXIMATELY 550 LBS). THE ASSEMBLY INCLUDES A 12-INCH OVERALL DIAMETER 4-JAW BISON CHUCK.
