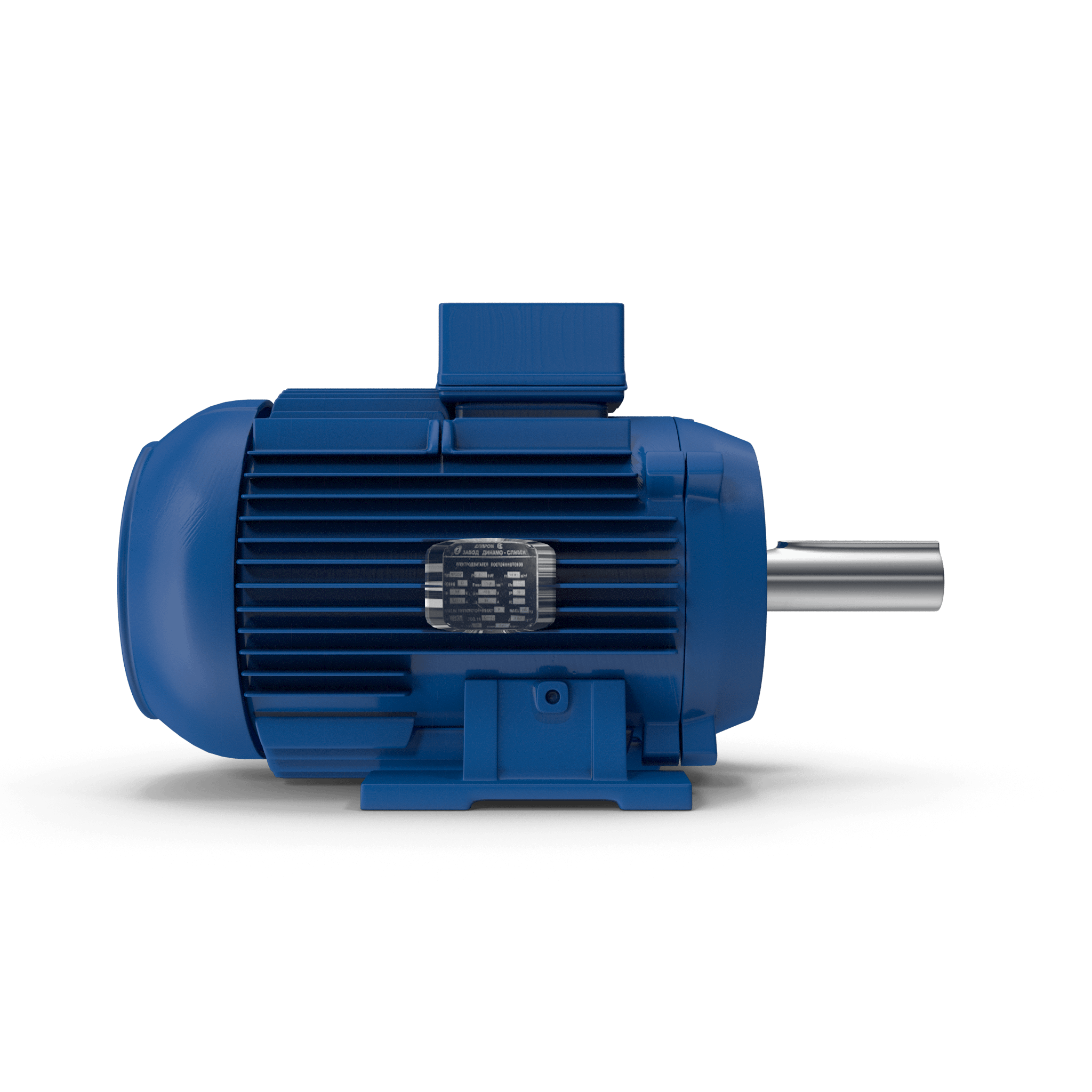

BALDOR ECP4103T 10H292Z624G2 SUPER E XEX MOTOR 25 HP, 284T
Technical Description
THE BALDOR MODEL ECP4103T, ALSO DESIGNATED AS 10H292Z624G2, IS A THREE-PHASE SEVERE-DUTY AC MOTOR. RATED AT 25 HP, THIS NEMA PREMIUM EFFICIENT MOTOR OPERATES WITH A NOMINAL SPEED OF 1800 RPM AT 60 HZ. IT SUPPORTS DUAL VOLTAGE CONFIGURATIONS, TYPICALLY 230/460V. THE MOTOR FEATURES A TOTALLY ENCLOSED FAN-COOLED (TEFC) ENCLOSURE, PROVIDING ROBUST PROTECTION IN INDUSTRIAL ENVIRONMENTS. CONSTRUCTED WITH A 284T FRAME, IT INCORPORATES A SERVICE FACTOR OF 1.25 AND CLASS F INSULATION. DESIGNED TO NEMA B STANDARDS, IT UTILIZES BALL BEARINGS AND IS SUITABLE FOR CONTINUOUS OPERATION IN AMBIENT TEMPERATURES UP TO 40°C.
Technical Attributes
- Motor Frame
- 284T
- # of Phase
- Three Phase
- RPM
- 1800 RPM
- AC Voltage
- 460 V AC
Data Accuracy and Verification
Specifications and technical details are compiled from manufacturer documentation, historical records, and third-party industry sources. While care is taken to ensure accuracy, this information is provided for reference purposes only and may contain errors or omissions. Users should independently verify all details before relying on them.
