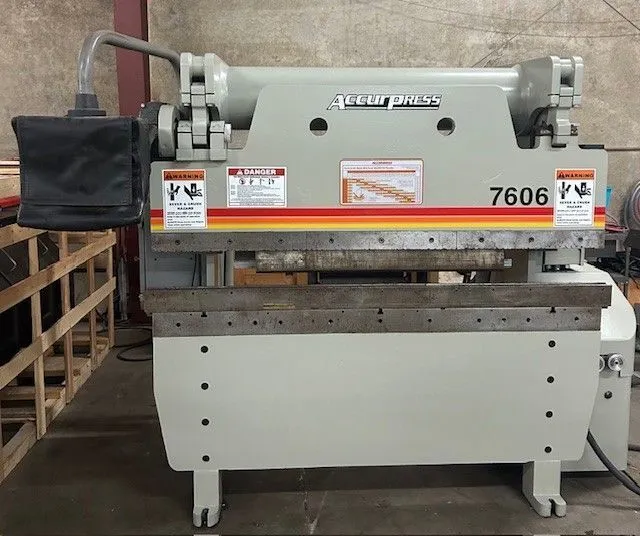

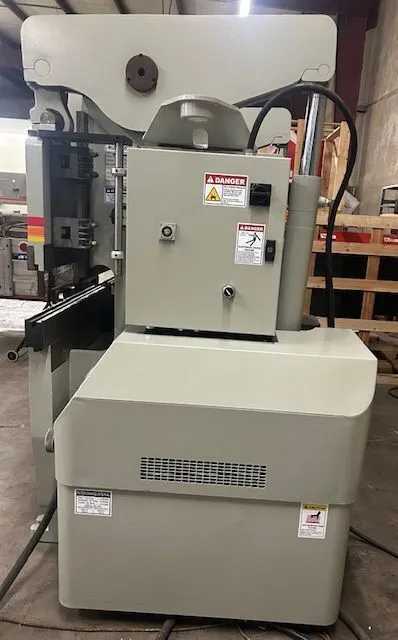

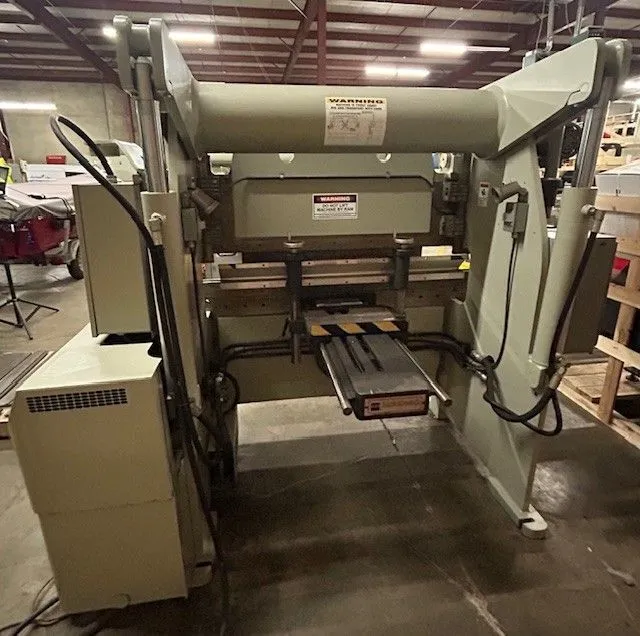

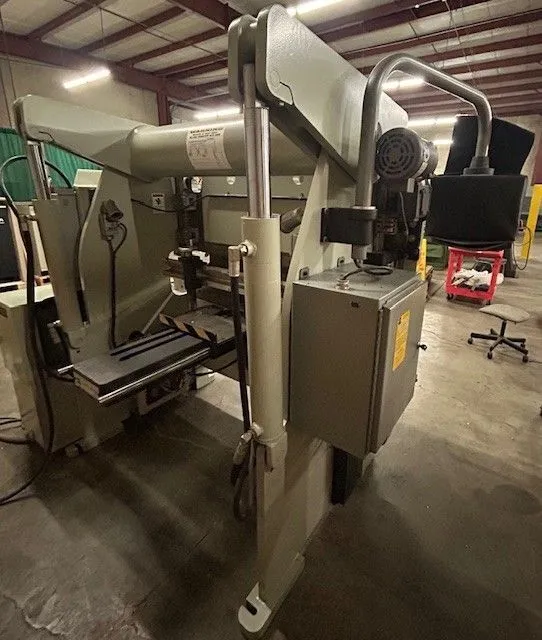

1995 ACCURPRESS 7606 HYDRAULIC PRESS BRAKE, 60 TON, 6' 8" STROKE, CNC HURCO AB7/S6

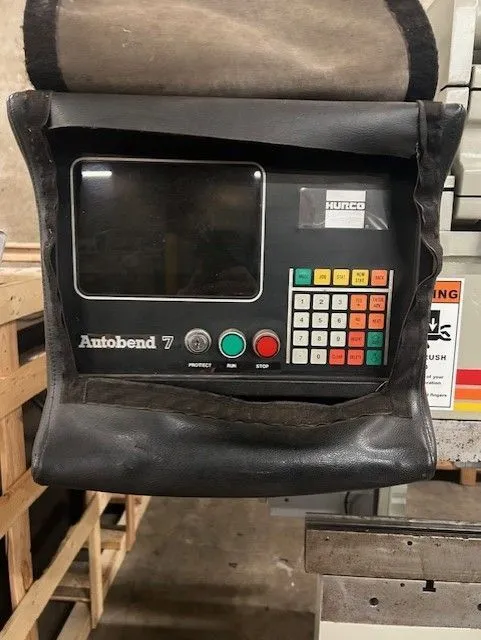

THE ACCURPRESS 7606 IS A HYDRAULIC ROCKER ARM PRESS BRAKE ENGINEERED FOR SHEET METAL AND HEAVY PLATE APPLICATIONS, OFFERING A BENDING CAPACITY OF 6 FEET BY 10 GAUGE AND A TONNAGE CAPACITY OF 60 U.S. TONS. THE MACHINE FEATURES AN OVERALL BED AND RAM LENGTH OF 72 INCHES, WITH A DISTANCE BETWEEN HOUSINGS RANGING FROM 52 TO 54.5 INCHES AND A BED HEIGHT OF 34 INCHES. IT DELIVERS A MAXIMUM RAM STROKE OF 8 INCHES, AN OPEN HEIGHT OF 14 INCHES, A CLOSED HEIGHT OF 6 INCHES, AND A THROAT DEPTH OF 8 INCHES. OPERATING SPEEDS FOR THE RAM INCLUDE A FAST APPROACH SPEED OF 130 INCHES PER MINUTE (IPM), A SLOW BENDING SPEED OF 25 IPM, AND A FAST RETURN SPEED OF 220 IPM. POWER IS SUPPLIED BY A 10 HP MAIN MOTOR, TYPICALLY WIRED FOR 230V/460V THREE-PHASE ELECTRICAL CONFIGURATIONS. THE MACHINE CONFIGURATION INCLUDES A HURCO AB7/S6 CNC CONTROL SYSTEM OPERATING A 3-AXIS BACKGAUGE ALONGSIDE STANDARD FOOT PEDAL OR PEDESTAL CONTROLS. PHYSICAL DIMENSIONS OF THE UNIT ARE APPROXIMATELY 88 INCHES LONG BY 48 INCHES WIDE BY 74 INCHES HIGH, WITH AN ESTIMATED SHIPPING WEIGHT OF 6,000 POUNDS.
