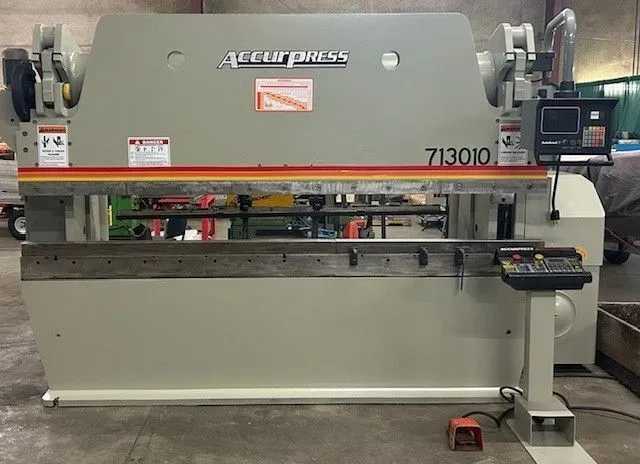

1996 ACCURPRESS 713010 HYDRAULIC PRESS BRAKE, 130 TON, 10' 8" STROKE, 2-AXIS, CNC HURCO AB7/S7

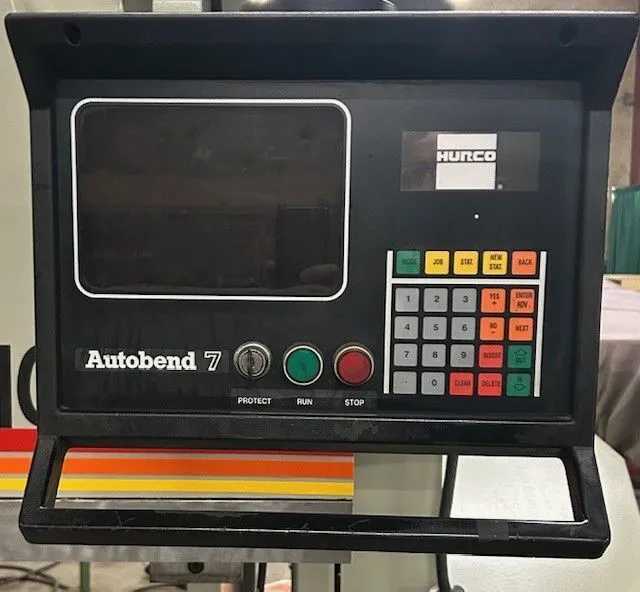

THE ACCURPRESS 713010 IS A HYDRAULIC PRESS BRAKE DESIGNED FOR HEAVY-DUTY METAL BENDING AND PRECISION FABRICATION. MANUFACTURED IN 1996, THIS MODEL DELIVERS A MAXIMUM BENDING CAPACITY OF 130 TONS AND FEATURES AN OVERALL BED AND RAM LENGTH OF 10 FEET (120 INCHES). THE PHYSICAL DISTANCE BETWEEN THE SIDE HOUSINGS MEASURES 8 FEET (96 INCHES) TO ACCOMMODATE SUBSTANTIAL MATERIAL LENGTHS. IT IS ENGINEERED WITH A STANDARD RAM STROKE OF 8 INCHES, AN OPEN HEIGHT OF 14 INCHES, A CLOSED HEIGHT OF 6 INCHES, AND A THROAT DEPTH OF 10 INCHES TO ALLOW FOR COMPLEX DEEP-BOX FORMING. THE MACHINE IS POWERED BY A 15 TO 20 HORSEPOWER MAIN MOTOR, TYPICALLY WIRED FOR 220V/440V THREE-PHASE ELECTRICAL SYSTEMS OPERATING AT 60 HZ. RAM OPERATING SPEEDS CONSIST OF A FAST APPROACH SPEED OF UP TO 115 INCHES PER MINUTE (IPM), A SLOW BENDING SPEED OF 17 TO 24 IPM, AND A FAST RETURN SPEED OF 180 IPM. THIS CONFIGURATION FEATURES A 2-AXIS CNC SYSTEM EQUIPPED WITH A HURCO AB7/S7 CONTROL, GOVERNING THE Y-AXIS RAM CONTROL AND X-AXIS BACKGAUGE FUNCTION. BUILT WITH A ROBUST ROCKER ARM DESIGN AND A TORQUE TUBE MECHANICAL LINK TO MAINTAIN PARALLELISM, IT INCLUDES SELF-LUBRICATING RAM GIBS AND OVERLOAD PROTECTION. THE UNIT IS EQUIPPED WITH A 3-INCH BY 3-INCH BY 10-FOOT LOWER DIE HOLDER WITH TANG. THE PRESS BRAKE HAS APPROXIMATE PHYSICAL DIMENSIONS OF 145 INCHES LONG BY 53 INCHES WIDE BY 91 INCHES HIGH AND CARRIES A WEIGHT OF APPROXIMATELY 15,000 TO 17,000 POUNDS.
