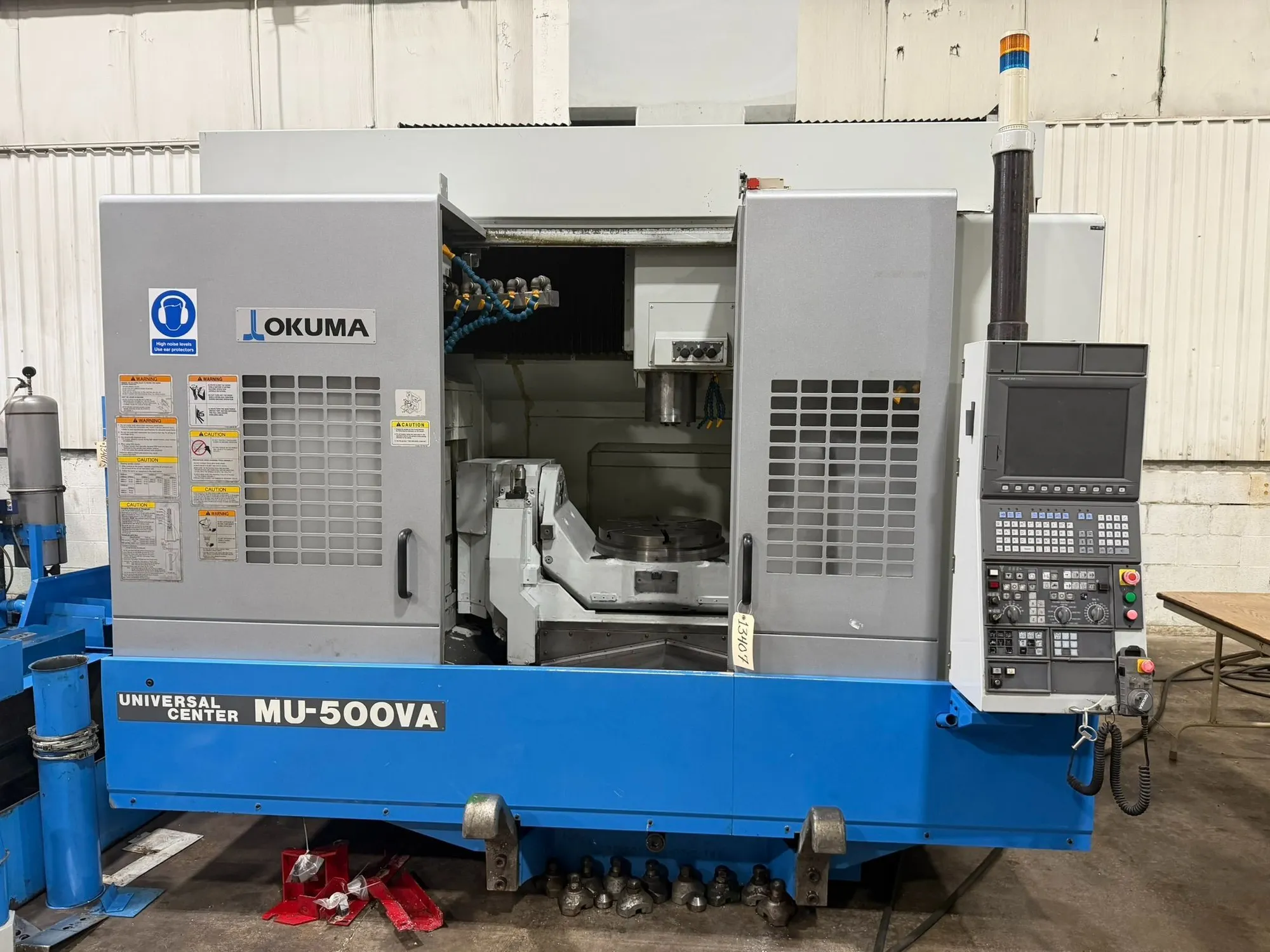

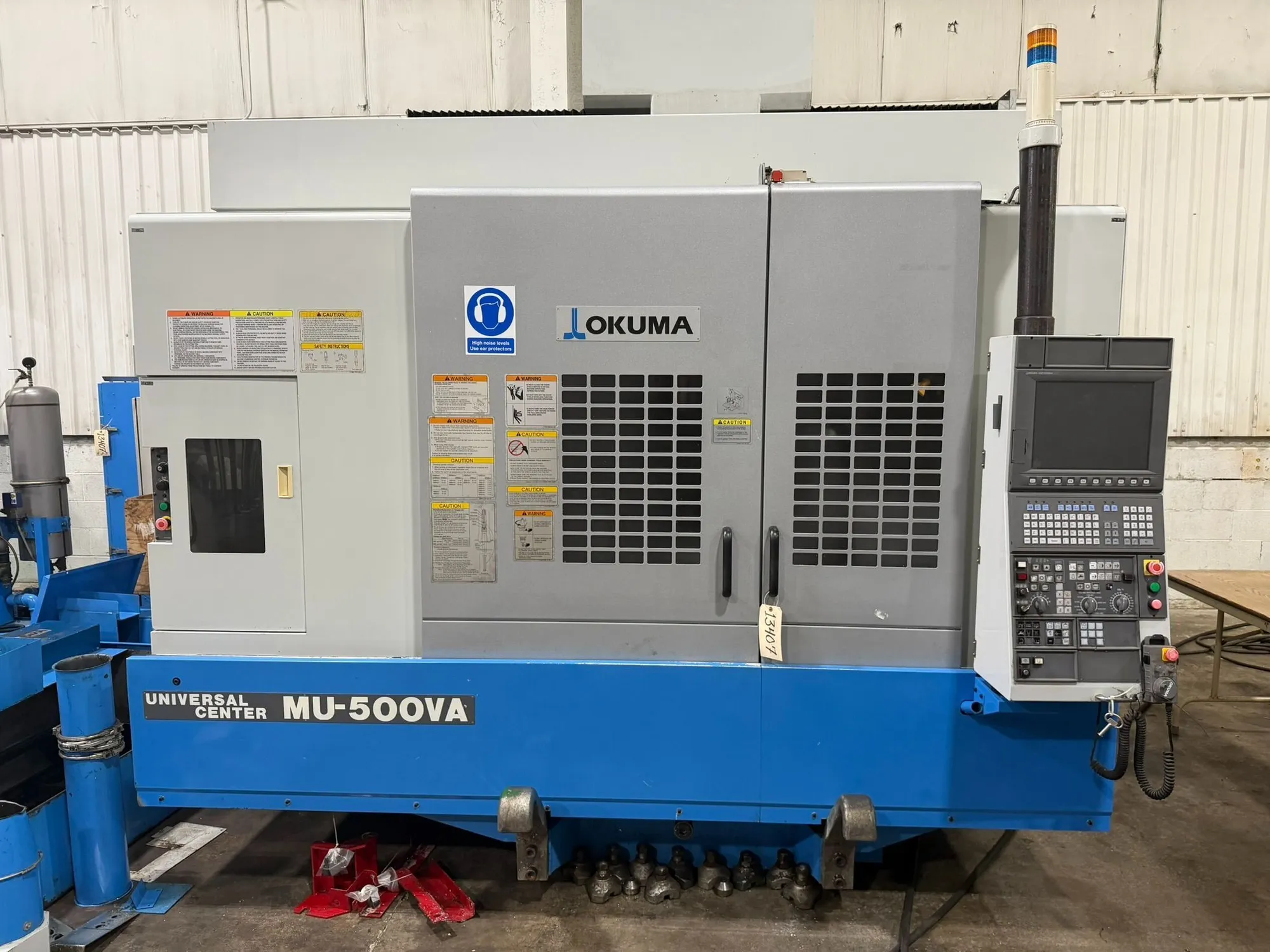

2007 OKUMA MU-500VA 5-AXIS CNC VERTICAL MACHINING CENTER, 15K RPM, OSP P200M-H, 32 ATC

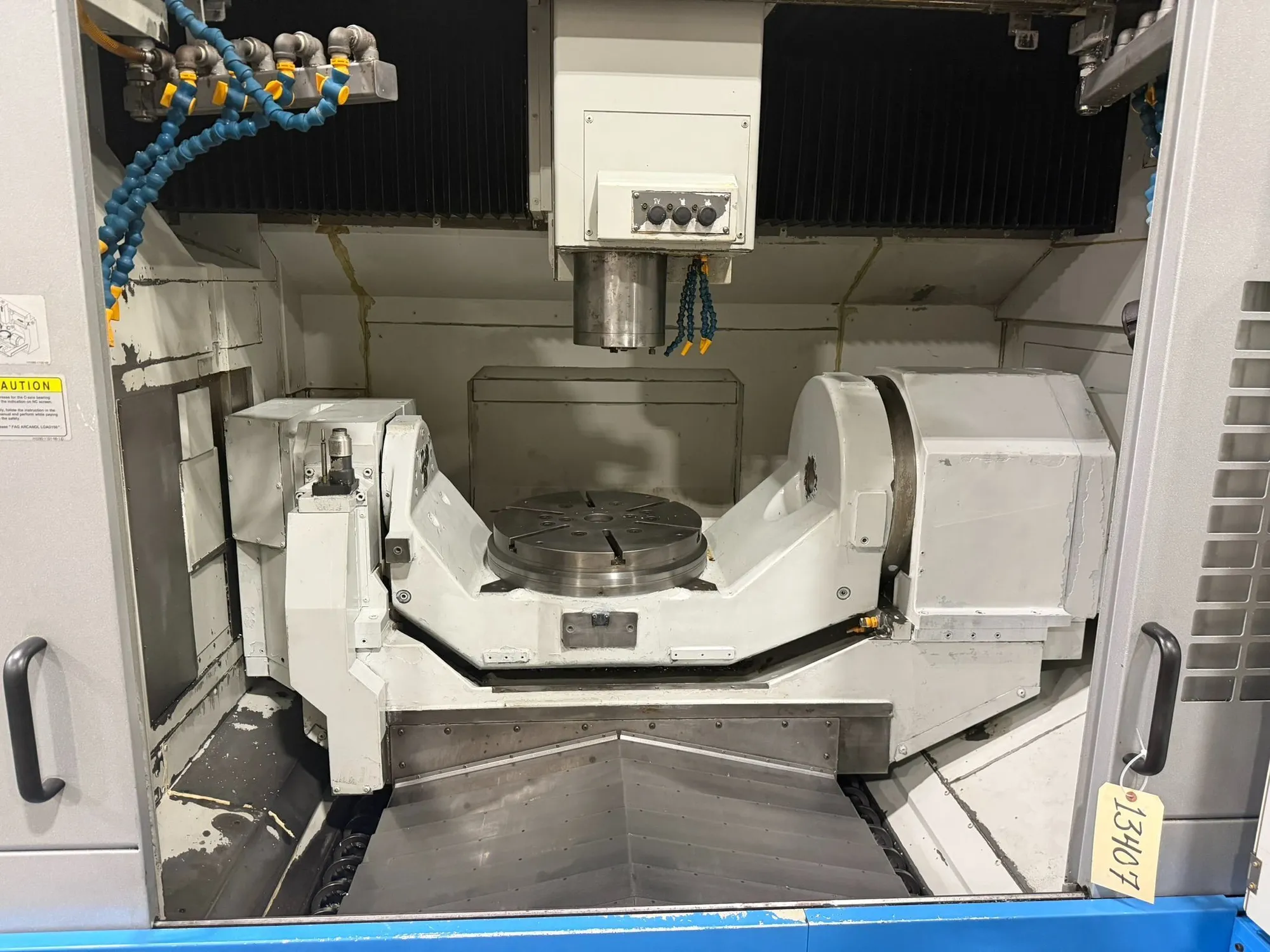

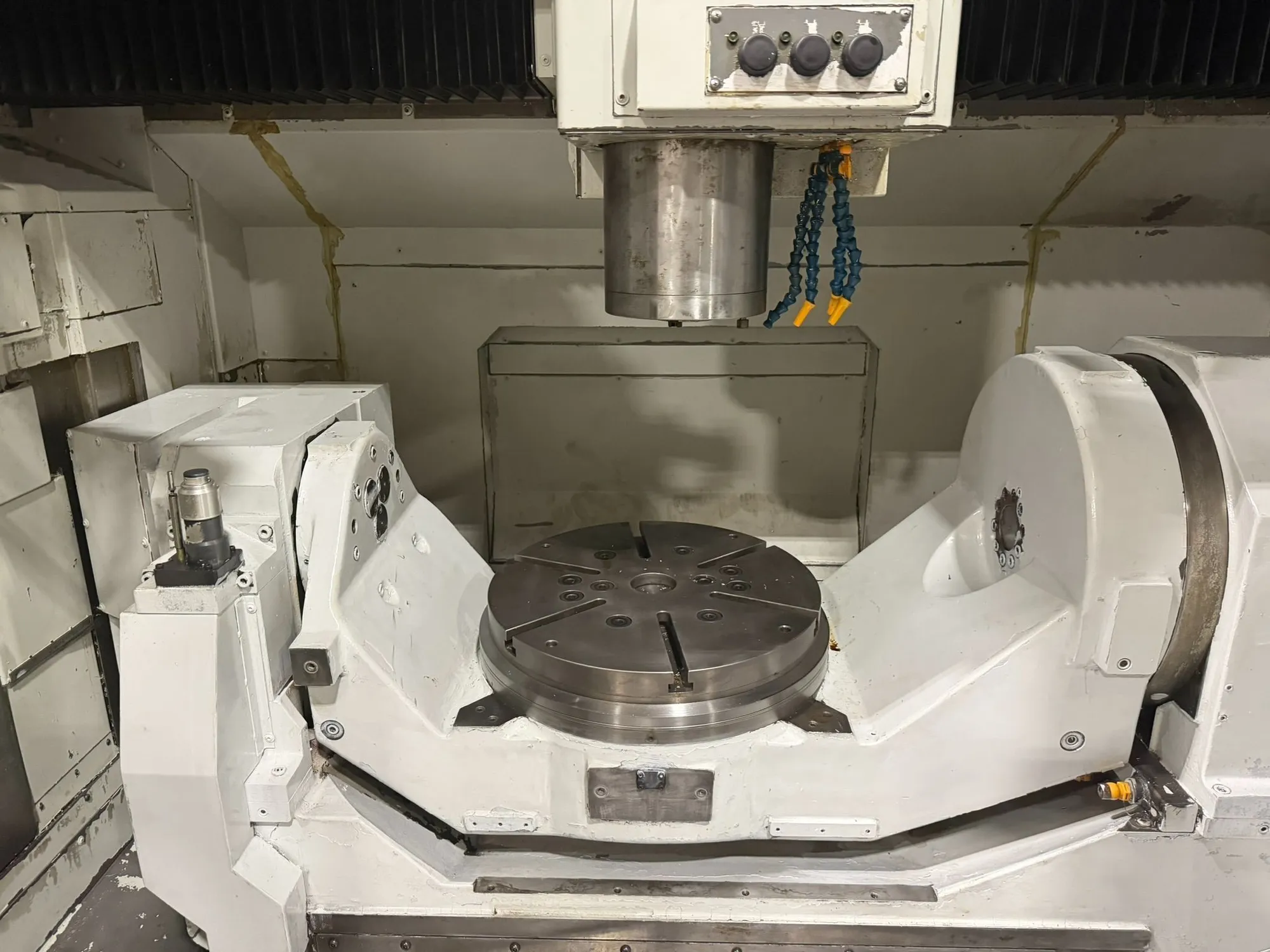

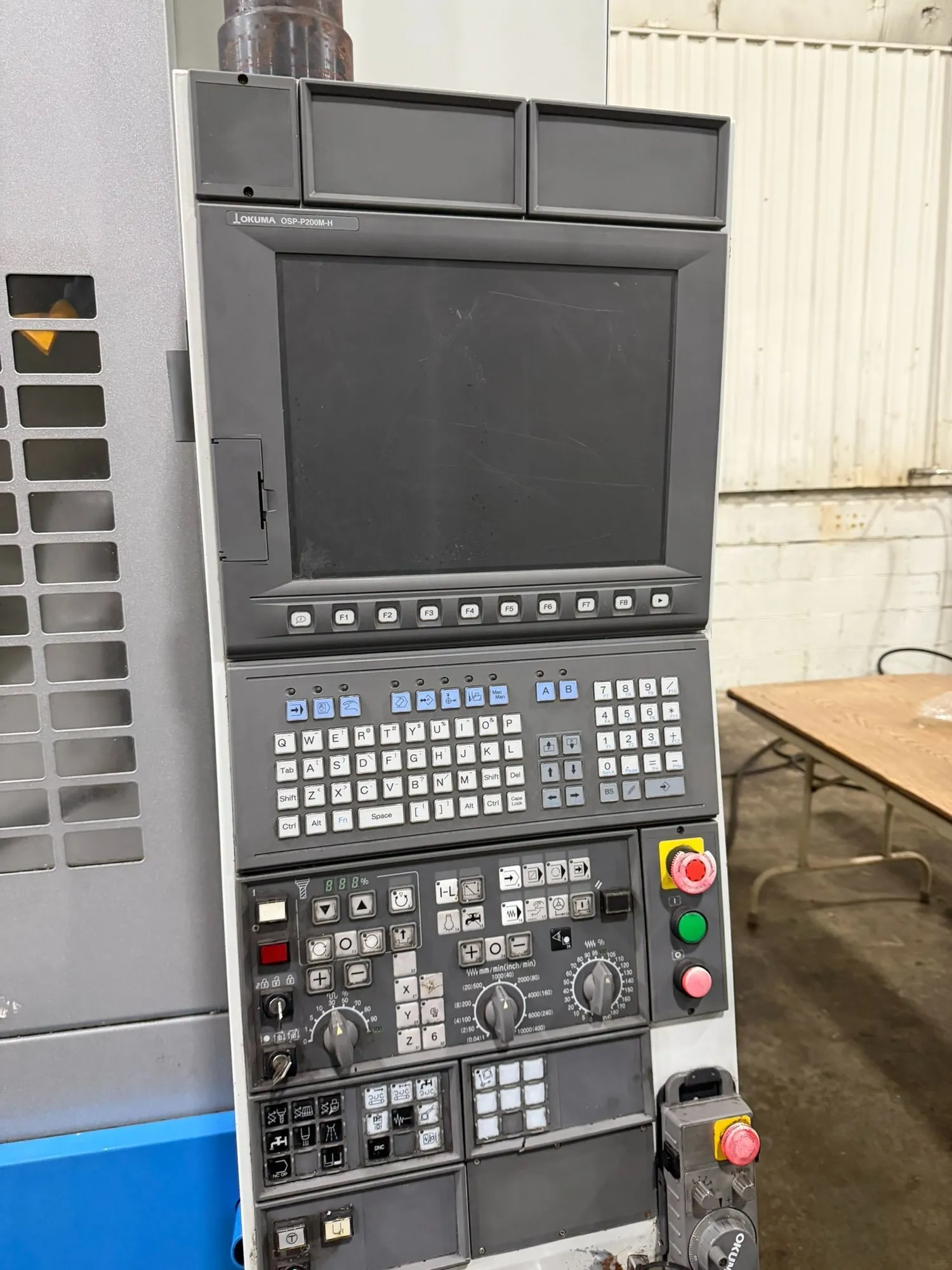

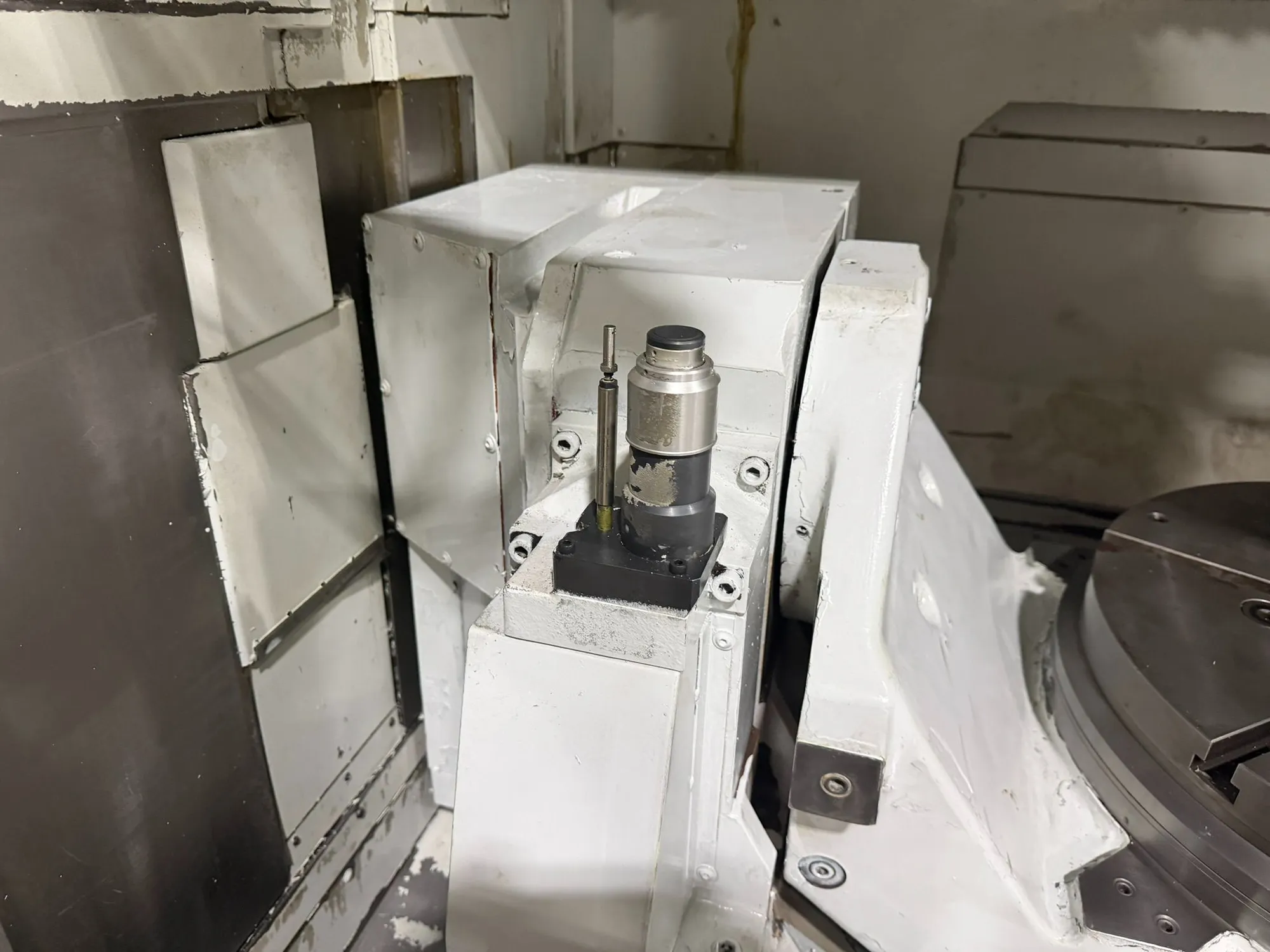

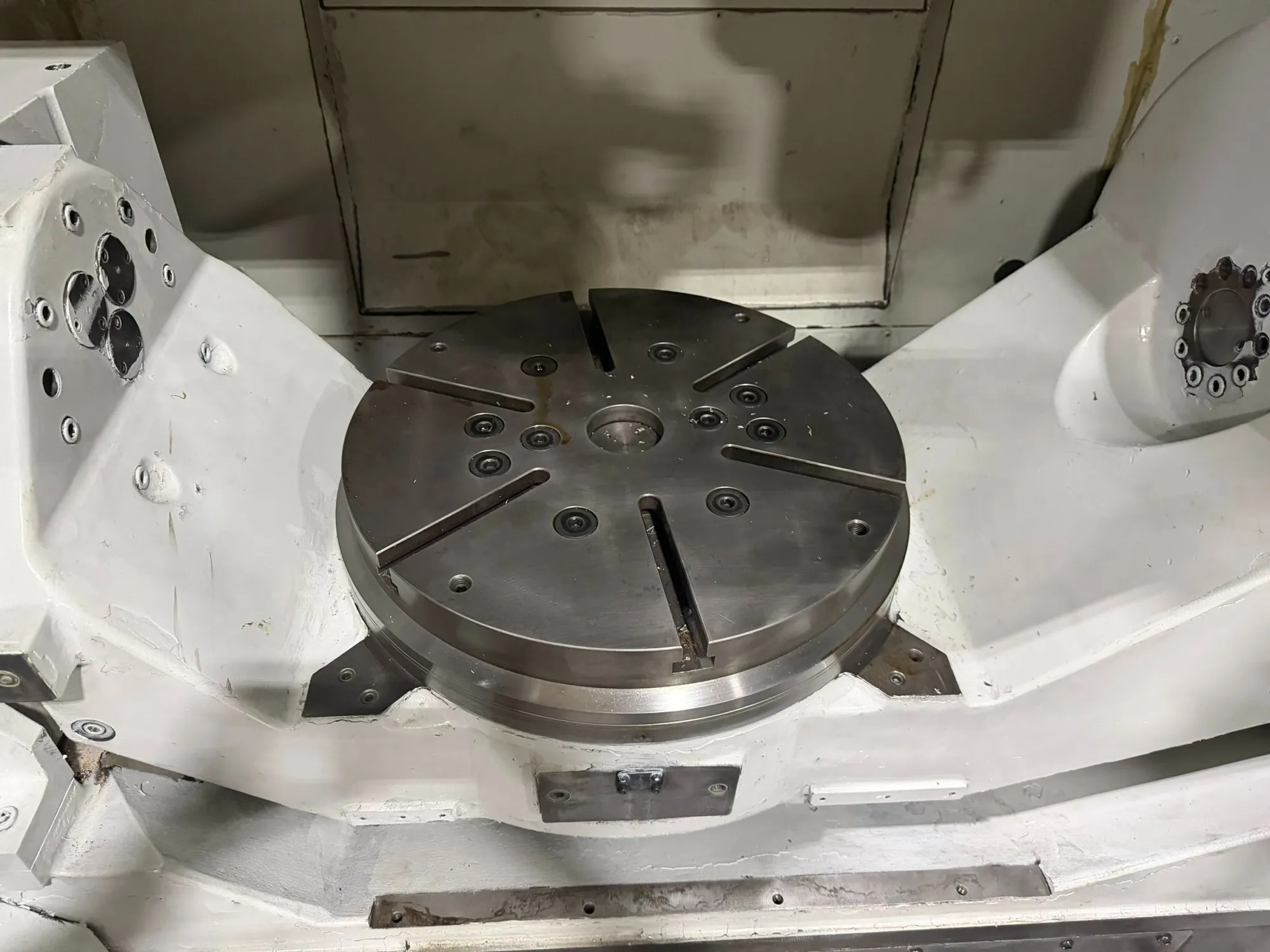

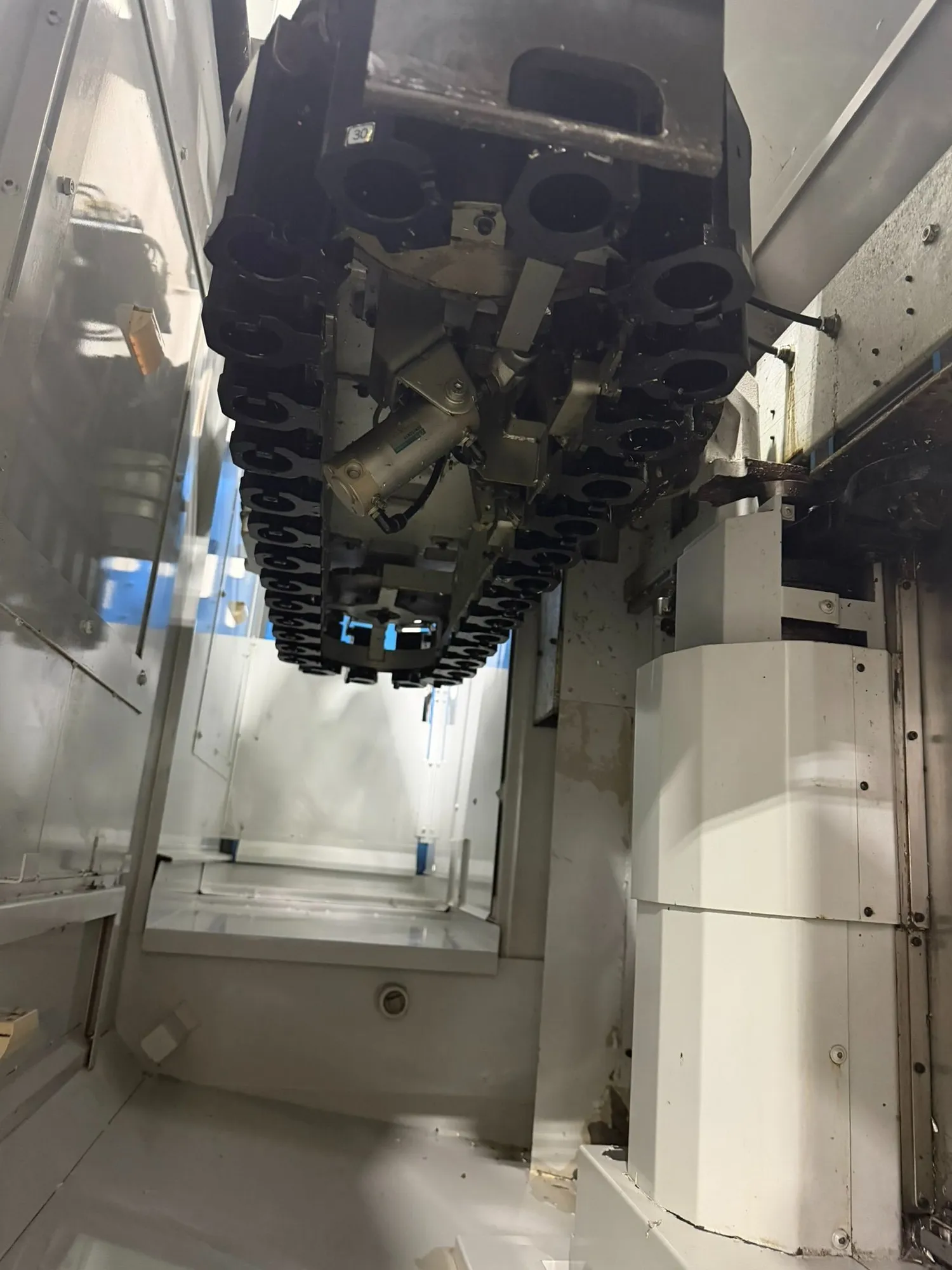

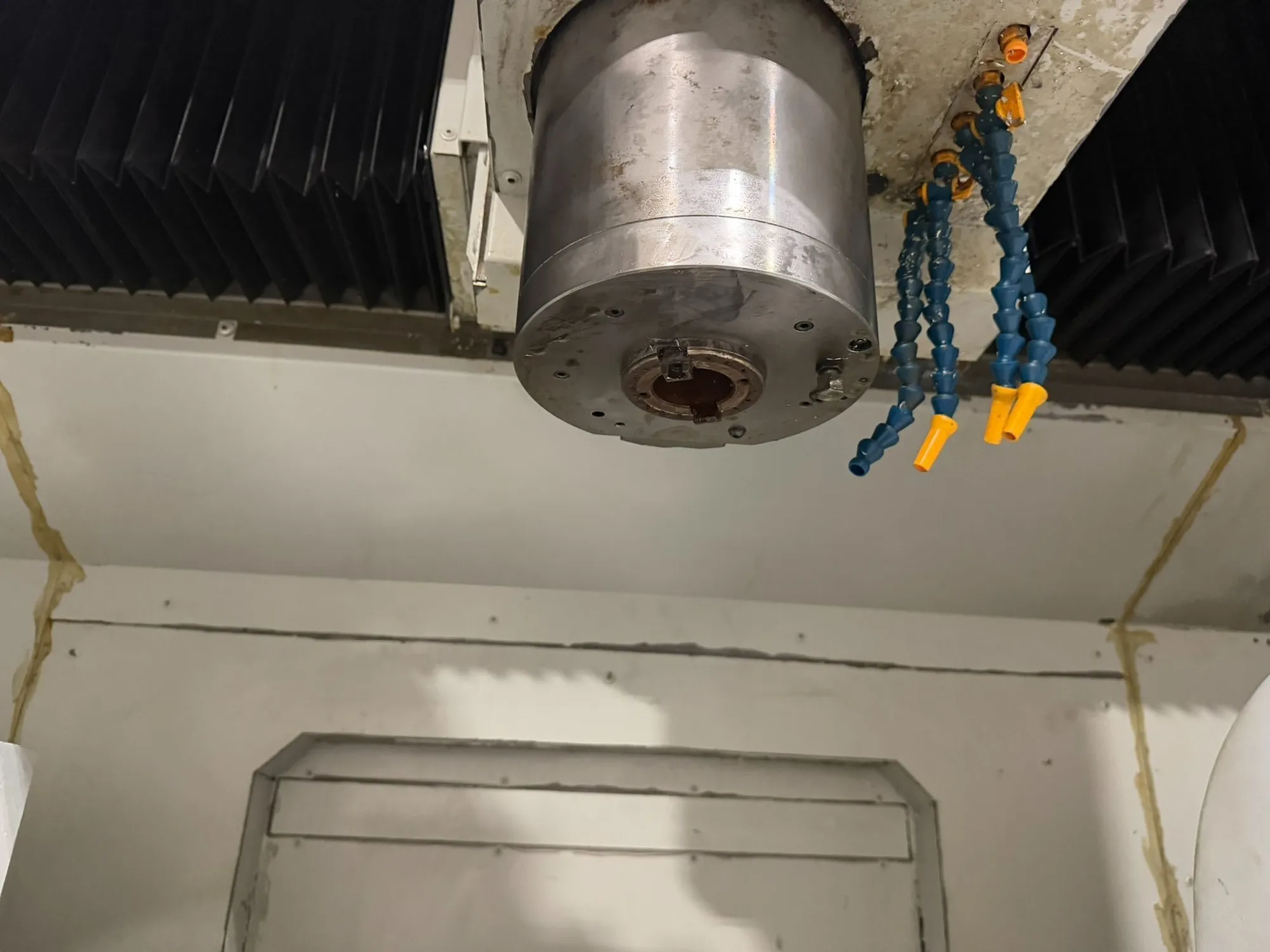

THE OKUMA MU-500VA IS A HIGH-PRECISION 5-AXIS CNC VERTICAL MACHINING CENTER FEATURING A HIGHLY RIGID TRUNNION TABLE DESIGNED FOR SIMULTANEOUS 5-AXIS MACHINING AND COMPLEX MULTI-SIDED OPERATIONS. THIS 2007 MODEL IS EQUIPPED WITH AN OSP P200M-H CNC CONTROL AND OFFERS AN EXPANSIVE WORK ENVELOPE WITH AXIS TRAVELS OF 1,250MM IN X, 660MM IN Y, AND 540MM IN Z. THE ROTARY A-AXIS PROVIDES A RANGE OF +20 TO -110 DEGREES, WHILE THE C-AXIS ALLOWS FOR FULL 360-DEGREE ROTATION. THE MACHINE FEATURES A 500MM DIAMETER ROTARY PLATEN CAPABLE OF SUPPORTING A MAXIMUM LOAD OF 500KG AND ACCOMMODATING WORKPIECES UP TO 730MM IN DIAMETER BY 500MM IN HEIGHT. PERFORMANCE IS DRIVEN BY A 15,000 RPM SPINDLE WITH A 40-TAPER BIG PLUS DUAL CONTACT INTERFACE, POWERED BY AN 11/7.5 KW MOTOR. THE SYSTEM INCLUDES A 32-POSITION AUTOMATIC TOOL CHANGER WITH MEMORY RANDOM TOOL SELECTION, SUPPORTING TOOLS UP TO 400MM IN LENGTH AND 8KG IN MASS. RAPID TRAVERSE RATES REACH 40M/MIN ON THE X AND Y AXES AND 32M/MIN ON THE Z-AXIS, WITH CUTTING FEED RATES UP TO 32M/MIN. STANDARD FEATURES INCLUDE THROUGH-SPINDLE COOLANT, TOOL LENGTH MEASURING, AND A TRUNNION-STYLE 4TH AND 5TH AXIS CONFIGURATION, MAKING IT SUITABLE FOR AEROSPACE AND DIE-MOLD APPLICATIONS REQUIRING HIGH THERMAL STABILITY AND VOLUMETRIC ACCURACY.
