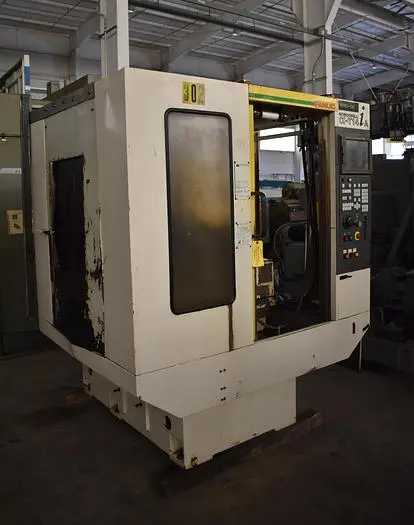

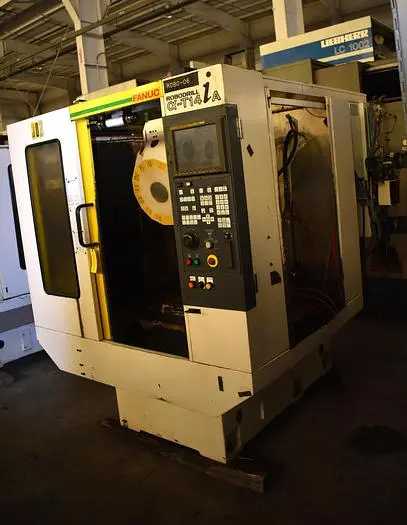

FANUC ALPHA-T14iA Robodrill Vertical Machining Center 4-Axis, BT-30, 8000 RPM, 19.68" x-Travel

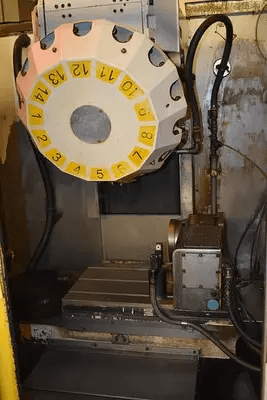

The FANUC "Robodrill" Alpha-T14IA 4-Axis CNC Vertical Drilling & Tapping Center is equipped with a FANUC 16-IM CNC control. This machine features a 14-position automatic tool changer and integrates a Nikken model NSVZ-180A21 CNC 4TH Axis rotary indexing table, complemented by a Renishaw tool sensing light. Key specifications include an overall table size of 14.96 inches by 21.6 inches. Travel limits are 19.68 inches for the X-Axis, 14.96 inches for the Y-Axis, and 11.81 inches for the Z-Axis. The maximum distance from the spindle nose to the table is 17.71 inches, with a minimum clearance of 5.9 inches. The spindle utilizes a #BT-30 taper, driven by a 5.5 kW motor, and offers an infinitely variable speed range from 80 to 8000 RPM. Working feedrates for the X, Y, and Z-axes are 590 IPM, with rapid traverse rates reaching 1889 IPM across all three axes. The unit weighs approximately 3750 lbs.
