2022 Yaskawa AR2010 Robotic Welder with Miller Auto-Continuum 500 Welder

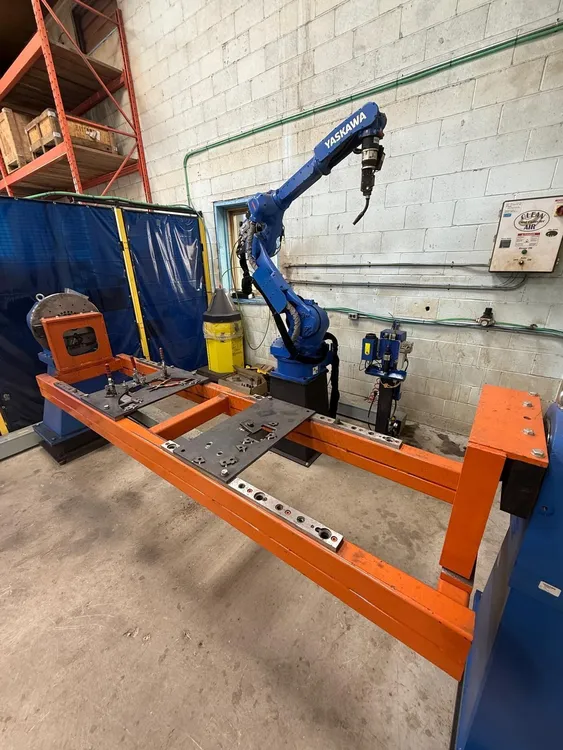

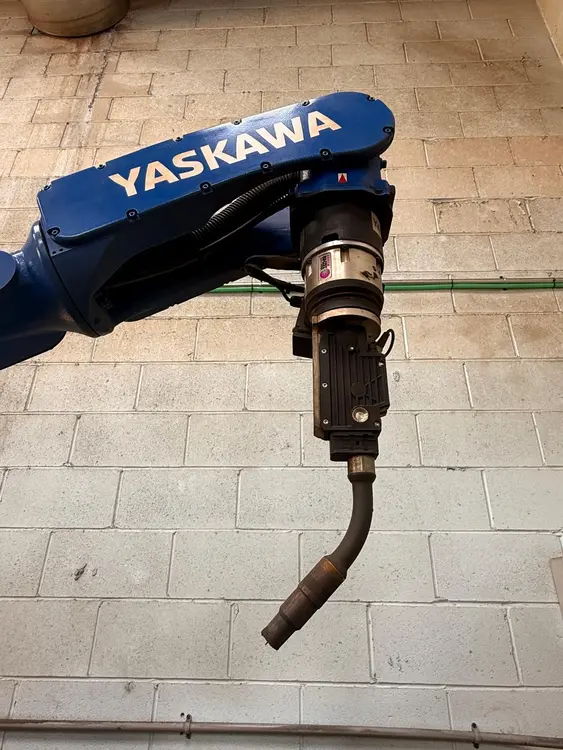

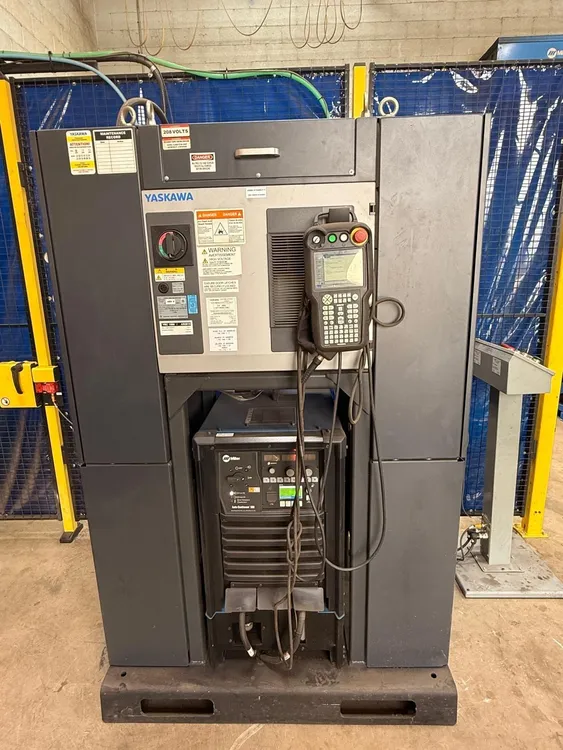

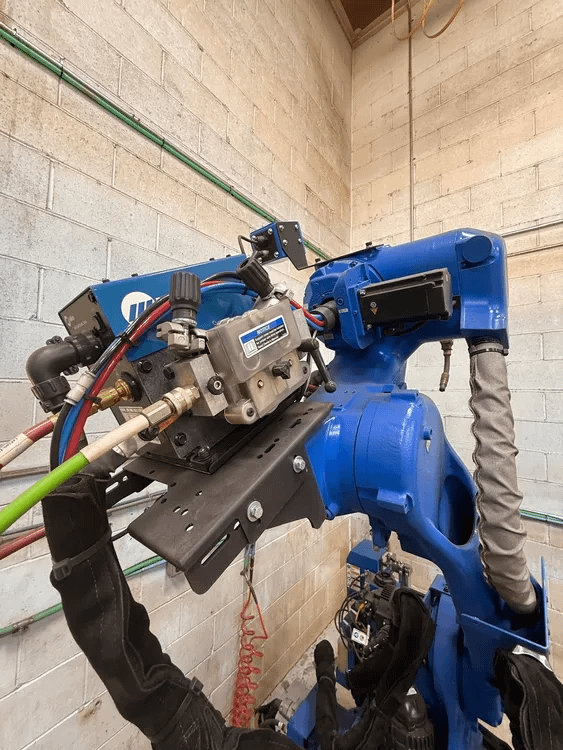

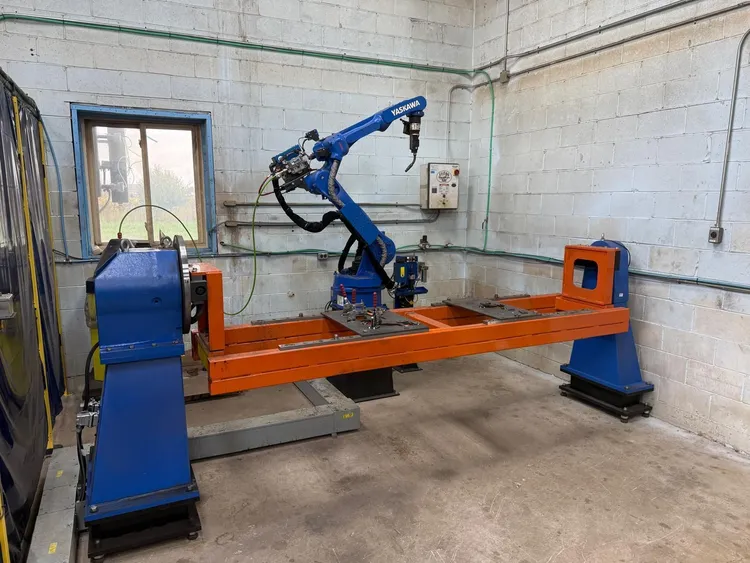

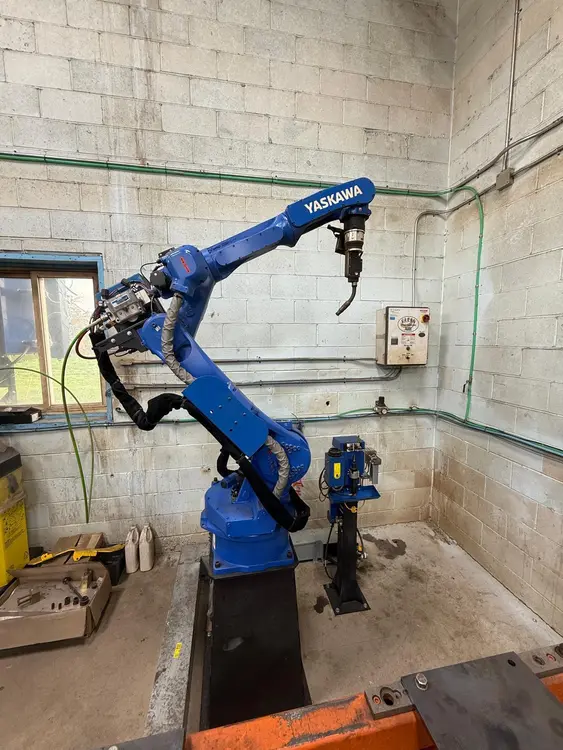

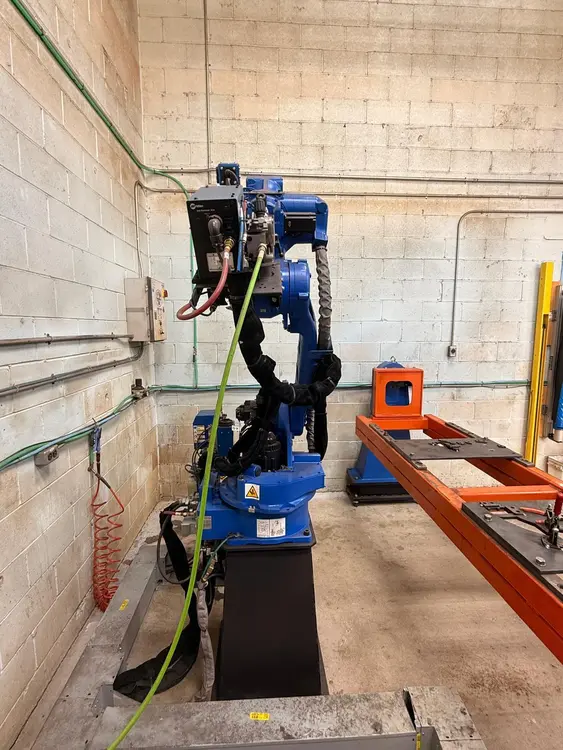

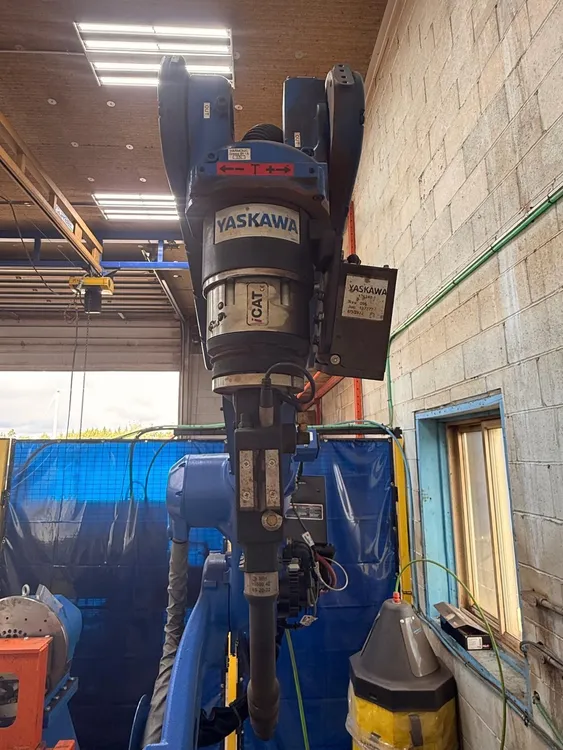

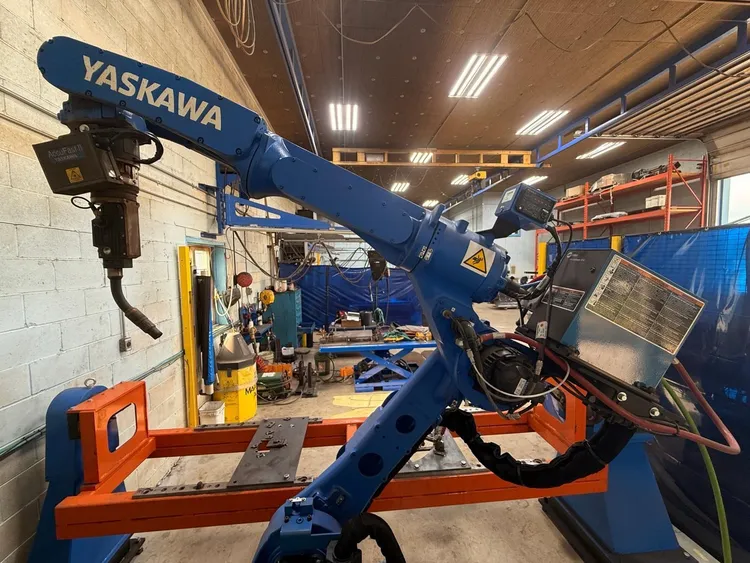

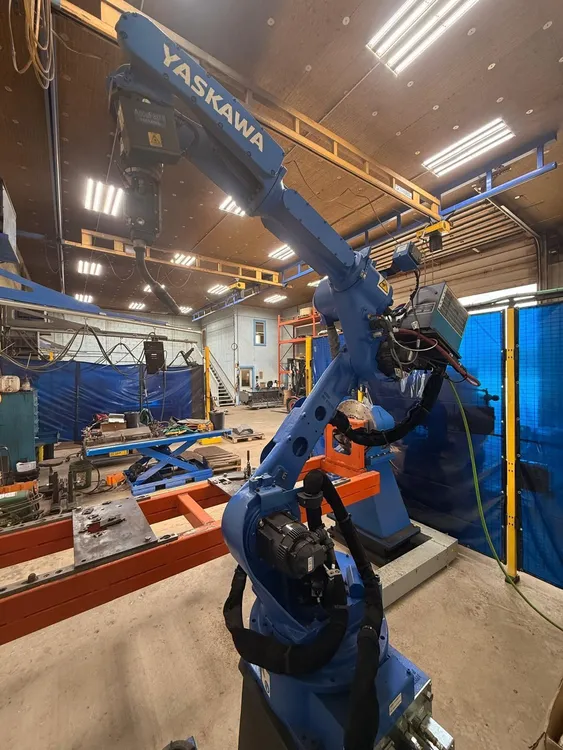

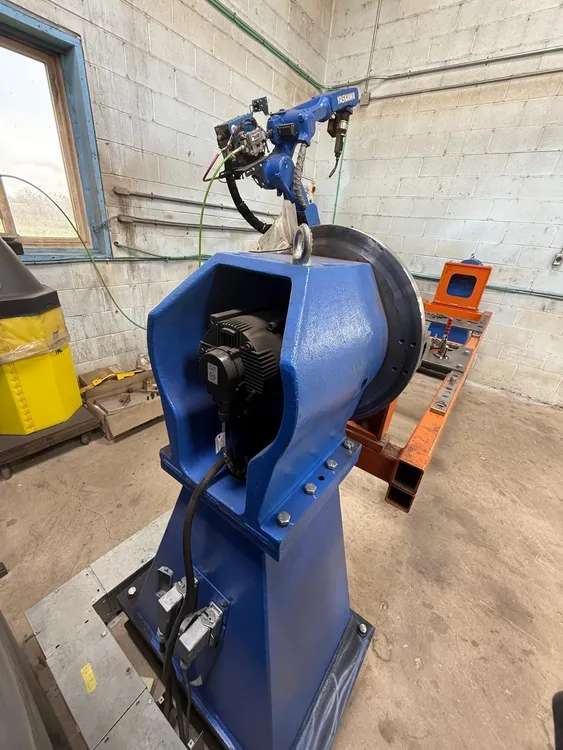

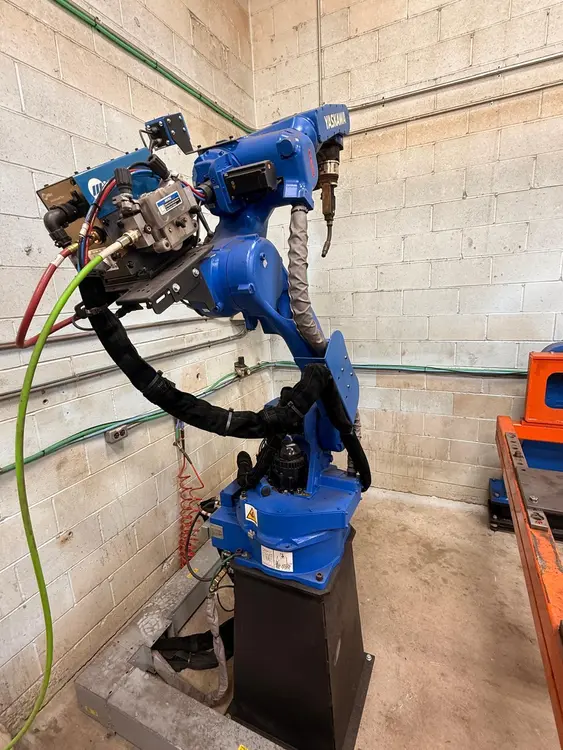

The 2022 Yaskawa AR2010 is a six-axis industrial robot optimized for arc welding applications, featuring a working range of 2010 mm and a maximum payload of 12 kg. It offers high path accuracy with a repeatability of ±0.03 mm. The streamlined arm structure minimizes interference, and the robot is controlled by the YRC1000 controller. The system is paired with the Miller Auto-Continuum 500 welder, an advanced digital platform for MIG (GMAW), flux cored (FCAW), and RMD processes. The Auto-Continuum 500 provides high power and reliability, delivering CV weld output and supporting Auto-Line technology for input voltages from 220V to 600V (3-phase, 50/60 Hz). It has a maximum open circuit voltage of 75 VDC and an operating current type of DC. The power source itself weighs 150 lbs, with dimensions of approximately 17.5 in wide by 27.2 in high by 28.2 in long.
