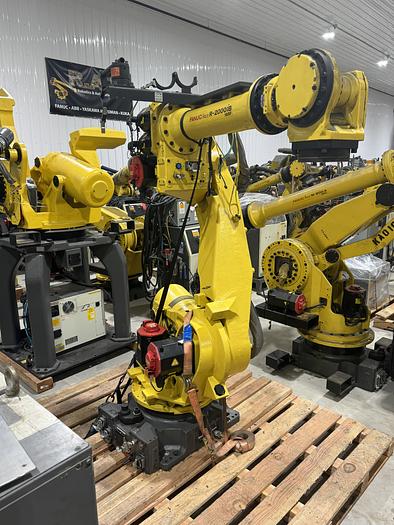

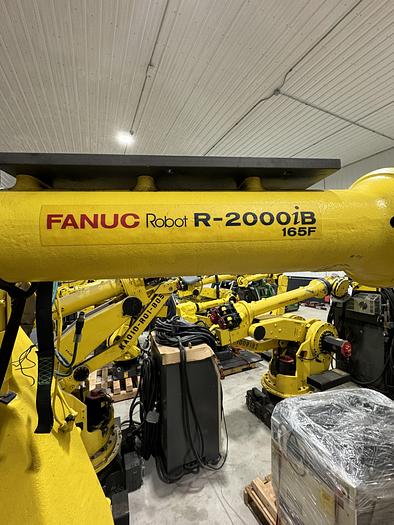

2013 FANUC R-2000IB/165F ARTICULATE ROBOT, 165KG PAYLOAD, 2655MM REACH, R-30IB CONTROLLER

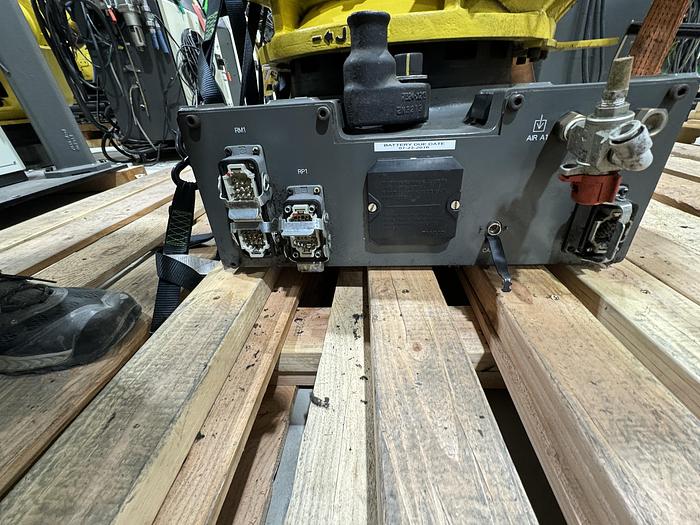

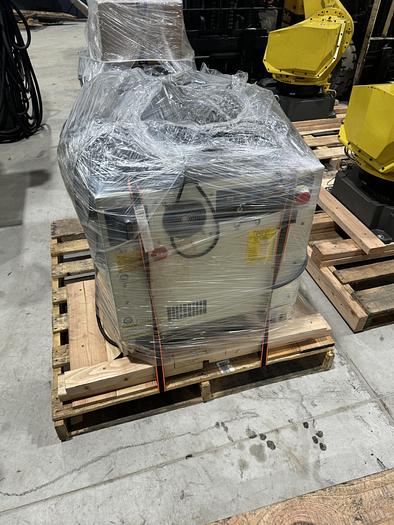

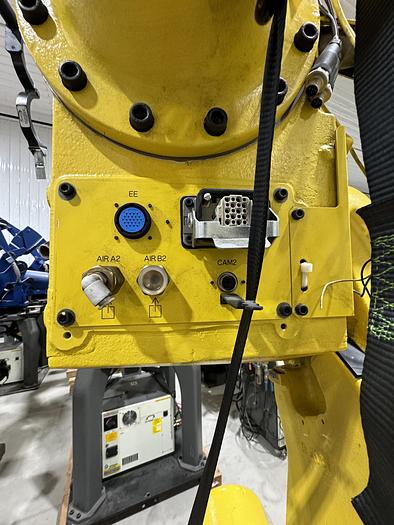

THE 2013 FANUC R-2000IB/165F IS A SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR HEAVY PAYLOAD APPLICATIONS, INCLUDING MATERIAL HANDLING, SPOT WELDING, DISPENSING, INJECTION MOLDING, MACHINE LOADING, AND ASSEMBLY. THIS FLOOR-MOUNTED ROBOT FEATURES A 165 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 2655 MM, AND A REPEATABILITY OF ±0.2 MM. WITH A MASS OF 1170 KG, IT UTILIZES A SLIM ARM AND WRIST ASSEMBLY FOR OPERATION IN CONFINED SPACES AND INCORPORATES NUMEROUS PROCESS ATTACHMENT POINTS FOR EASIER INTEGRATION. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IB CONTROLLER, CONNECTION CABLES, A COLOR TEACH PENDANT, AND VISION AND EE CONNECTIONS. PERFORMANCE SPECIFICATIONS INCLUDE AXIS MOTION SPEEDS OF 110°/S FOR J1, J2, AND J3, 150°/S FOR J4 AND J5, AND 220°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 +75° TO -60°, J3 +230° TO -132°, J4 ±360°, J5 ±125°, AND J6 ±360°. ITS ARTICULATED STRUCTURE AND HIGH-SPEED CAPABILITIES ARE ENGINEERED TO ENHANCE PRODUCTIVITY AND THROUGHPUT ON PRODUCTION LINES.
