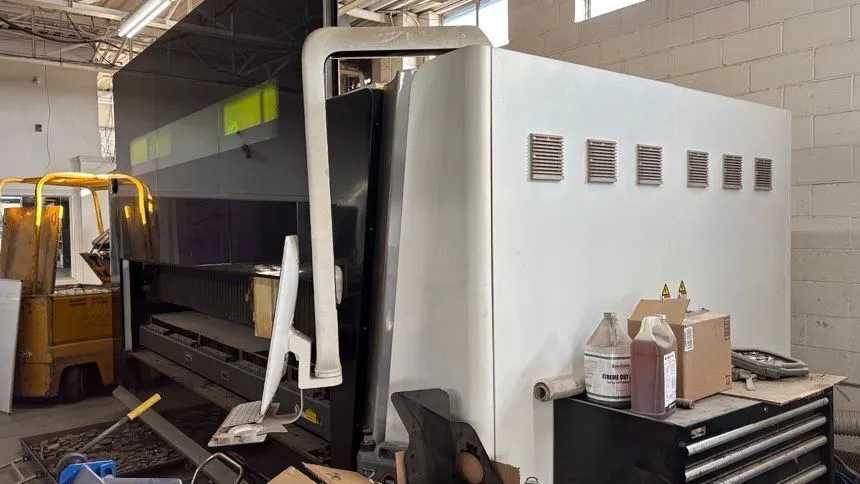

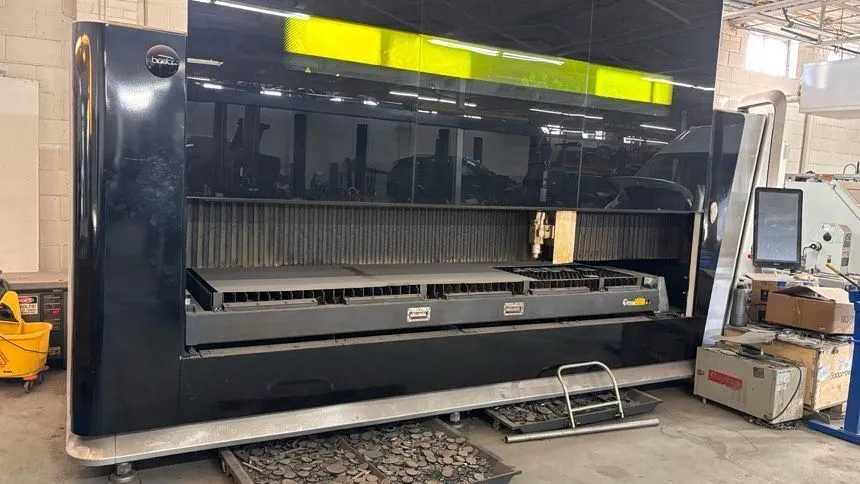

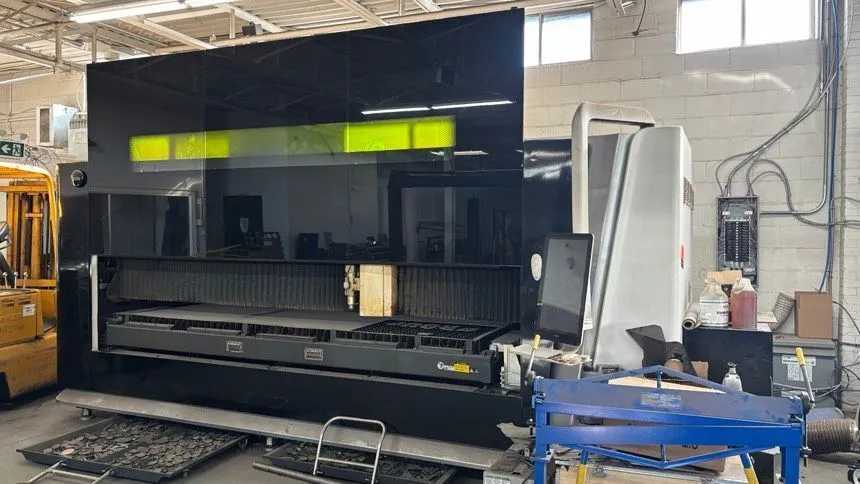

2023 Bodor I7 CNC Fiber Laser Cutter 3kW 120X60IN 380V/60Hz/3PH

2023 Bodor I7 CNC Fiber Laser cutting system equipped with a 3 kW Bodorpower fiber resonator and Bodor Thinker CNC control. The machine operates on 380V / 60Hz / 3-phase power and features a Bodor Genius auto focus cutting head. Working area is 120 in x 60 in with X-axis travel of 120 in, Y-axis travel of 60 in, and Z-axis travel of 4.7 in. Performance specifications include maximum linkage speed of 91 m/min, maximum acceleration of 1.5 G, positioning accuracy of ±0.05 mm/m, and repeat positioning accuracy of ±0.03 mm. Electrical load is 40.88 kW with full load current of 77.7 A and SCCR of 6 kA. Included accessories are a Hanli HL-3000-EH-QG2/2 chiller rated 220V / 60Hz, 5.0 kW, R32 refrigerant, 4 m³/hr flow rate, and a TODC-4B dust collector with 5.5 kW motor, 10.9 A, and 380V / 60Hz / 3-phase input. Machine dimensions are 195 in x 91 in x 87 in, with an operating weight of 10,500 to 11,500 lb.
