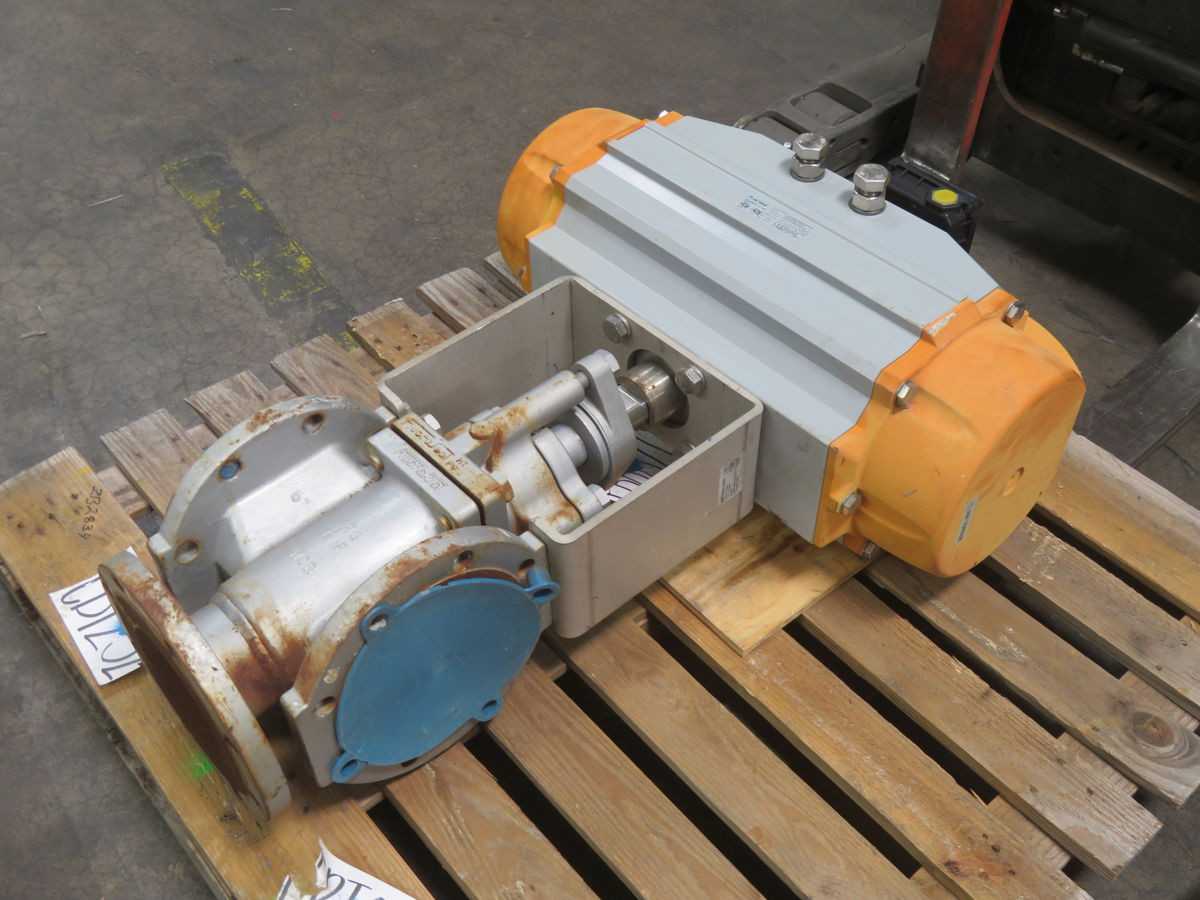

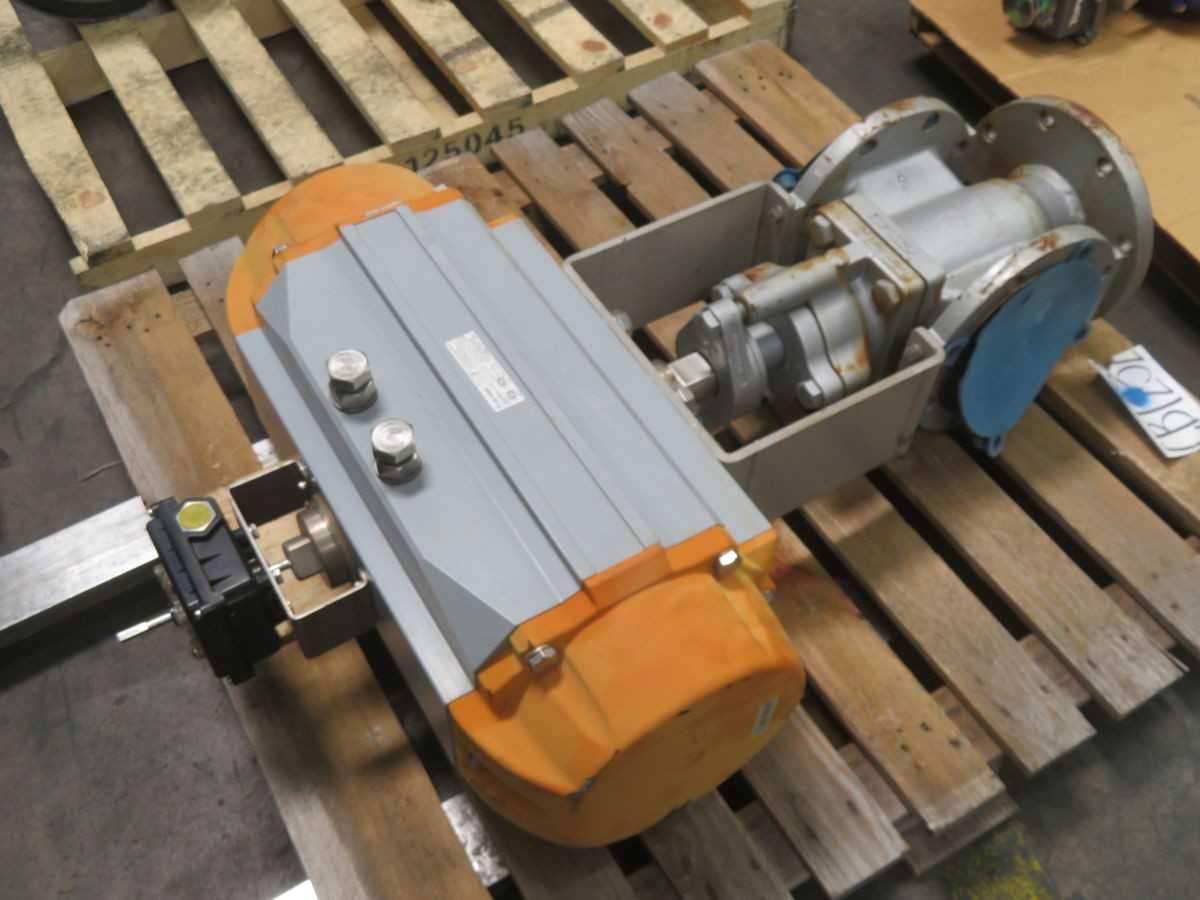

Air Torque PT700 S12 Pneumatic Valve Actuator, 1309-1803 NM Torque, 8 Bar Max Press, ISO 5211 F16 Mtg

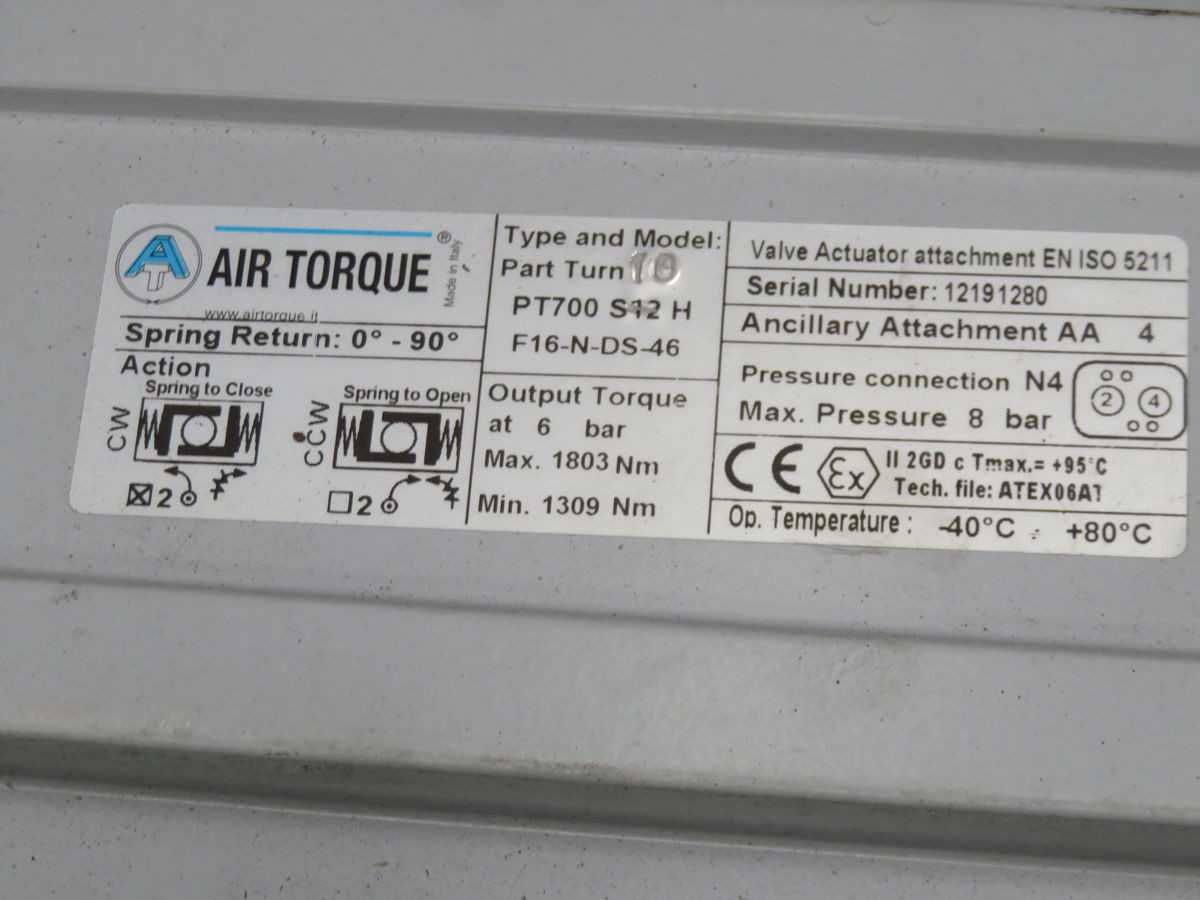

The Air Torque PT700 S12 pneumatic valve actuator is a spring return mechanism designed for 0-90 degree rotation. It delivers a minimum output torque of 1309 NM and a maximum of 1803 NM at 6 bar supply pressure. The maximum permissible operating pressure is 8 bar. Its construction features an aluminum alloy body with a hard anodized finish, hard anodized aluminum pistons, and a nickel-plated steel pinion. The end caps are made of powder-coated die-cast aluminum. It utilizes a nickel-plated carbon steel output shaft with a double square configuration and conforms to the ISO 5211 F16 mounting standard, including a NAMUR interface for accessory mounting. Air connections are G 1/4" NPT, and the standard operating temperature range is -20°C to +85°C.
