Allied Machine 22050S-005I Straight Flute Insert Spade Drill, MT5 Shank, 2.456"-3.5079" Dia

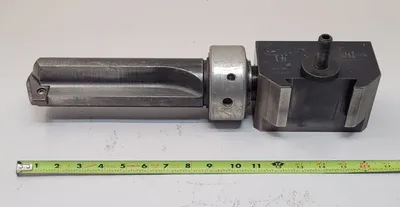

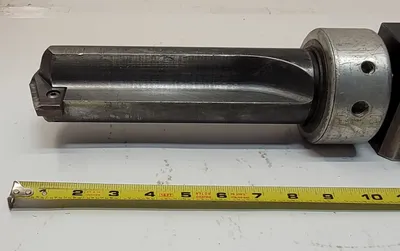

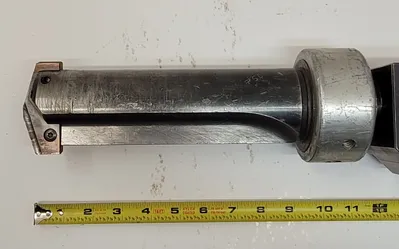

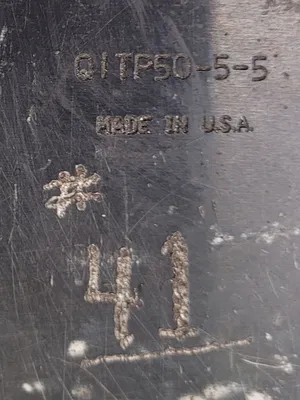

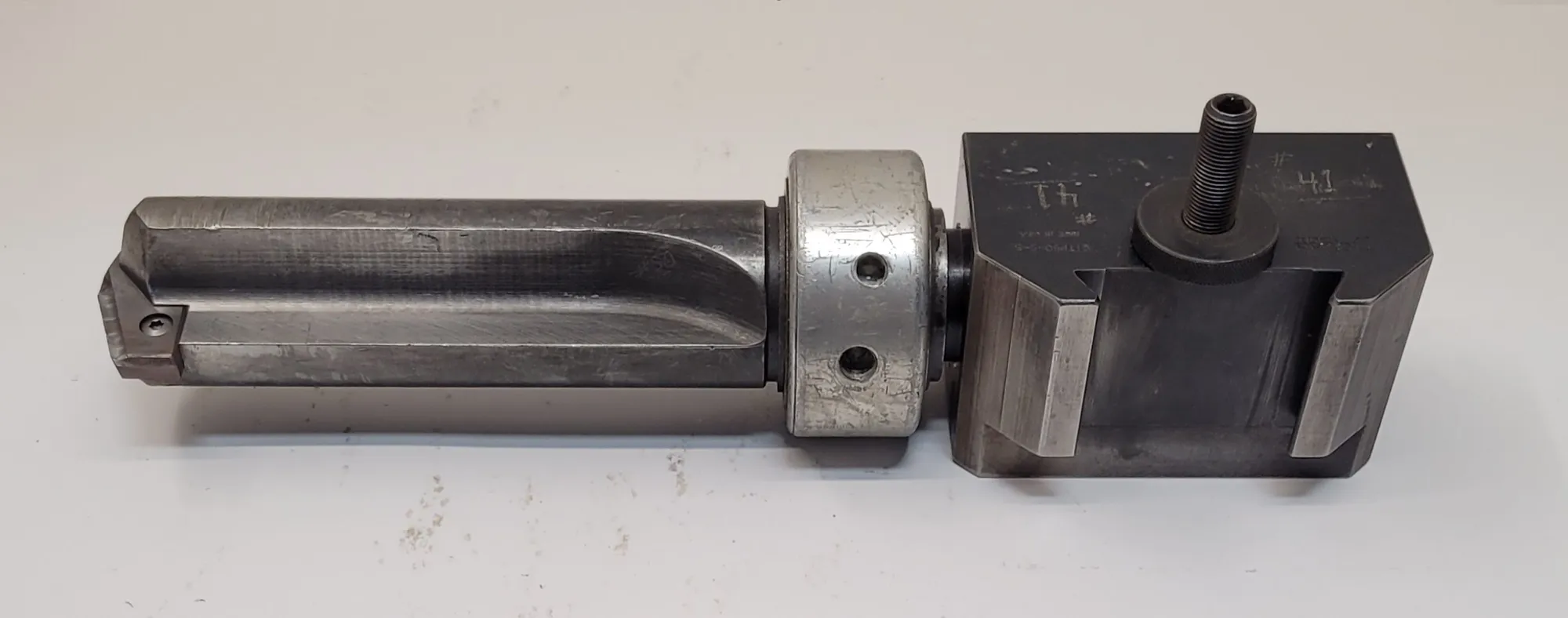

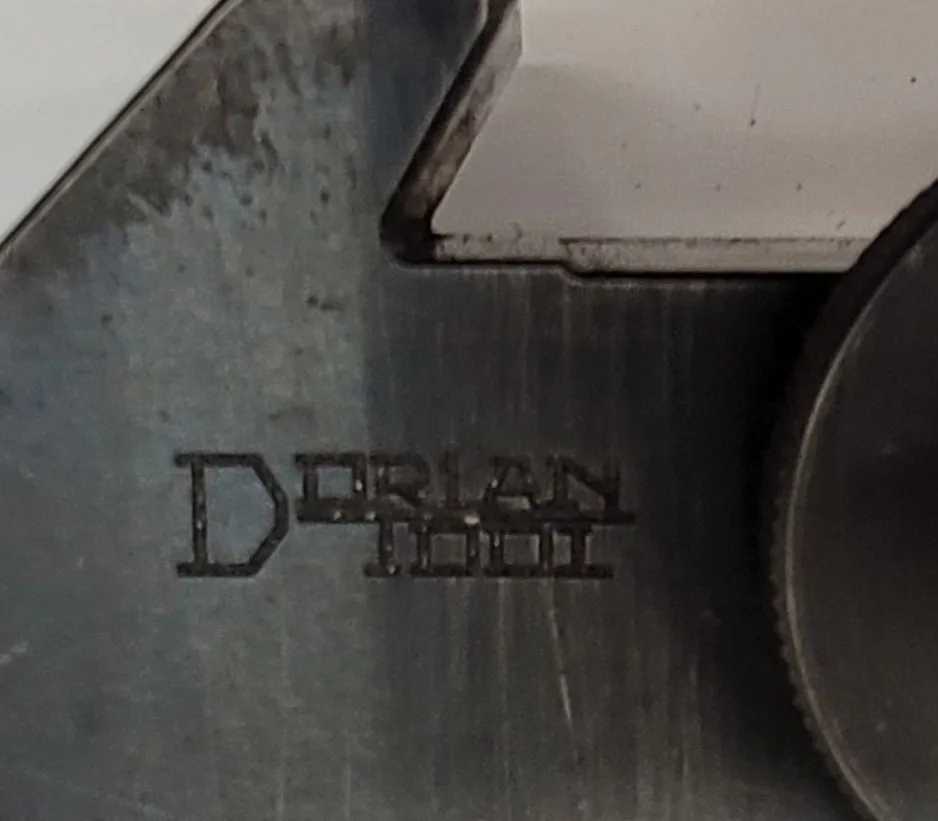

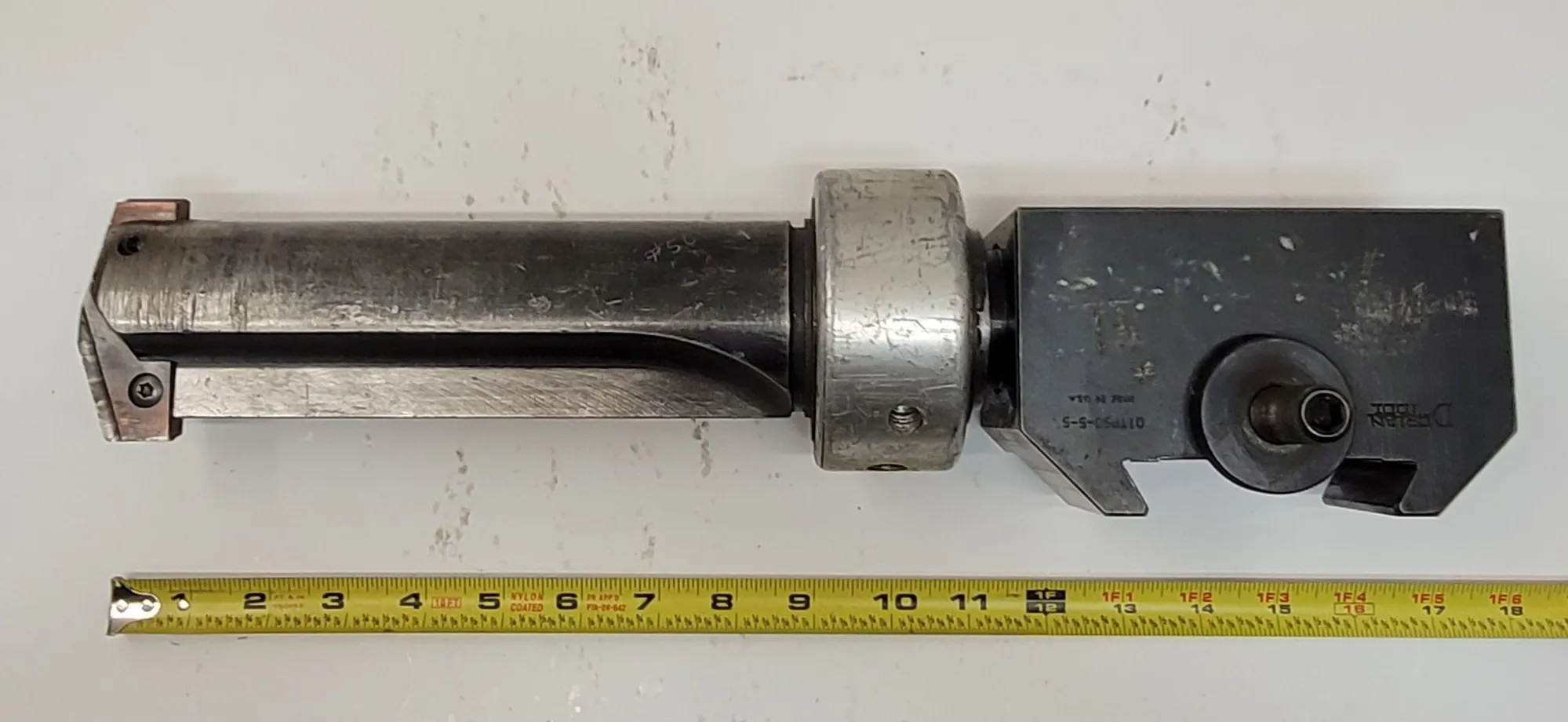

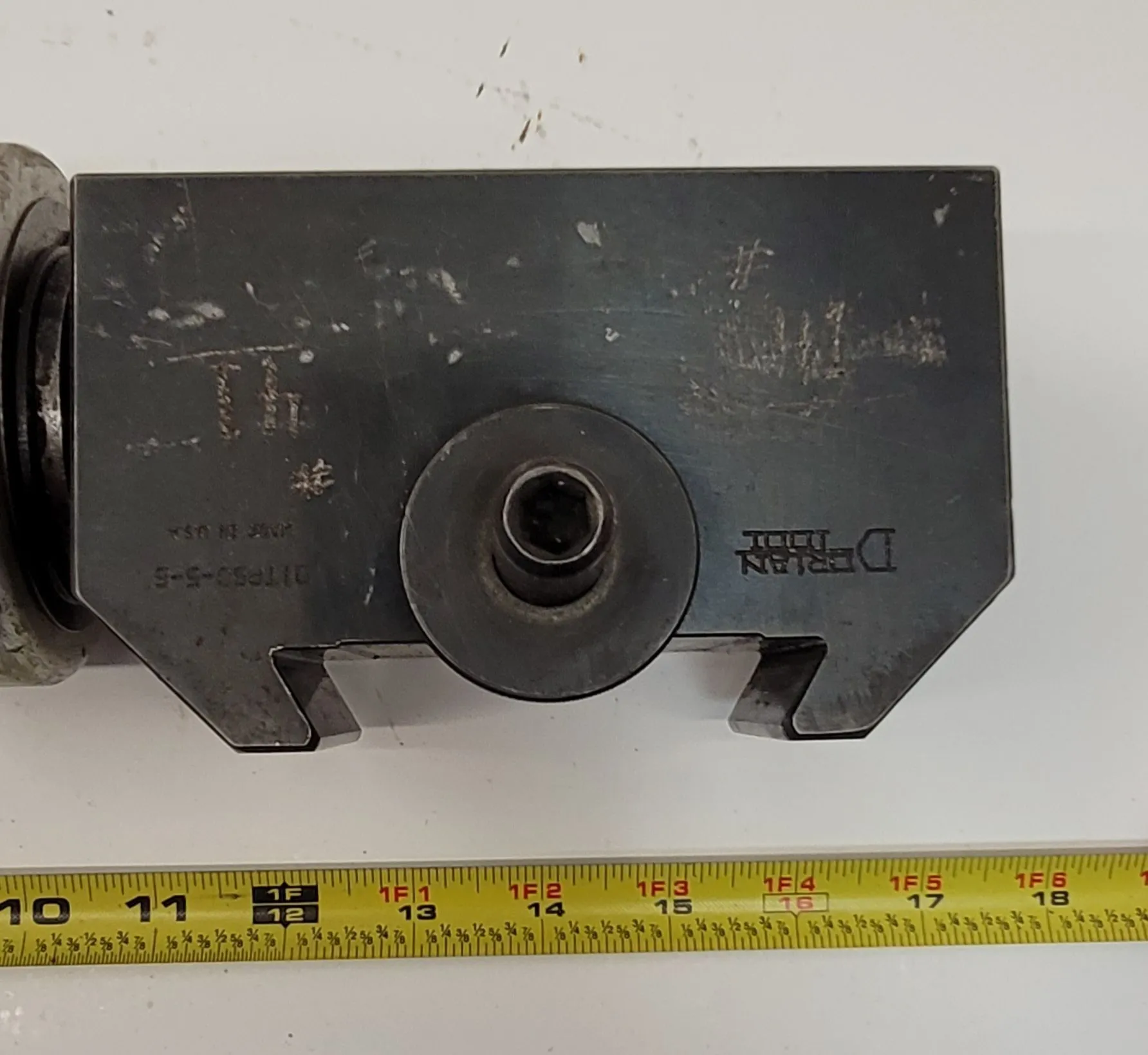

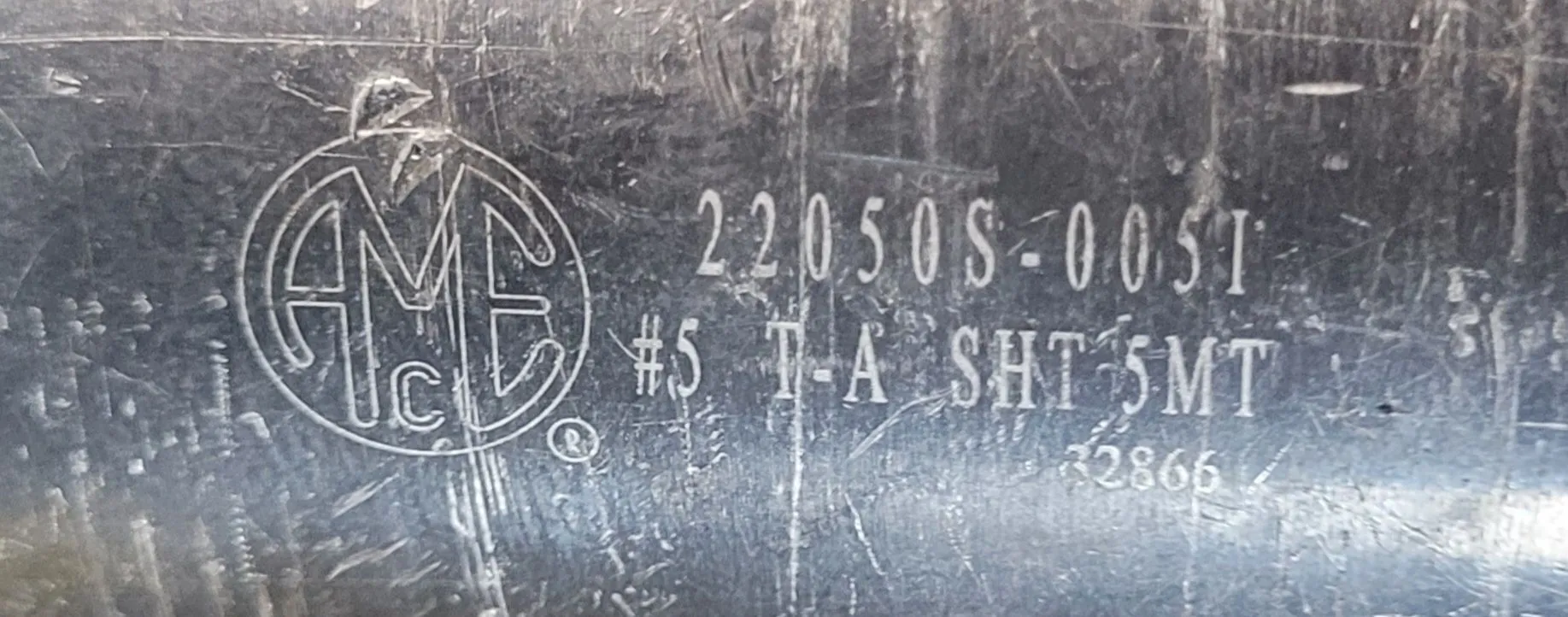

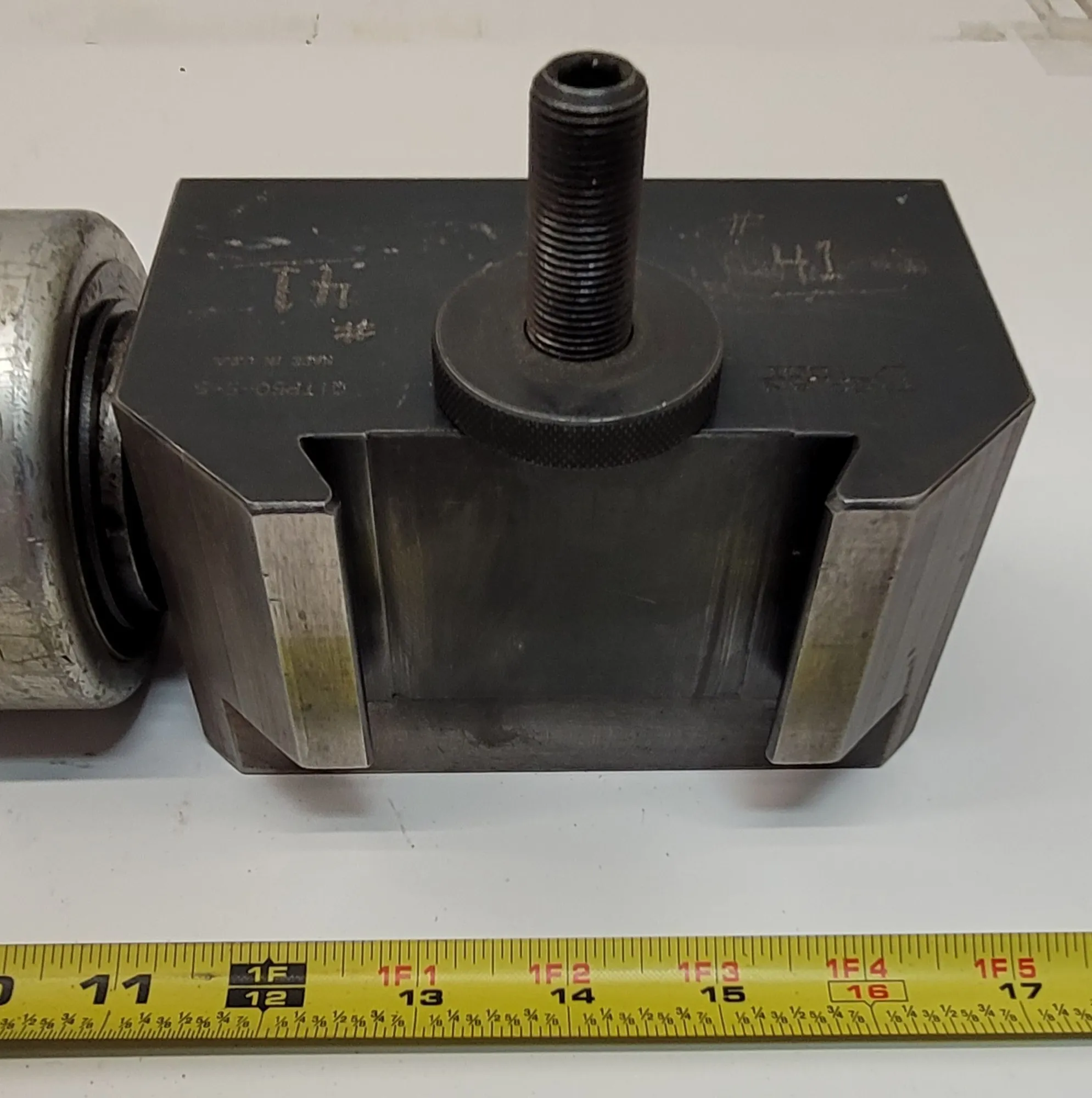

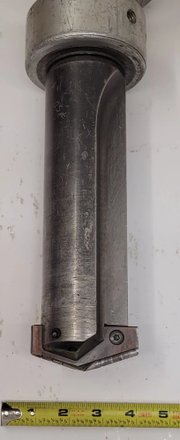

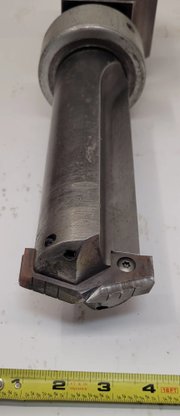

This is an AMEC 22050S-005I straight flute insert spade drill, manufactured by Allied Machine & Engineering. It is categorized as a straight flute spade drill with a part number 22050S-005I, featuring an MT5 shank and 2 straight flutes. The drill is of the series 5 and designated as a short length type. Its diameter range spans from a minimum of 2.4560 inches to a maximum of 3.5079 inches. Key dimensions include an overall length of 16.937 inches, a tool reference length of 11.312 inches, a body length of 8.500 inches, and a drill depth of 6.438 inches. It utilizes a Morse taper shank with a diameter of #5 MT and has a 1/2 NPT pipe tap side. The assembly includes one 2T-6SR coolant adapter and one Dorian QITP50-5-5 tool post holder.
