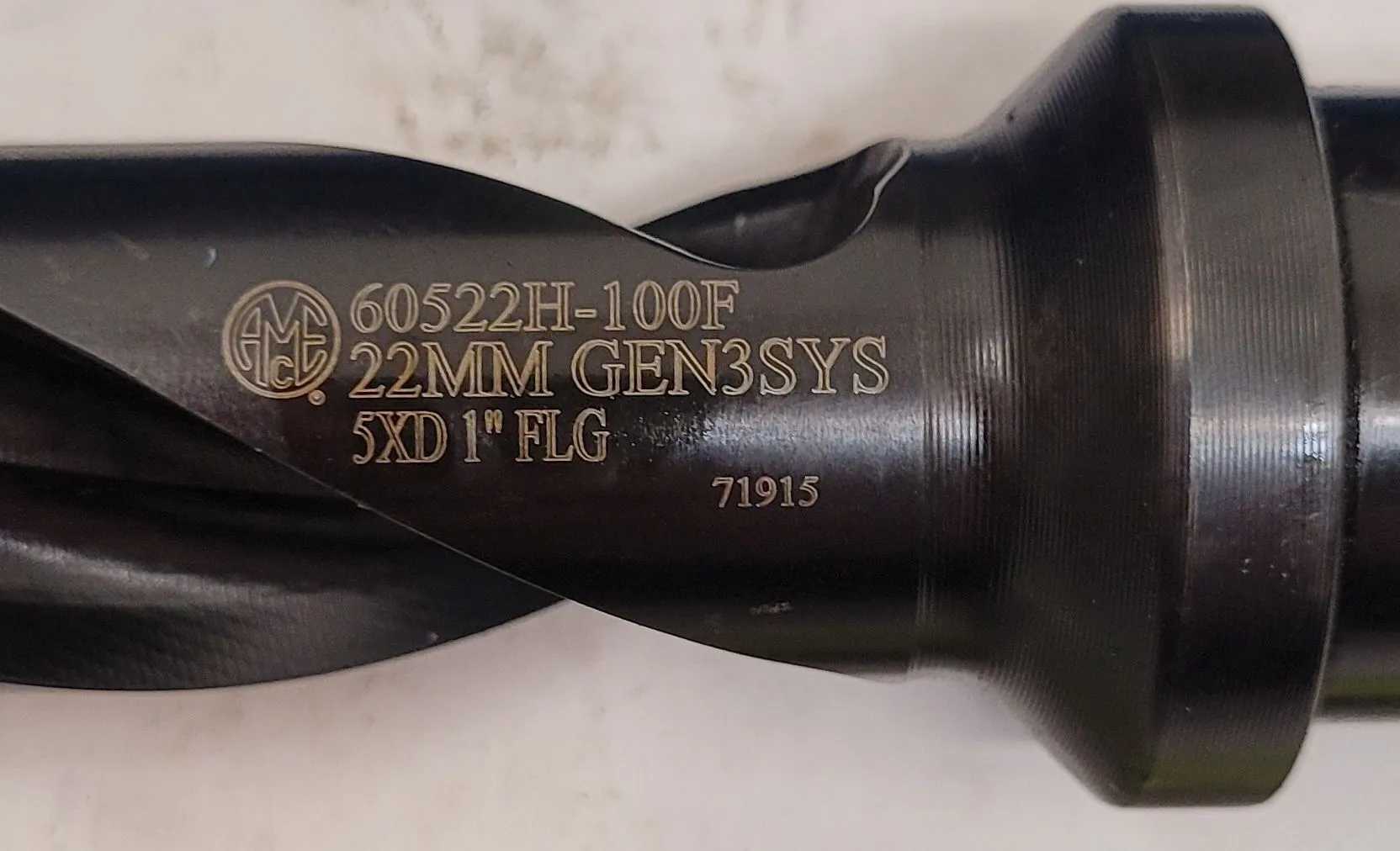

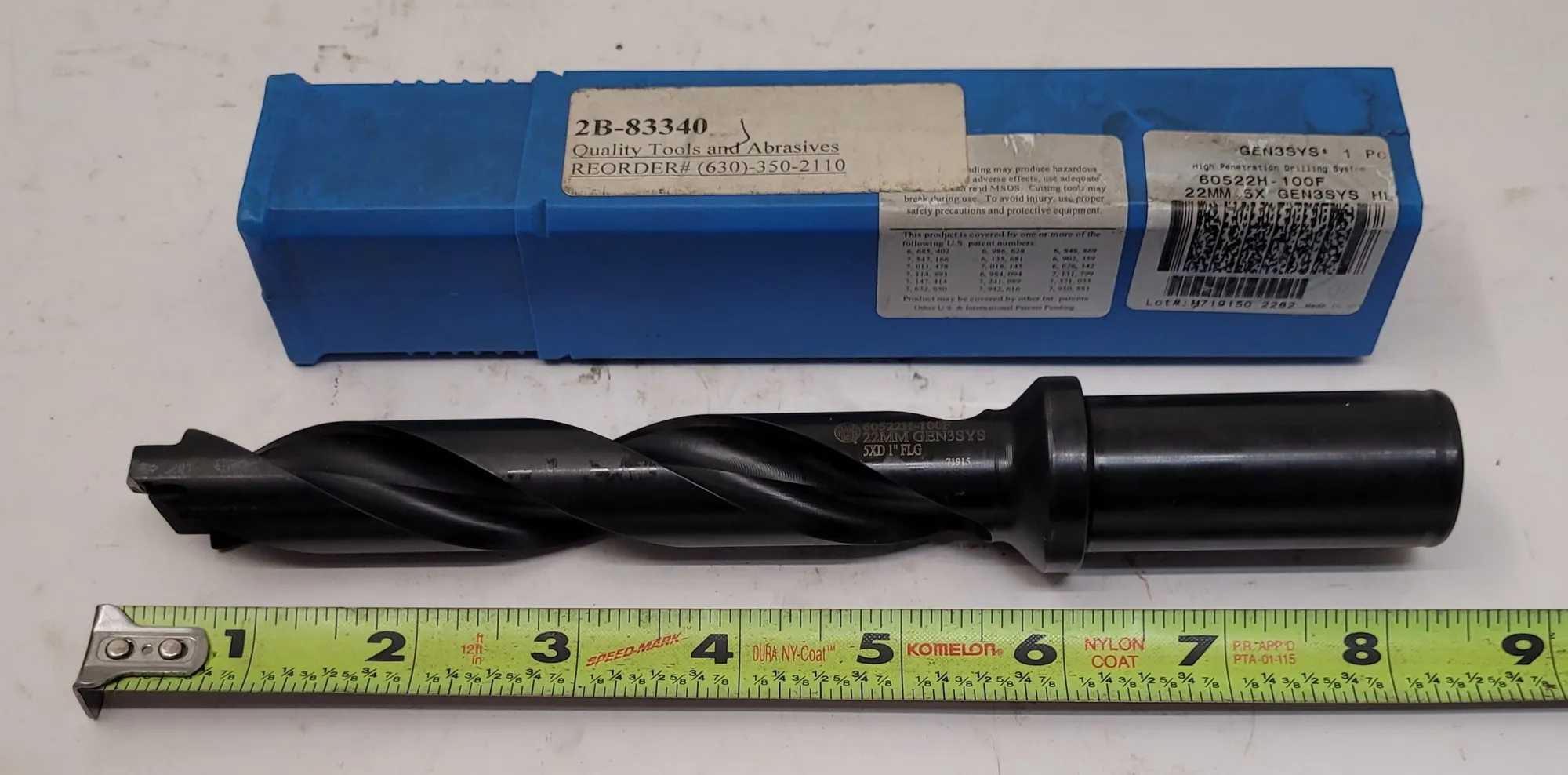

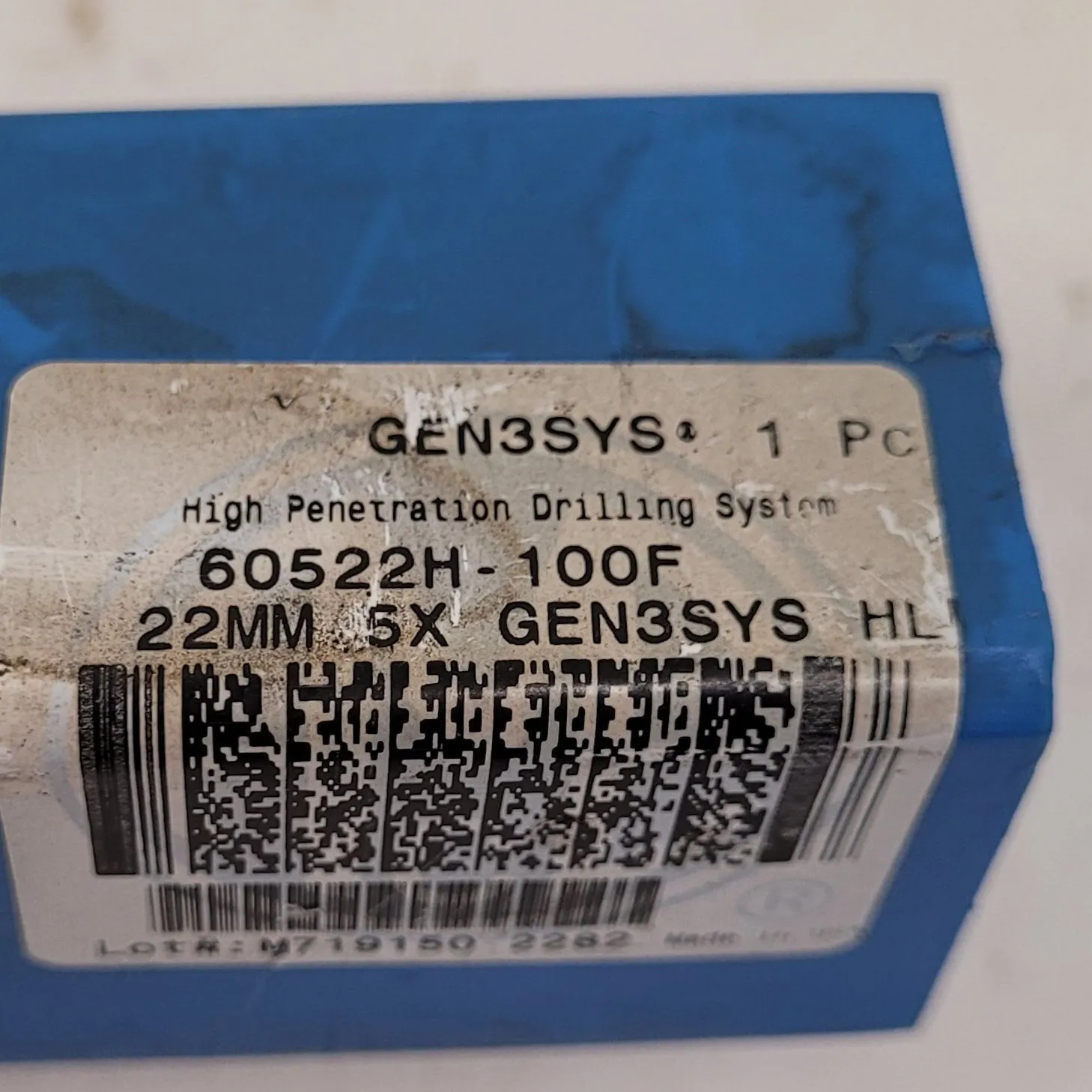

Allied Machine 60522H-100F Indexable Spade Drill, 5XD, Flanged Shank, Through Coolant

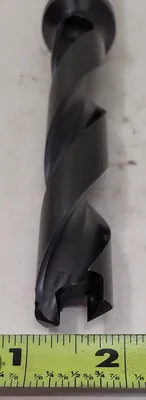

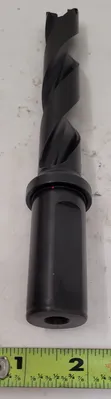

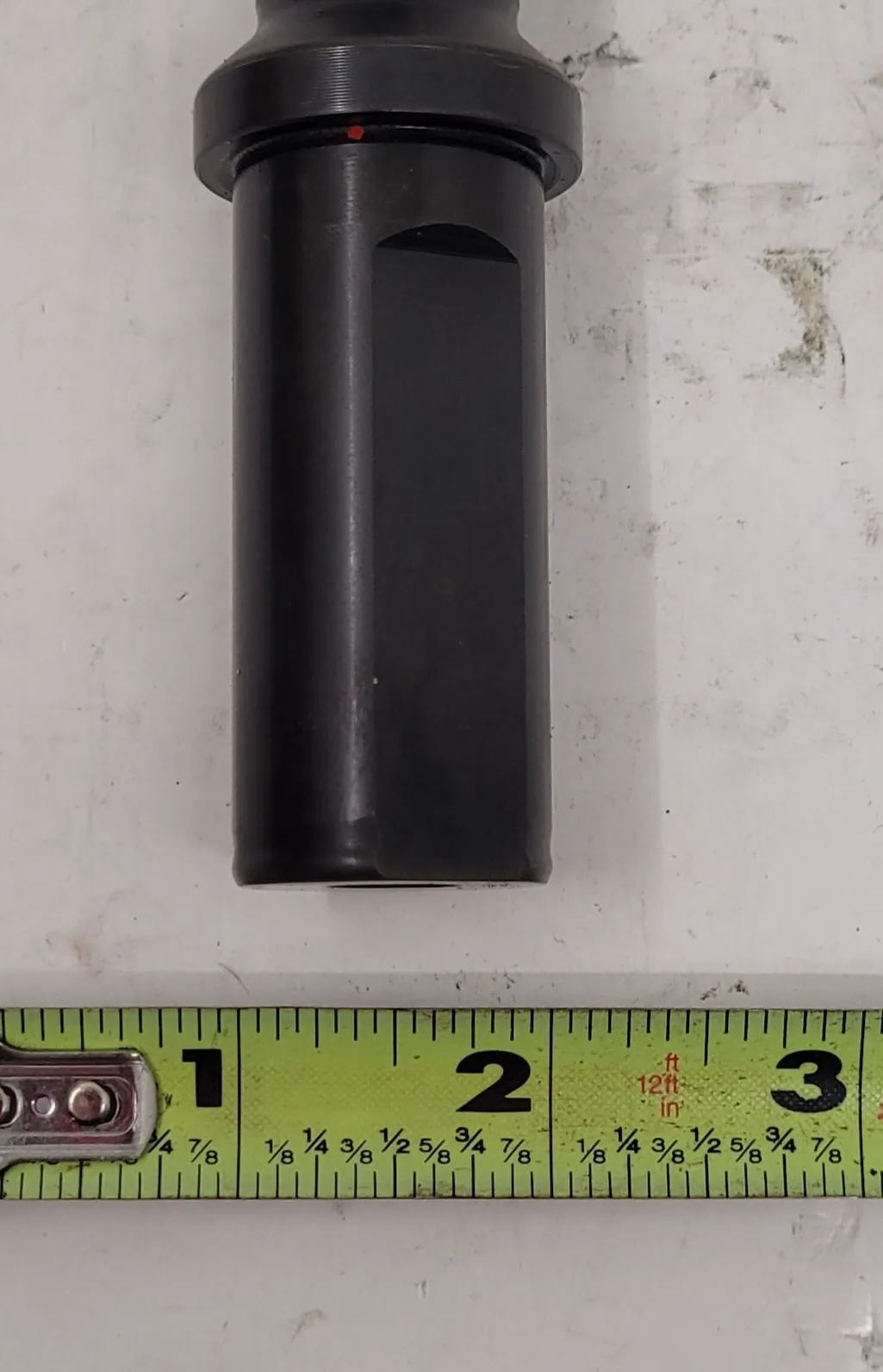

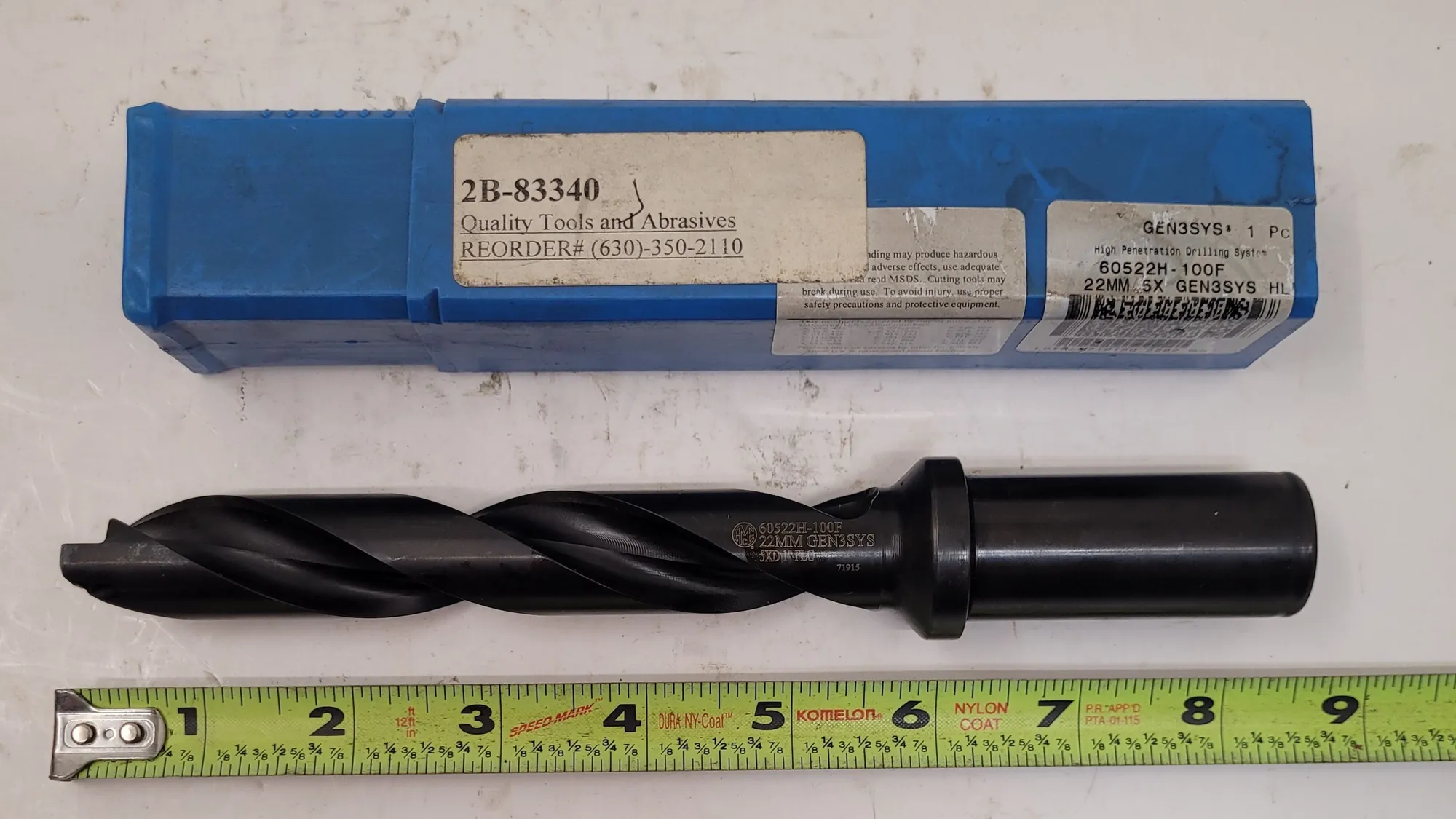

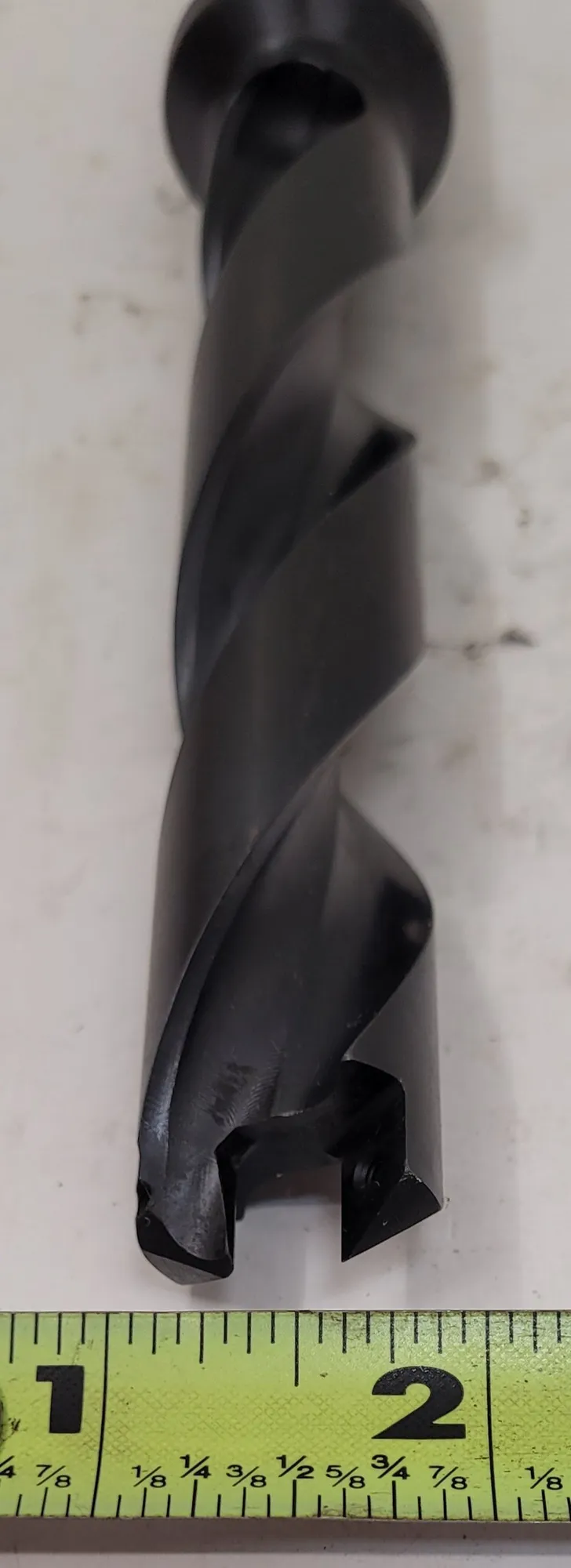

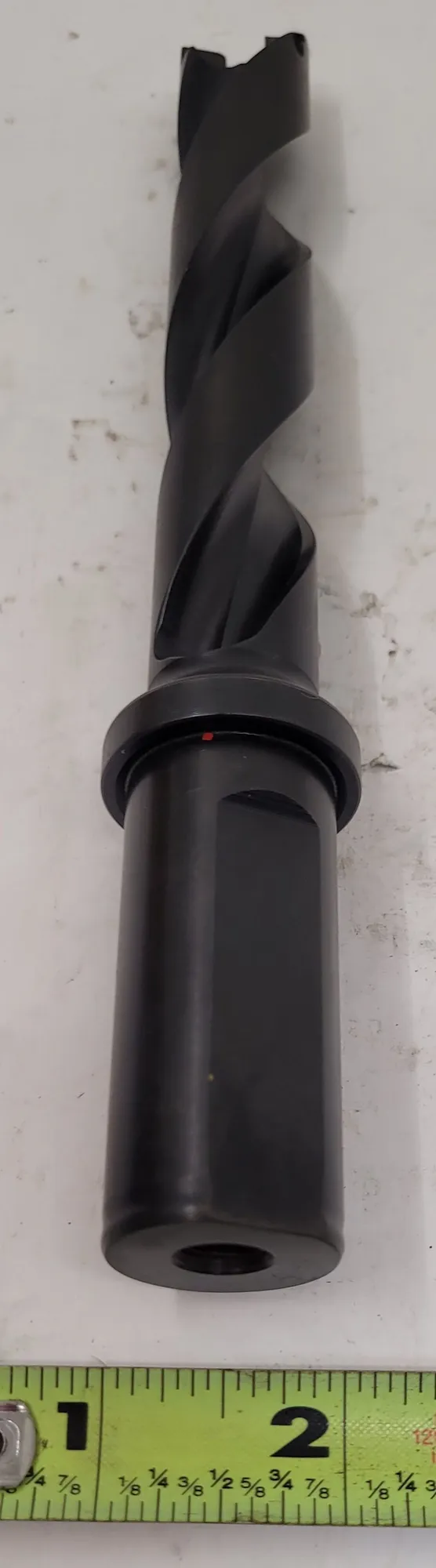

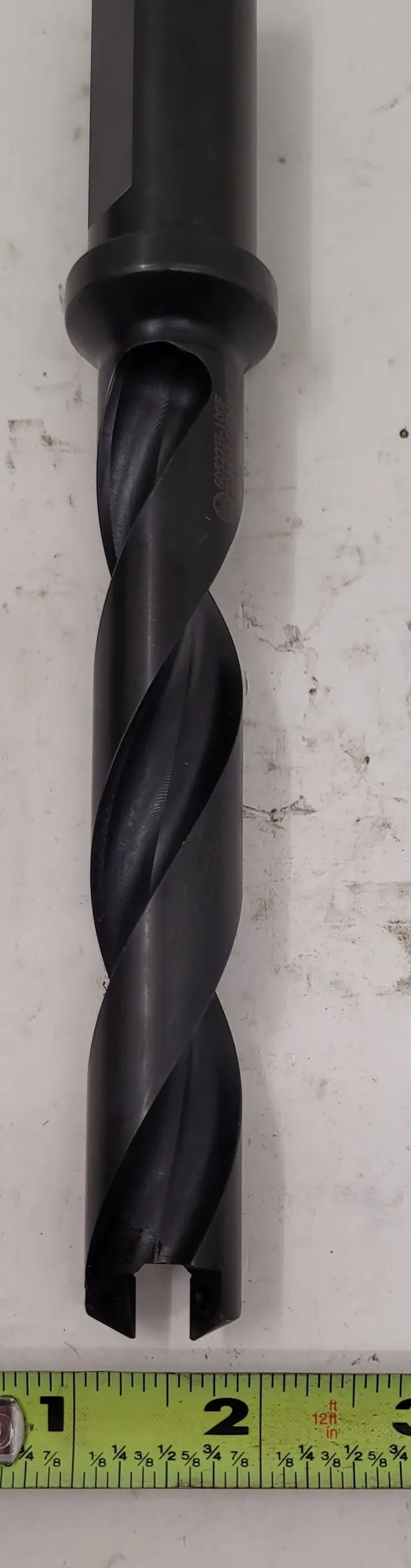

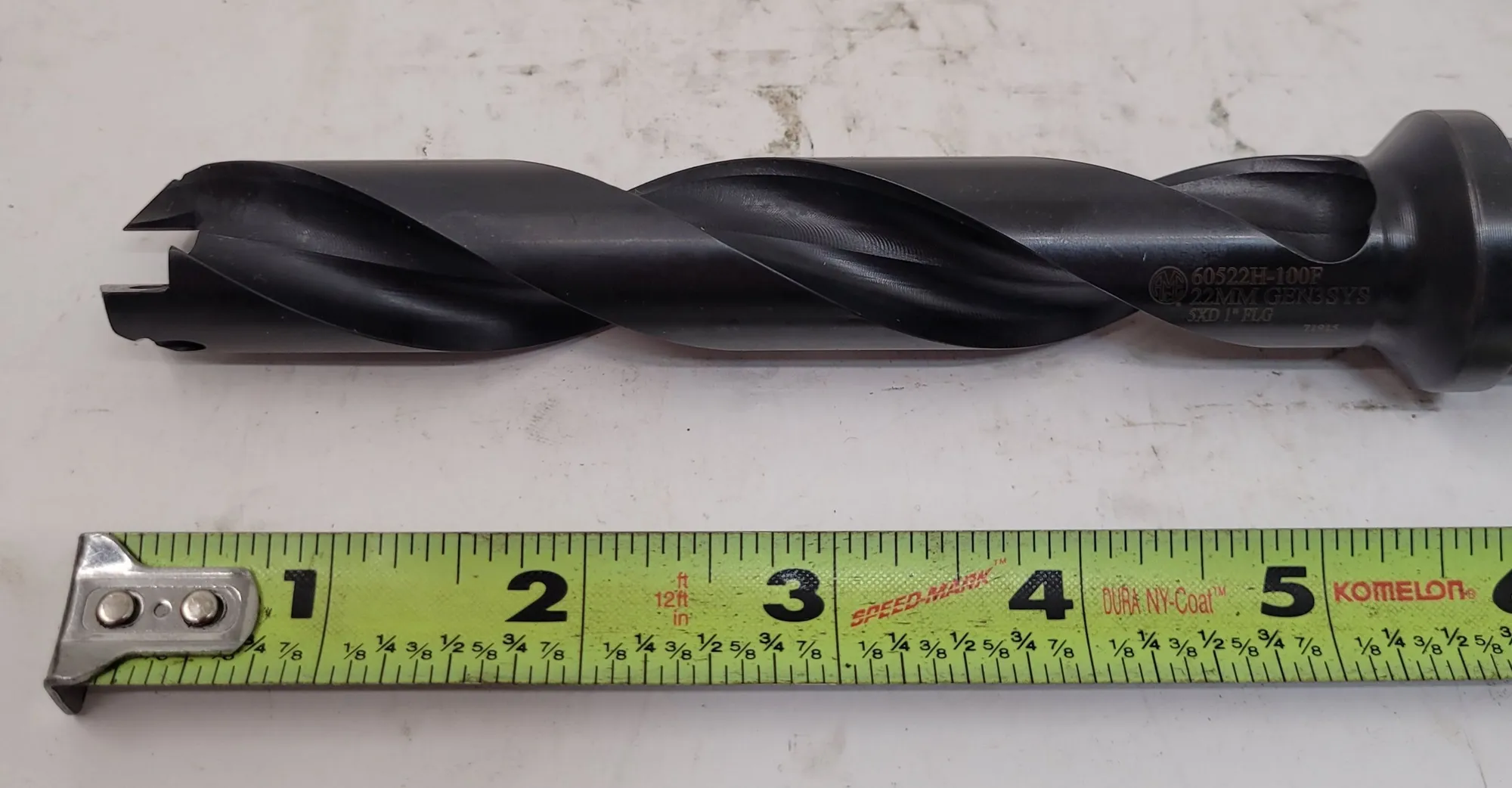

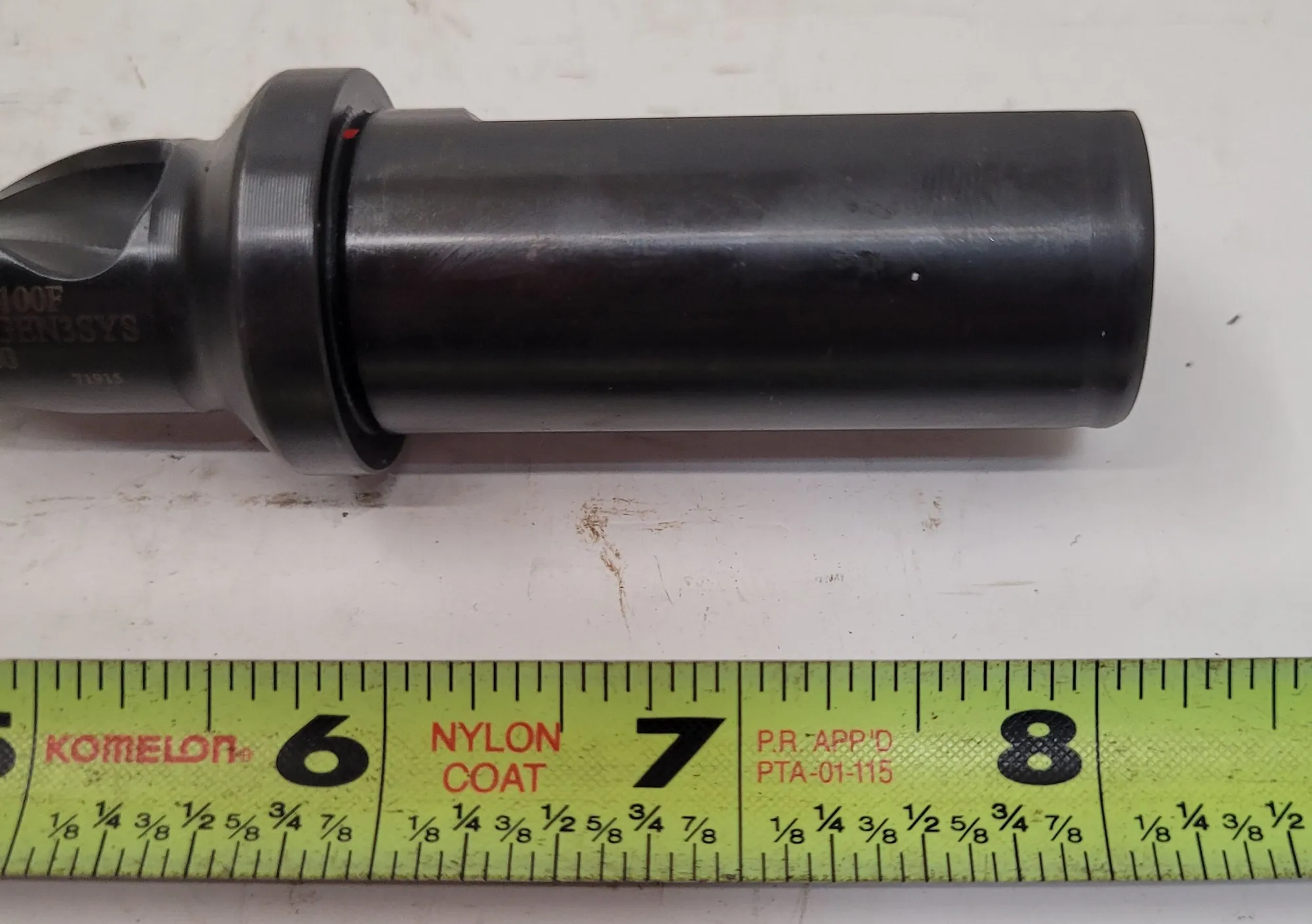

This is an Allied Machine and Engineering 60522H-100F indexable spade drill with a replaceable drill body, part of the series 22. It accommodates diameters ranging from 0.8661 inches (22 mm) minimum to 0.9448 inches (23.99 mm) maximum. The drill features a depth of 4-23/32 inches and has a body length of 6-1/32 inches, resulting in an overall length of 8-5/16 inches. It is designed with a 1-inch diameter flanged shank and utilizes helical flutes. The length type is 5XD, and it includes a flat feature. Coolant inlet is styled rear (TSC) with a 1/8 inch (NPT) pipe tap rear. Shank length measures 2-9/32 inches, and the tool reference length is 6-5/32 inches.
