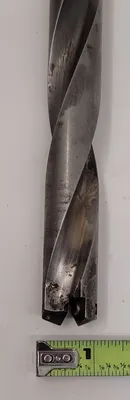

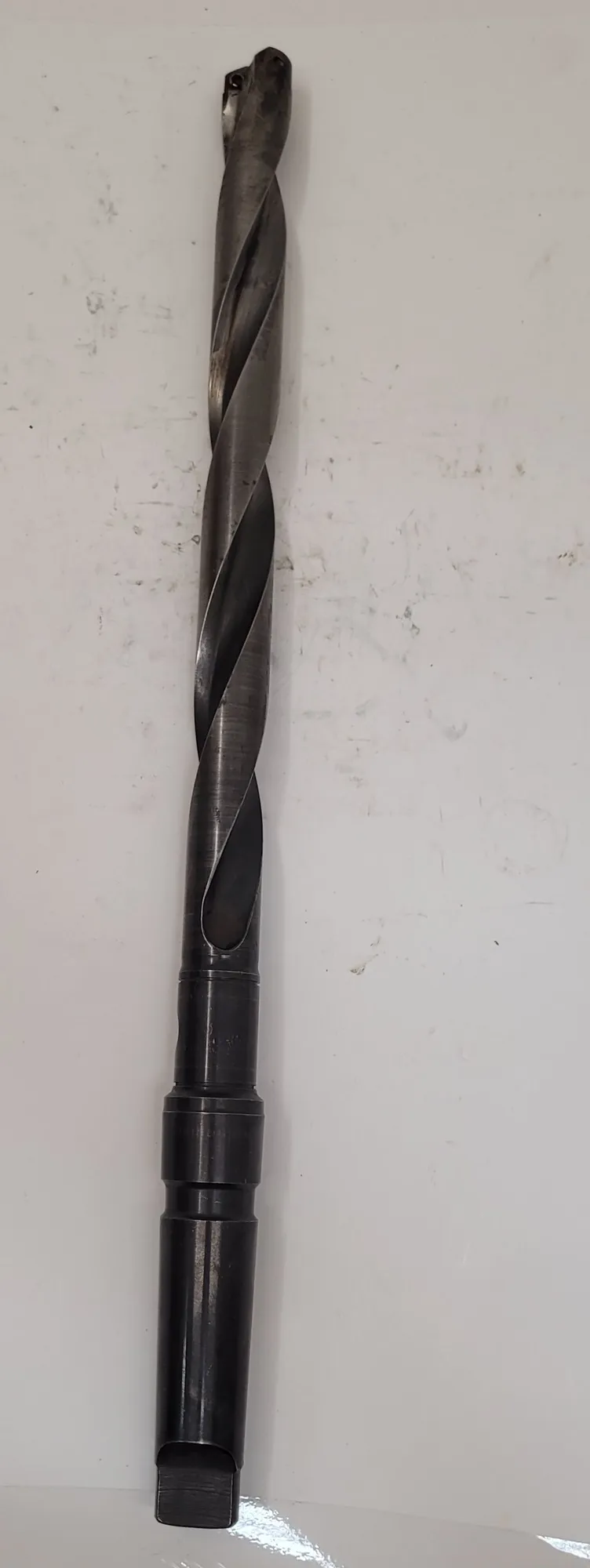

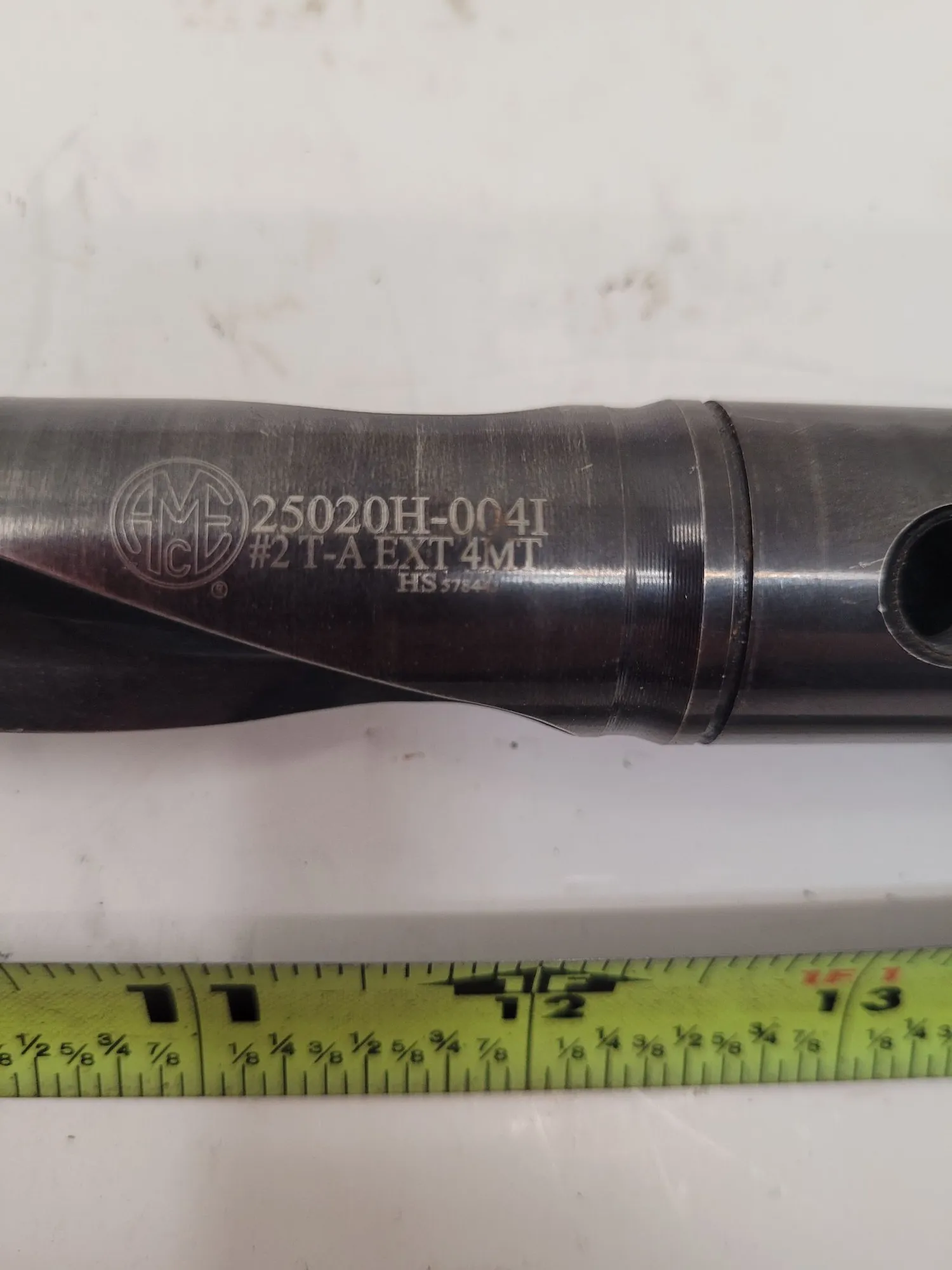

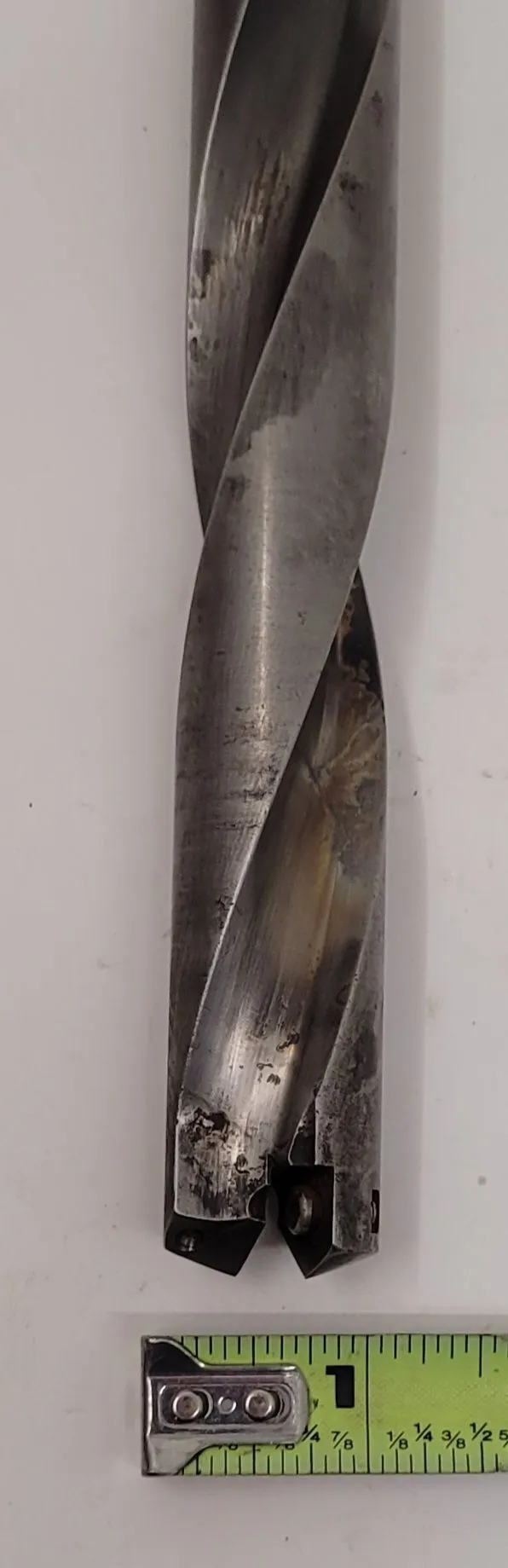

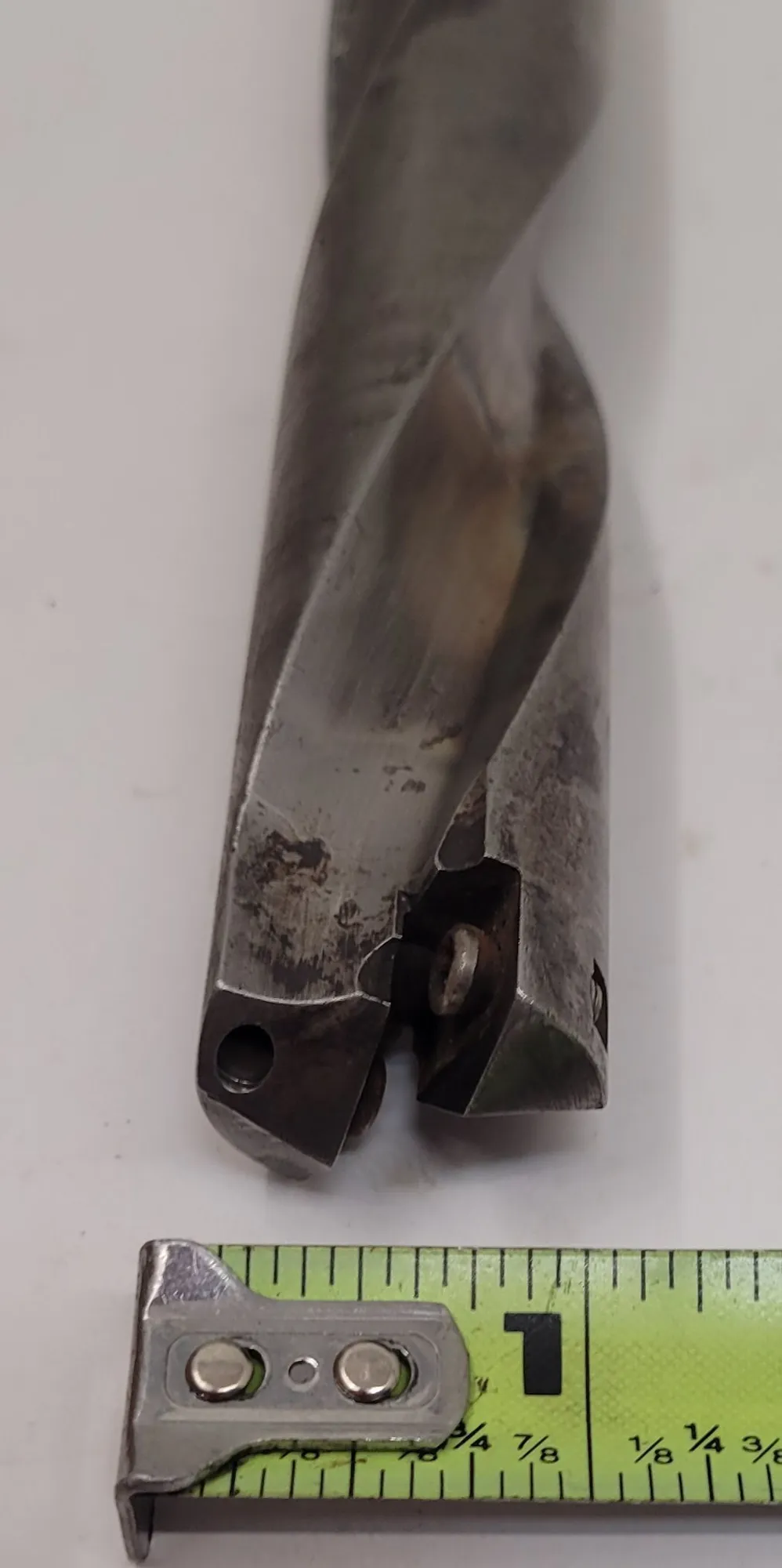

ALLIED MACHINE & ENG. 25020H-004I T-A EXT 4MT CARBIDE INSERT SPADE TWIST DRILL (0.961-1.3809")

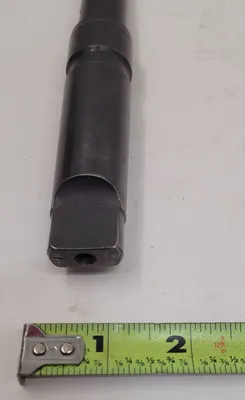

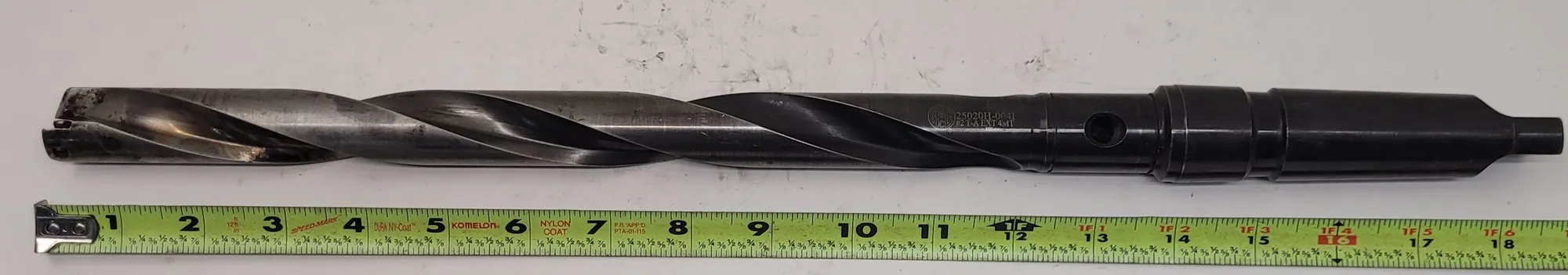

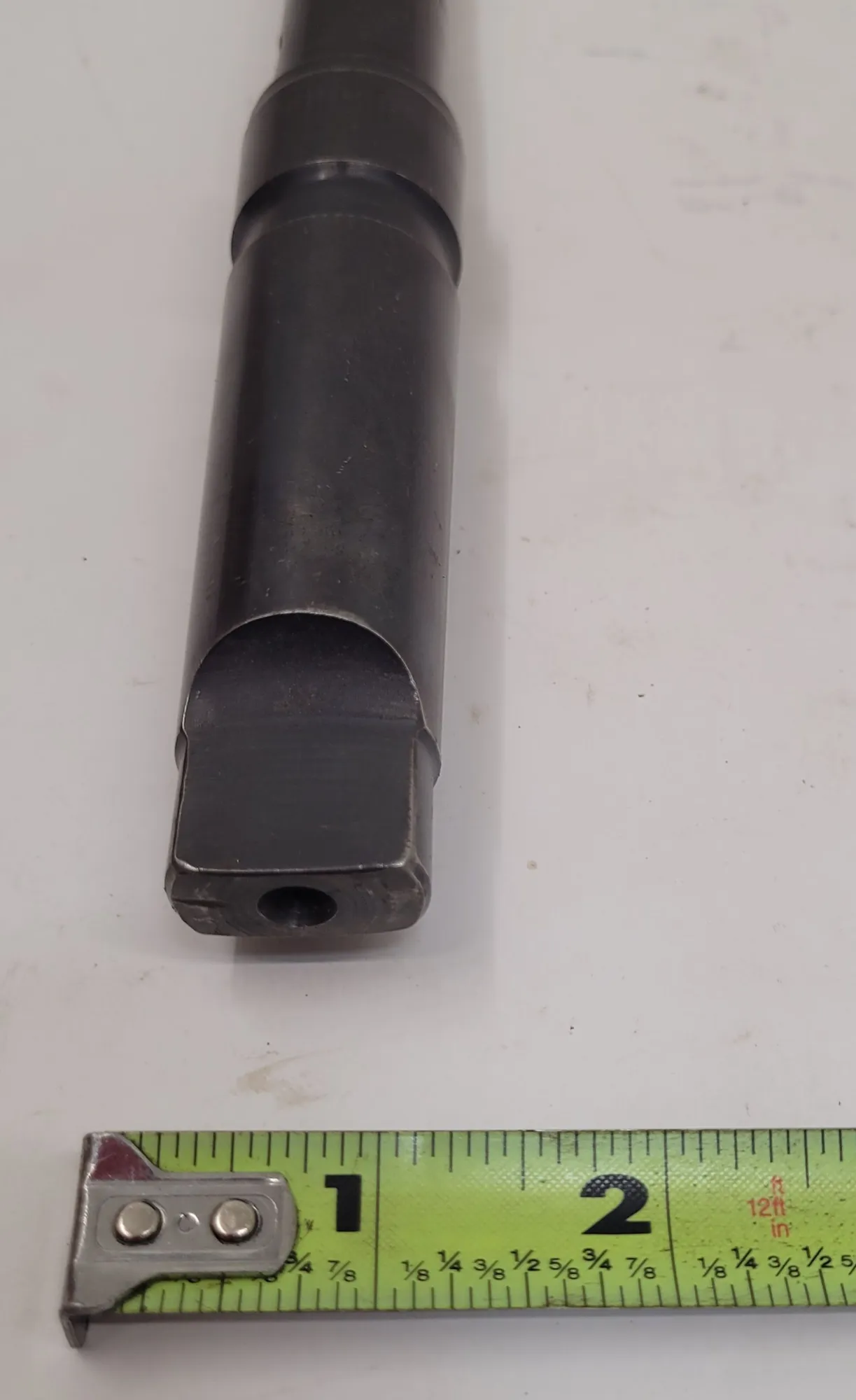

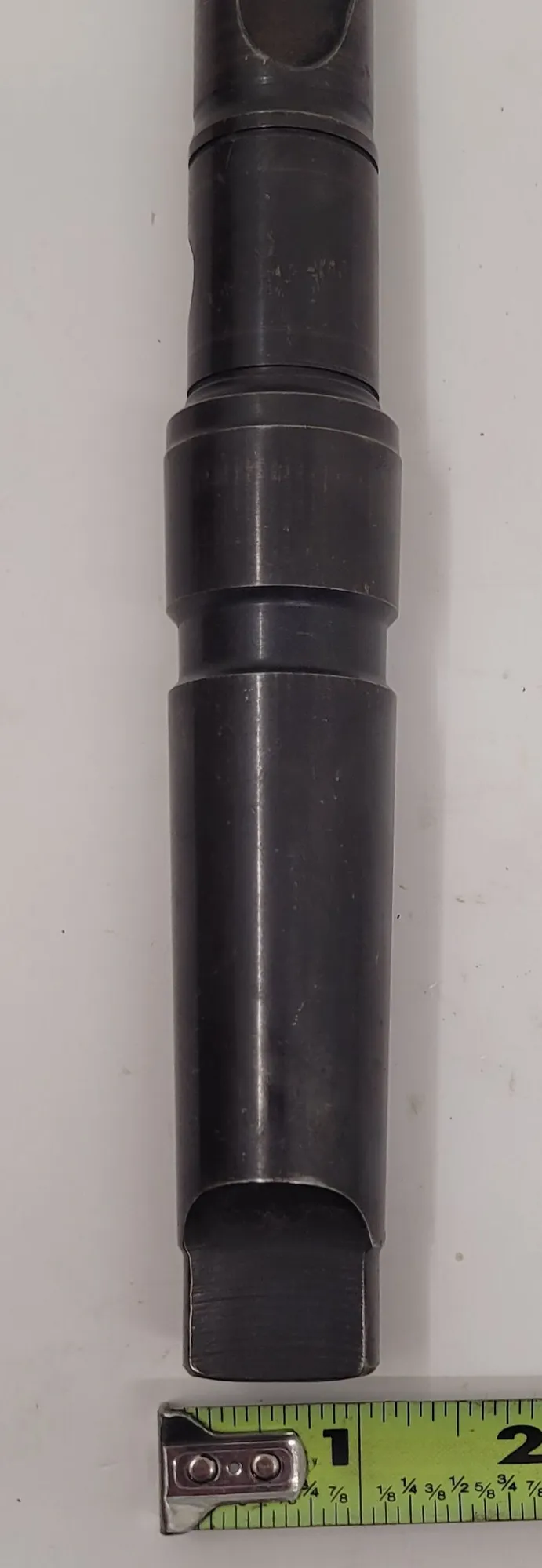

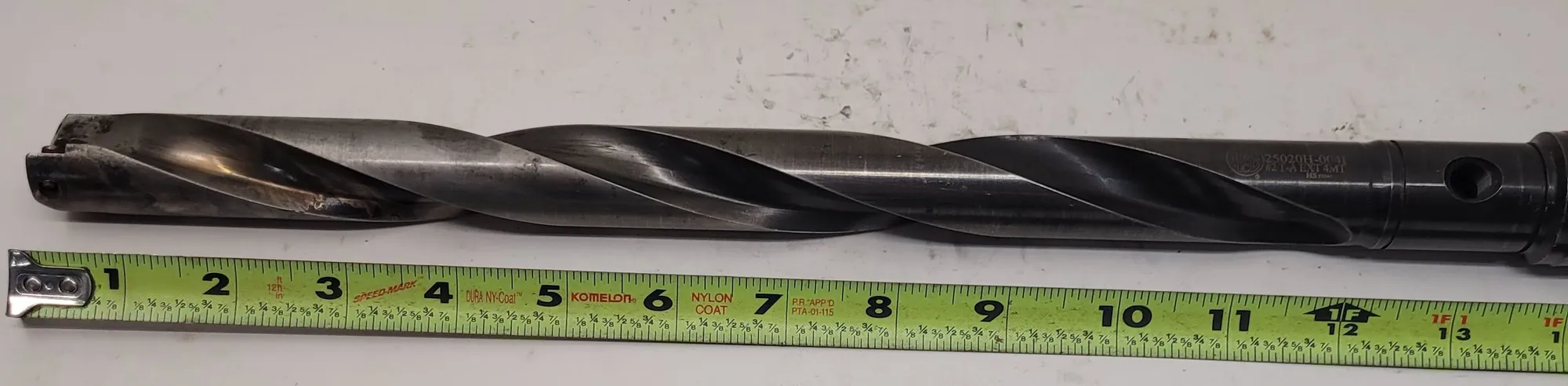

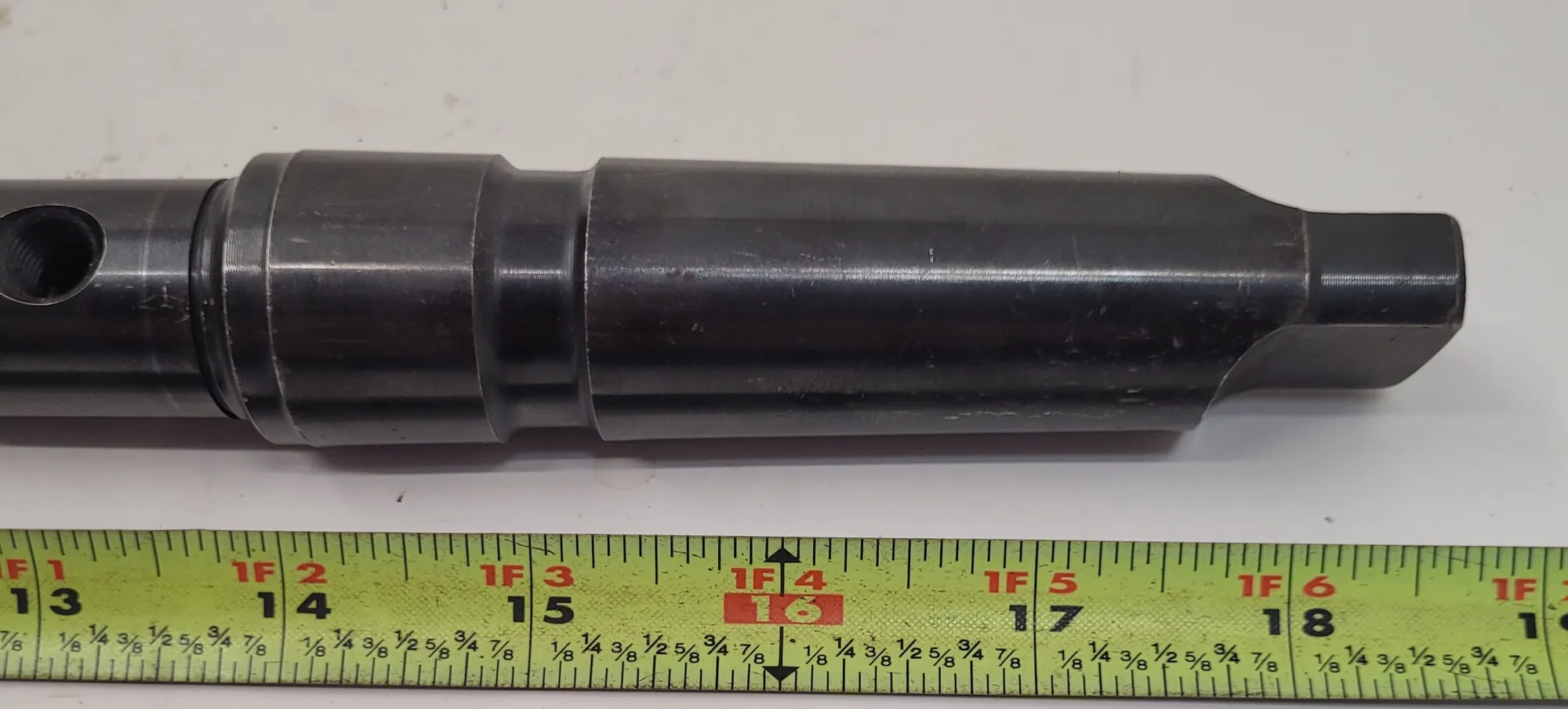

THE ALLIED MACHINE & ENGINEERING 25020H-004I IS A #2 T-A EXT 4MT CARBIDE INSERT SPADE TWIST DRILL FROM SERIES 2. IT IS AN EXTENDED LENGTH, GENERAL PURPOSE REPLACEABLE DRILL BODY WITH HELICAL FLUTES. THE MINIMUM DIAMETER IS 0.9610 INCHES AND THE MAXIMUM DIAMETER IS 1.3809 INCHES. KEY DIMENSIONS INCLUDE AN OVERALL LENGTH OF 18.781 INCHES, A TOOL REFERENCE LENGTH OF 14.296 INCHES, A BODY LENGTH OF 12.500 INCHES, AND A DRILL DEPTH OF 11.850 INCHES. IT FEATURES A MORSE TAPER SHANK TYPE WITH A #4 MT SHANK DIAMETER, A 1/8 NPT PIPE TAP SIDE, AND SUPPORTS DEEP HOLE GUIDELINES.
