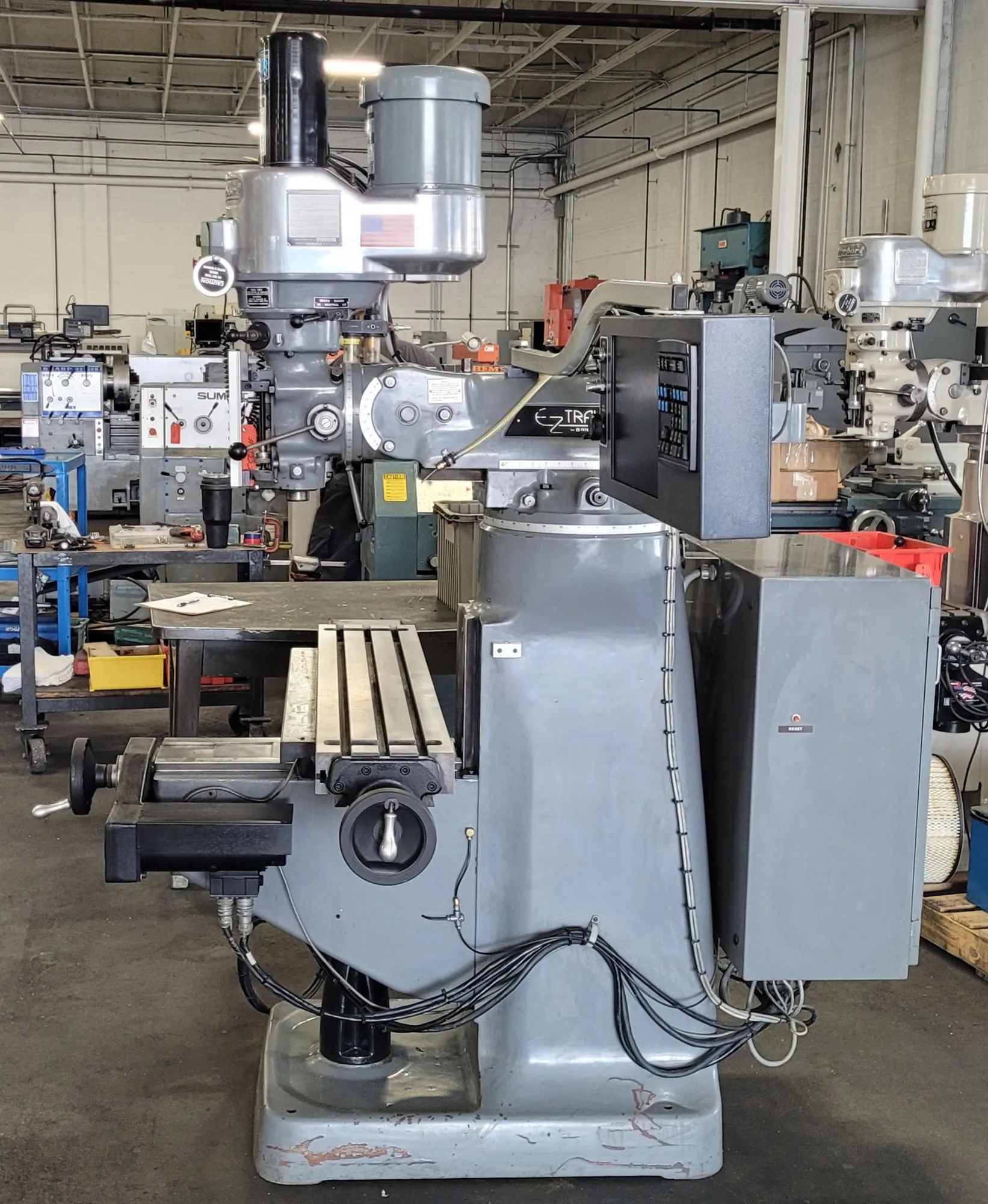

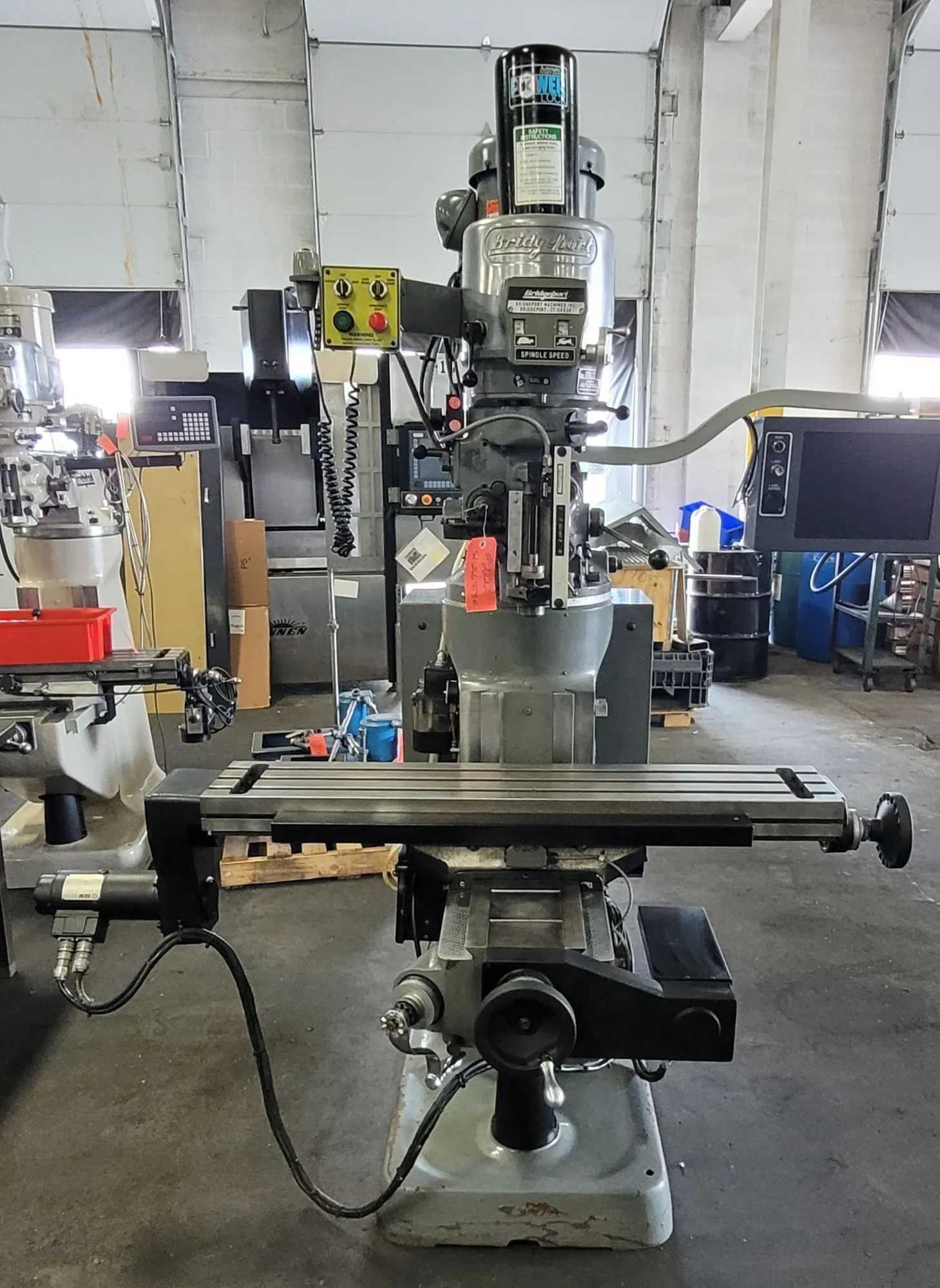

Bridgeport Series 1 Ez Trak Dx Vertical Mill 2HP 9X48" Table 4200 RPM R8 Taper

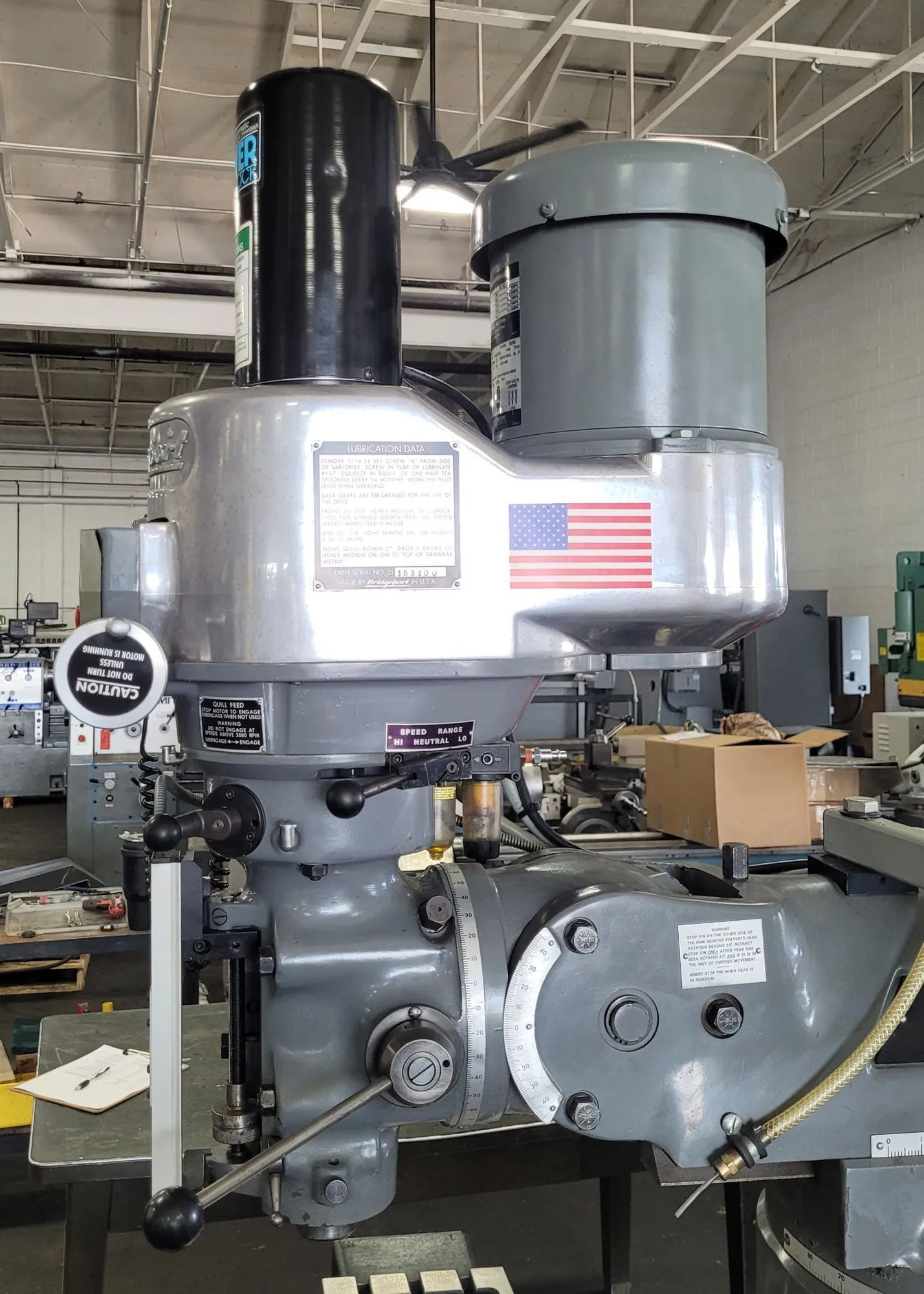

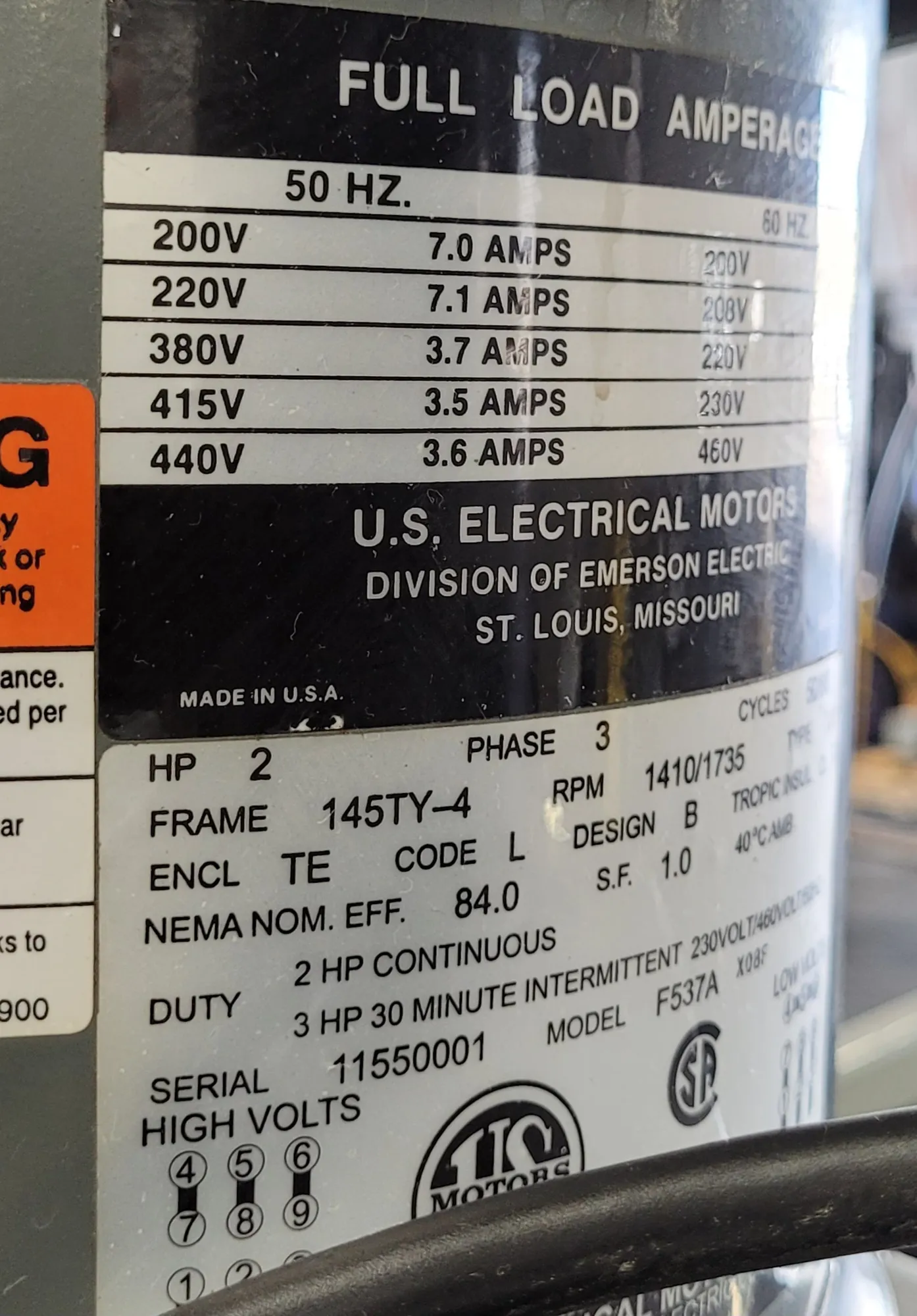

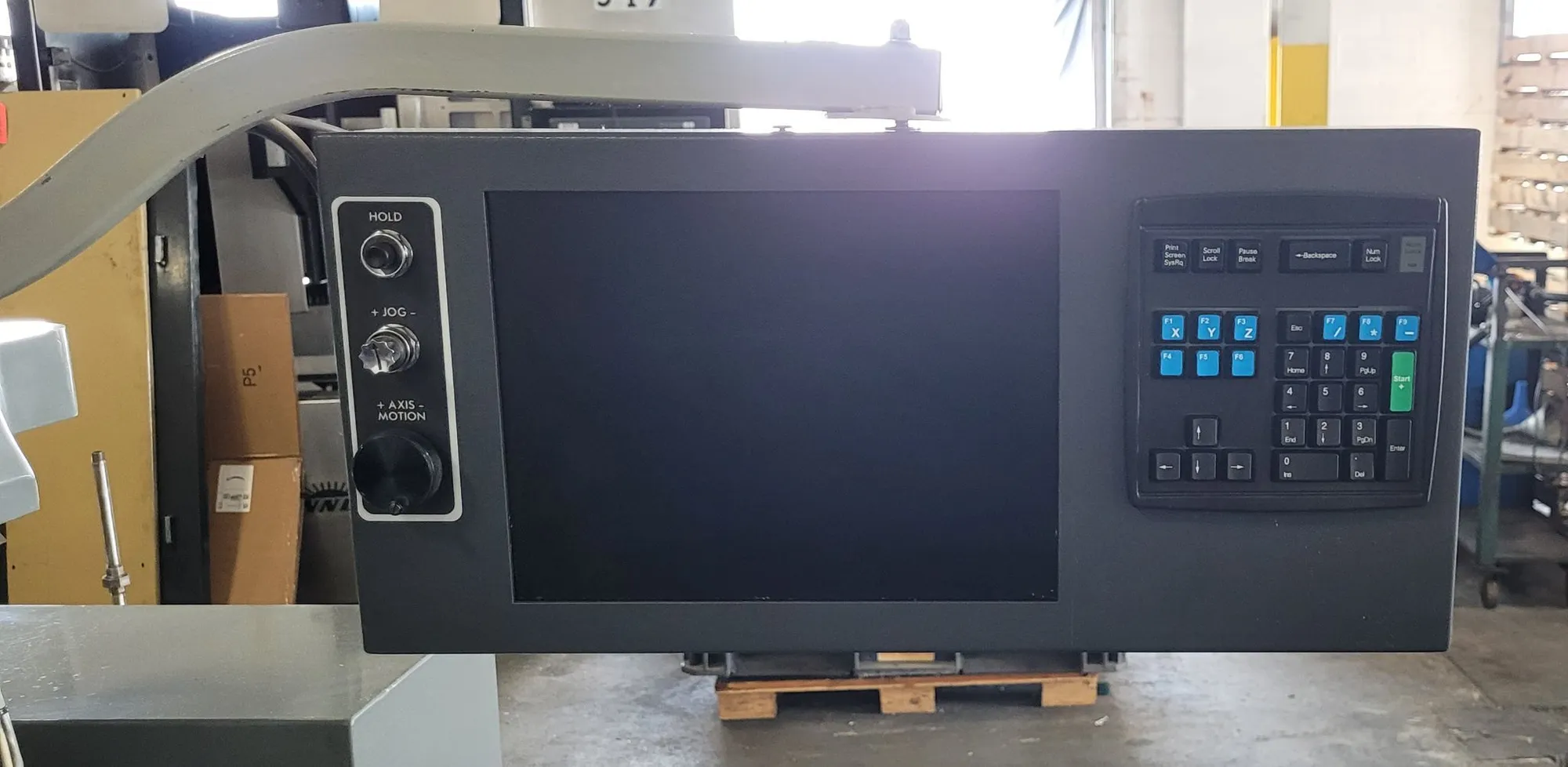

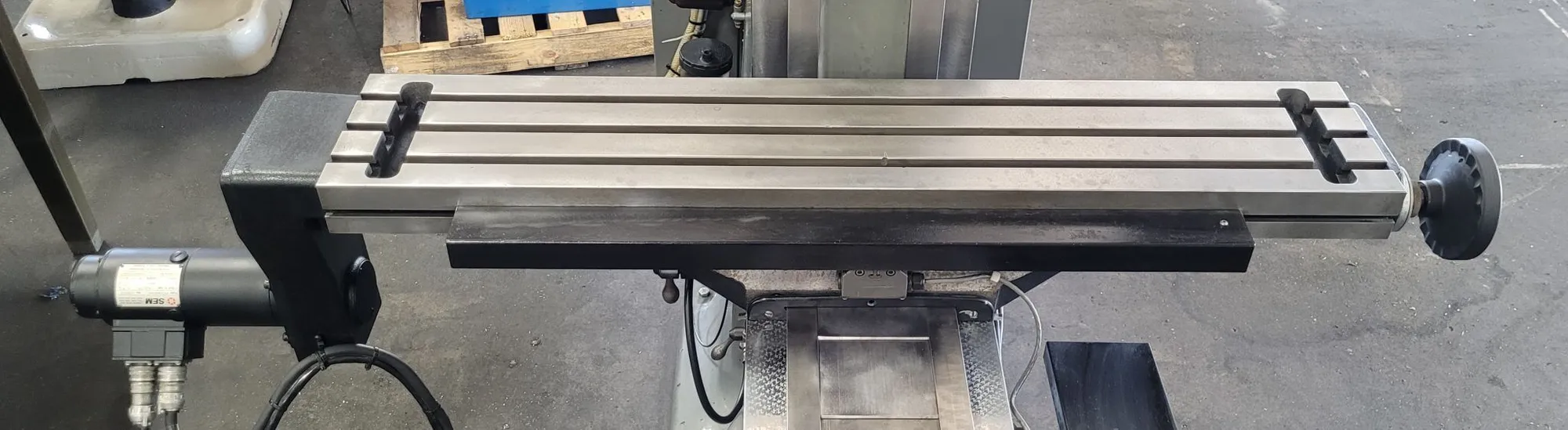

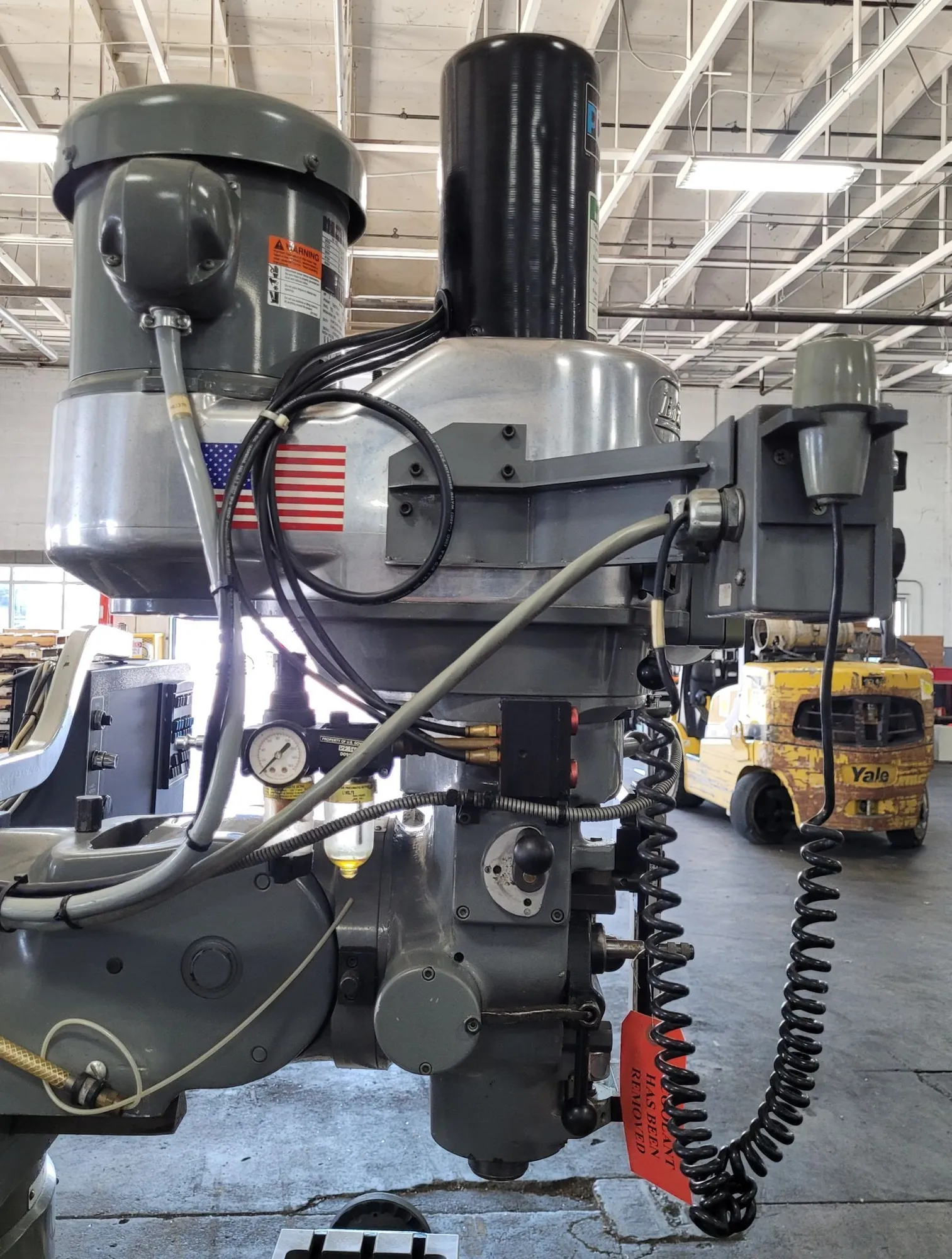

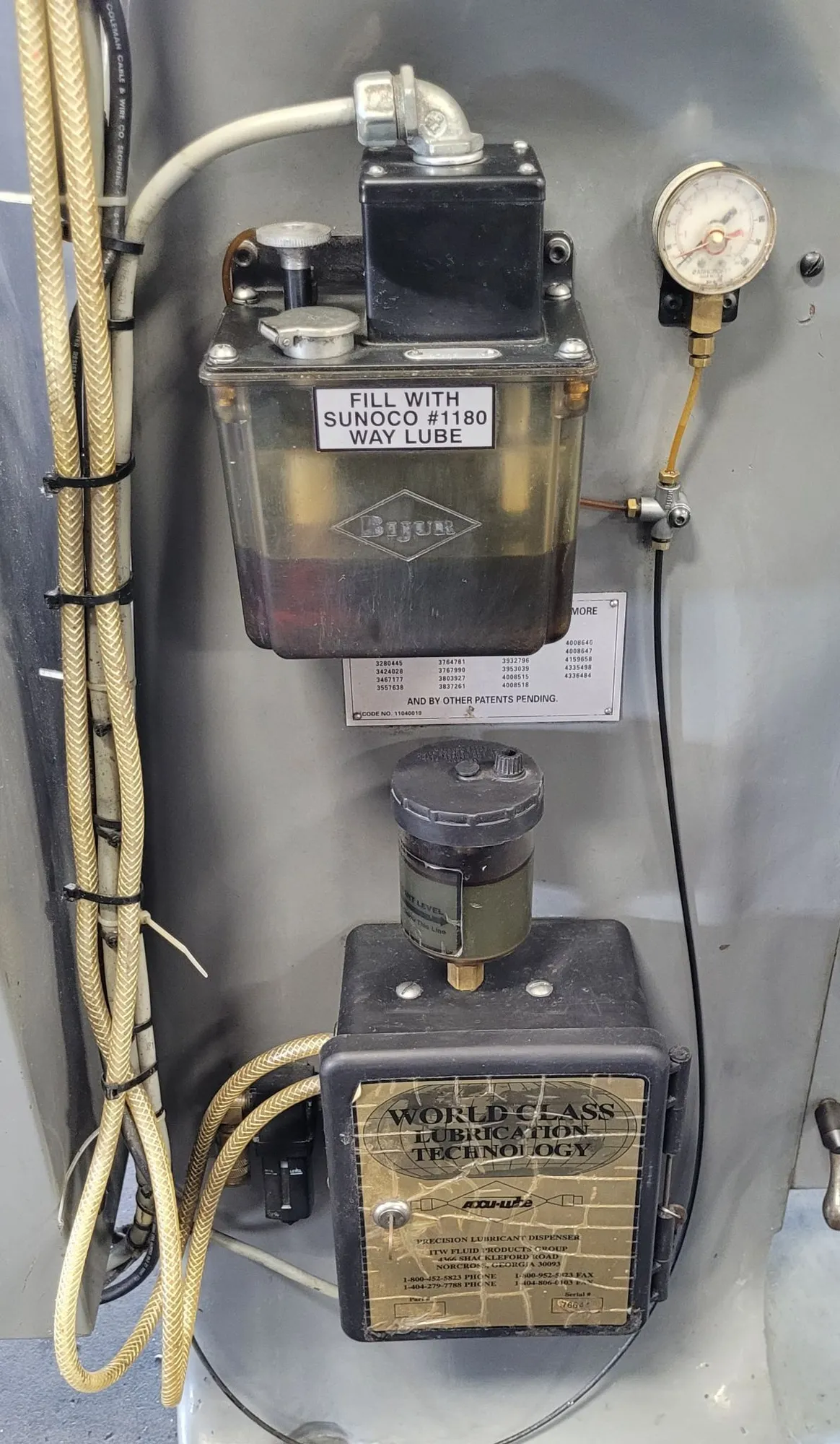

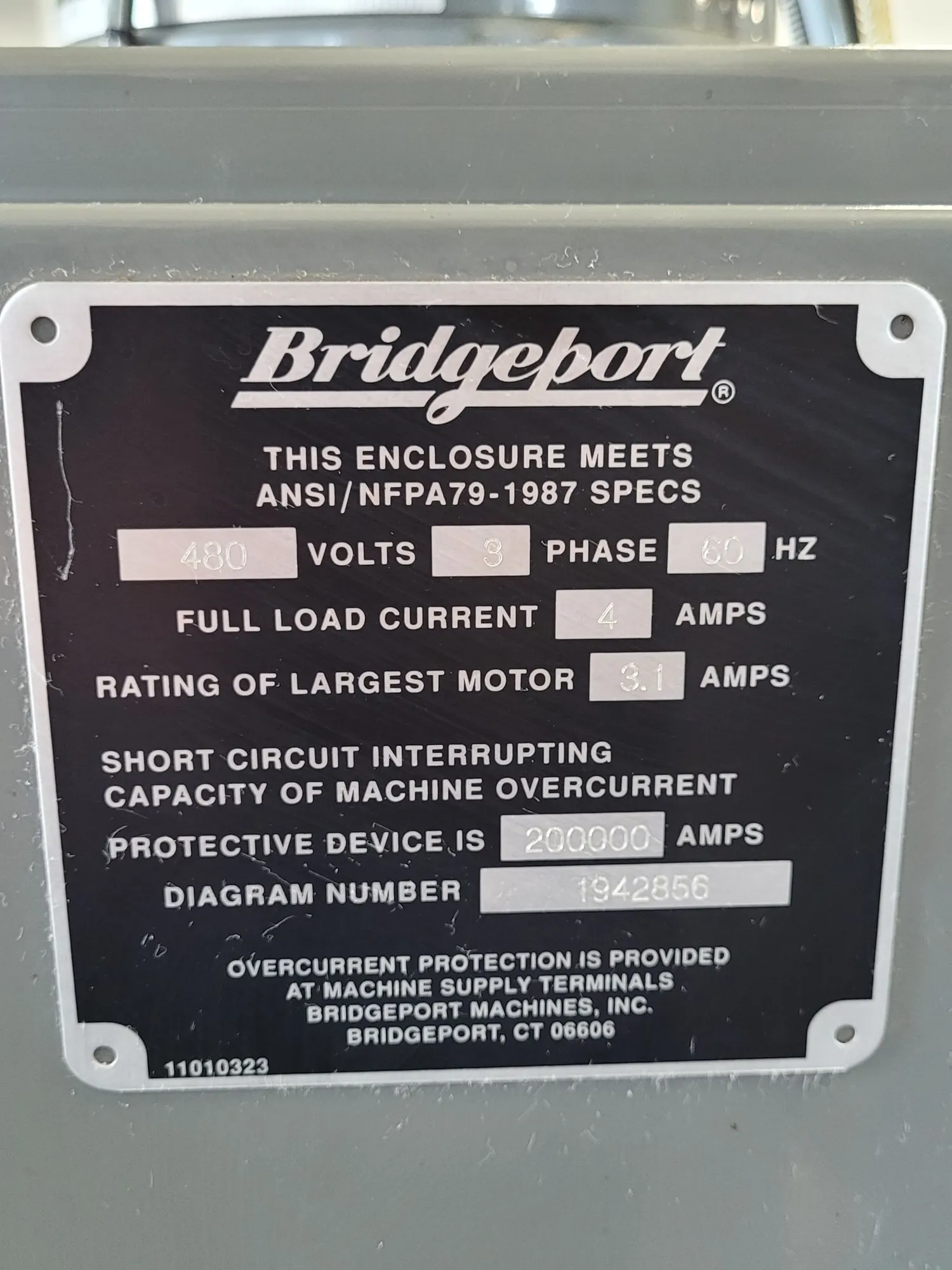

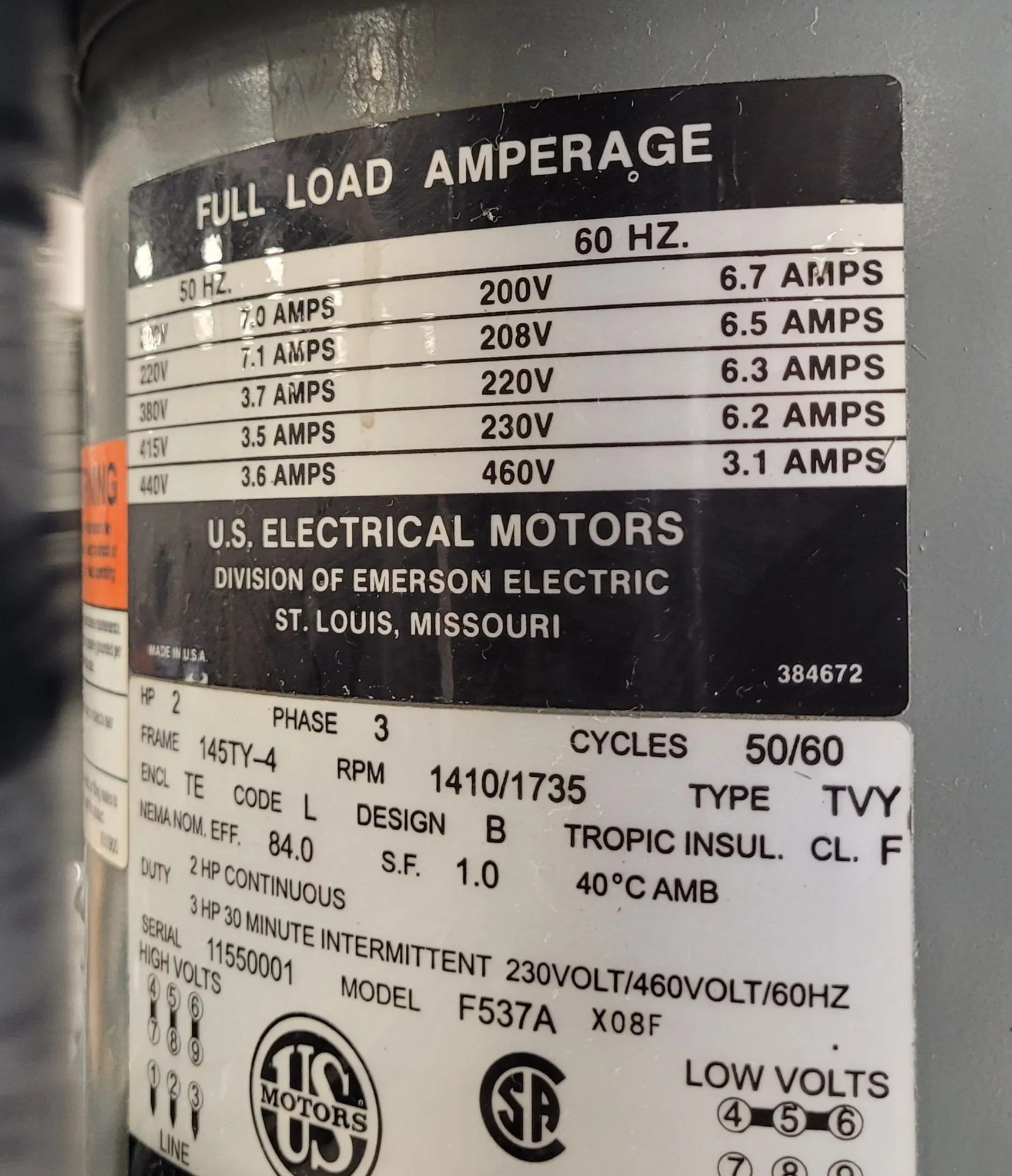

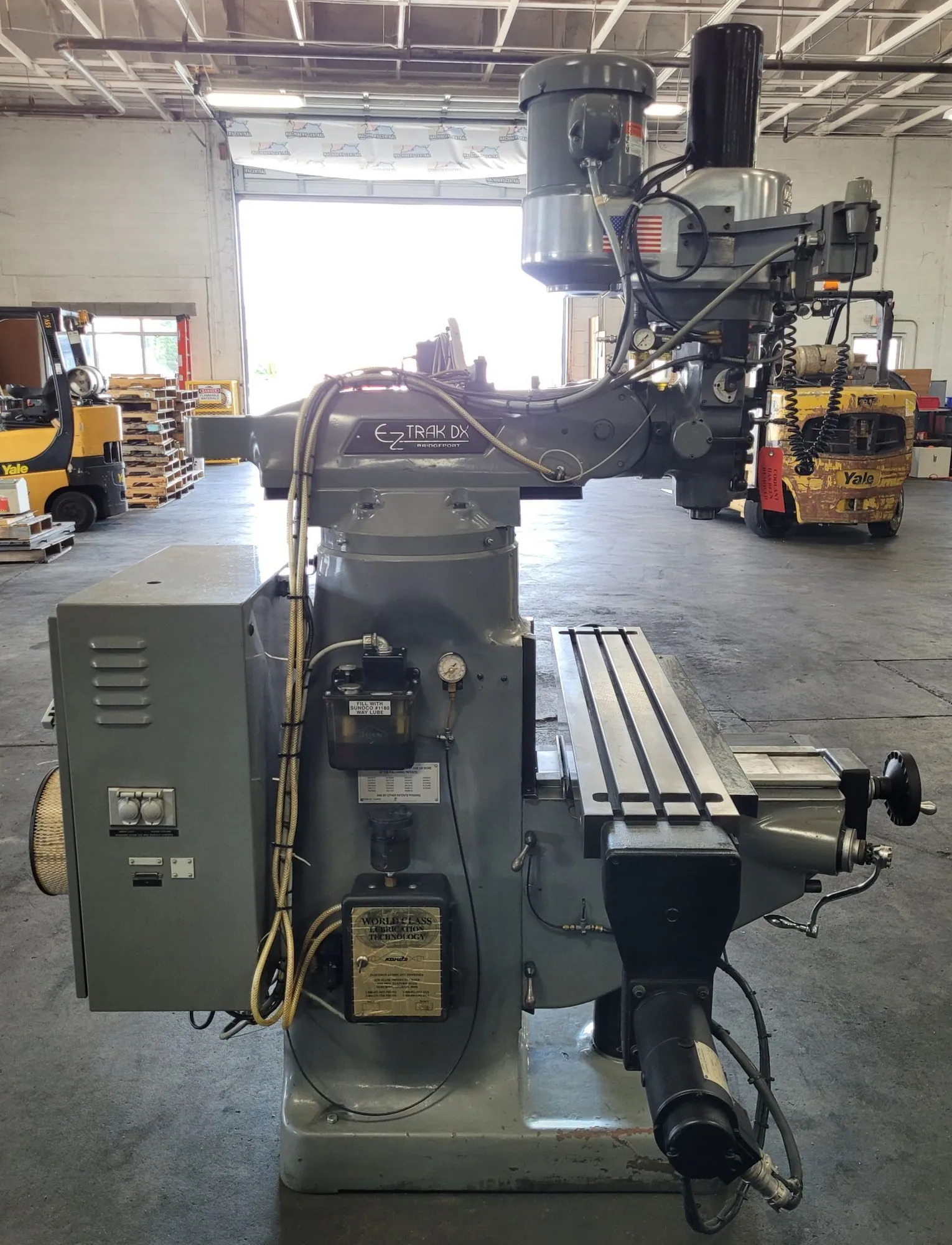

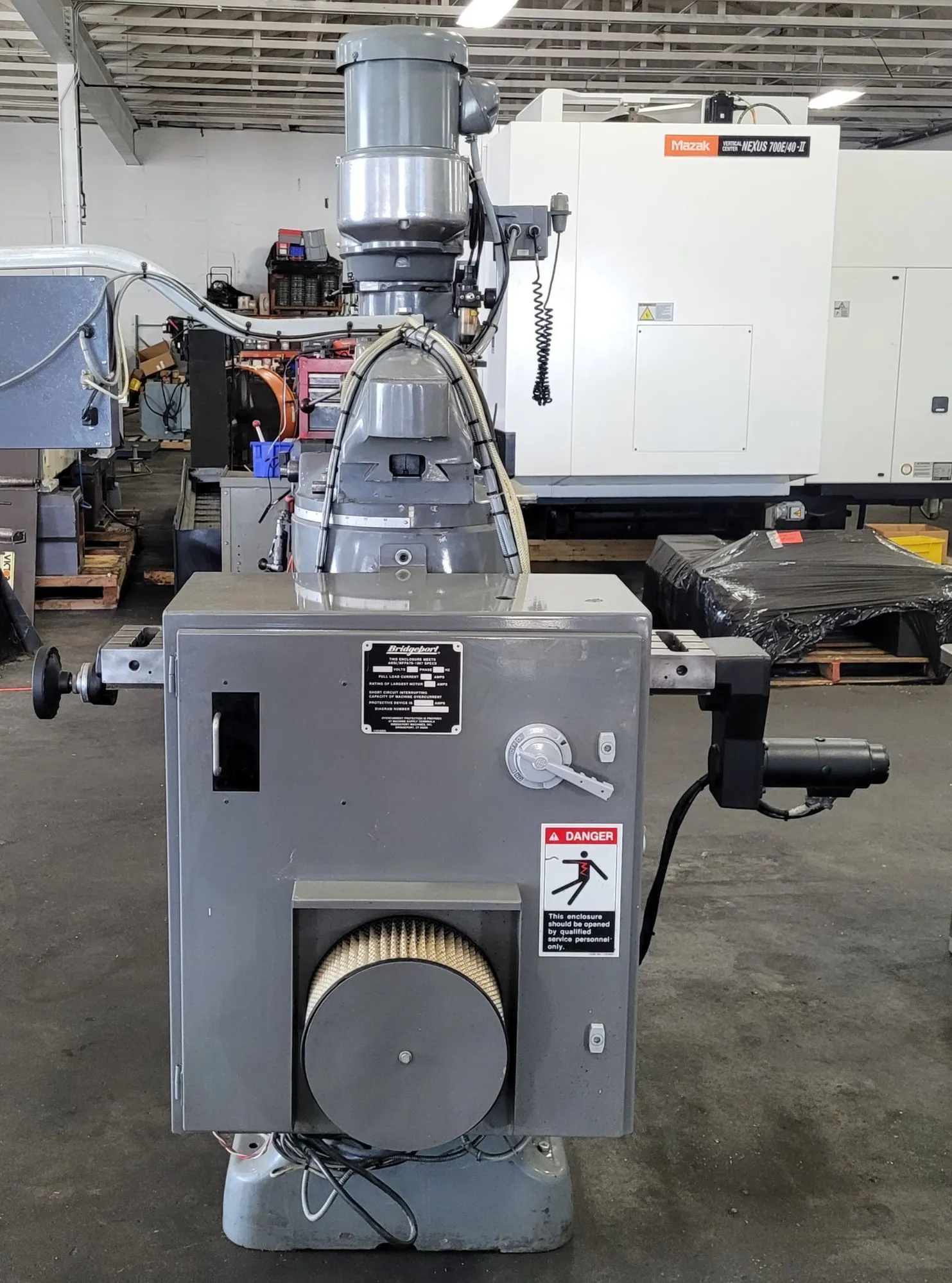

The Bridgeport Series 1 EZ TRAK DX is a vertical milling machine featuring a 2 HP motor operating at 1735 RPM, wired for 230/460V, 3-phase, 60 Hz power. It is equipped with an EZ TRAK DX CNC control system and a 2 HP variable speed head providing infinitely variable spindle speeds ranging from 60 to 4200 RPM. The machine utilizes an R8 taper spindle with chrome ways and provides spindle quill feeds of 0.0015, 0.003, and 0.006 inches. The work table measures 9 x 48 inches, supporting a longitudinal travel of 33.5 inches, cross travel of 12 inches, and vertical knee travel of 14 inches. Additional movements include a 5-inch quill travel and 12-inch ram travel. The positioning speed and feed rate range for the X and Y axes are both 0.1 to 100 inches per minute. Technical dimensions include a throat distance of 6-3/4 to 18-3/4 inches and a table-to-spindle nose distance of 2-1/2 to 18-1/4 inches. The unit includes a Trico mist coolant system, Bijur auto lube system, and components such as a new console, LED screen, keypad, and USB drive. The approximate physical footprint is 70 x 77 x 87 inches with a weight of 3,000 lbs.
