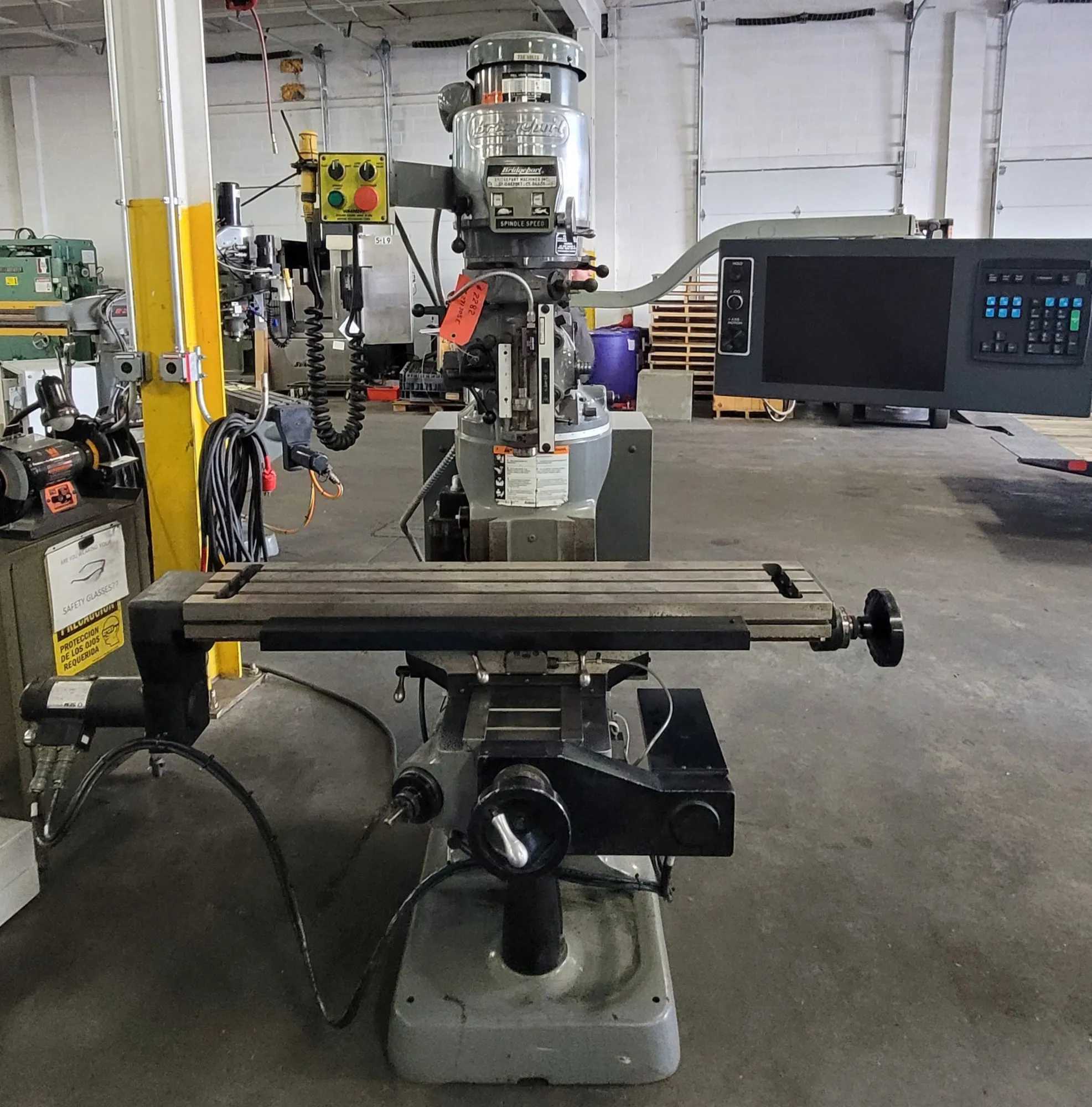

Bridgeport Series 1 Ez Trak Dx Vertical Mill, 9" x 48" Table, 2 HP, 33.5" x, 12" Y, 14" Z

The Bridgeport Series 1 EZ TRAK DX vertical mill features a 2 HP variable speed head with an R8 taper spindle and chrome ways. Technical specifications include a 9 inch by 48 inch table, longitudinal travel of 33.5 inches, cross travel of 12 inches, and vertical knee travel of 14 inches. The quill provides 5 inches of travel with feed rates of 0.0015, 0.003, and 0.006 inches. Spindle speeds are infinitely variable from 60 to 4200 RPM. The machine offers a positioning speed and feed rate range for the X-Y axis of 0.1 to 100 inches per minute. Physical dimensions include a throat distance of 6-3/4 to 18-3/4 inches and a table-to-spindle nose distance of 2-1/2 to 18-1/4 inches. The 2 HP motor operates at 1735 RPM and is currently wired for 230V, 3-phase, 60-cycle power with a full load amperage of 6.2/3.1. Additional components include a Trico mist coolant system, Bujir auto lube system, and a ram travel of 12 inches. The approximate dimensions of the unit are 70 inches by 77 inches by 87 inches high, with an approximate weight of 3,000 lbs.
