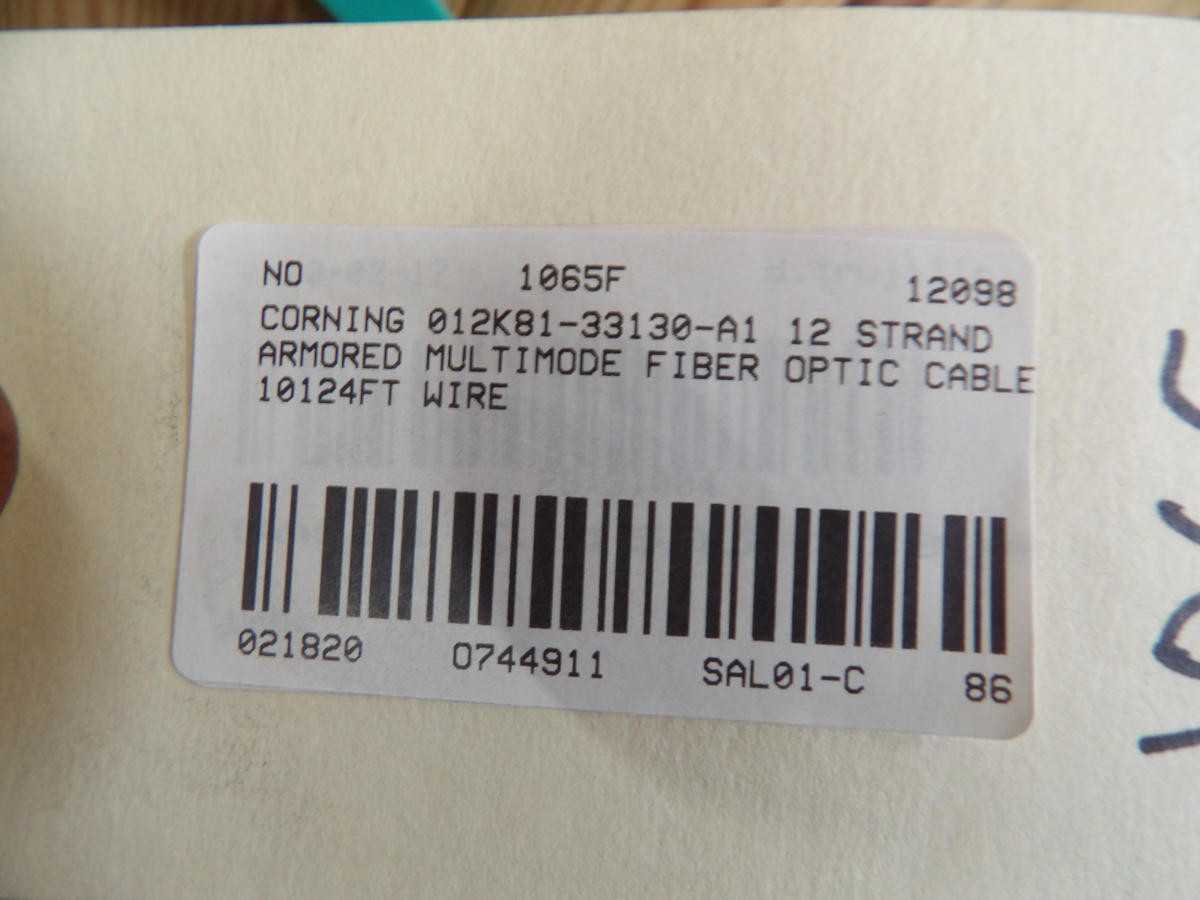

CORNING 012K81-33130-A1 MULTI MODE FIBER OPTIC CABLE, 12 FIBER, 62.5/125ΜM CORE/CLAD

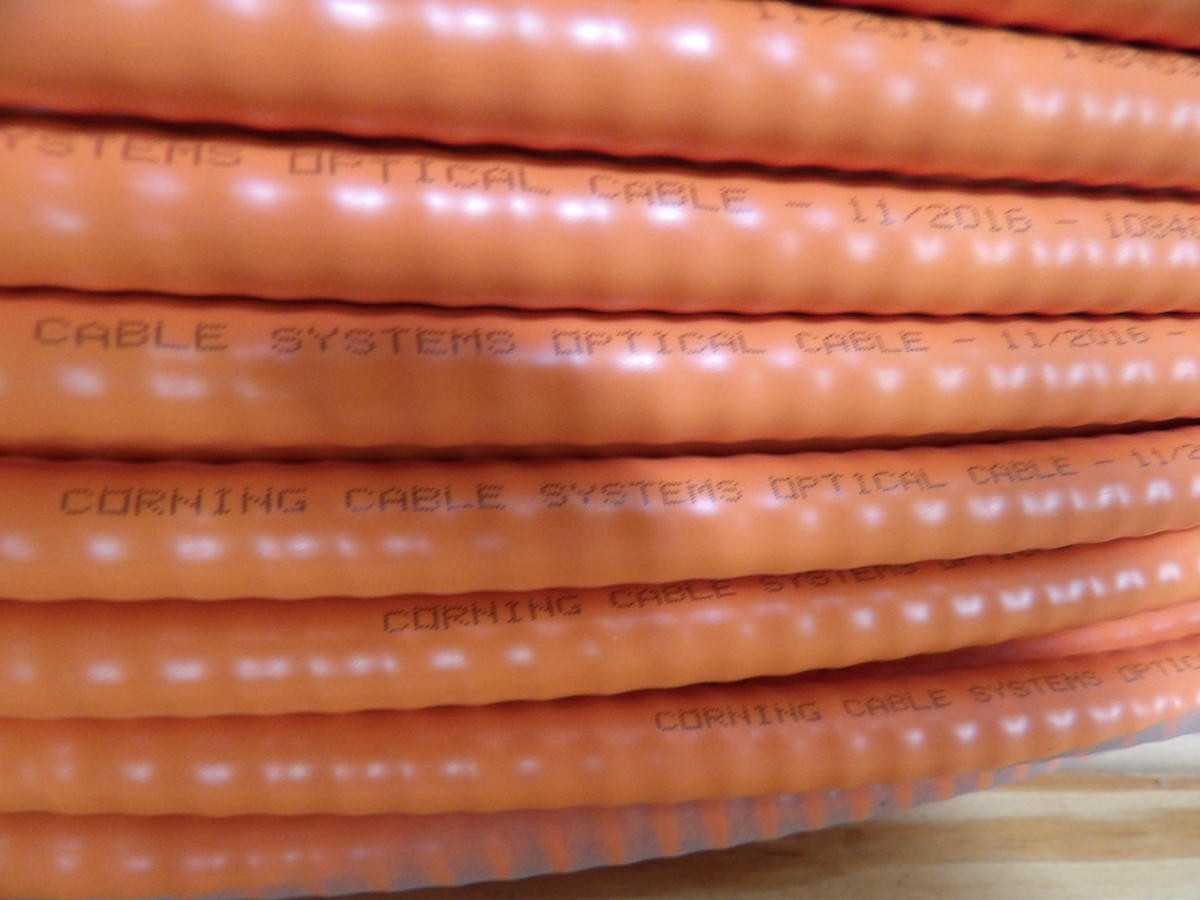

THE CORNING 012K81-33130-A1 IS A 12-FIBER, 62.5/125 ΜM MULTIMODE (OM1) OPTICAL FIBER CABLE. THIS MIC TIGHT-BUFFERED, INTERLOCKING ARMORED CABLE IS RISER-RATED (OFNR) AND FEATURES AN ORANGE OUTER JACKET. IT IS DESIGNED FOR OPERATION AT 850 NM AND 1300 NM WAVELENGTHS. TYPICAL ATTENUATION SPECIFICATIONS ARE 3.5 DB/KM AT 850 NM AND 1.5 DB/KM AT 1300 NM. THE CABLE PROVIDES A MODAL BANDWIDTH OF 200 MHZ·KM AT 850 NM AND 500 MHZ·KM AT 1300 NM. ITS OPERATIONAL TEMPERATURE RANGE EXTENDS FROM -20°C TO +70°C. THE INTERLOCKING ALUMINUM ARMOR PROVIDES MECHANICAL PROTECTION AND CRUSH RESISTANCE FOR INDOOR RISER INSTALLATIONS.
