Dorian Cxa Series Tool Holder Set, D35CXA-1, D35CXA-2, D35CXA-4, MTGNR-123B, 14"-17" Swing

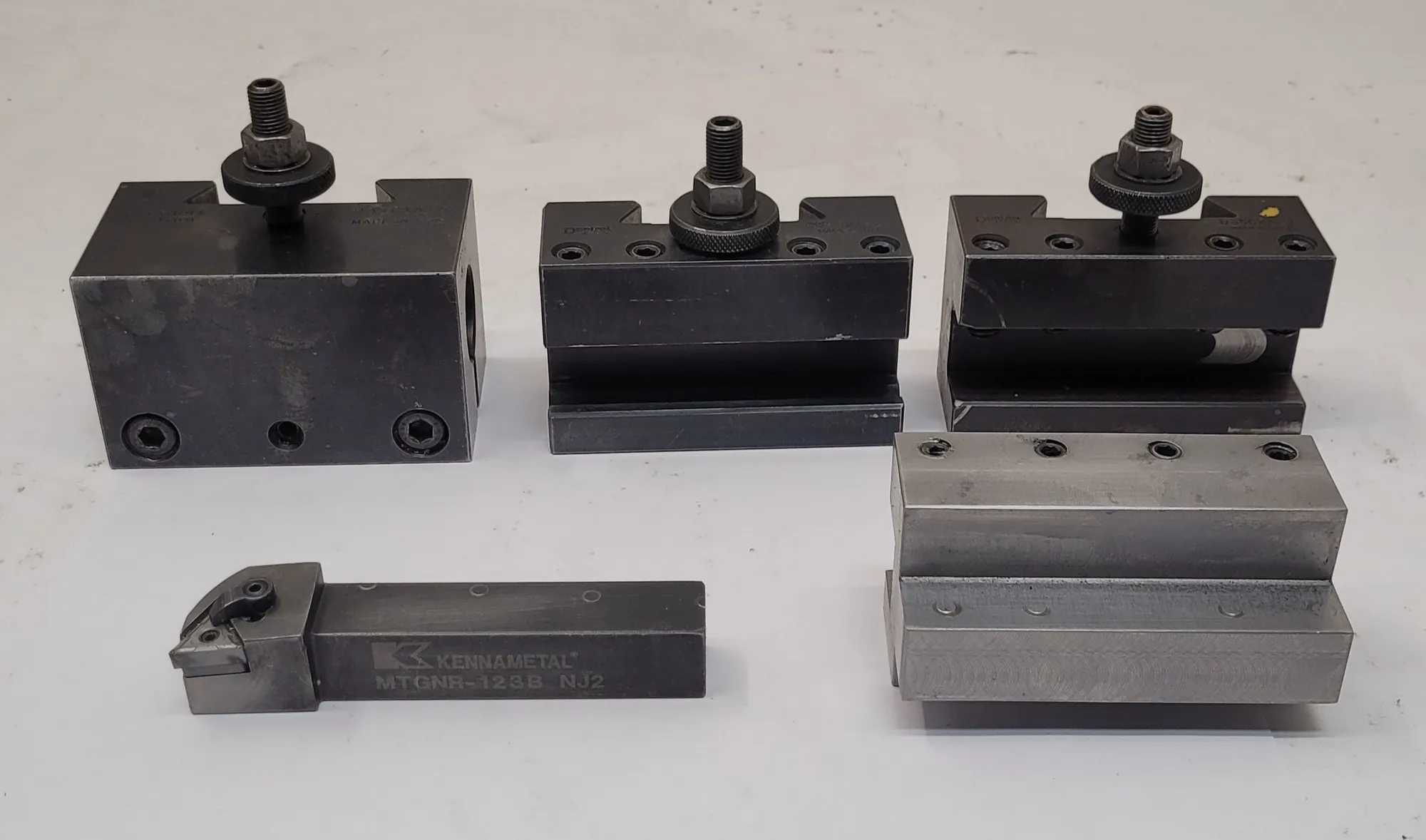

This Dorian tool set consists of three CXA series tool holders designed for lathes with a 14-inch to 17-inch swing. The set includes a D35CXA-1 turning and facing holder with a tool capacity for 3/4-inch to 1-inch square shanks, measuring 3.75 inches in length, 2.5 inches in height, and 1.75 inches in width with a maximum centerline height of 2.29 inches. The D35CXA-2 holder features a V-groove for versatility, accommodating 3/4-inch to 1-inch square shanks or boring bars up to 1 inch in diameter. The D35CXA-4 boring bar holder has a 1-inch tool capacity and dimensions of 3.75 inches in width and 2.25 inches in both height and length. Additionally, the set includes a tool holder adapter and a Kennametal MTGNR-123B tool. The Kennametal tool features a 0.75-inch shank height and width, a 4.5-inch tool length, and a 1.127-inch head length. It utilizes a TN..332 gage insert, a 5/64-inch ID drive size lock pin, and a 3/32-inch ID drive size clamp screw.
