DORIAN TOOL D35CXA TOOL HOLDER SET WITH ISCAR SER 0750 K16, 14-17" SWING, 1" BORE/SHANK CAPACITY

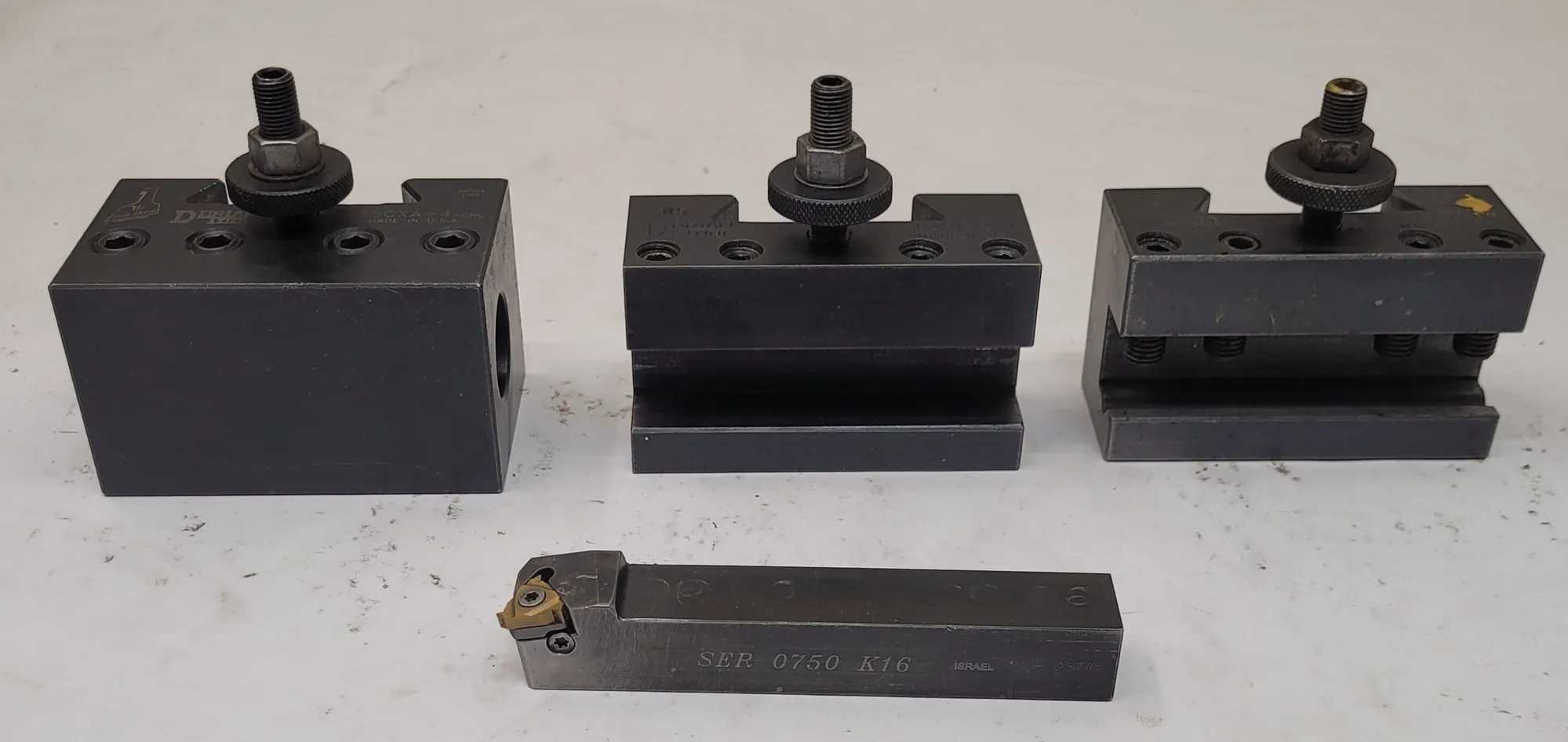

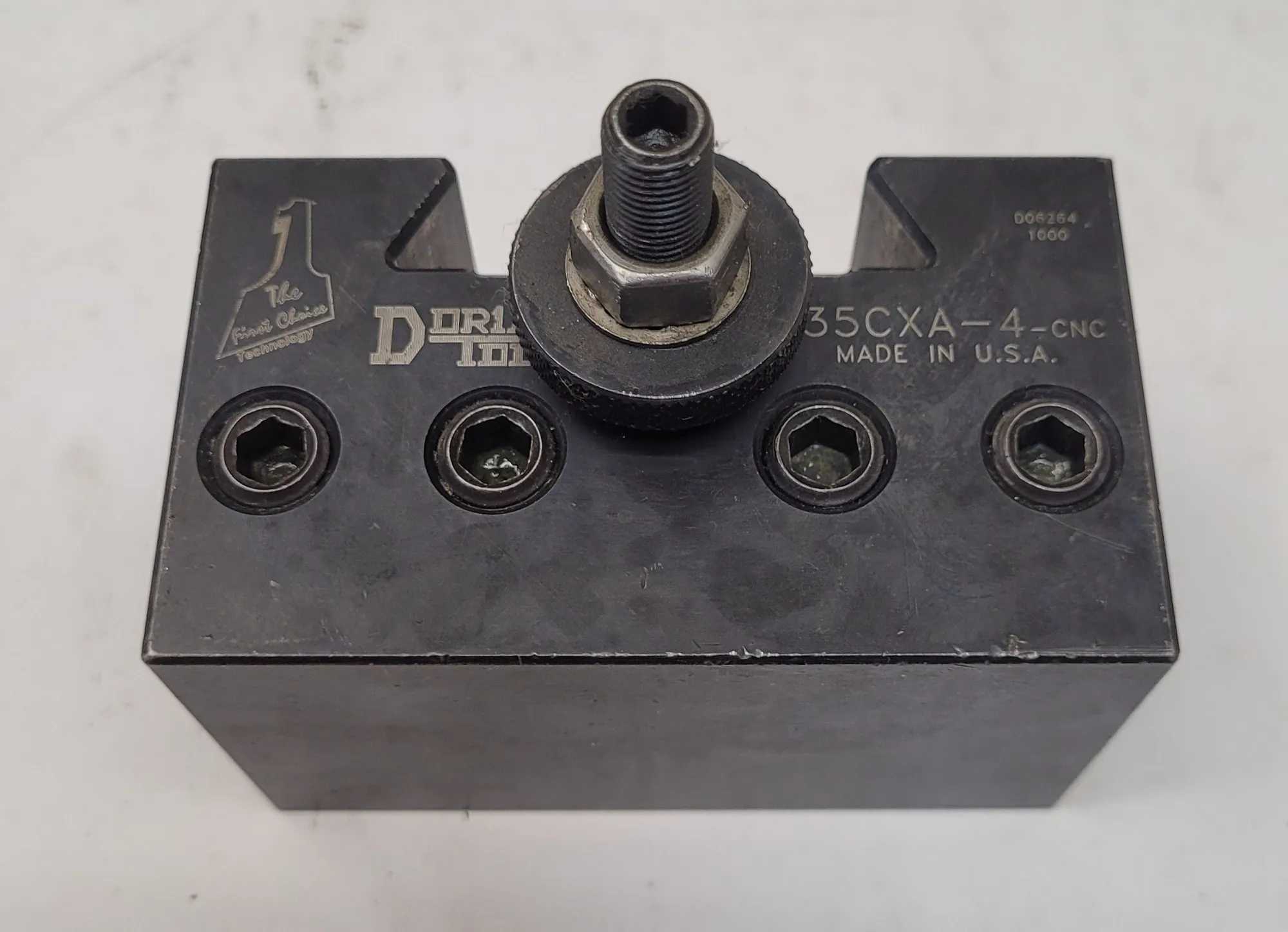

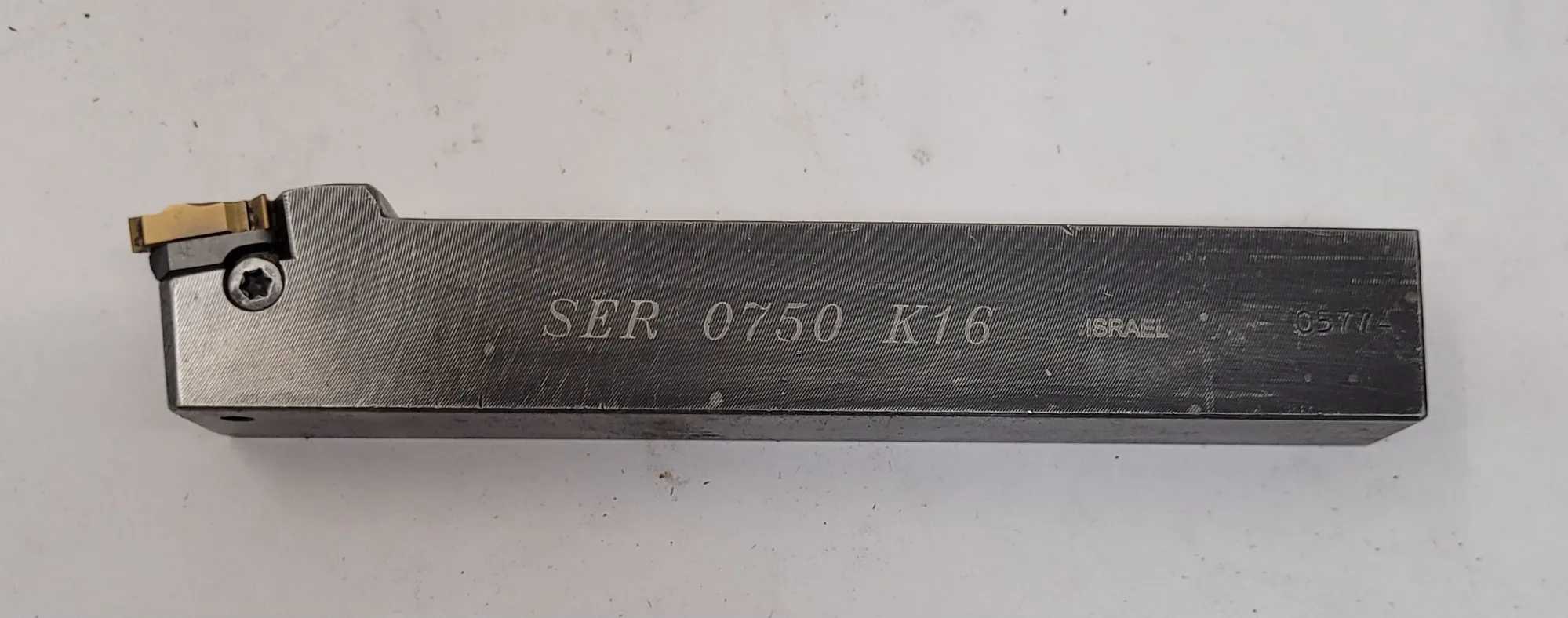

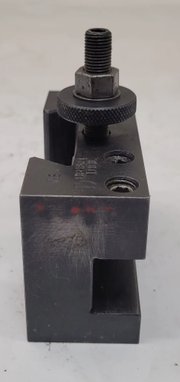

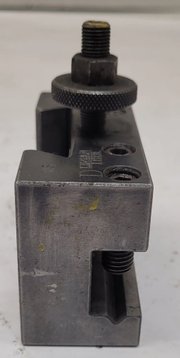

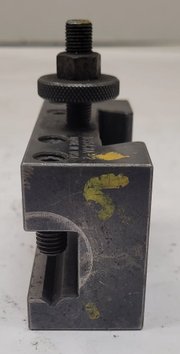

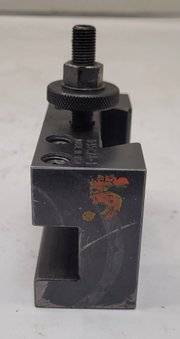

THE DORIAN TOOL SET OF THREE TOOL HOLDERS WITH AN ISCAR TOOL IS DESIGNED FOR LATHES WITH A 14-INCH TO 17-INCH SWING. THE SET INCLUDES A D35CXA-1 TURNING AND FACING HOLDER WITH A 3/4-INCH TO 1-INCH SQUARE SHANK TOOL CAPACITY AND DIMENSIONS OF 3.75 INCHES IN LENGTH, 2.5 INCHES IN HEIGHT, AND 1.75 INCHES IN WIDTH. THE D35CXA-2 HOLDER ACCOMMODATES BOTH 3/4-INCH TO 1-INCH SQUARE SHANKS AND BORING BARS UP TO 1 INCH, FEATURING A V-GROOVE FOR VERSATILITY AND A MAXIMUM CENTERLINE HEIGHT OF 2.29 INCHES. THE D35CXA-4-CNC BORING BAR HOLDER FEATURES A 1-INCH BORE WITH DIMENSIONS OF 2.25 INCHES IN LENGTH, 3.75 INCHES IN WIDTH, AND 2.25 INCHES IN HEIGHT. ADDITIONALLY, THE SET INCLUDES AN ISCAR SER 0750 K16 EXTERNAL NON-ROTATING THREADING TOOL FEATURING A 3/4-INCH STEEL SHANK, RIGHT-HAND CUTTING DIRECTION, AND A 5-INCH FUNCTIONAL LENGTH FOR INCH-BASED EXTERNAL GROOVING AND THREADING APPLICATIONS.
