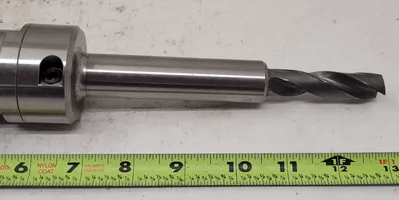

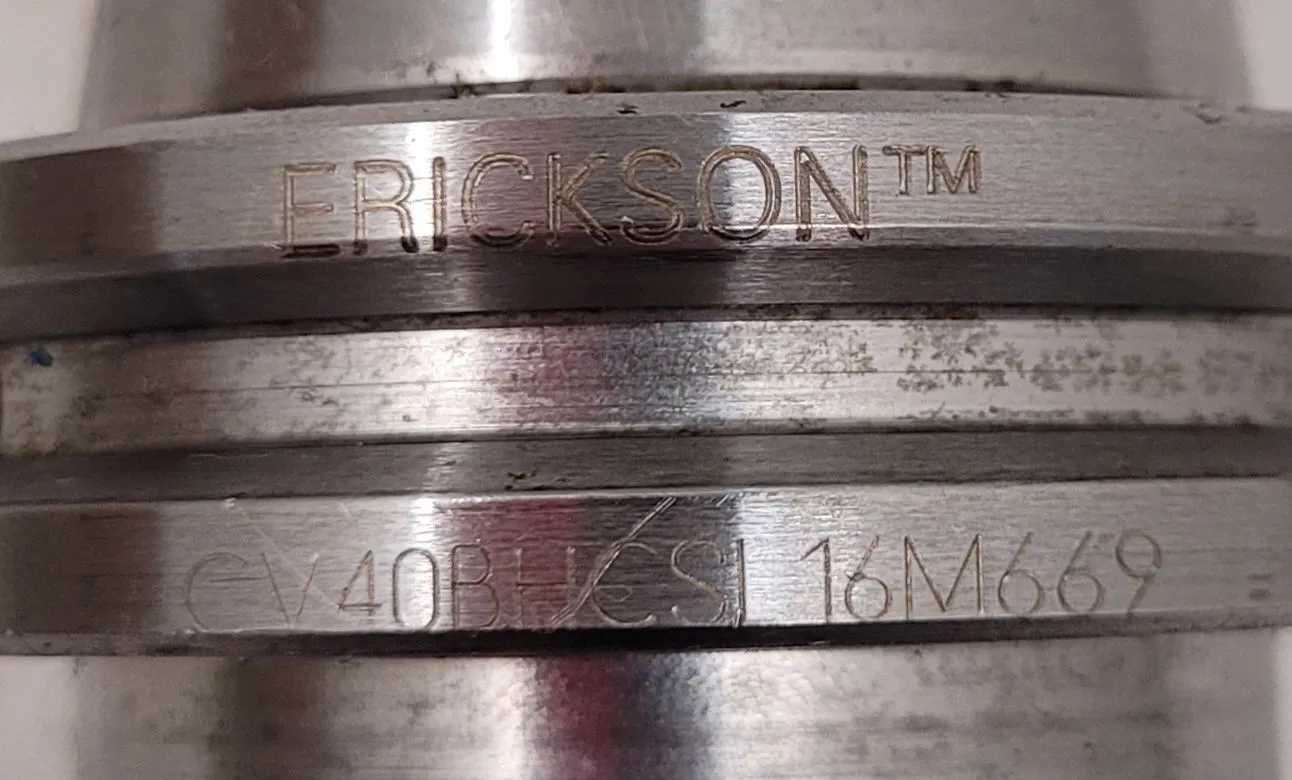

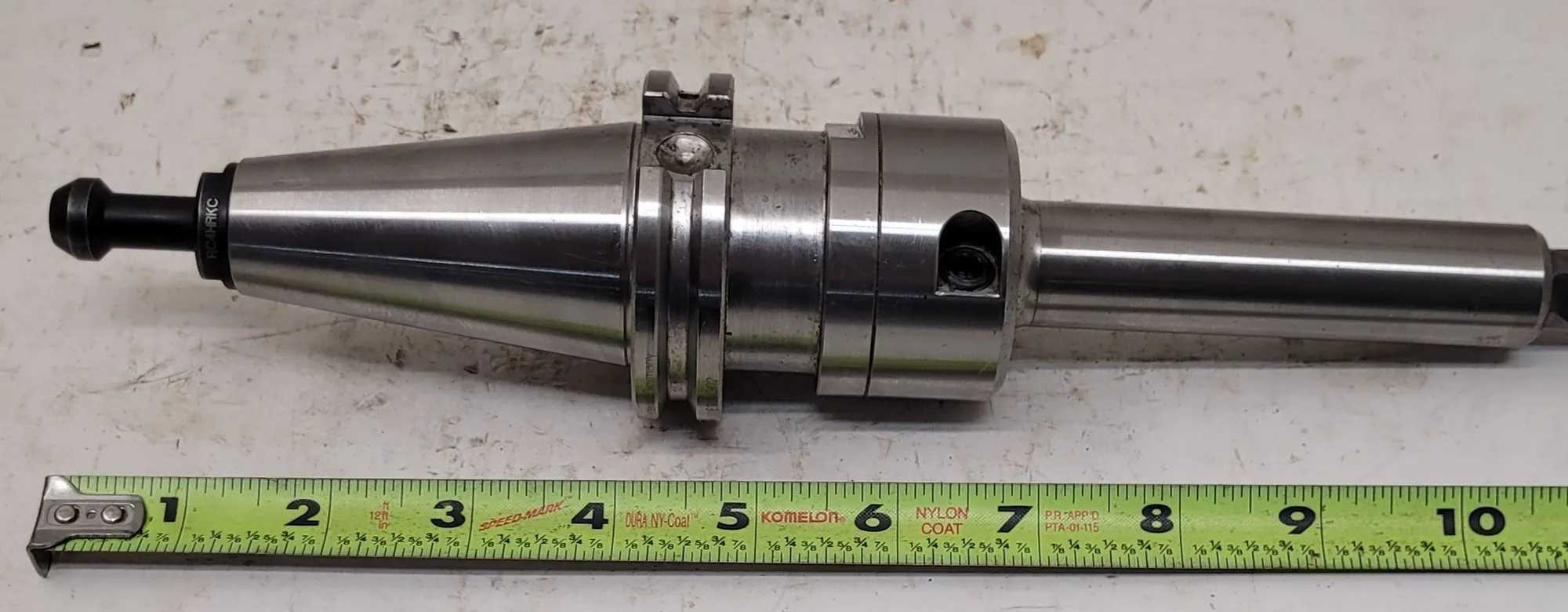

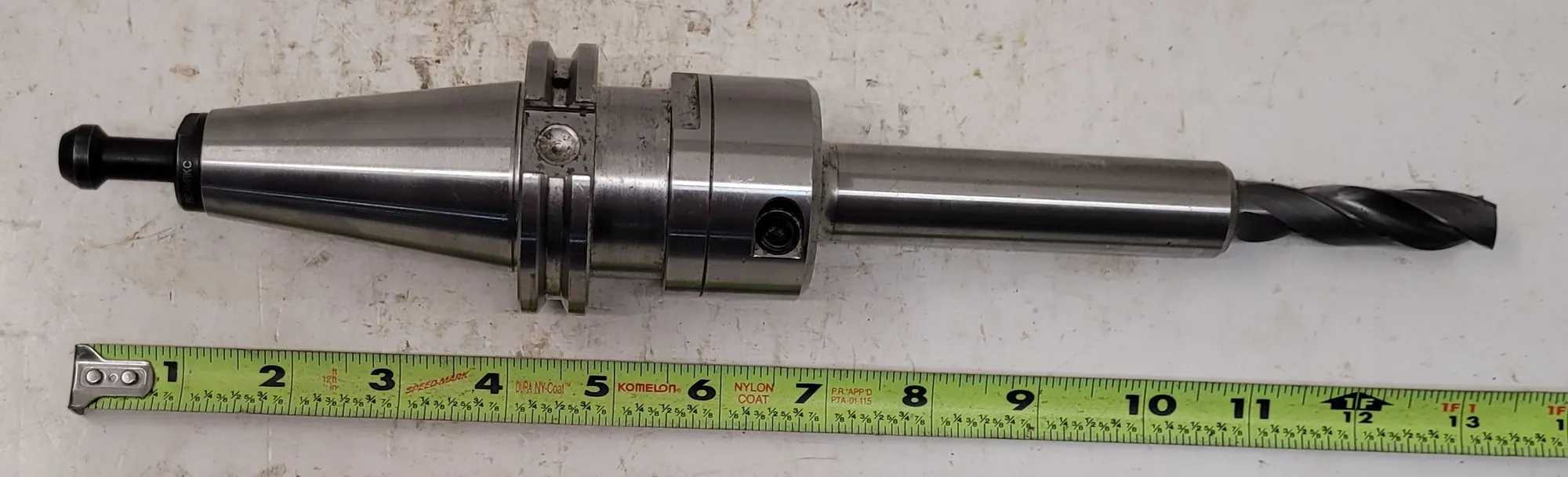

ERICKSON CV40BHCSL16M669 SLIM LINE HYDRAULIC CHUCK TOOL, CAT 40 HOLDER, CV40 TAPER

THE ERICKSON CV40BHCSL16M669 SLIM LINE HYDRAULIC CHUCK IS DESIGNED FOR PRECISION TOOLING WITH A CAT 40 HOLDER TYPE AND A CV40 TAPER SIZE FOR BOTH THE MACHINE SIDE SYSTEM AND THE TAPER. THIS TOOL HAS A CLAMPING DEPTH OF 39 MM, A HOLE DIAMETER OF 16 MM, AND A SHANK DIAMETER OF 44.45 MM WITH A TAPER SHANK TYPE. THE CHUCK FEATURES A NOSE DIAMETER OF 23.5 MM, AN OVERALL LENGTH OF 238.25 MM, AND A PROJECTION OF 170 MM. IT SUPPORTS THROUGH COOLANT CAPABILITIES AND USES A 5/8-11 UNC CONNECTION SIZE. THE CHUCK TYPE IS FORM B/AD SLIM LINE.
