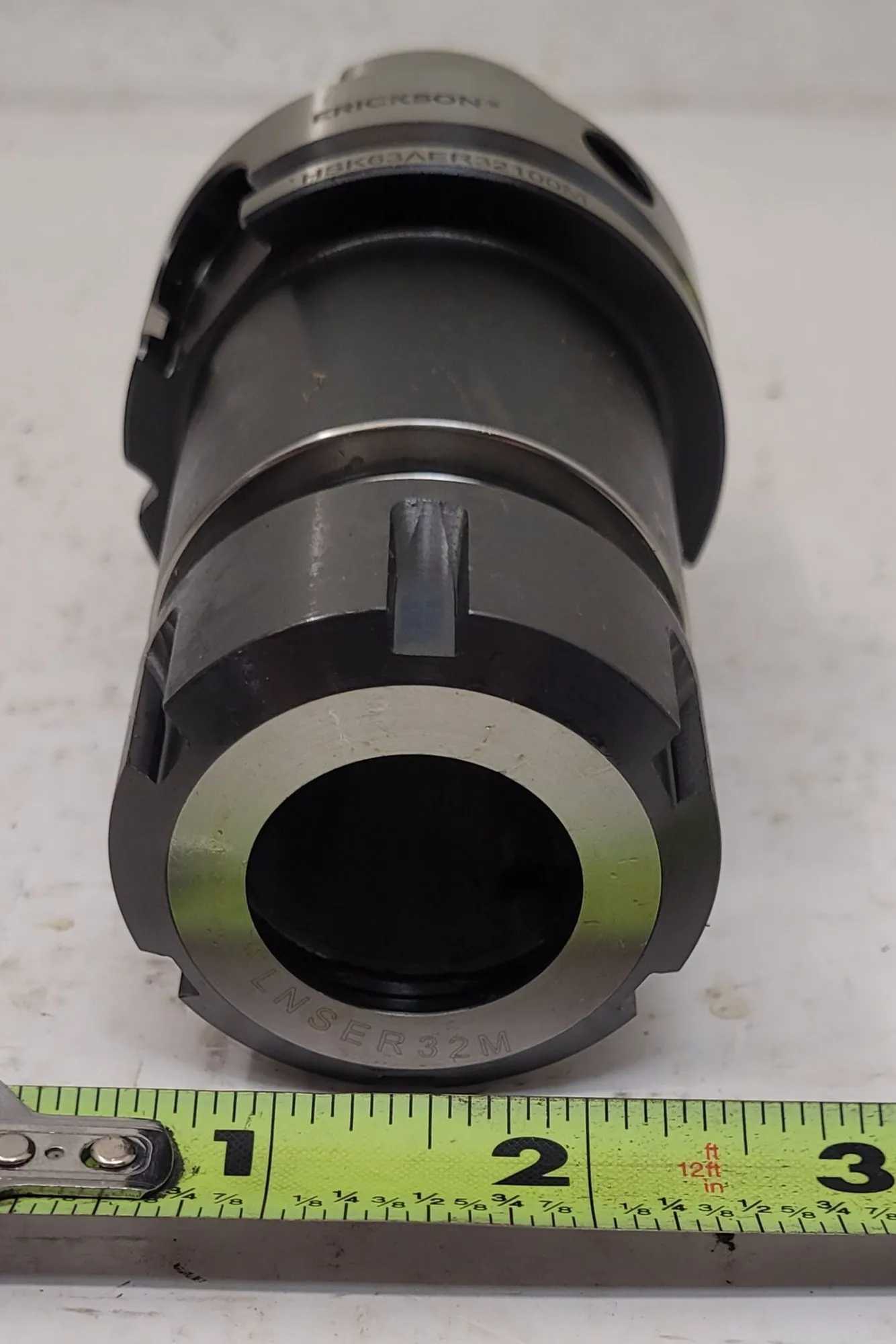

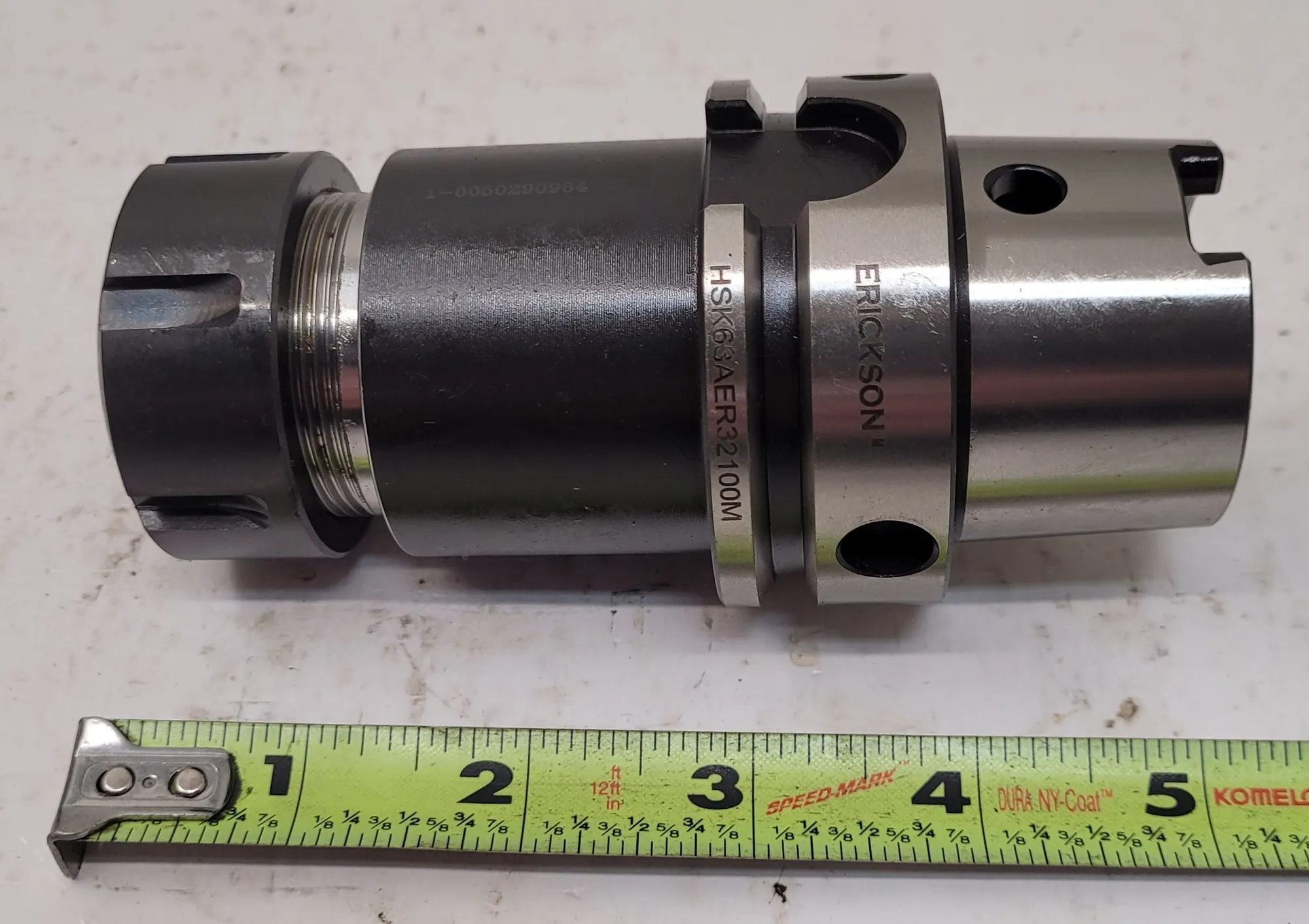

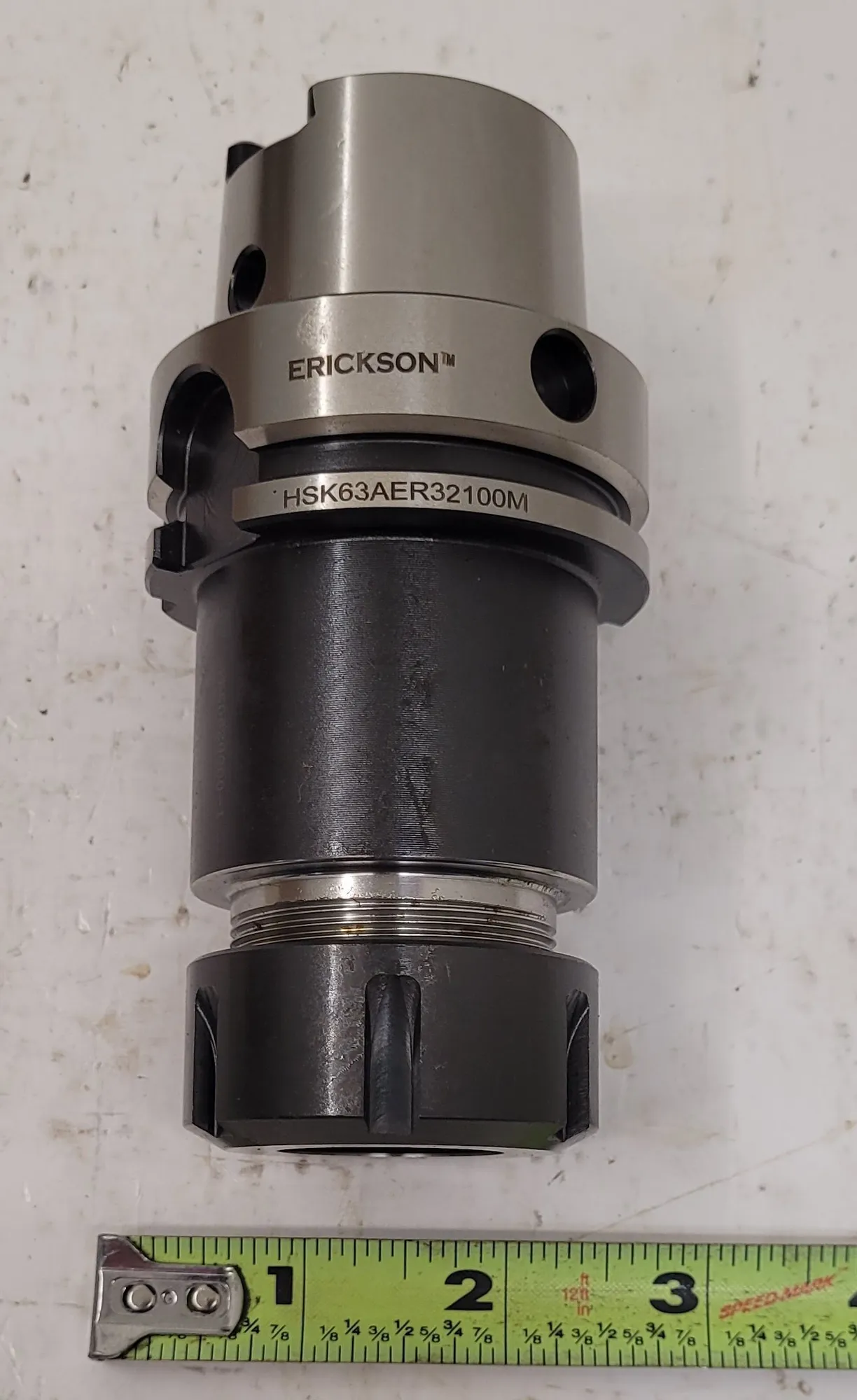

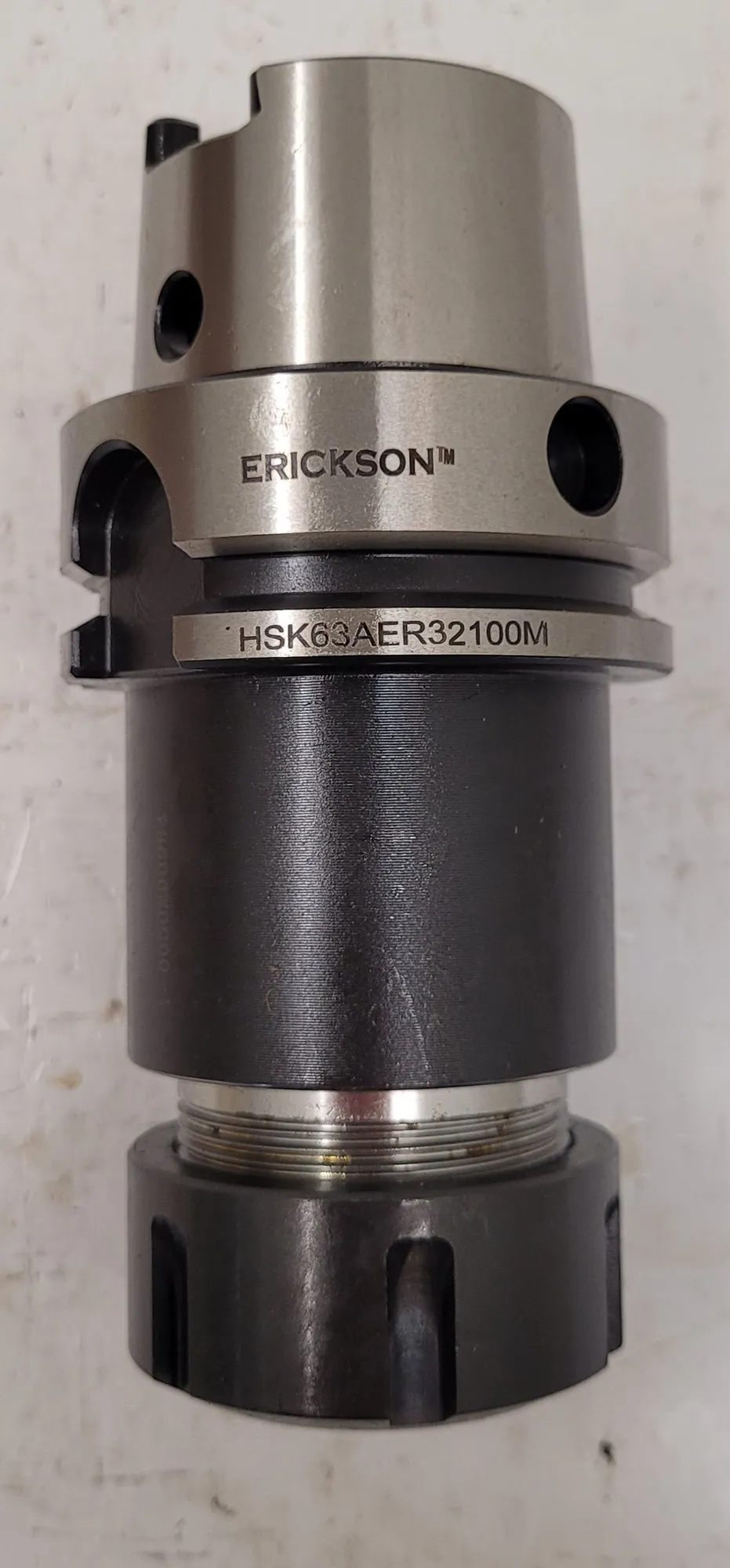

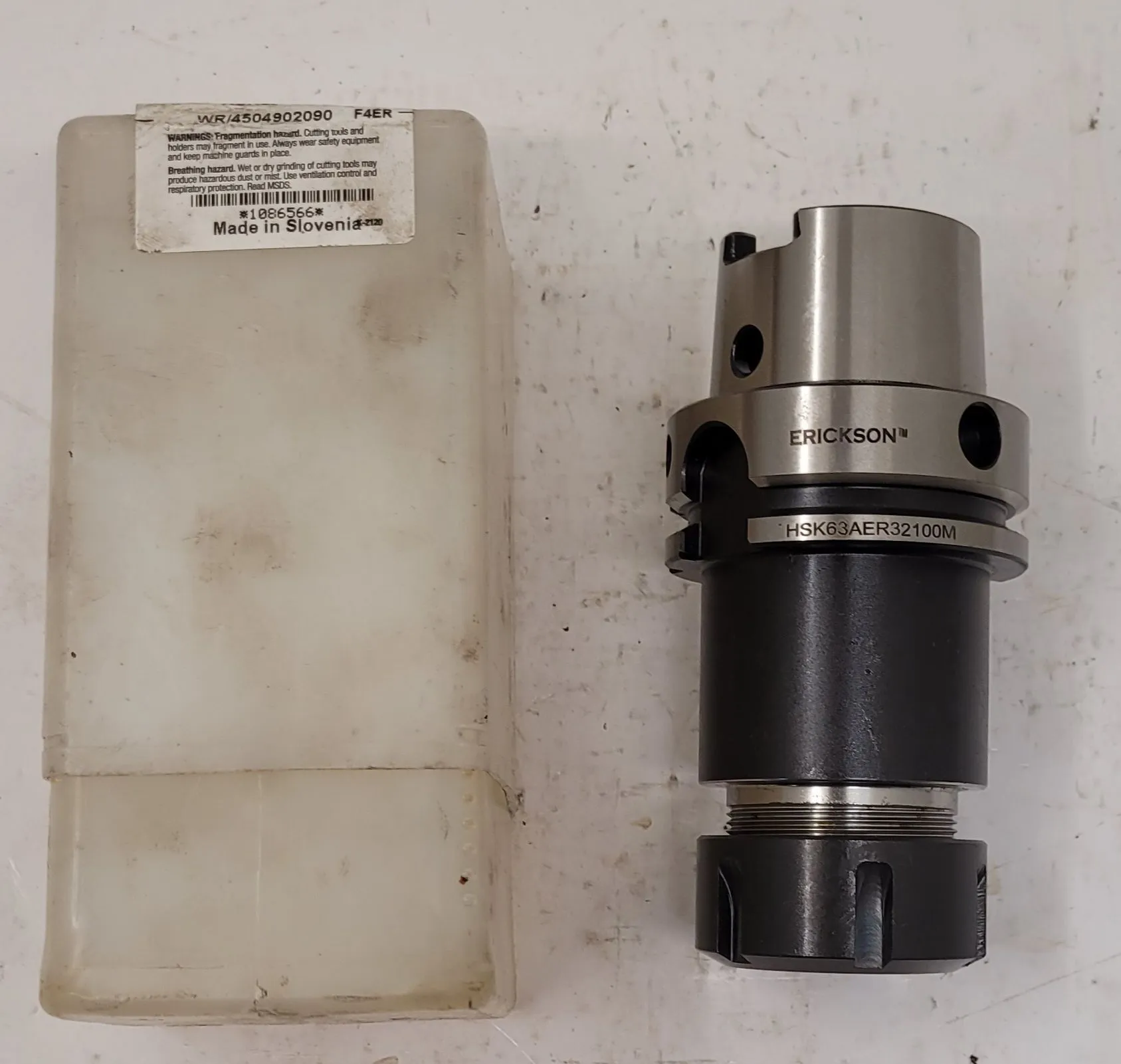

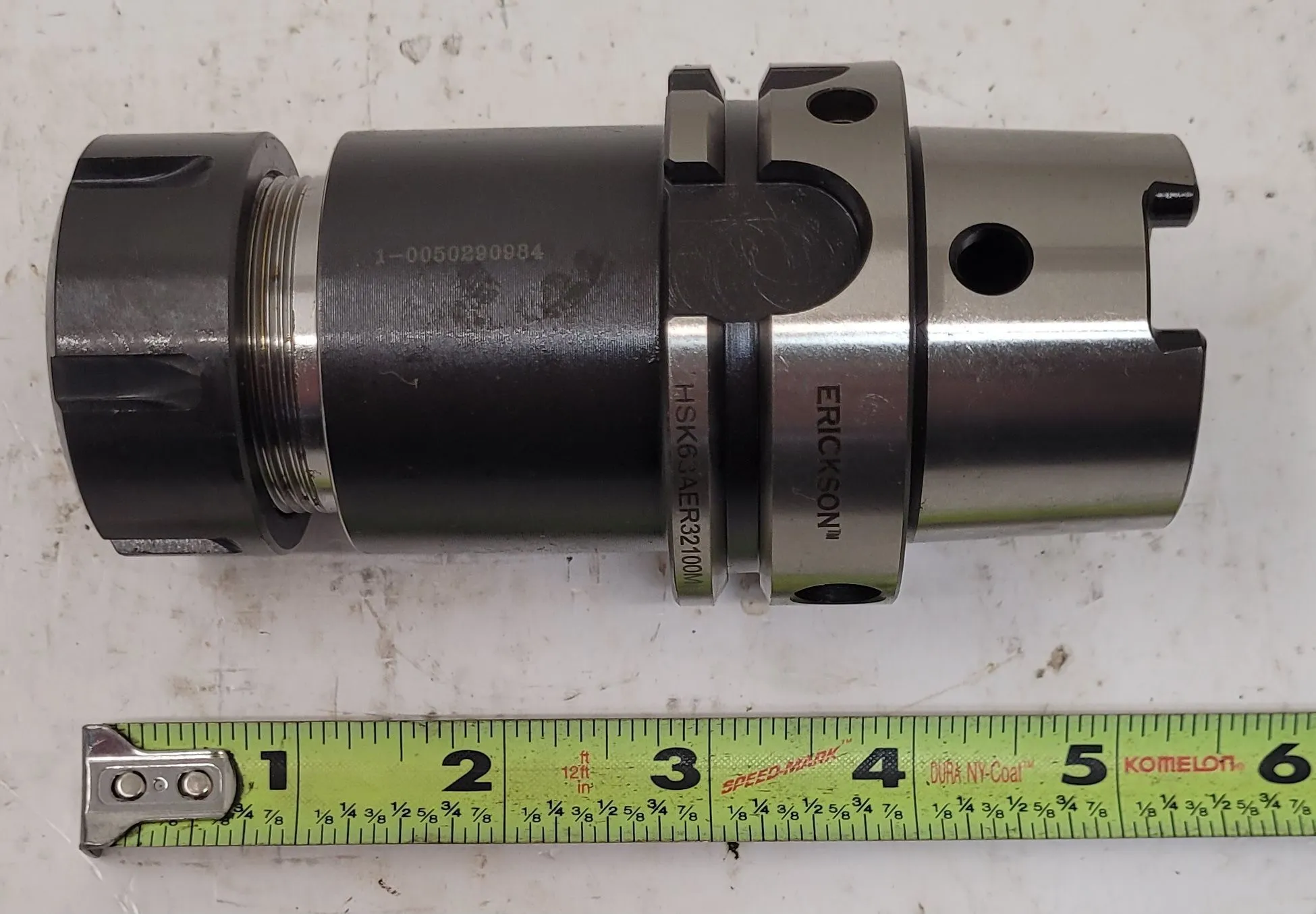

ERICKSON HSK63AER32100M MILLING CUTTER ARBOR, 2-1/2", HSS - ER32 COLLET CHUCK

THE ERICKSON HSK63AER32100M MILLING CUTTER ARBOR IS A COLLET CHUCK WITH A CYLINDRICAL SHANK DESIGNED FOR HIGH-SPEED MILLING APPLICATIONS. KEY SPECIFICATIONS INCLUDE A TAPER SIZE OF HSK63 AND A COLLET SERIES OF ER32. THE TOOL HAS AN OVERALL LENGTH OF 131 29/32 MM, A PROJECTION OF 100 MM, AND A HEAD DIAMETER OF 2-1/2". THE SHANK DIAMETER MEASURES 4.88 IN (4.8800 IN). OTHER DIMENSIONS INCLUDE A BORE DEPTH OF 45 MM, A NOSE DIAMETER OF 50.00 MM, AND A NUT DIAMETER OF 50 MM. IT ACCOMMODATES A MINIMUM COLLET CAPACITY OF 0.0800" AND A MAXIMUM COLLET CAPACITY OF 0.8100".
