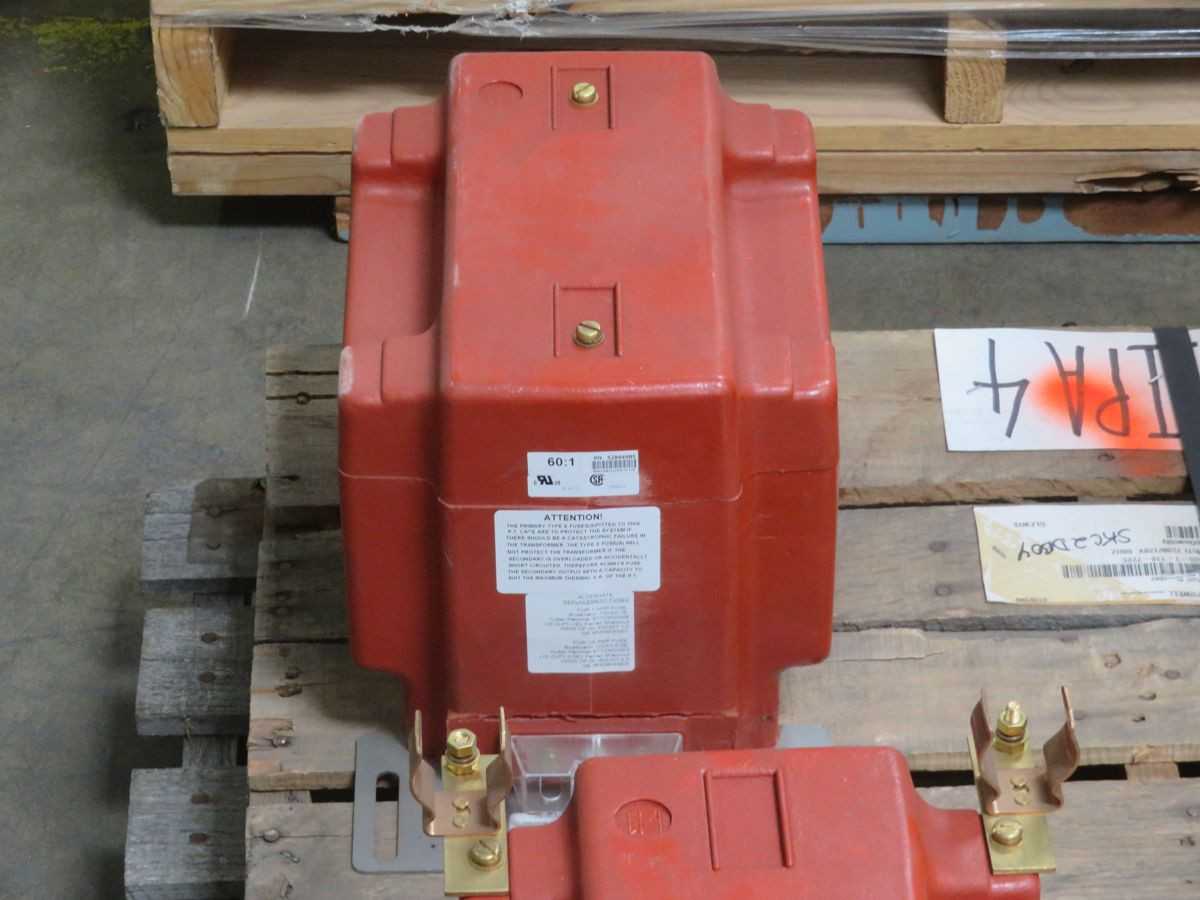

GE PTG5-1-110-722C VOLTAGE TRANSFORMER, 115000/√3V PRI V, 115V SEC V, 60 HZ, 550 KV BIL, 750 VA

THE GE PTG5-1-110-722C IS AN INDOOR VOLTAGE TRANSFORMER FEATURING A PRIMARY VOLTAGE RATING OF 115000/√3 V AND A SECONDARY VOLTAGE OF 115 V, OPERATING AT A NOMINAL FREQUENCY OF 60 HZ. IT POSSESSES A BASIC IMPULSE LEVEL (BIL) OF 550 KV. THE UNIT PROVIDES AN ACCURACY CLASS OF 0.3 FOR METERING APPLICATIONS (BURDENS W, X, Y, Z) AND CLASS C FOR PROTECTION APPLICATIONS. THIS TRANSFORMER HAS A CONTINUOUS THERMAL RATING OF 750 VA.
