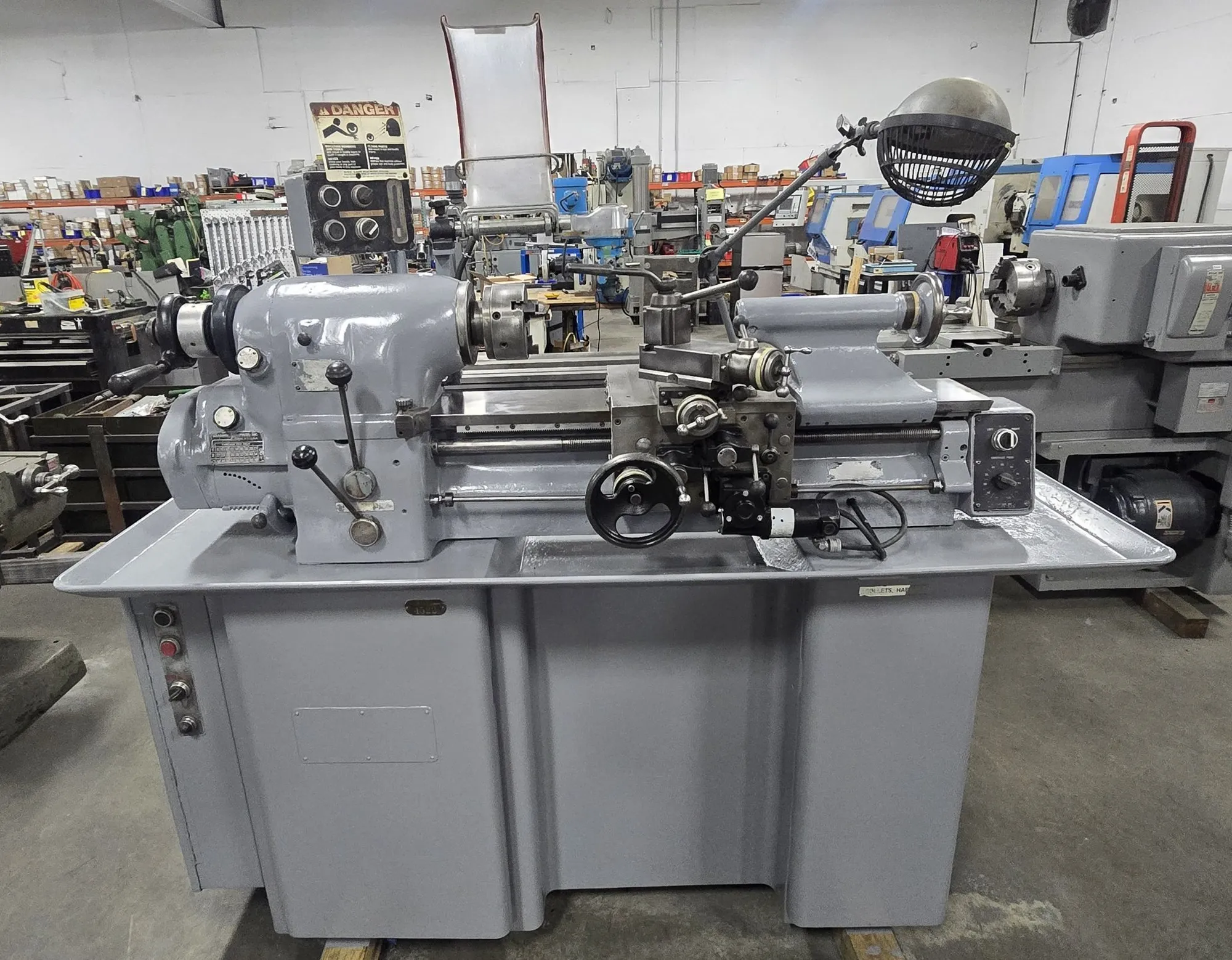

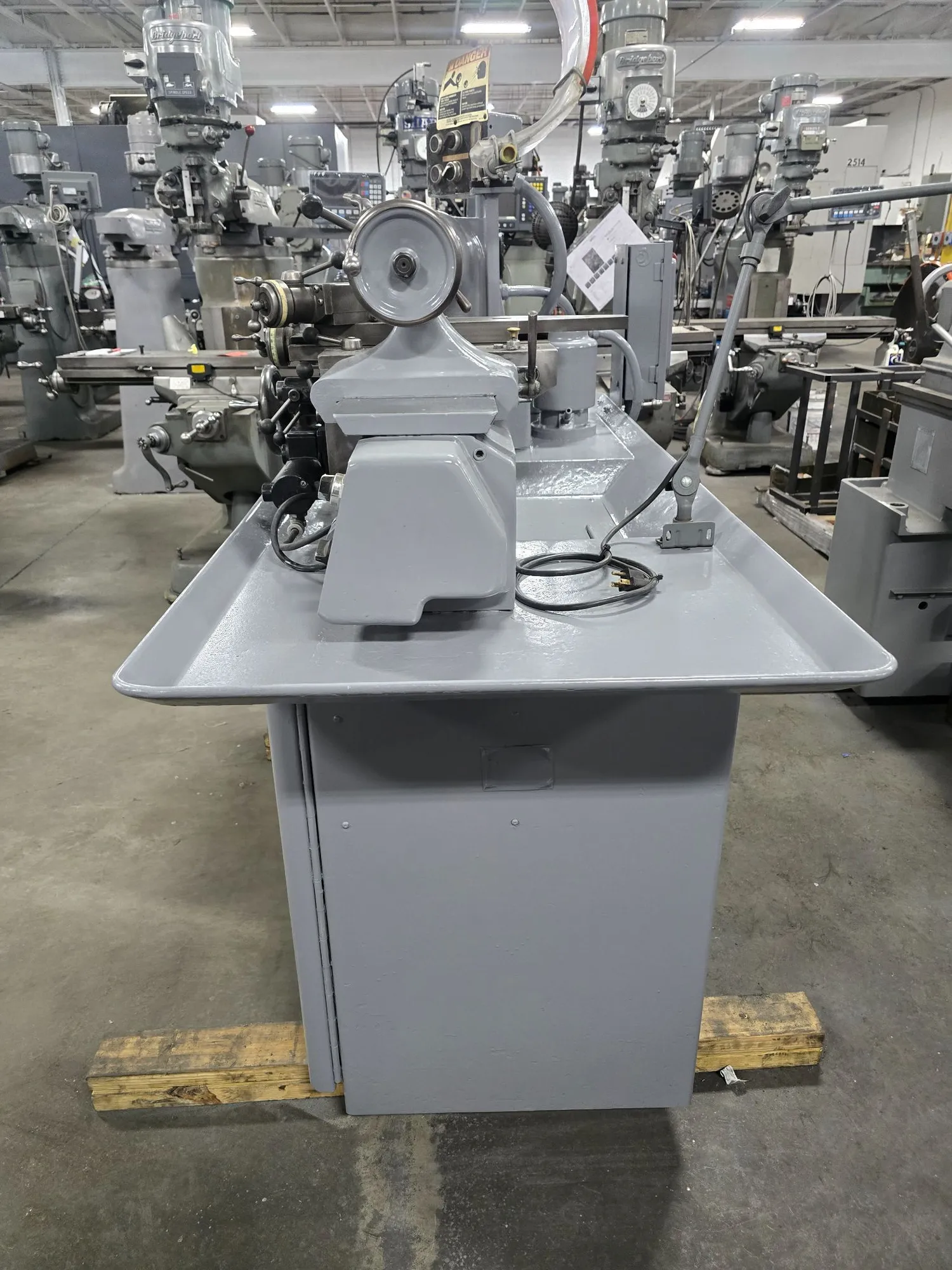

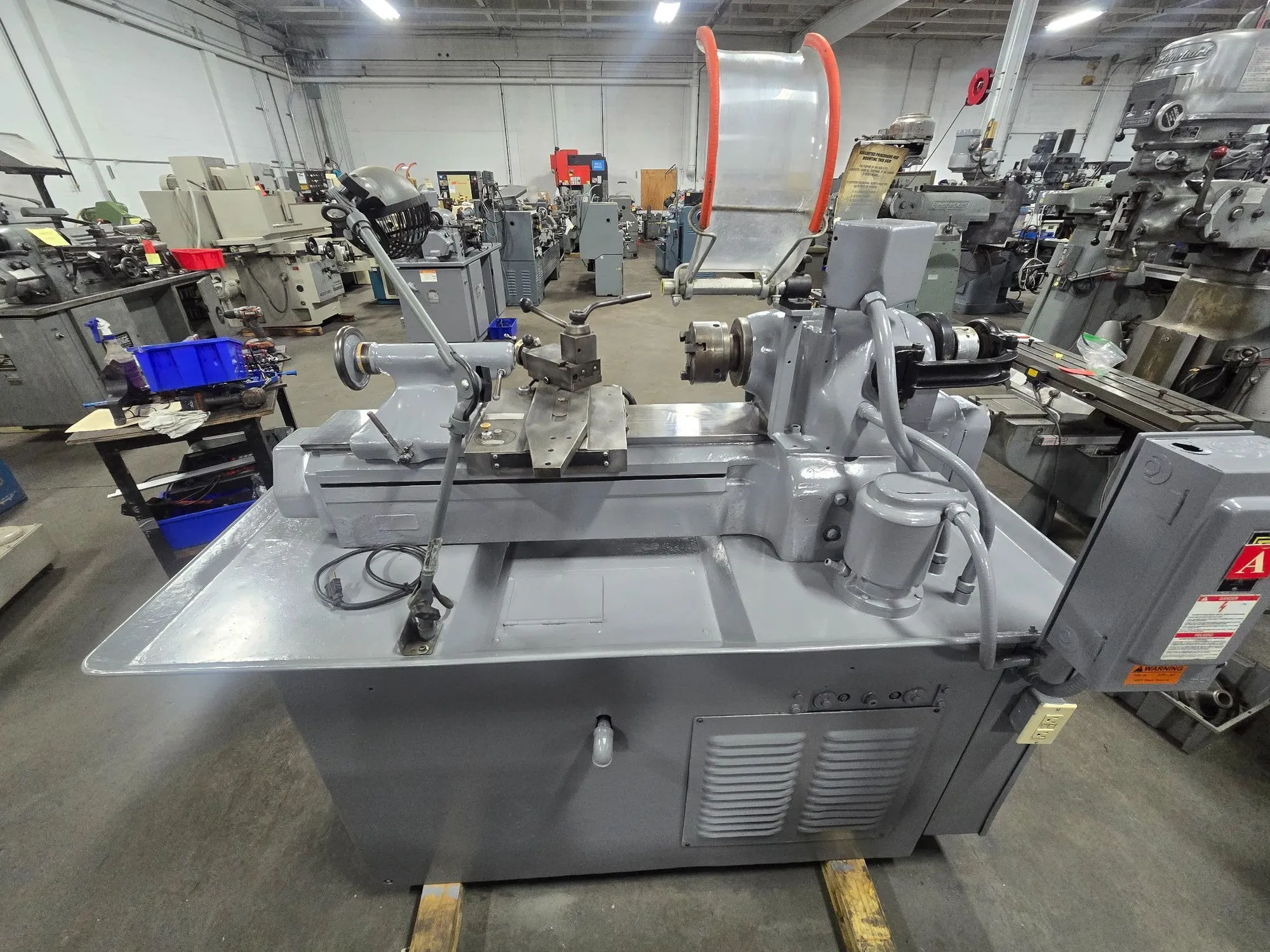

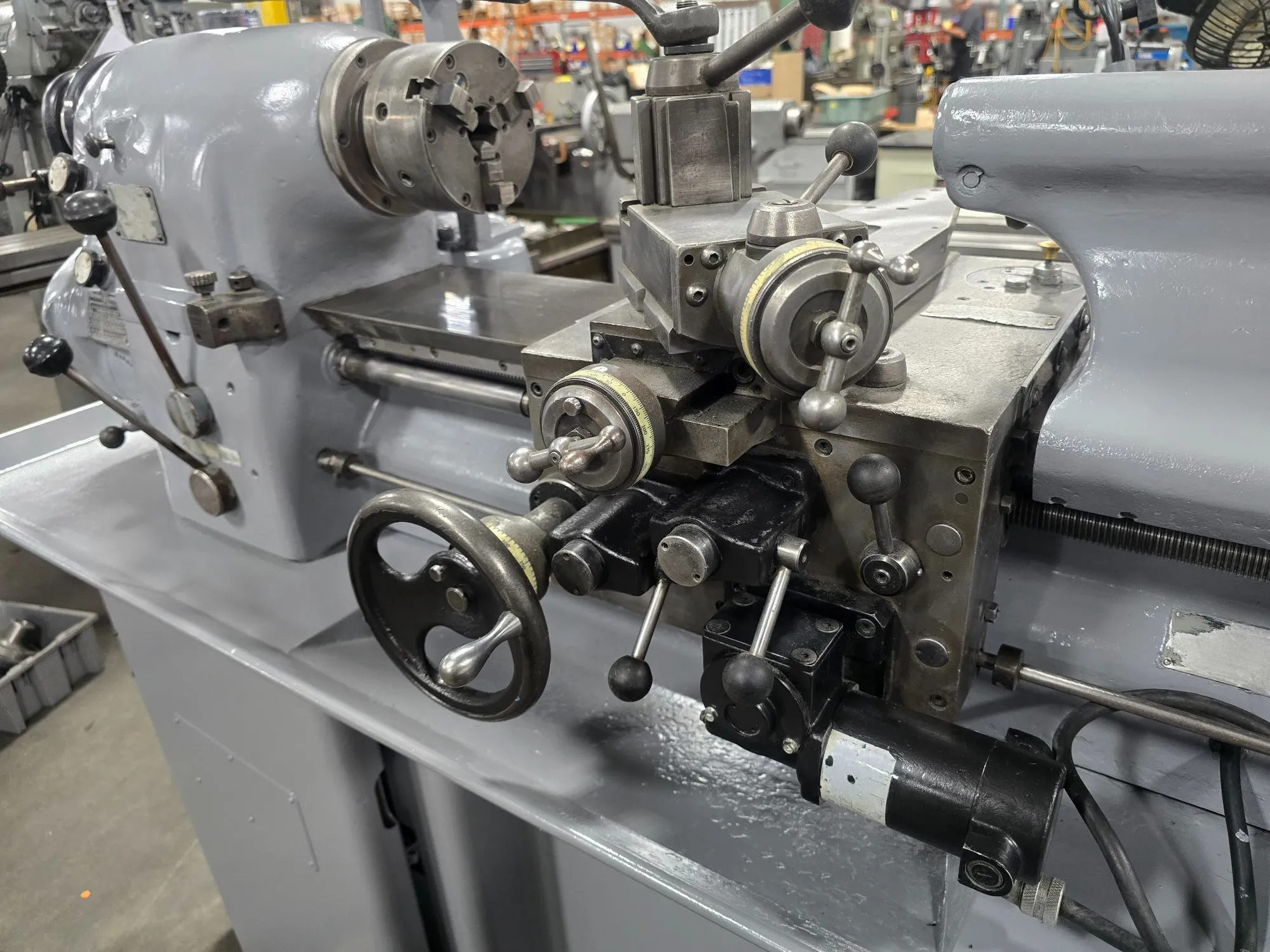

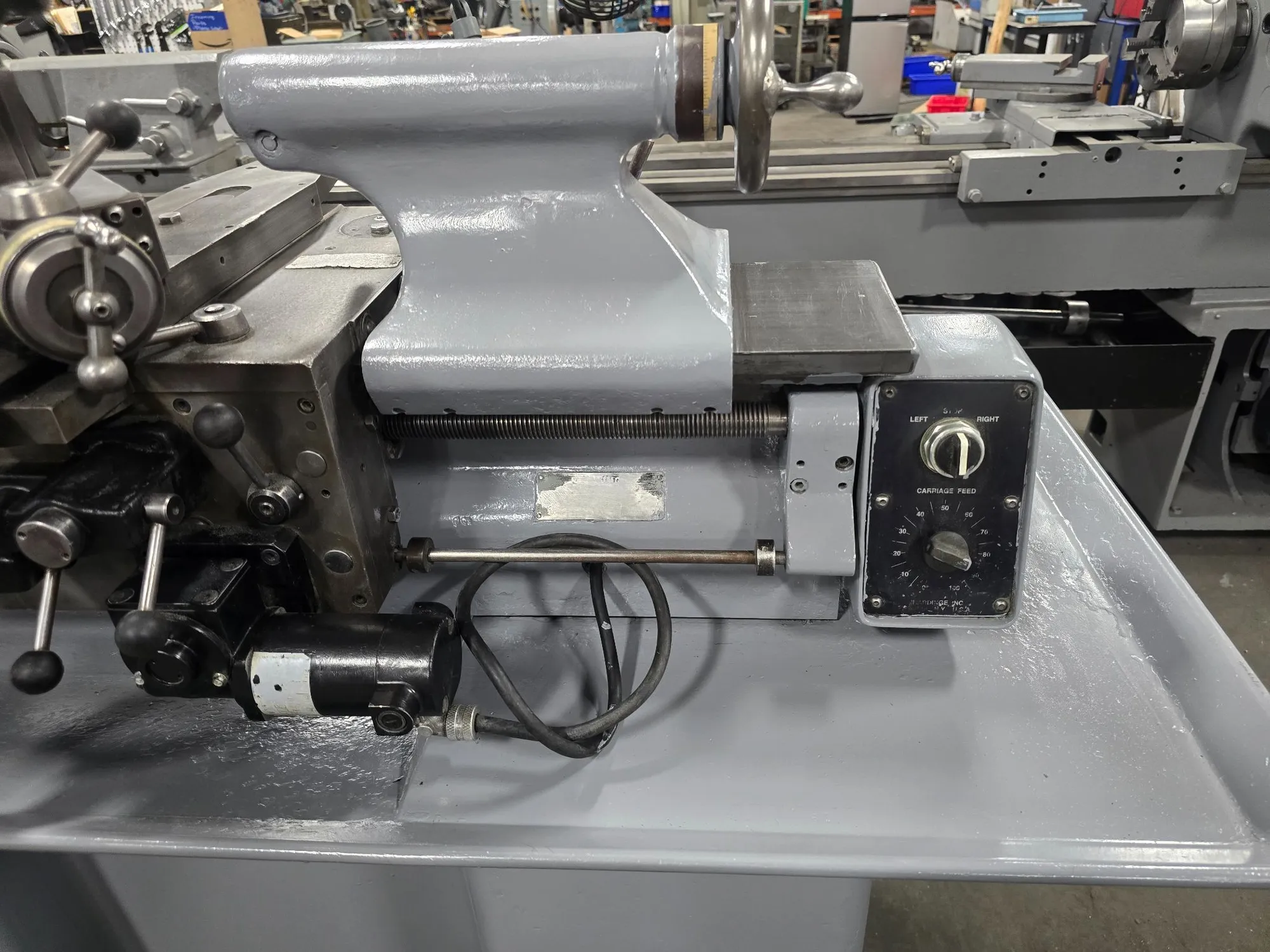

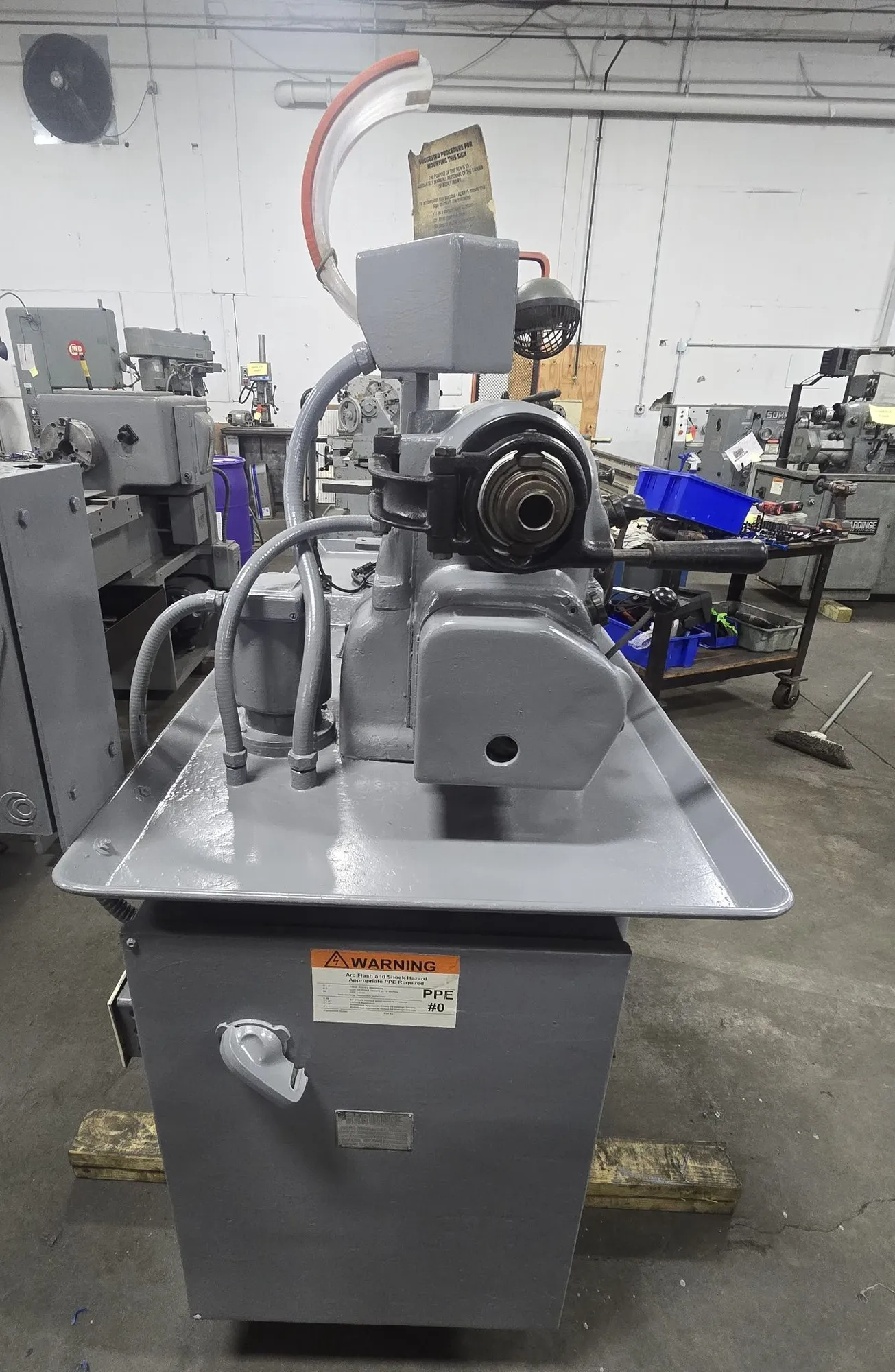

Hardinge Hlv-H Wide Bed Tool Room Lathe (11″ Swing Over Bed, 1.5 HP, 125-3000 RPM)

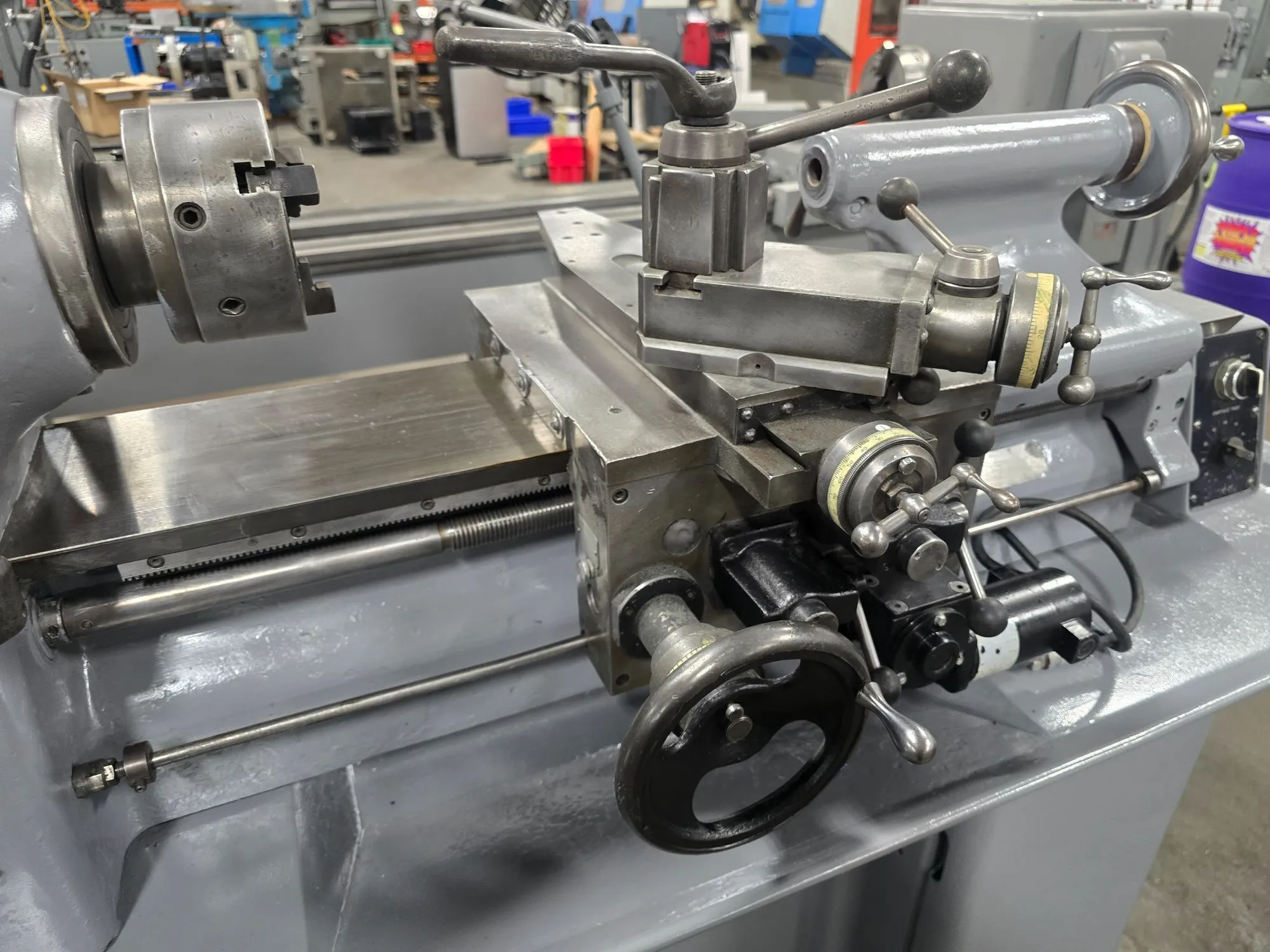

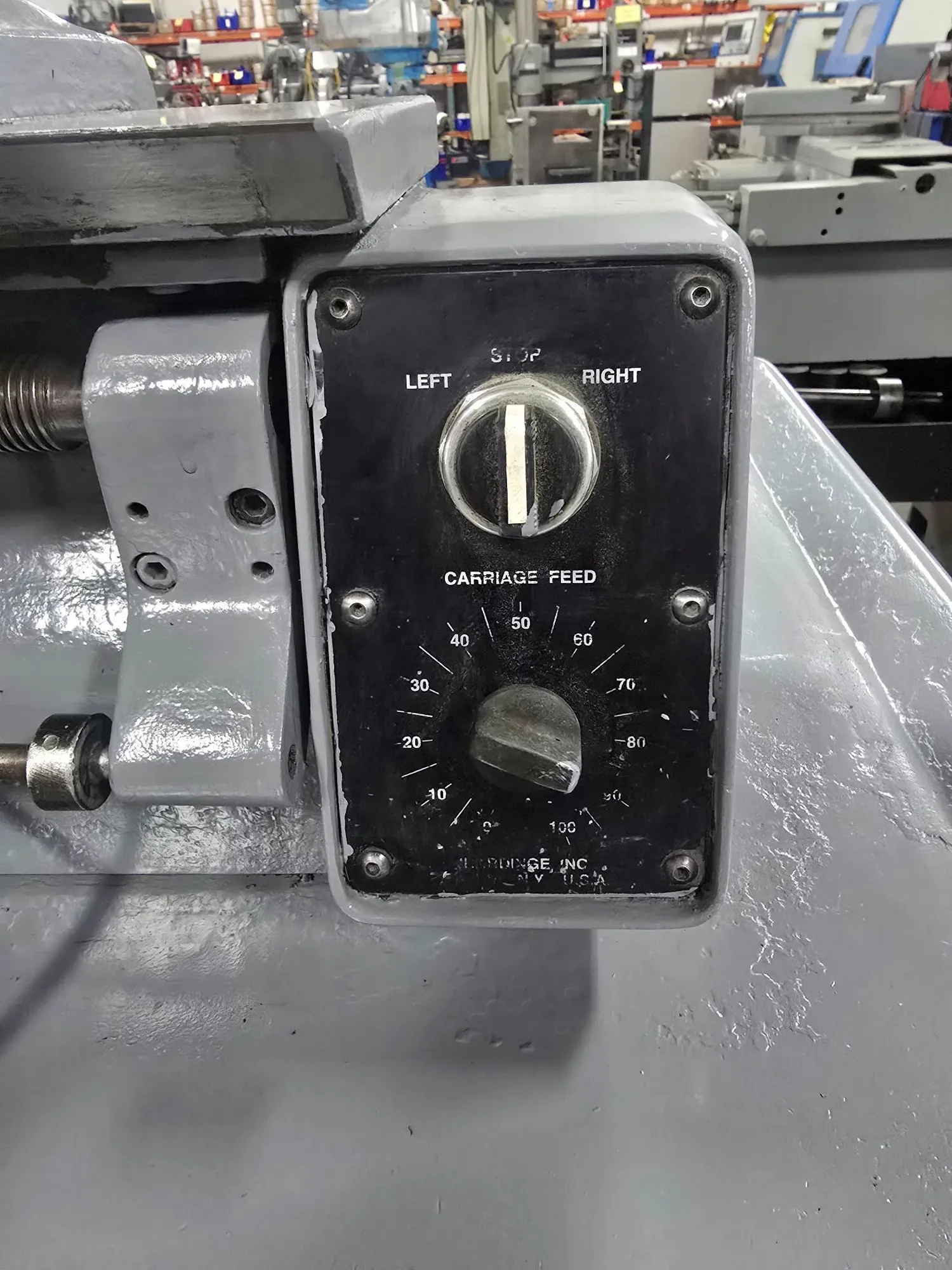

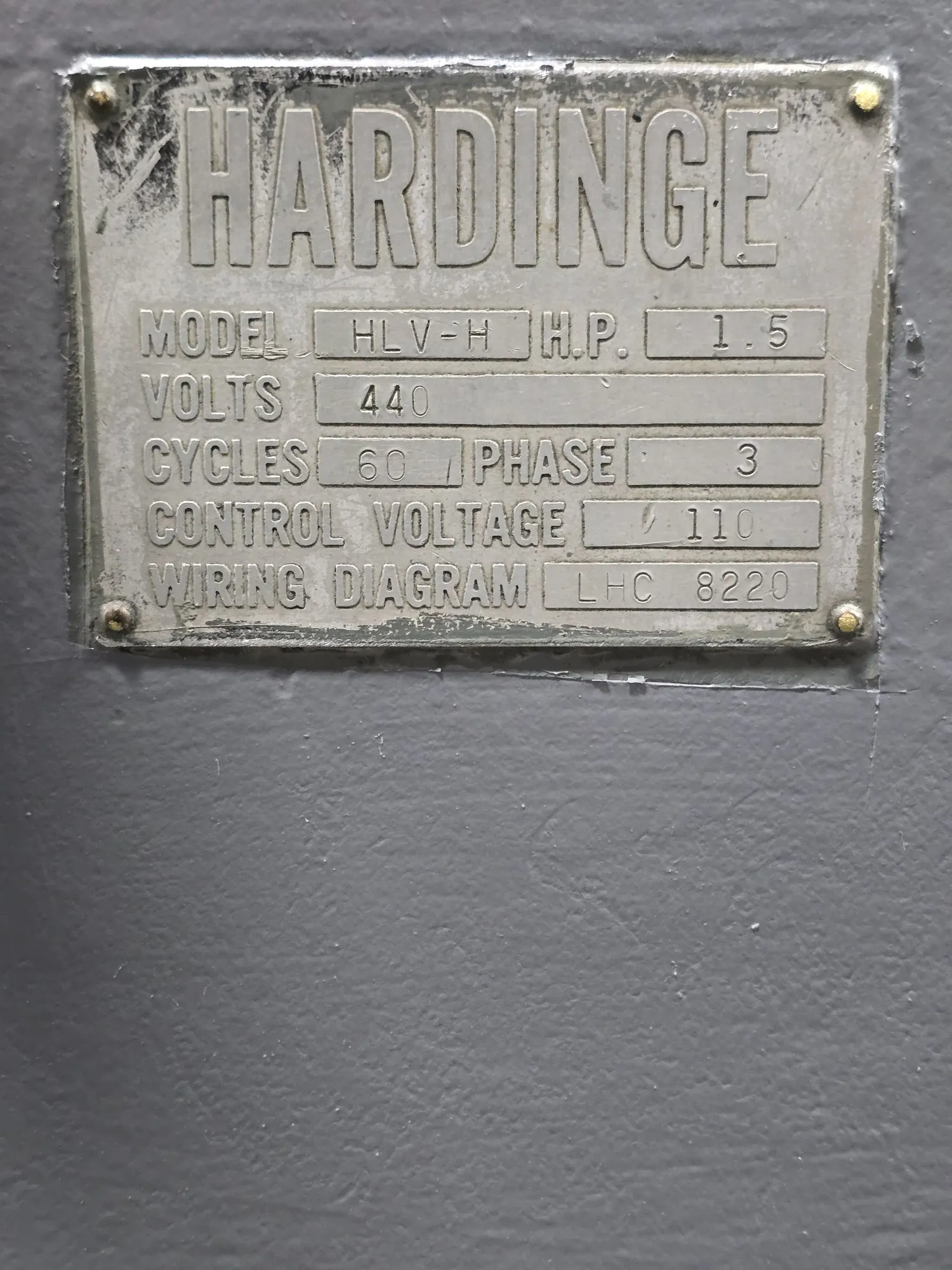

THE HARDINGE HLV-H WIDE BED TOOL ROOM LATHE OFFERS AN 11-INCH MAXIMUM SWING OVER THE BED, A 9-INCH MAXIMUM SWING OVER THE CARRIAGE, AND A 5.75-INCH MAXIMUM SWING OVER THE CROSS SLIDE. IT FEATURES A 3-INCH COMPOUND SLIDE TRAVEL AND A DISTANCE BETWEEN CENTERS OF 18 INCHES (TAILSTOCK FLUSH) OR 20 INCHES (TAILSTOCK OVERHUNG). THE MACHINE INCLUDES A 1.25-INCH SPINDLE BORE AND A NO. 2 MORSE TAILSTOCK SPINDLE TAPER WITH 3.75 INCHES OF TRAVEL. POWER IS SUPPLIED BY A 1.5 HP VARIABLE SPEED MOTOR, PROVIDING SPINDLE SPEEDS FROM 125 TO 3000 RPM VIA A HARDINGE TAPERED SPINDLE NOSE. FEED RATES INCLUDE A LONGITUDINAL POWER FEED RANGE OF 0.25 IPM TO 7 PM, A LONGITUDINAL FEED RATE OF 0.31 IPM TO 7 IPM, AND A CROSS FEED RATE OF 0.18 IPM TO 4 IPM. THE LATHE OPERATES ON 208 VOLTS / 60 HERTZ / 3 PHASE POWER AND HAS DIMENSIONS OF 6 FT. X 3 FT. X 5 FT.
