Inductotherm Vip Power Melt Coreless Induction Furnace, 1750kW, 70Hz, 7.5T Capacity

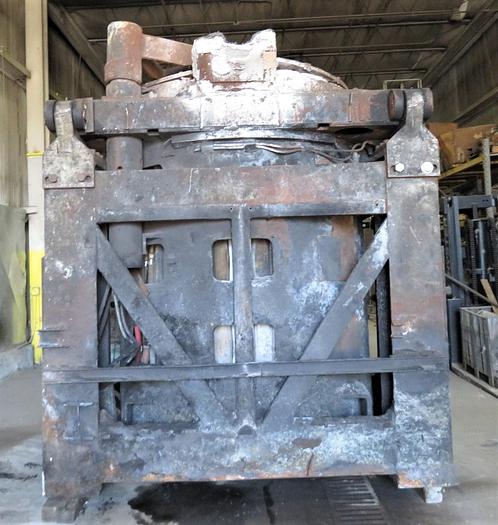

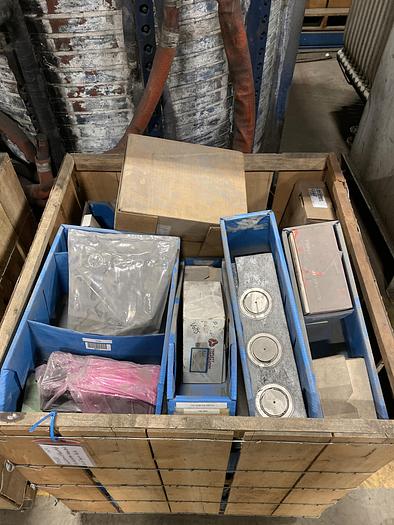

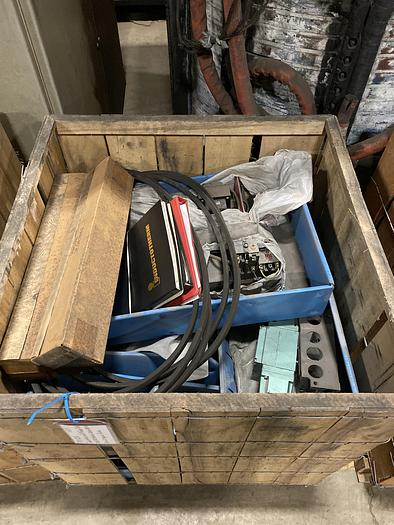

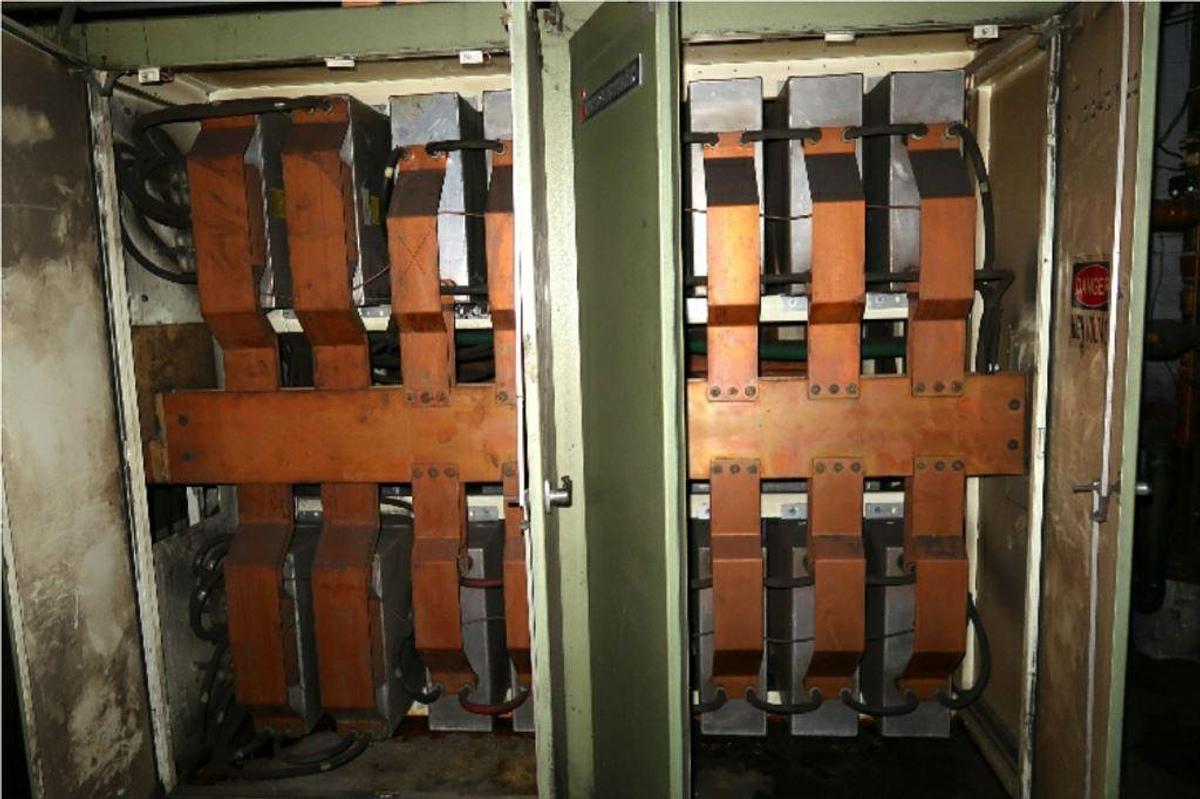

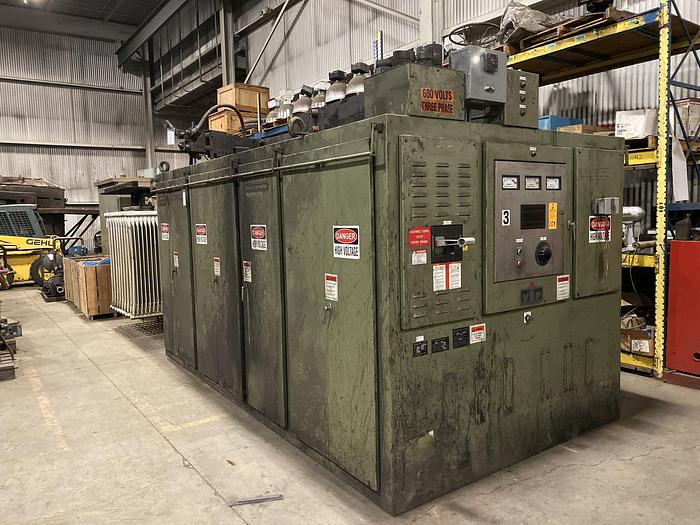

This Inductotherm VIP Power Melt is a coreless induction furnace system rated at 1750 kW with an operating frequency of 70 Hz. It is designed with a 7 MT shell and has a melt capacity of 7.5 tons, utilizing a 7 ton crucible. The electrical specifications include an input of 575V, 3 phase, 60 Hz, 0.95 power factor, drawing 1902 kVA at 1910 amps. The system's output is supported by 2200 volt capacitors at 70 Hz. The unit is paired with a Ward transformer featuring a high voltage primary of 12470 delta and a low voltage secondary of 575Y/332. The complete system includes high voltage switchgear, a spare coil, and components such as a spare Inductotherm furnace element and a skid of cylinders for the furnace.
