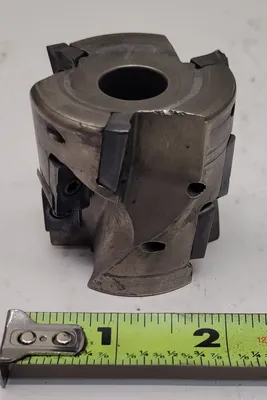

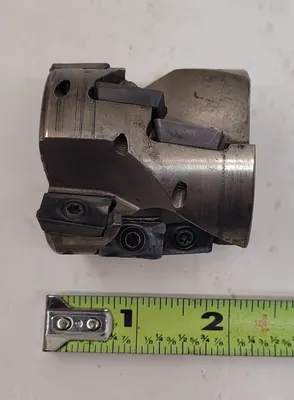

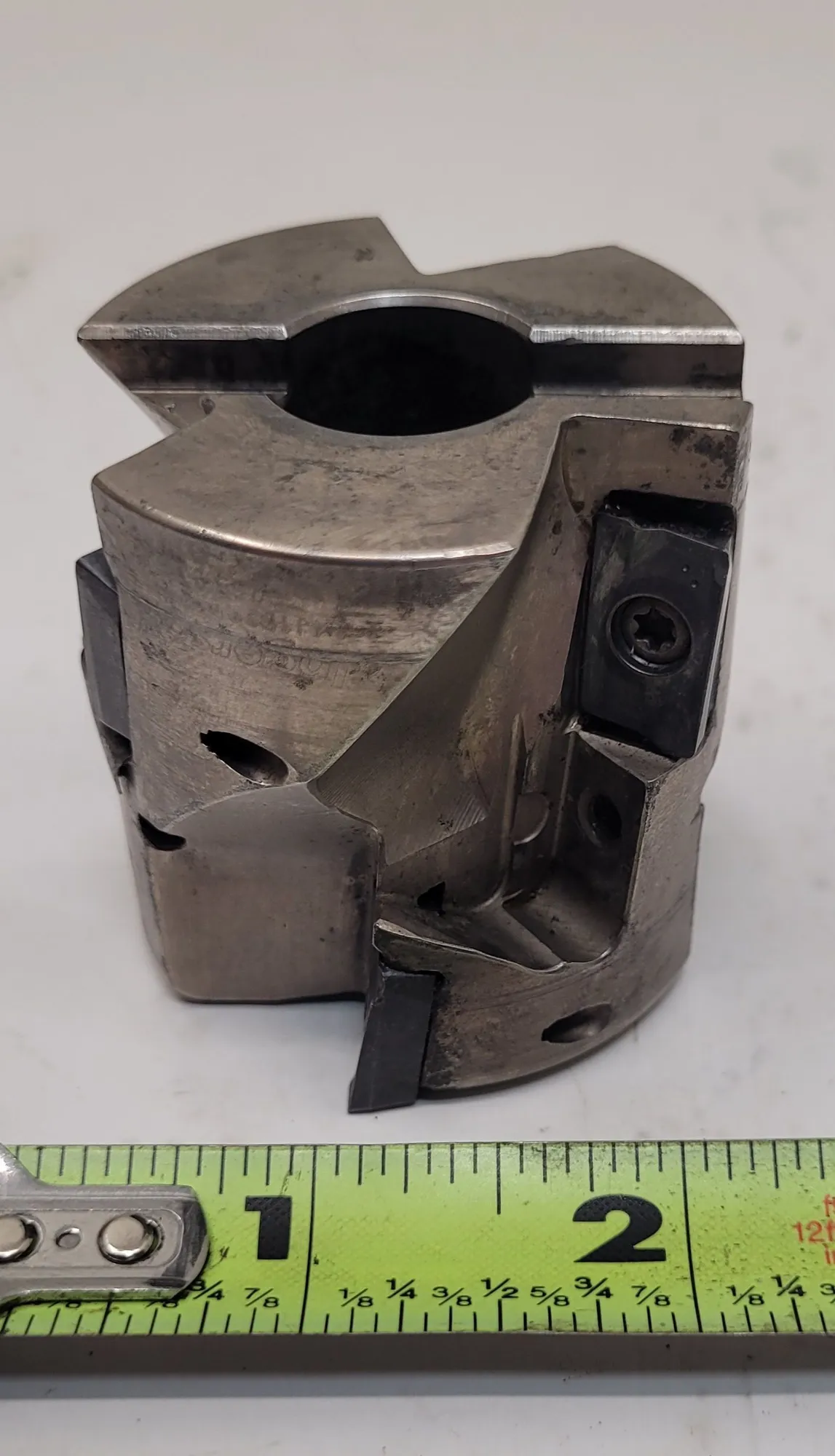

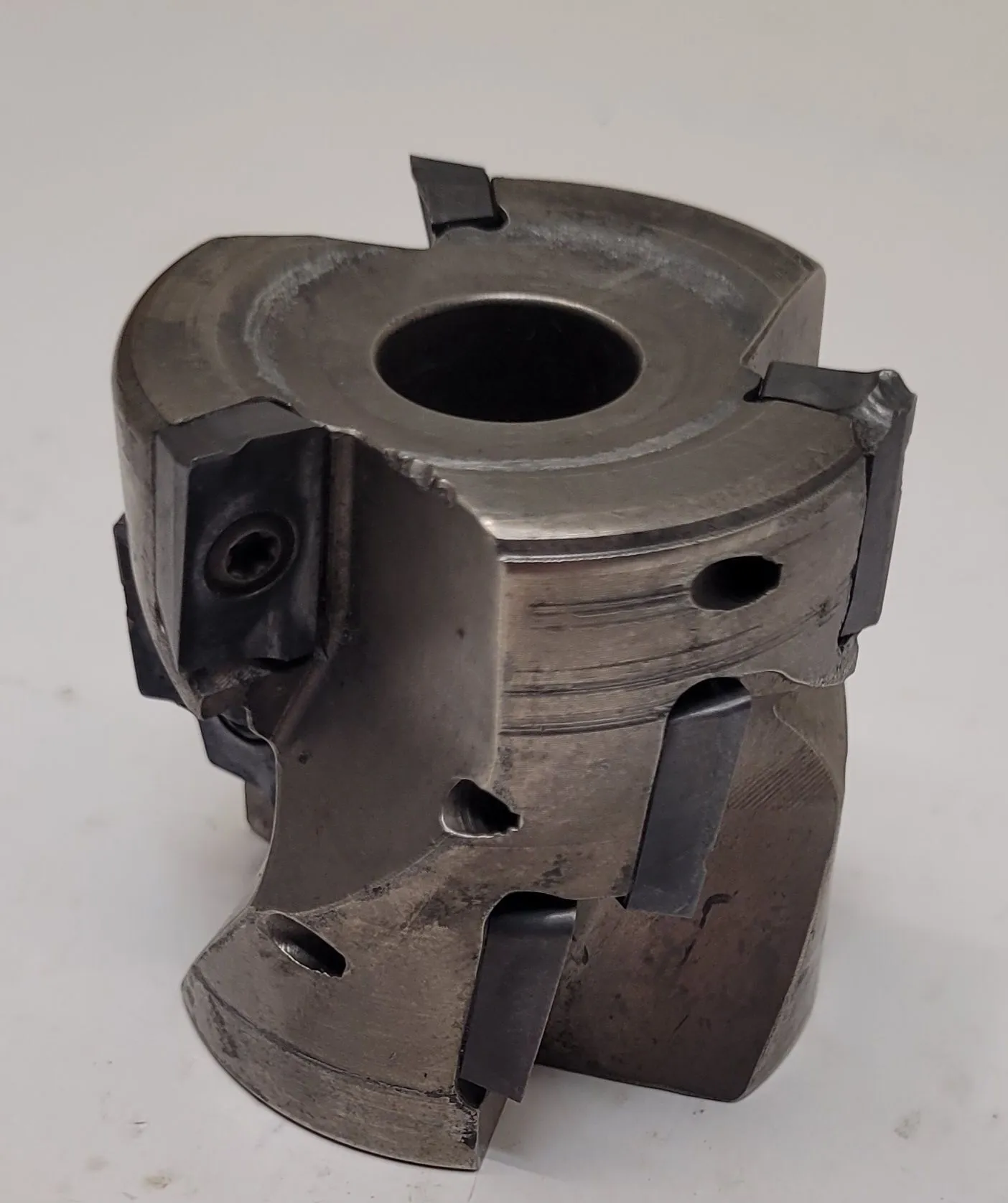

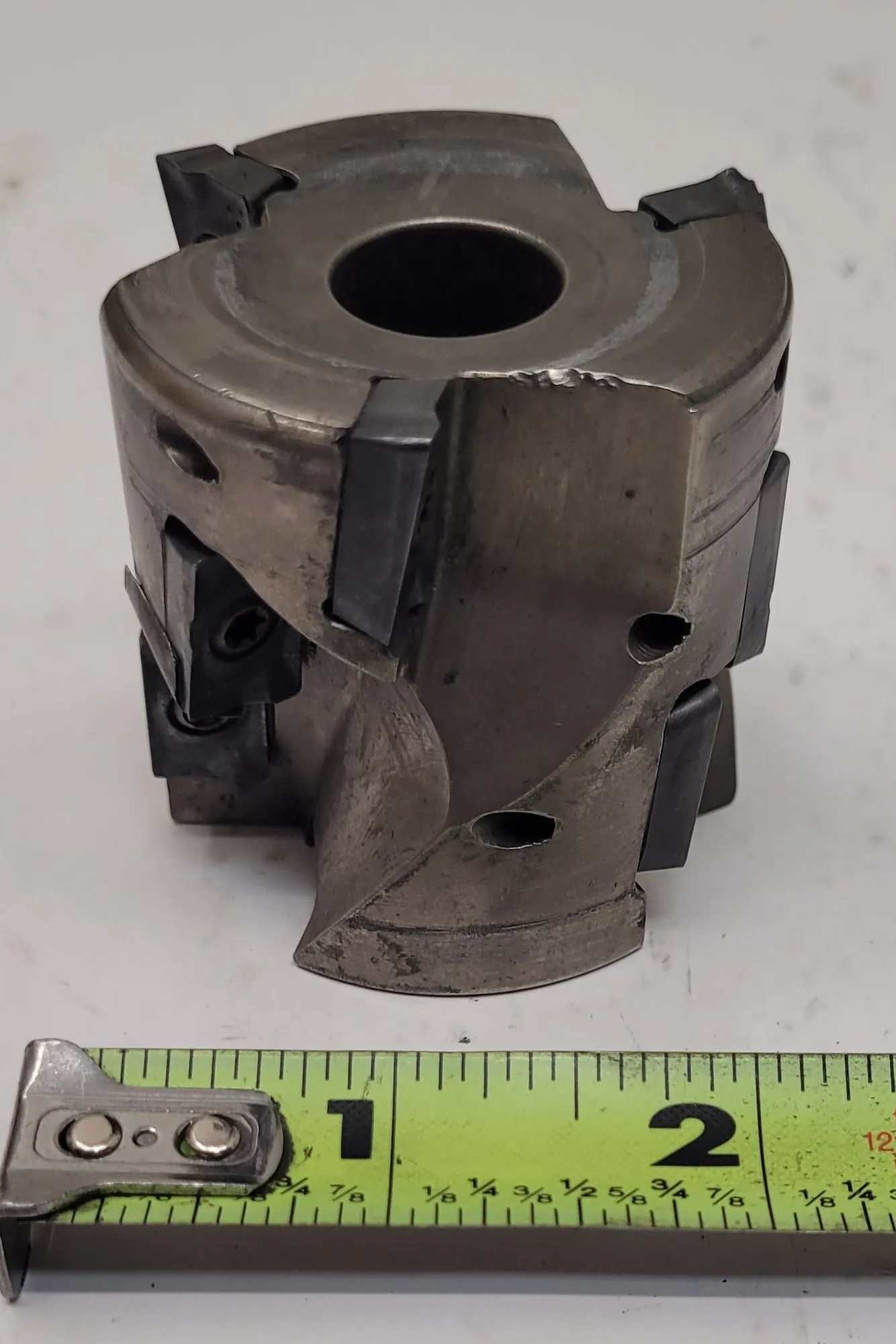

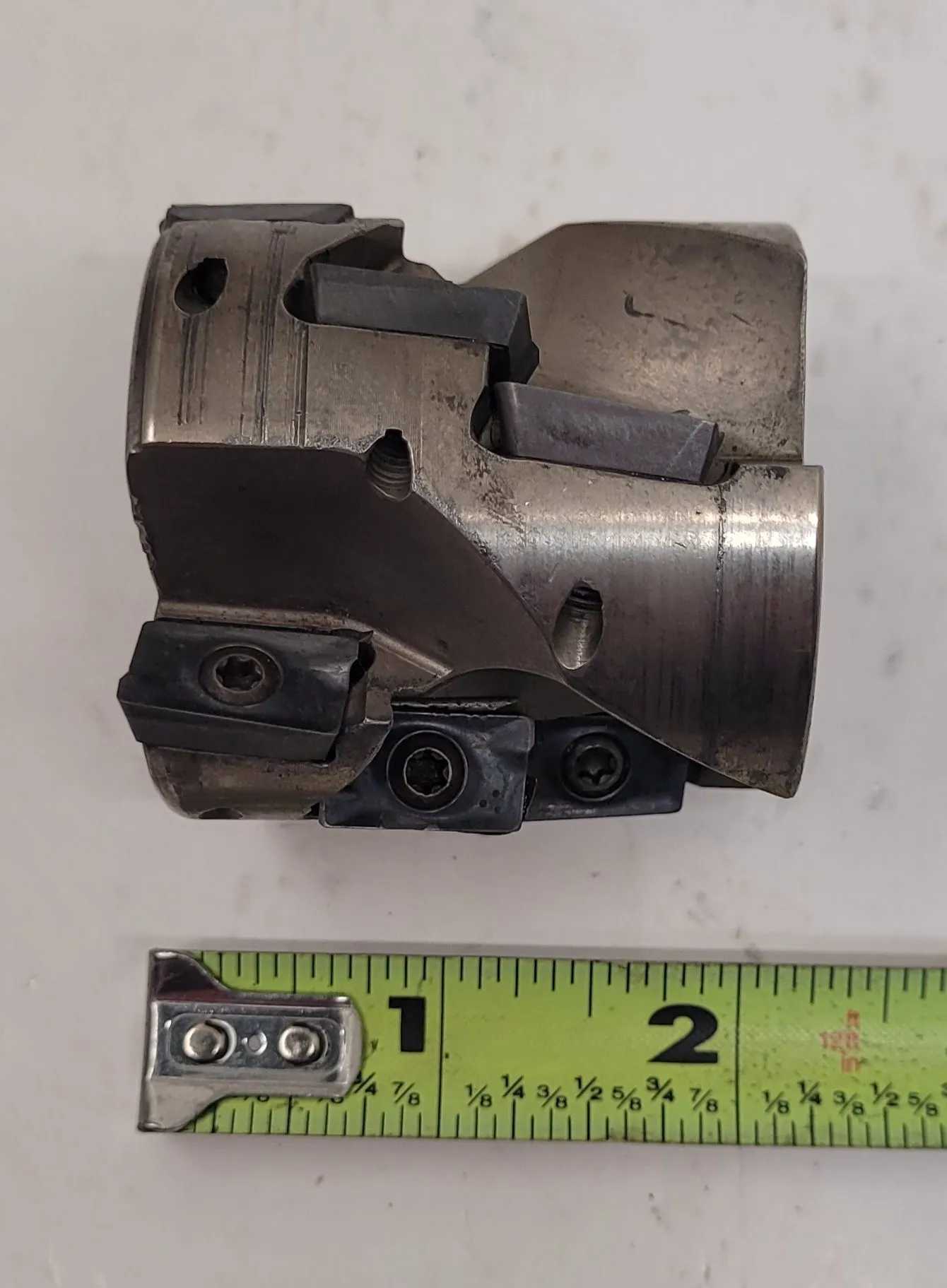

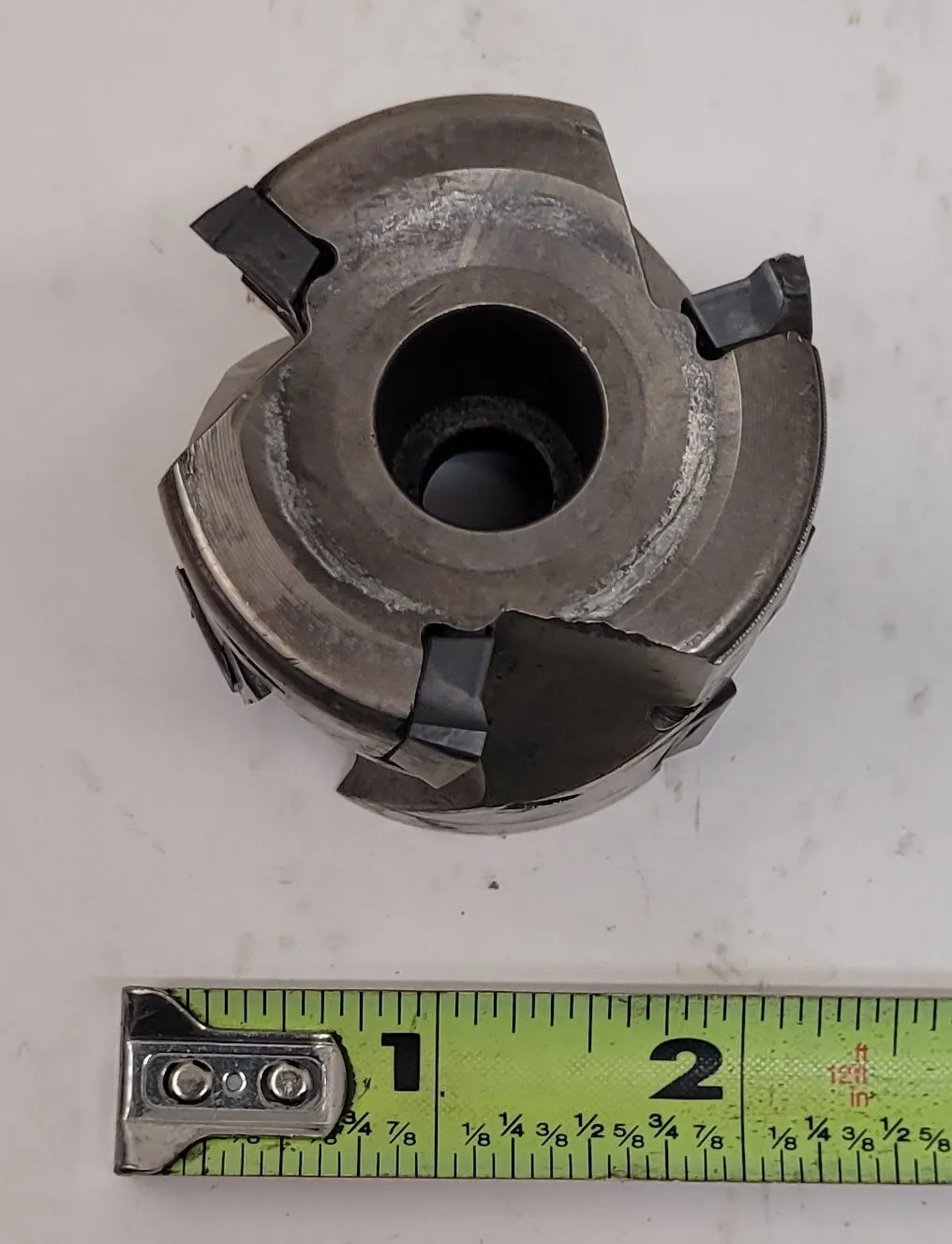

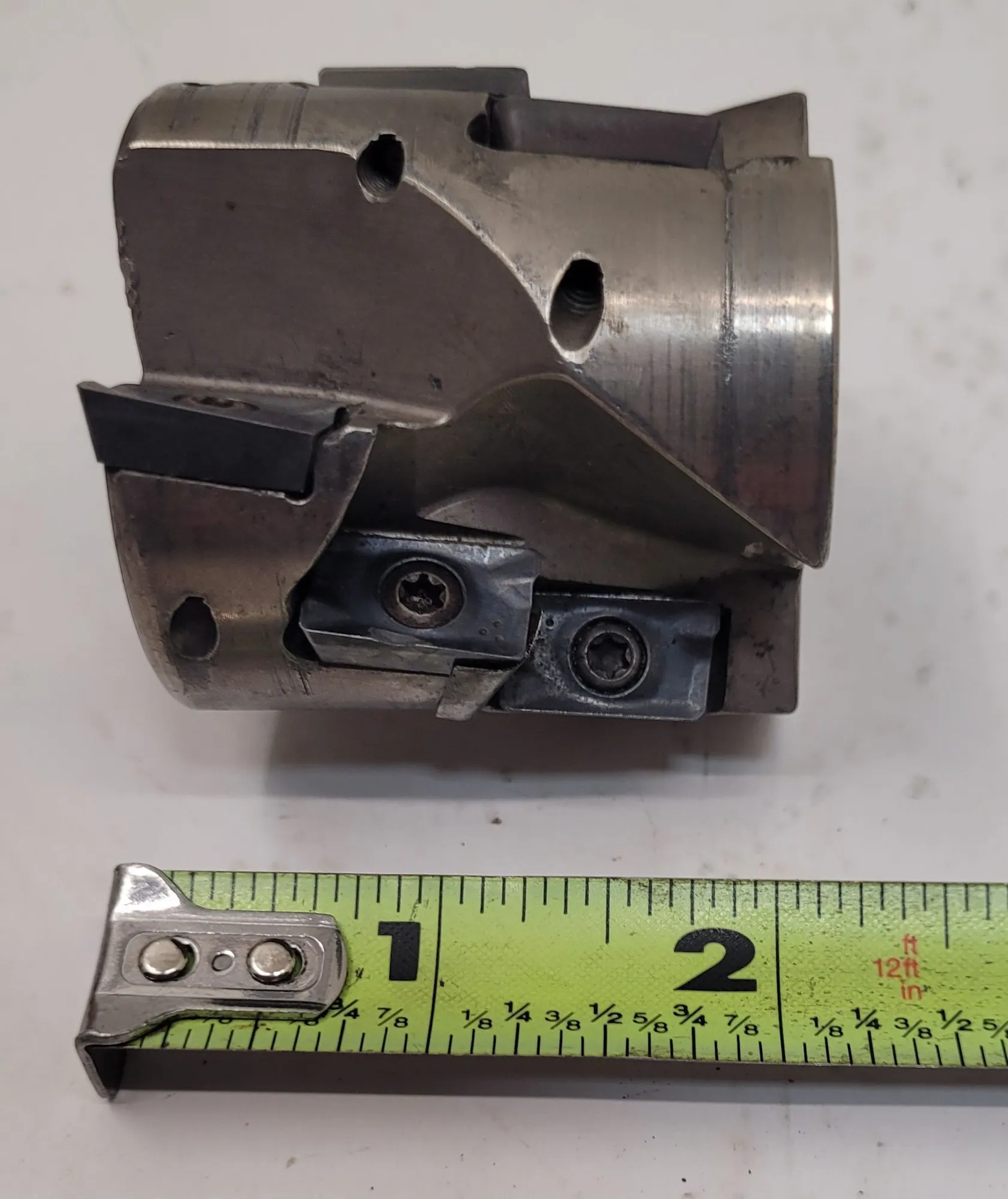

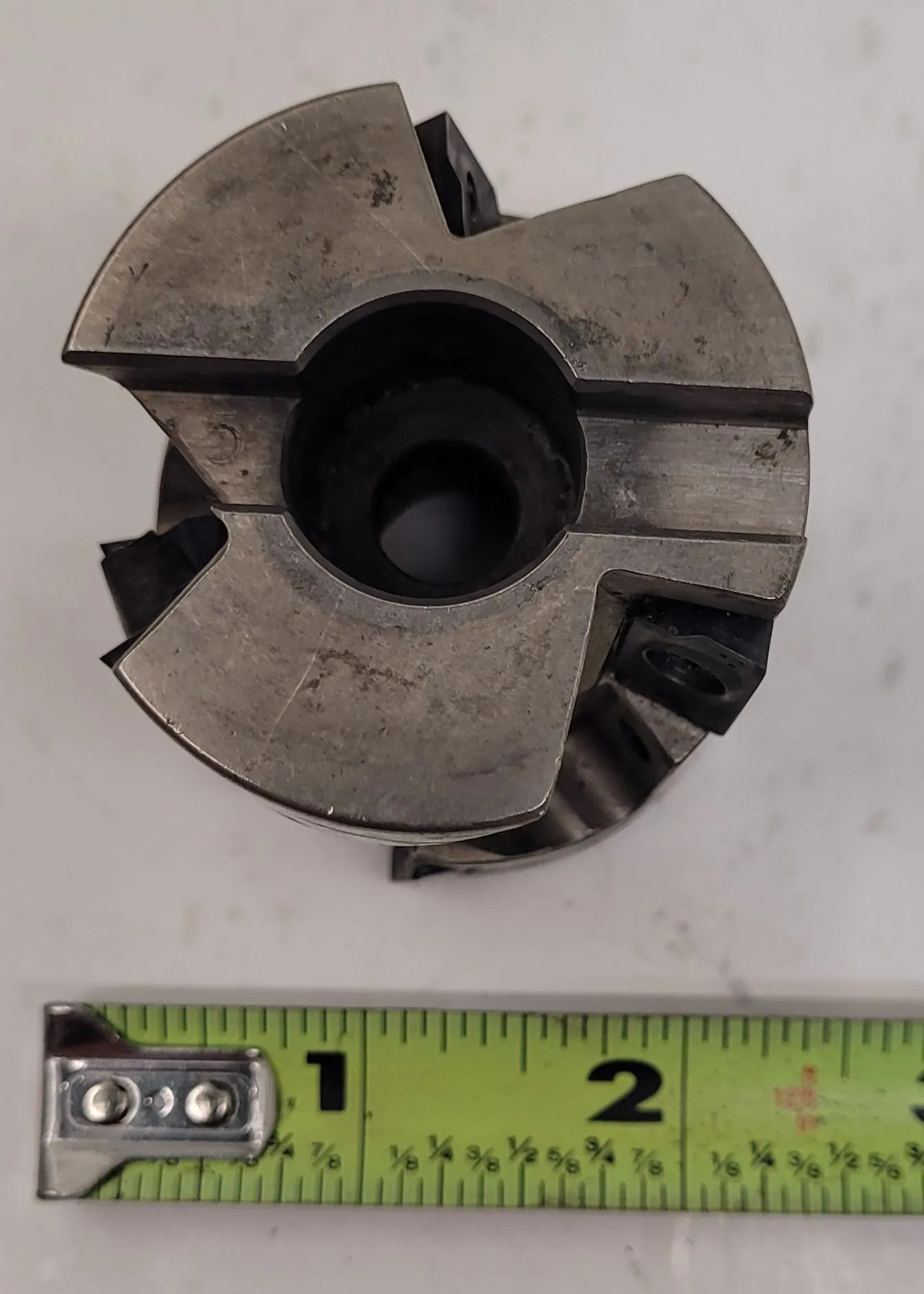

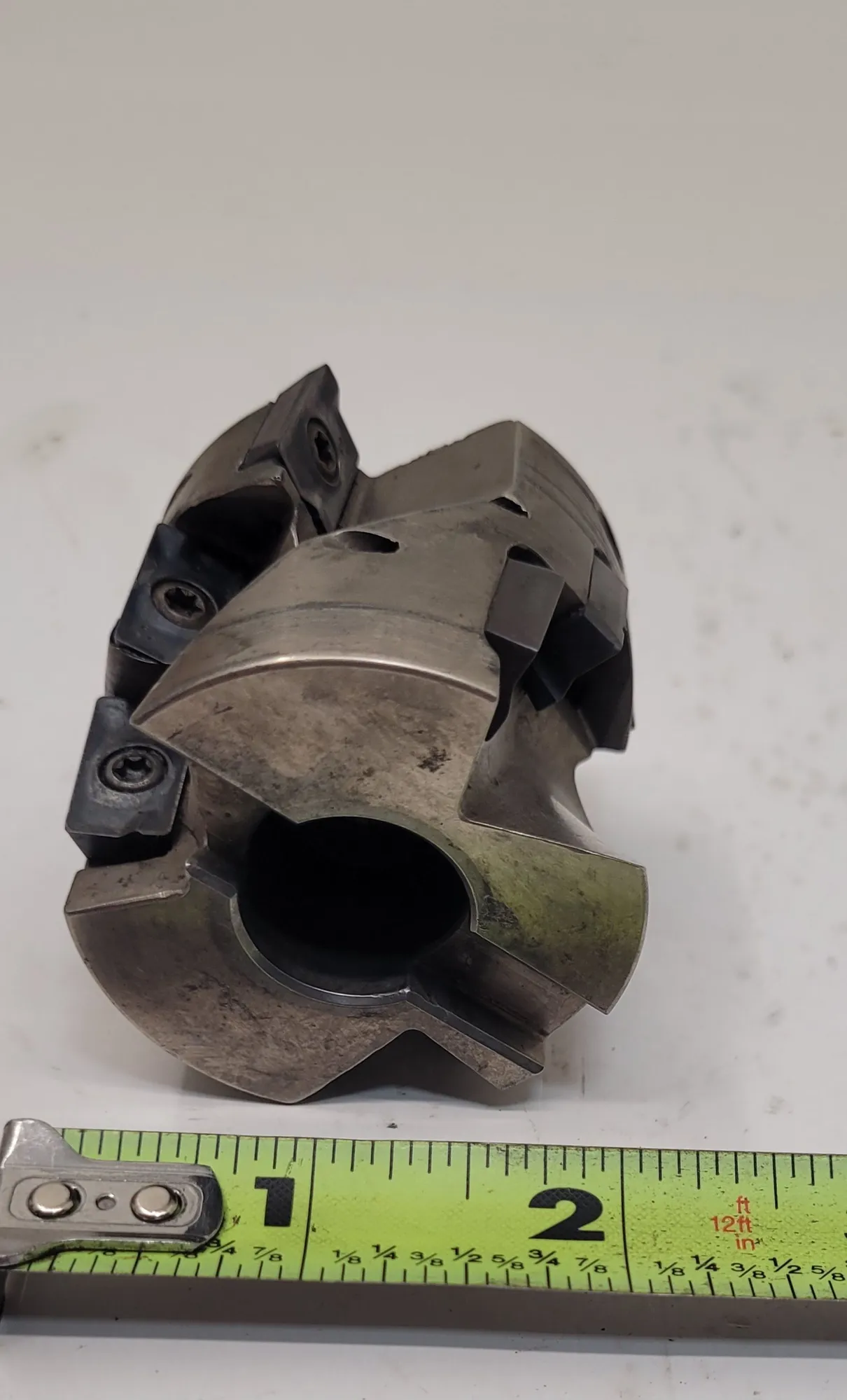

INGERSOLL 24J1B20D1R01 FLUTED SHELL MILL, 2.000" CUTTING DIA, 0.7500" BORE DIA

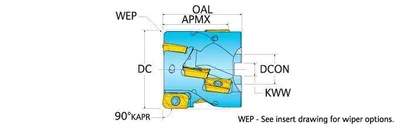

THIS INGERSOLL FLUTED SHELL MILL, PART NUMBER 24J1B20D1R01, FEATURES A CUTTING DIAMETER (DC) OF 2.000 INCHES AND A MAXIMUM DEPTH OF CUT (APMX) OF 1.660 INCHES. THE TOOL HAS AN OVERALL LENGTH (OAL) OF 2.00 INCHES. INSERT COUNTS INCLUDE 3 FACE INSERTS (ZNF) AND 6 PERIPHERAL INSERTS (ZNP), RESULTING IN A TOTAL INSERT COUNT OF 9. IT HAS 3 FLUTES (NOF) AND A CUTTING EDGE ANGLE (KAPR) OF 90.0 DEGREES. THE BORE DIAMETER (DCON) IS 0.7500 INCHES, AND IT INCLUDES A KEYWAY (KWW) OF 0.31 INCHES. THIS SHELL MILL DOES NOT SUPPORT COOLANT (CSP COOLANT: NO) AND FEATURES A RIGHT-HAND FLUTE HELIX (FHH).
