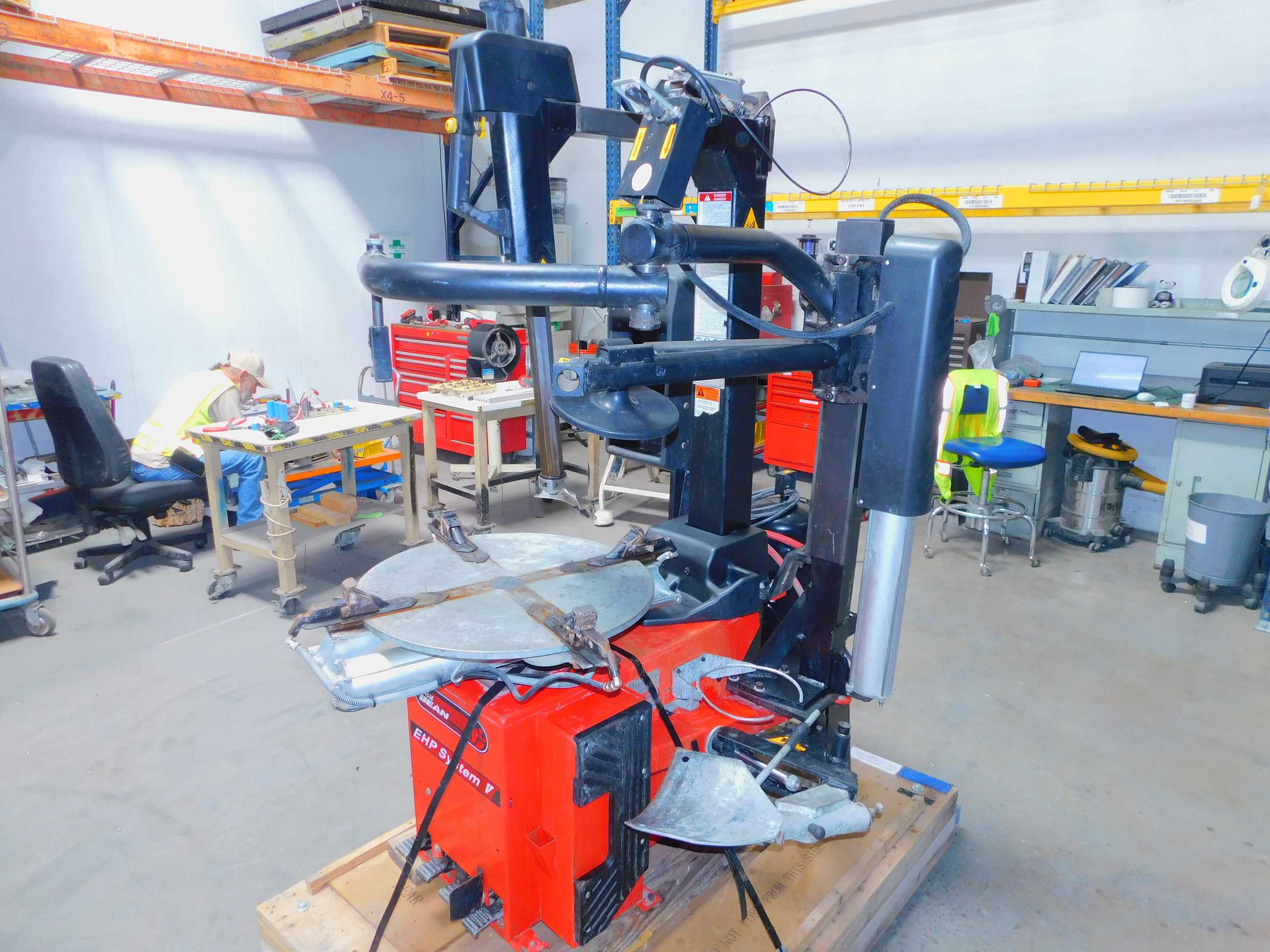

John Bean EHP System V Professional Tilt-Tower Tire Changer

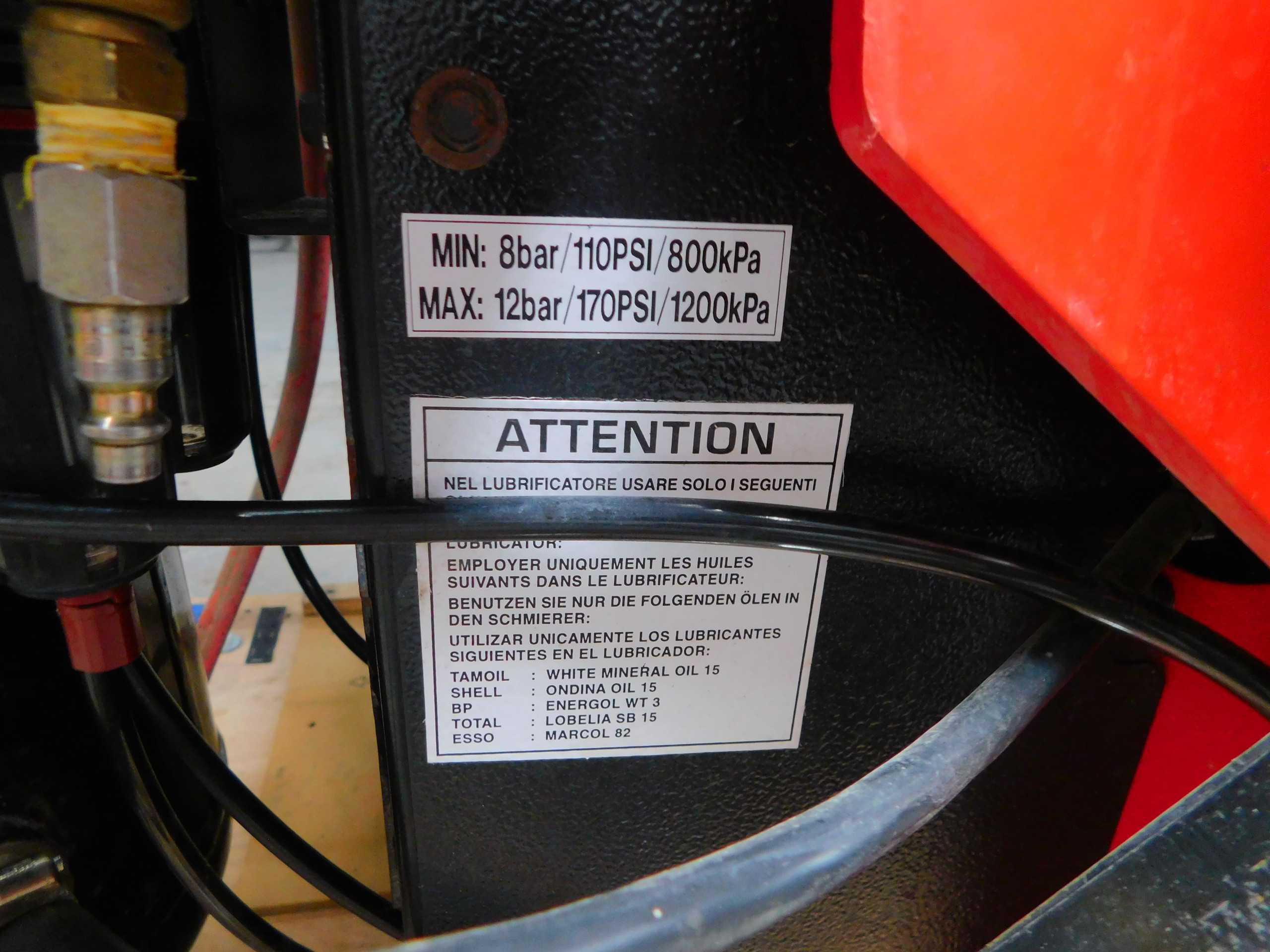

This tire changer features a pneumatic tilt-tower that tilts backward to provide clear working space, alongside a 3-piece pneumatic bead assist system equipped with a pressure roller, bead depressor, and lifting disc to handle stiff sidewalls. Its self-centering clamping mechanism uses twin cylinders and an adjustable four-jaw clamp to hold wheels securely without scratching. An on-floor bead breaker operated via an ergonomic foot pedal reduces operator fatigue, while an integrated pressure limiter automatically halts airflow at 55 PSI during inflation safety checks. Specifications include a maximum rim diameter capacity of up to 26 or 30 inches depending on configuration, a maximum tire width of 17 inches, and a maximum overall wheel diameter of 47 inches. The unit requires an operating air pressure of 116 to 174 PSI and operates on a 115V/120 VAC, single-phase, 60 Hz, 12A electrical power supply.
