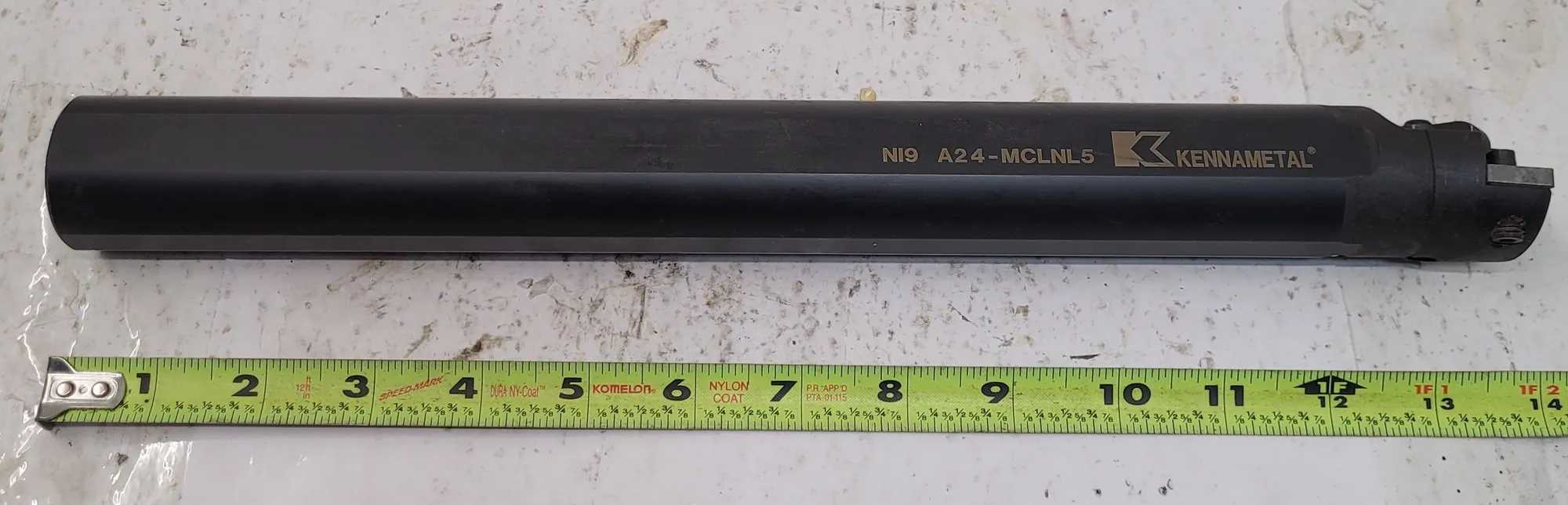

KENNAMETAL A24MCLNL5 INDEXABLE BORING BAR - 44.70 MM MIN BORE, 1-1/2 SHANK, 14.0000" OAL

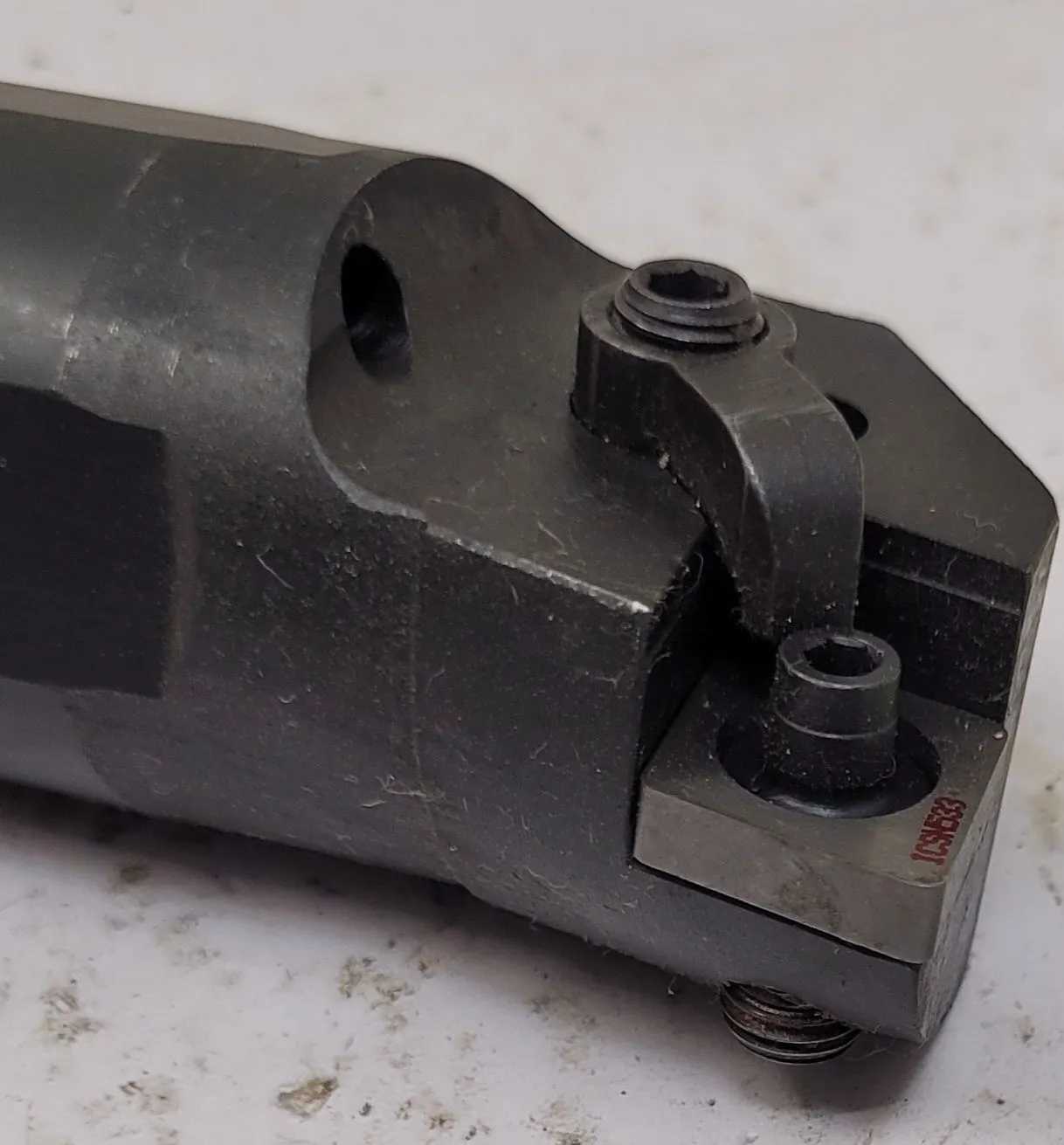

THIS KENNAMETAL INDEXABLE BORING BAR, MODEL A24MCLNL5, IS A LEFT-HAND STEEL TOOLHOLDER DESIGNED FOR PRECISE BORING OPERATIONS WITH A MINIMUM BORE DIAMETER OF 44.70 MM (1.7600 DECIMAL INCHES). THE TOOLHOLDER STYLE IS A-MCLN, FEATURING A 1-1/2 INCH SHANK DIAMETER. THE OVERALL LENGTH MEASURES 355.60 MM (14.0000 DECIMAL INCHES). IT UTILIZES A SCREW AND CLAMP METHOD FOR INSERT HOLDING. THE DESIGN FEATURES A NEGATIVE RAKE WITH A 5.00 DEGREE RAKE ANGLE AND A -5 DEGREE LEAD ANGLE. THIS BORING BAR BELONGS TO THE KENLOC SERIES.
