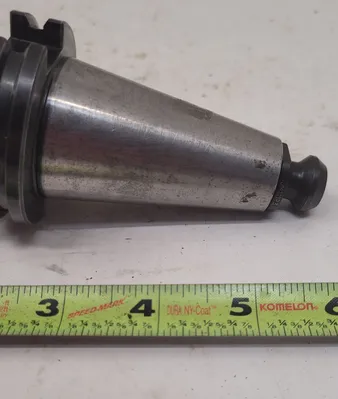

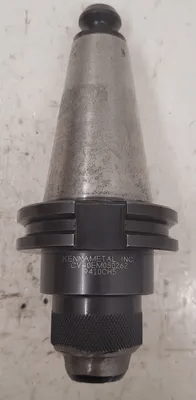

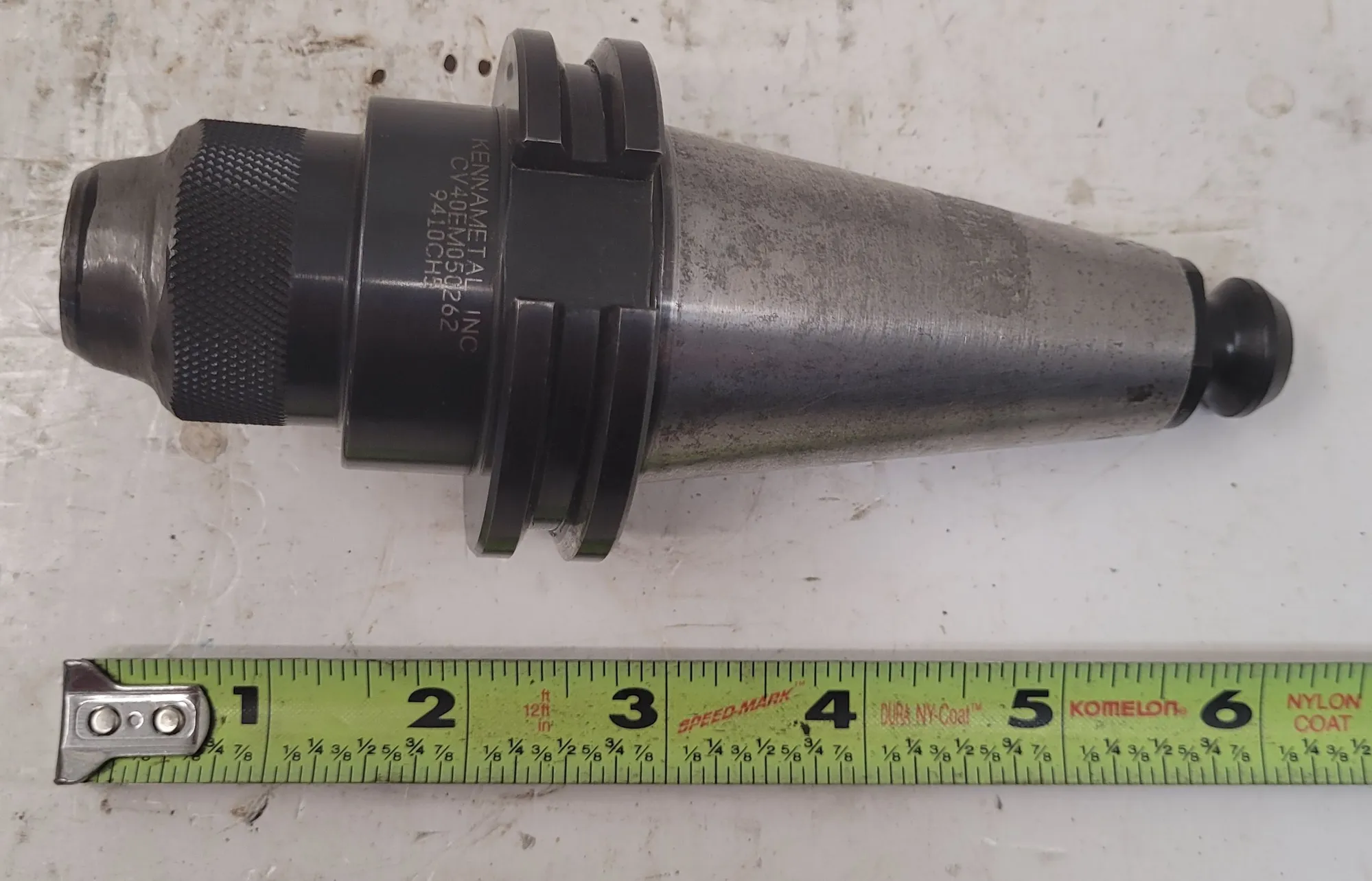

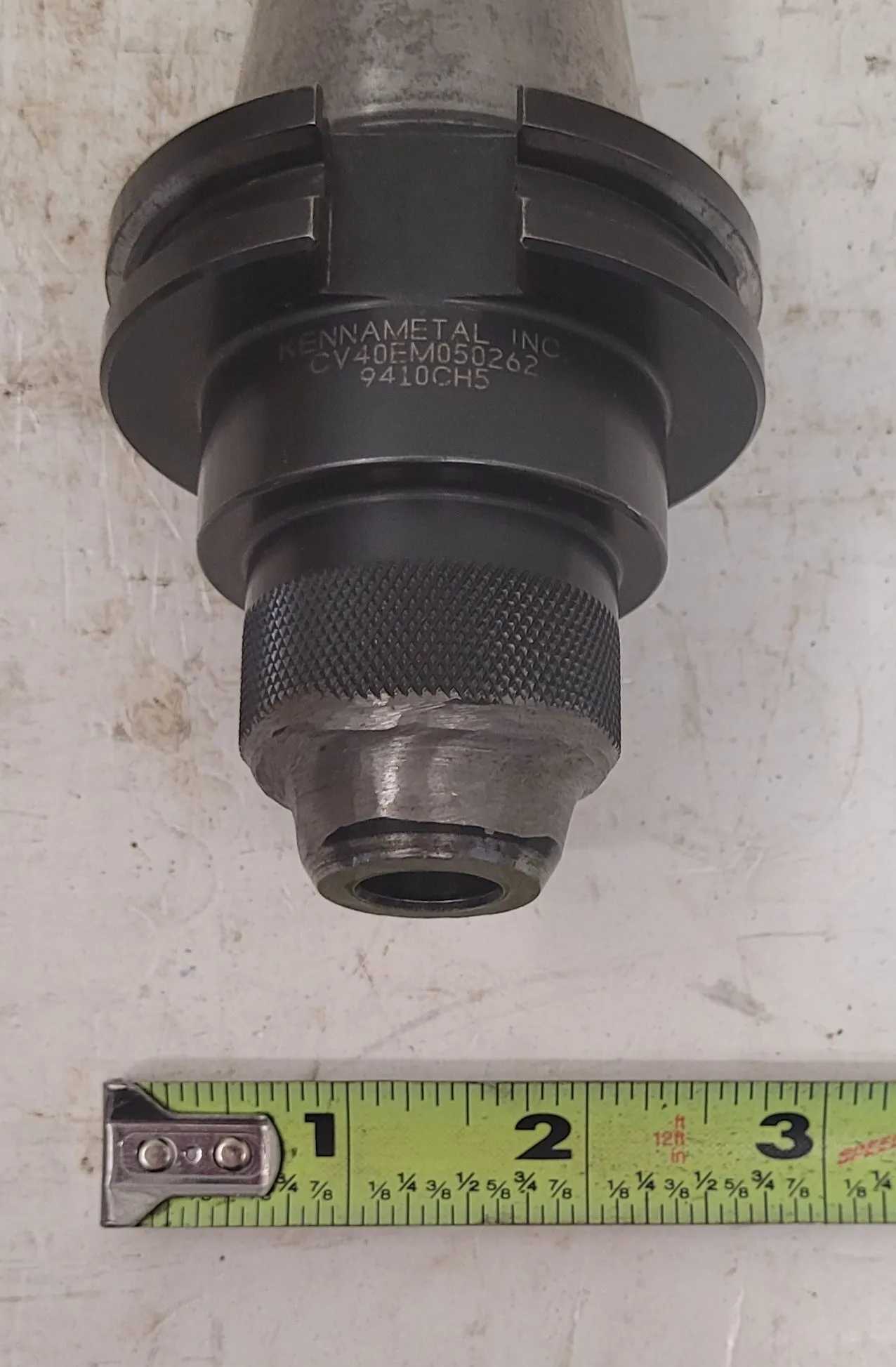

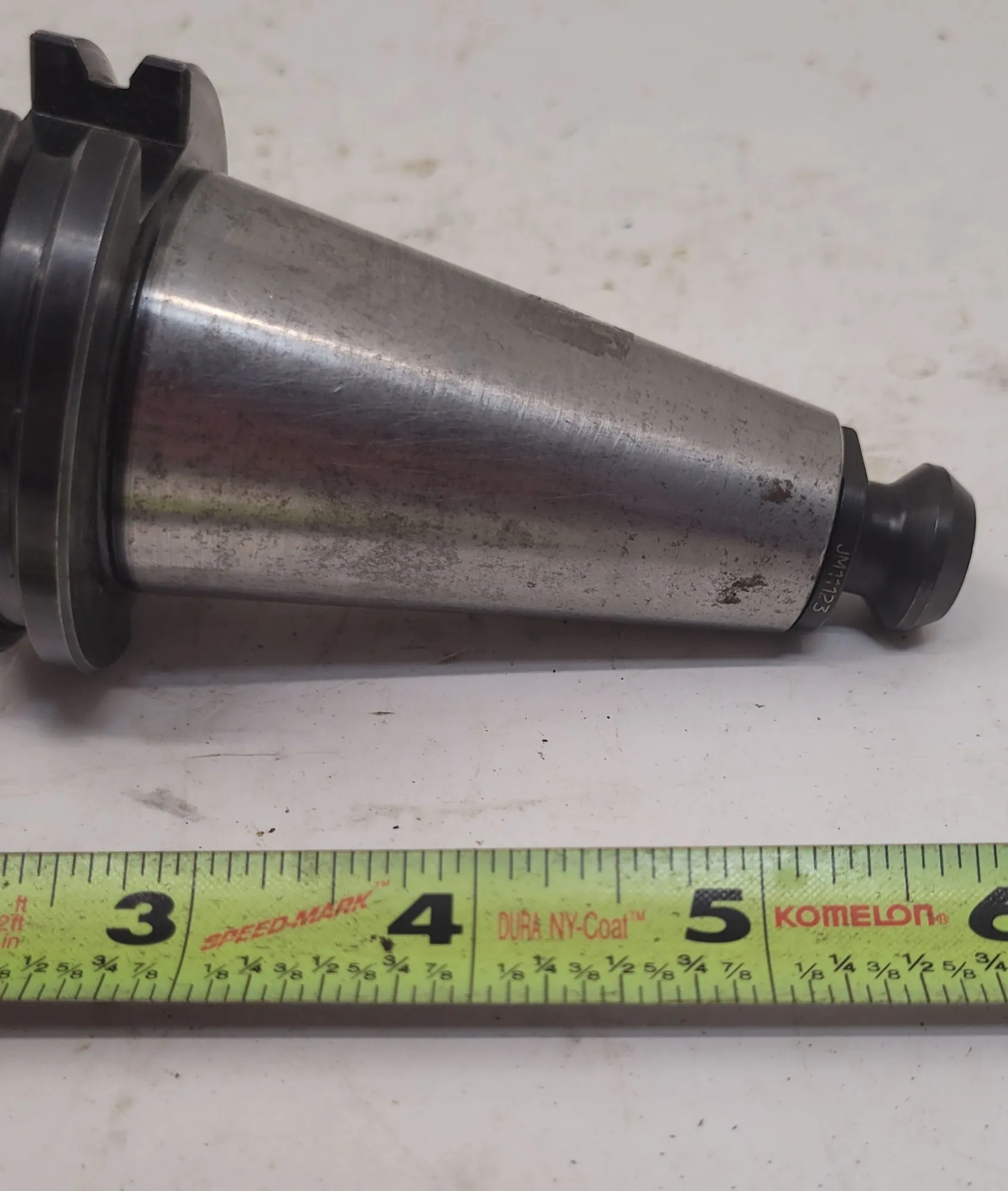

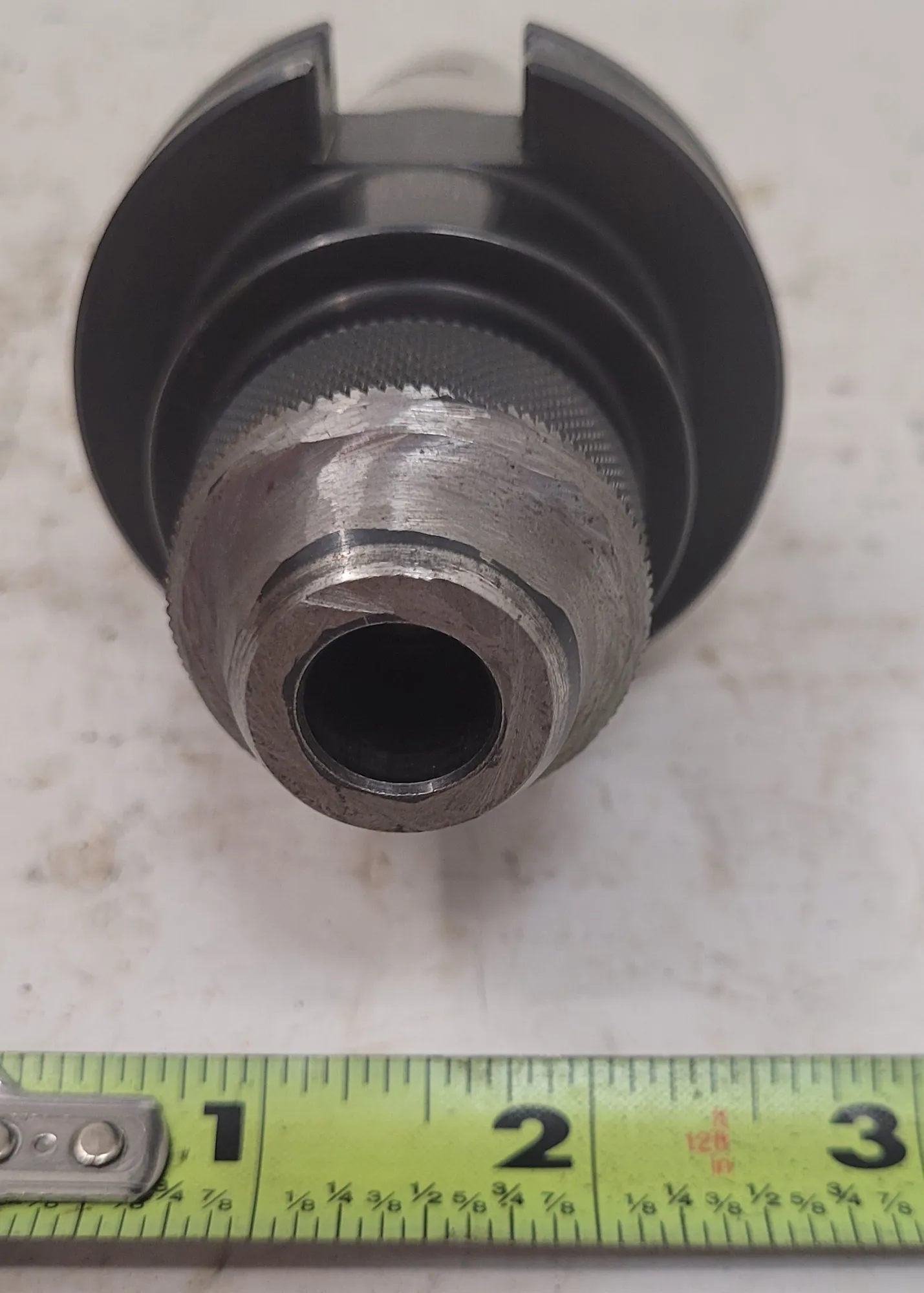

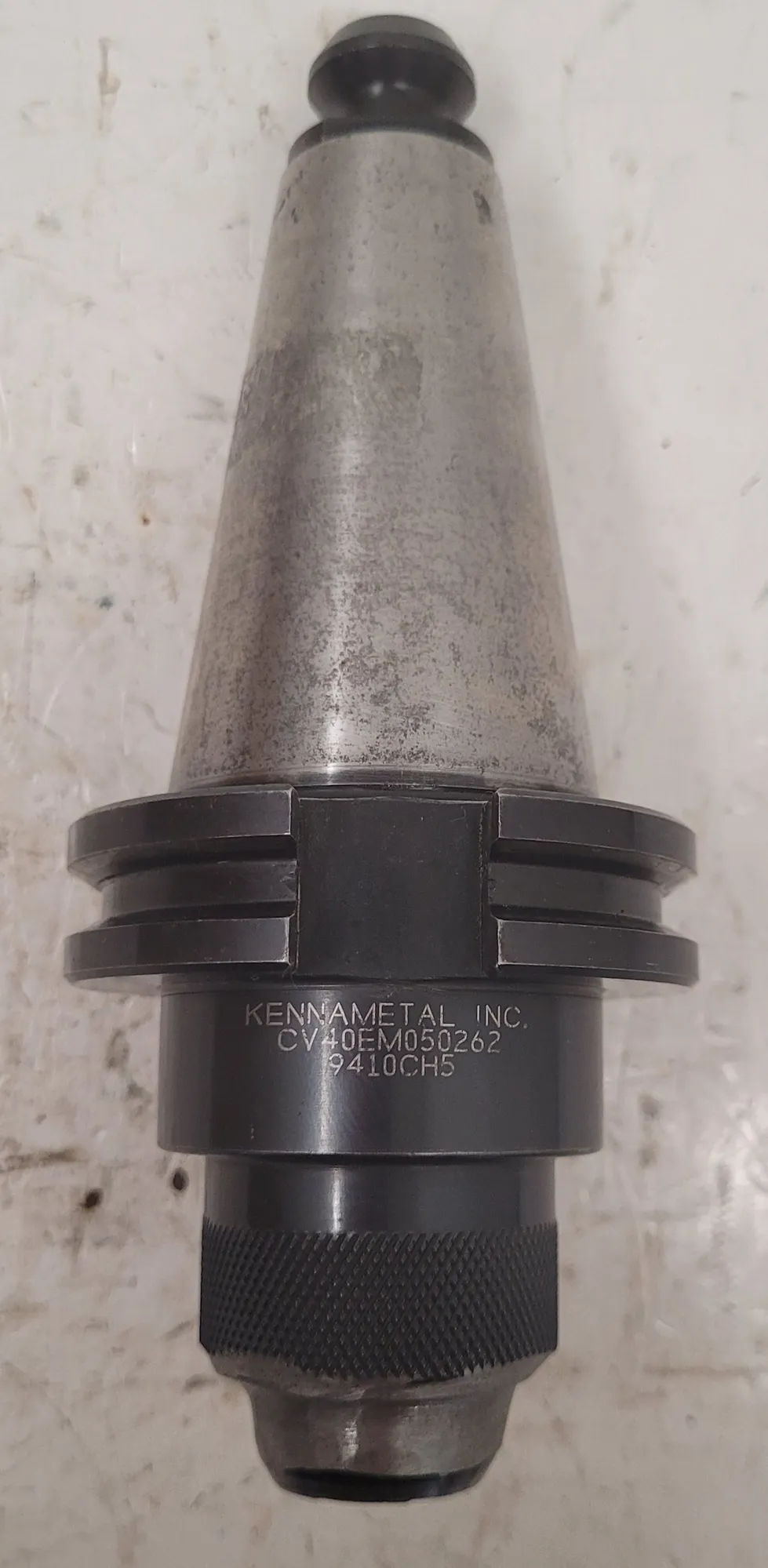

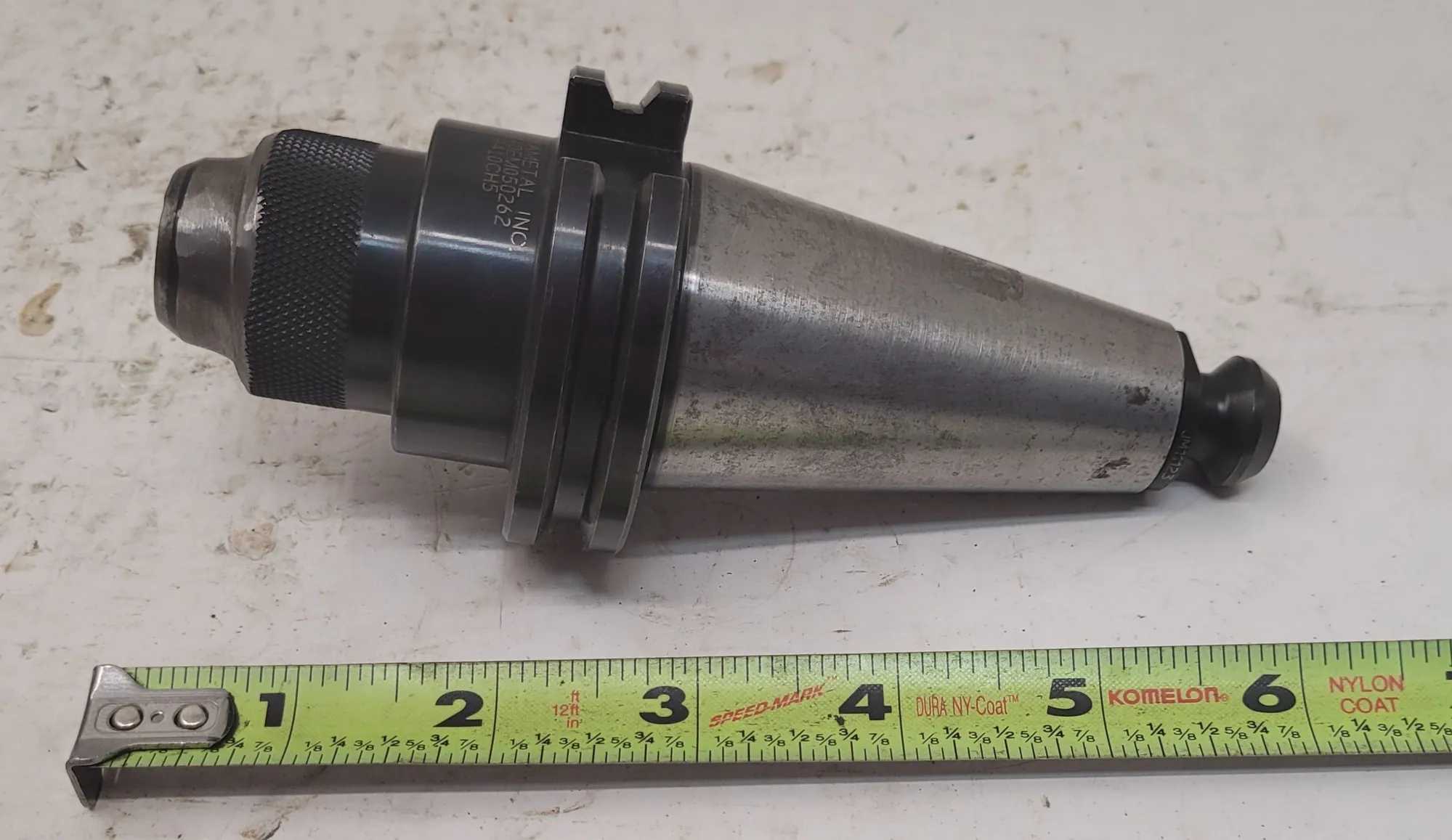

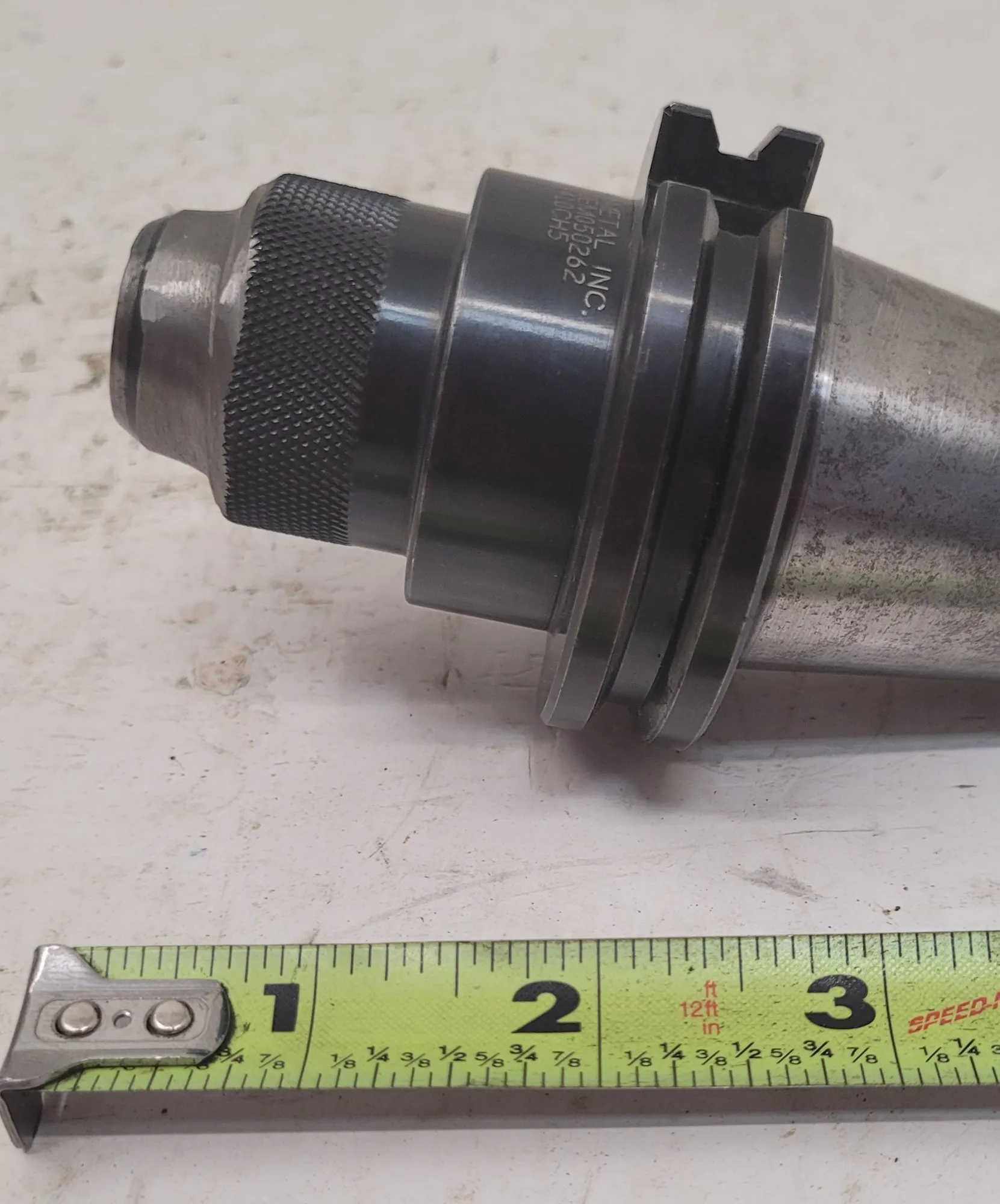

Kennametal CV40EM050262 CAT 40 End Mill Holder

The Kennametal model CV40EM050262 is a CAT 40 end mill holder. It features a CV40 system size on the machine side. The overall length is 134.798 mm (5.30 in). The adapter/shank/bore diameter is 44.450 mm (1.7500 in), and the diameter on the workpiece side is 12.700 mm (0.5000 in). The body diameter on the workpiece side is 34.920 mm (1.3750 in). Key measurements include a clamping length of 104.902 mm (4.1300 in), a gage length of 66.550 mm (2.6200 in), and a shank length of 71.425 mm (2.8120 in). The usable length is 30.625 mm (1.2057 in). The holder utilizes a 7/32" clamp screw size and is rated for 20 ft/lb of torque.
