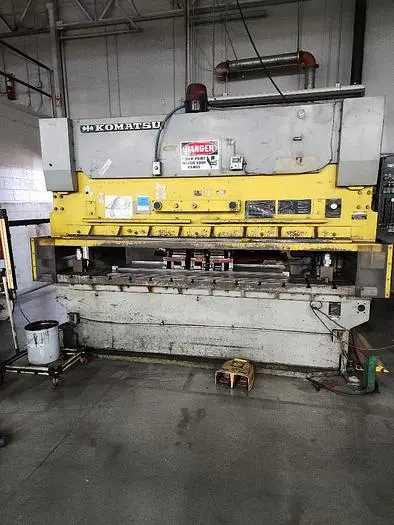

Komatsu Phs 110X310 120 Ton 10' Wide-Bed Hydraulic Press Brake

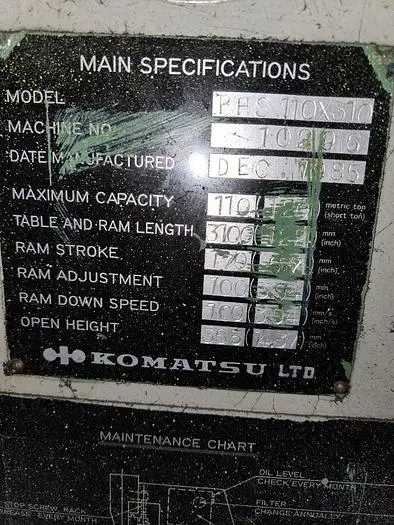

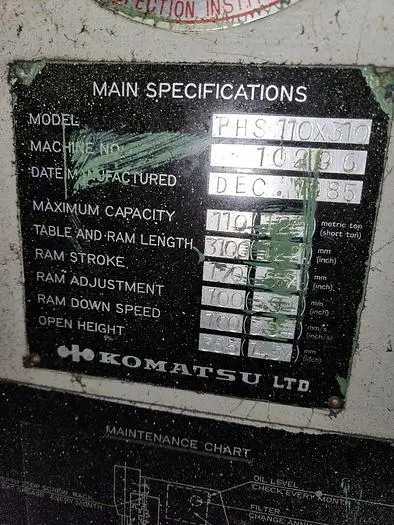

The Komatsu model PHS 110X310 is a 10-foot, 120-ton wide-bed hydraulic press brake (serial no 10296) designed for precision bending operations. Key specifications include a 122-inch overall length of bed and ram, with a 105-inch distance between housings. The machine features a 6.7-inch stroke length and a 14.4-inch open height. Its throat depth is 15.7 inches, and it offers 3.9 inches of ram adjustment. The press brake is equipped with an 18" x 122" T-slotted wide bed attachment and an 18" x 122" extra wide ram attachment with bolt-on angle plates. Operational features include electric depth-stop adjustment, dual pedal foot control, variable speed pressing, and a tonnage indicator. Ram speeds are 3.93 IPS (approach), a working range of 0.20 to 0.39 IPS, and 65 IPS (return). The machine has overall dimensions of 12'2" L x 4'10" D and an overall height of 7'9", with an approximate weight of 14,500 lbs.
