Mazak Nexus 510C/50-II 3-Axis CNC Vertical Machining Center With Chip Conveyor

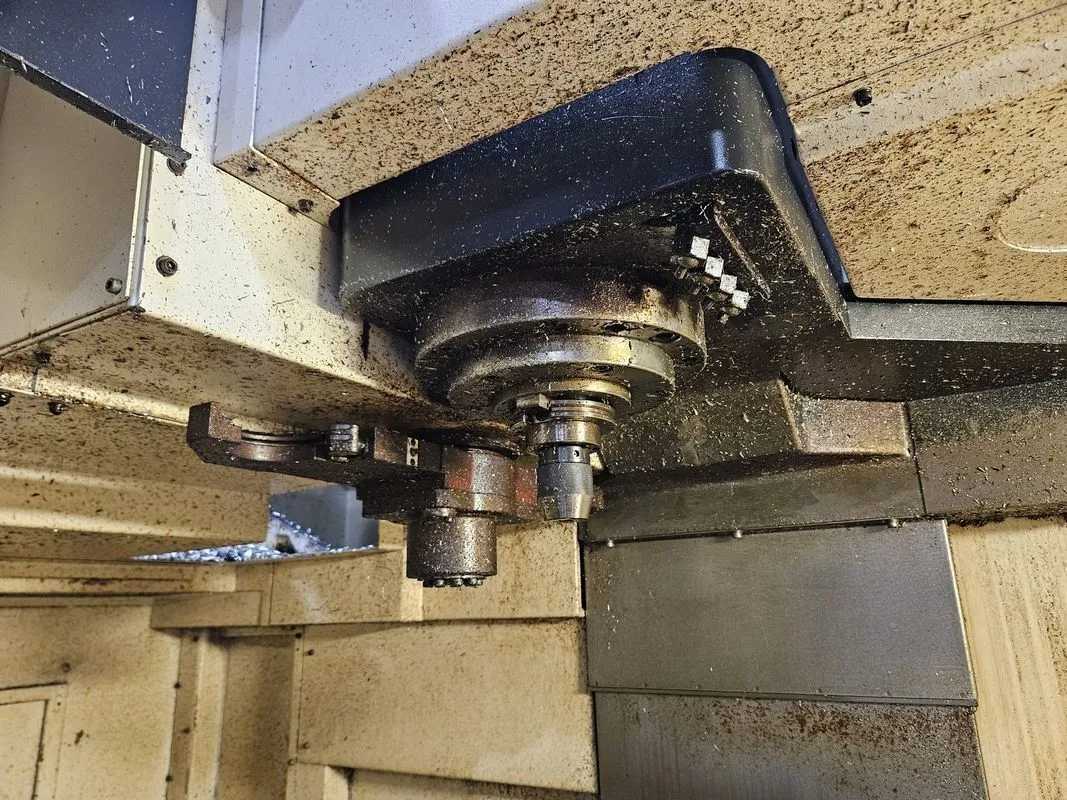

The 2012 Mazak Nexus 510C/50-II is a 3-axis CNC vertical machining center designed for high-performance milling operations. Driven by a 25 HP (18.6 kW) spindle motor, it features a CAT 50 spindle taper capable of speeds up to 6,000 RPM. The machine offers axis travel distances of 41 inches in X, 20 inches in Y, and 20 inches in Z. Its table measures 51.18 inches by 21.65 inches with a maximum load capacity of 2,640 lbs and a spindle nose to table top clearance ranging from 5.9 to 25.98 inches. Tool management is handled by a 24-position side-mount automatic tool changer with a chip-to-chip change time of 1.3 to 2.9 seconds, supporting tools up to 4.9 inches in diameter, 13.8 inches in length, and 17 lbs in weight. Performance capabilities include rapid traverse rates of 1,417 IPM across X, Y, and Z axes alongside a cutting feed rate of approximately 787 IPM. Utility requirements consist of 220 V 3-phase power (~35 kVA) and 80 PSI compressed air at 4 SCFM. Weighing 15,500 lbs, the unit has overall physical dimensions of 120 inches by 112 inches by 114 inches. Serial number 240831 reflects 8,677 cut hours.
