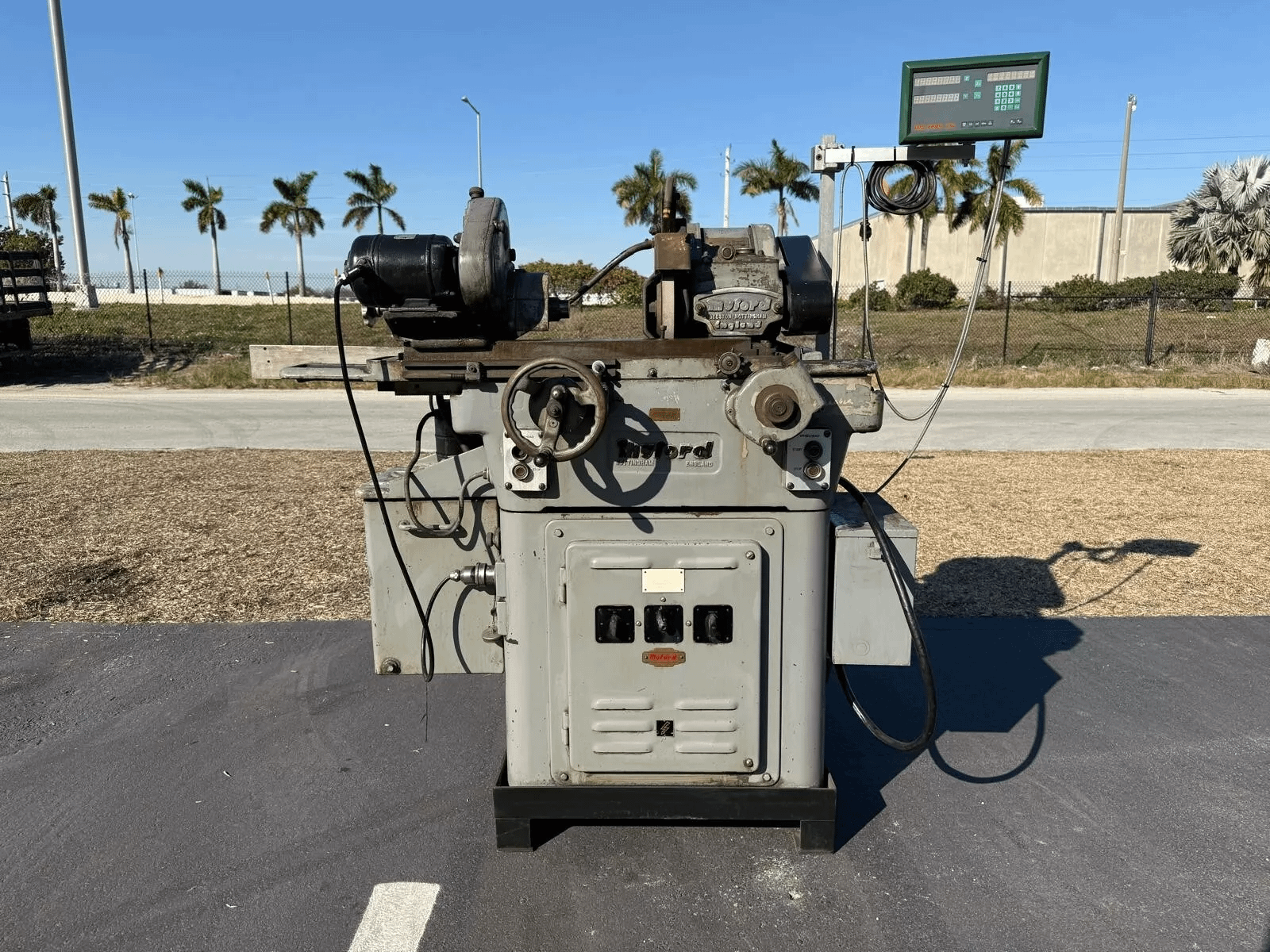

MYFORD MG-12 CYLINDRICAL GRINDER

CAPACITY MAX GRINDING DIAMETER:3” (75MM) SWING OVER TABLE: 5” (125MM) MAX BETWEEN CENTERS: 12” (305MM) MAX TABLE TRAVEL: 13 ½” (345MM) POWER: THREE-PHASE ELECTRIC WHEEL POWER: 3’’ WHEEL RPM:1,988 VTF MAX GRINDING DIAMETER 3" SWING OVER TABLE 5" MAX TABLE TRAVEL 13.5" DISTANCE BETWEEN CENTERS 12" TABLE SWIVELS +/- 7 DEG TABLE TRAVERSE PER REV OF HANDWHEEL (COARSE/FINE) 2.01"/0.7" WHEELHEAD TOTAL TRAVEL 3" WHEEL FEED GRADUATIONS, INFEED 0.0001" WHEEL SPINDLE SPEED 1,830 -1988 RPM GRINDING WHEEL 12" X 1.5" X 5" WHEELHEAD MOTOR 3 HP WORKHEAD RPM, VARIABLE 100 - 900 FPM EQUIPPED WITH: COOLANT PUMP AND TANK
