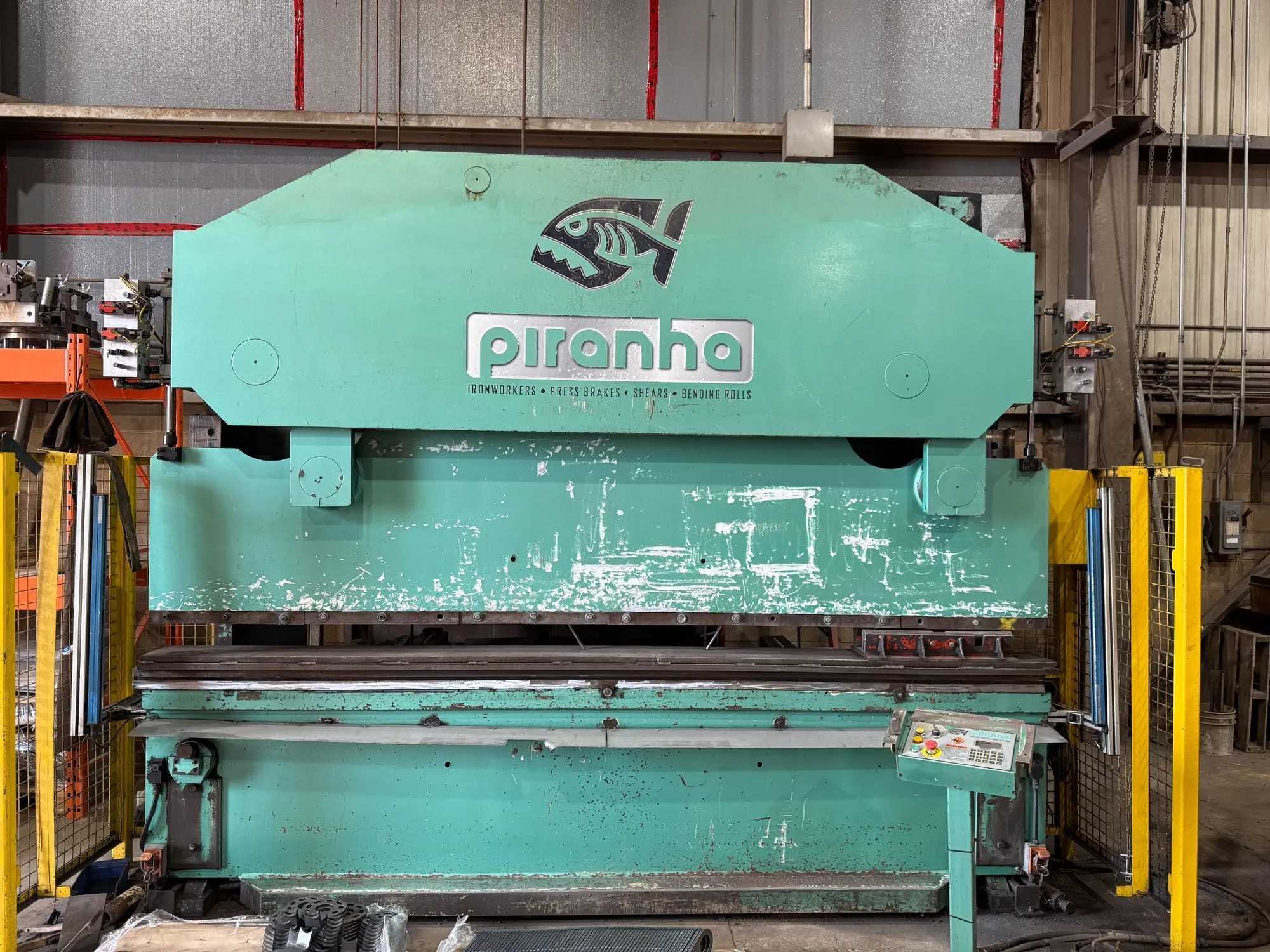

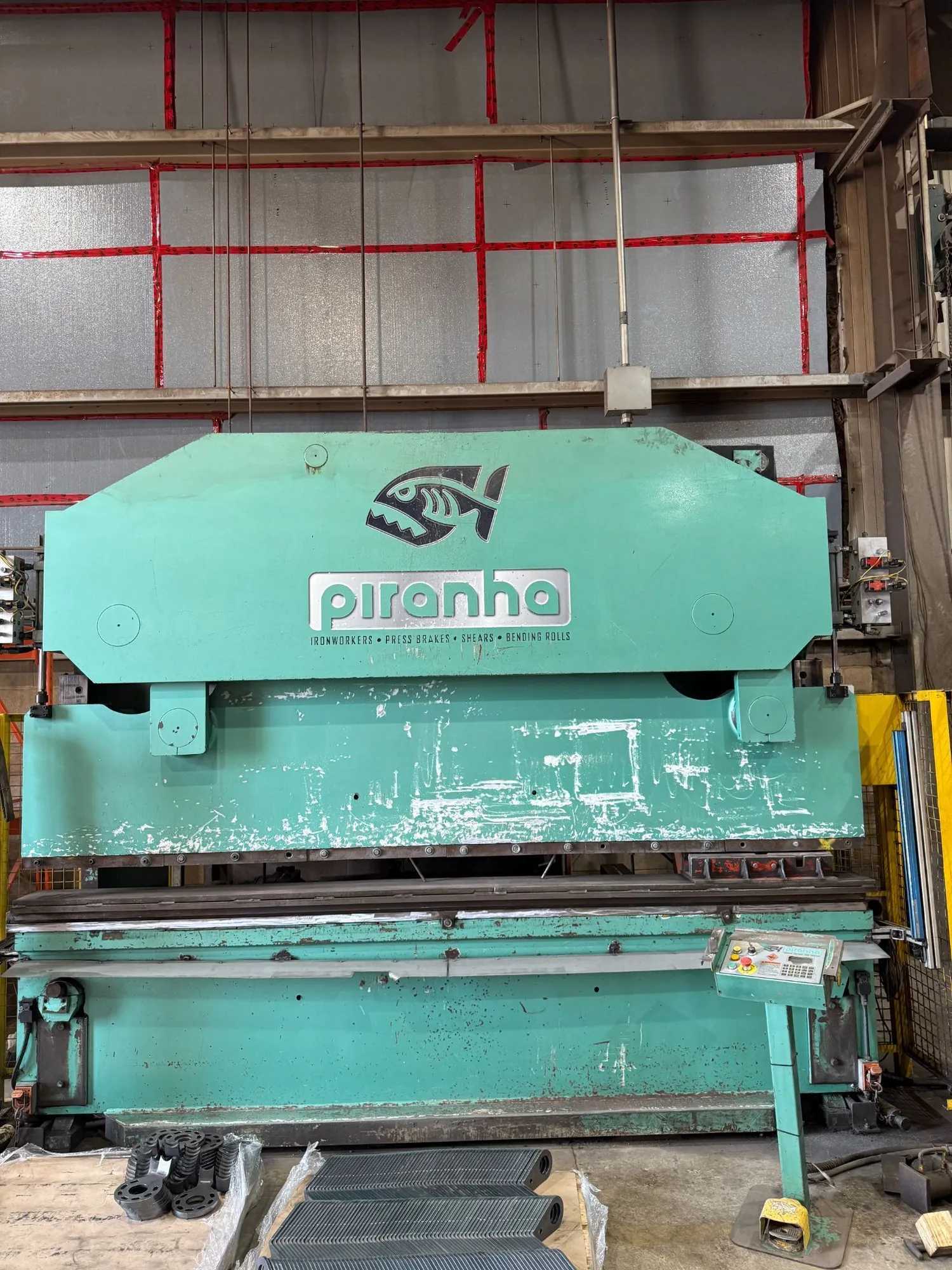

PIRANHA 25012 HYDRAULIC PRESS BRAKE, 250-TON, 12 FT, 8 IN STROKE, 575V, 33,000 LB

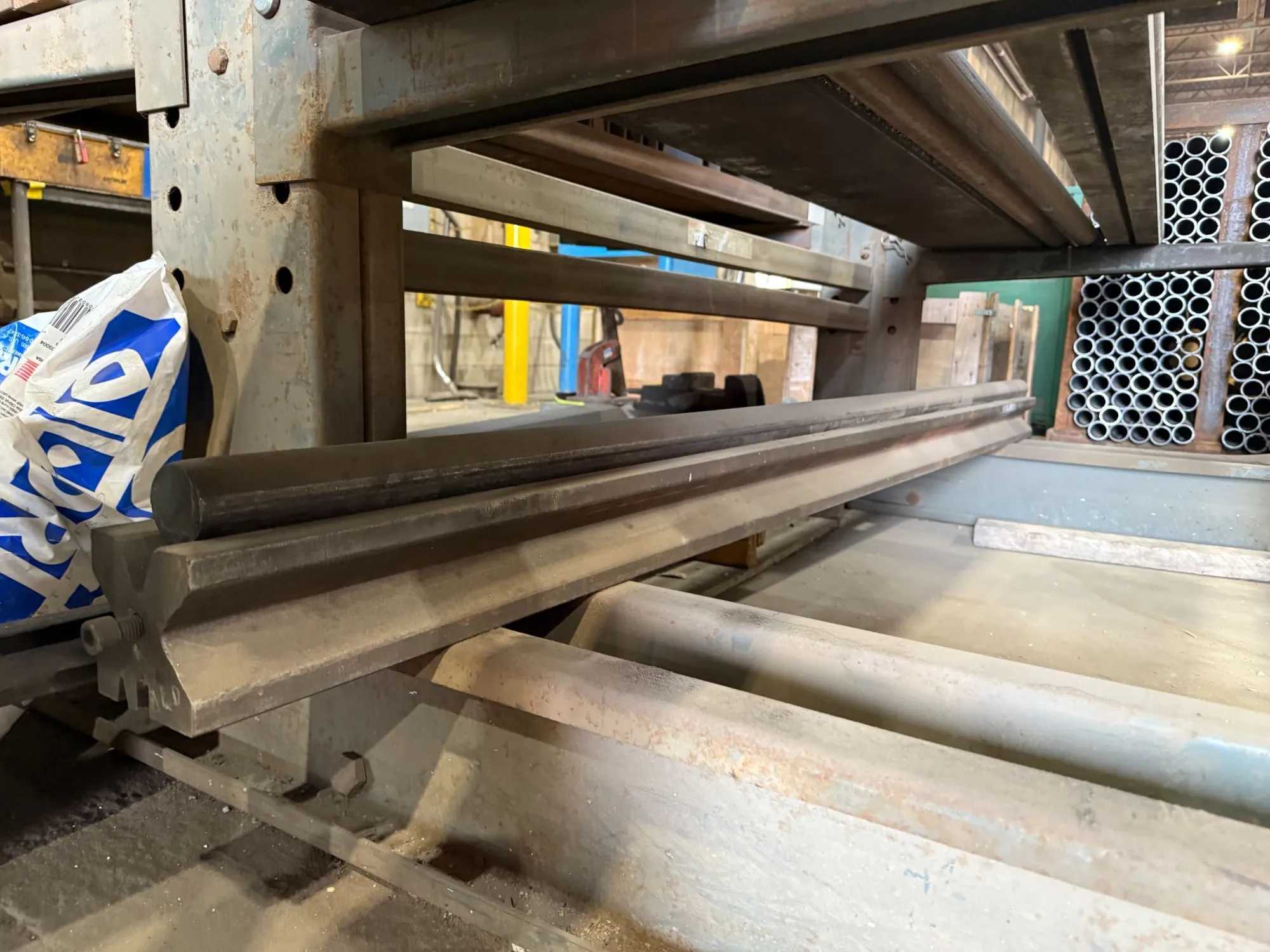

PIRANHA MODEL 25012 HYDRAULIC PRESS BRAKE WITH 250-TON TONNAGE CAPACITY AND 12 FT BENDING CAPACITY FOR 1/4 IN MILD STEEL. THE MACHINE HAS A 12 FT OVERALL BED AND RAM LENGTH, 10 FT 5 IN DISTANCE BETWEEN HOUSINGS, 8 IN STROKE, 17 IN OPEN HEIGHT, 9 IN CLOSED HEIGHT, 8 IN THROAT DEPTH, AND A 7-1/2 IN BED WIDTH. FLOOR TO TOP OF BED IS 35 IN. APPROXIMATE OPERATING SPEEDS ARE 60 IN/MIN APPROACH AND RETURN, WITH 19 IN/MIN MAXIMUM PRESS SPEED. ELECTRICAL REQUIREMENTS ARE 575V, 3-PHASE, 60 HZ, WITH 19.3A FULL LOAD CURRENT, 19.3A LARGEST LOAD RATING, AND 5 KA SHORT CIRCUIT INTERRUPT CAPACITY. MACHINE DIMENSIONS ARE APPROXIMATELY 12 FT X 6 FT X 10 FT, AND WEIGHT IS APPROXIMATELY 33,000 LB. COMES WITH SOME TOOLING.
