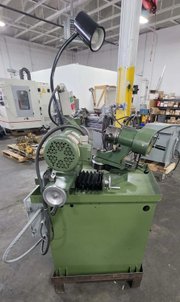

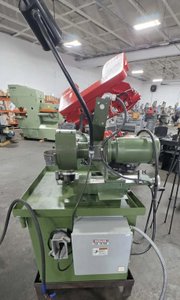

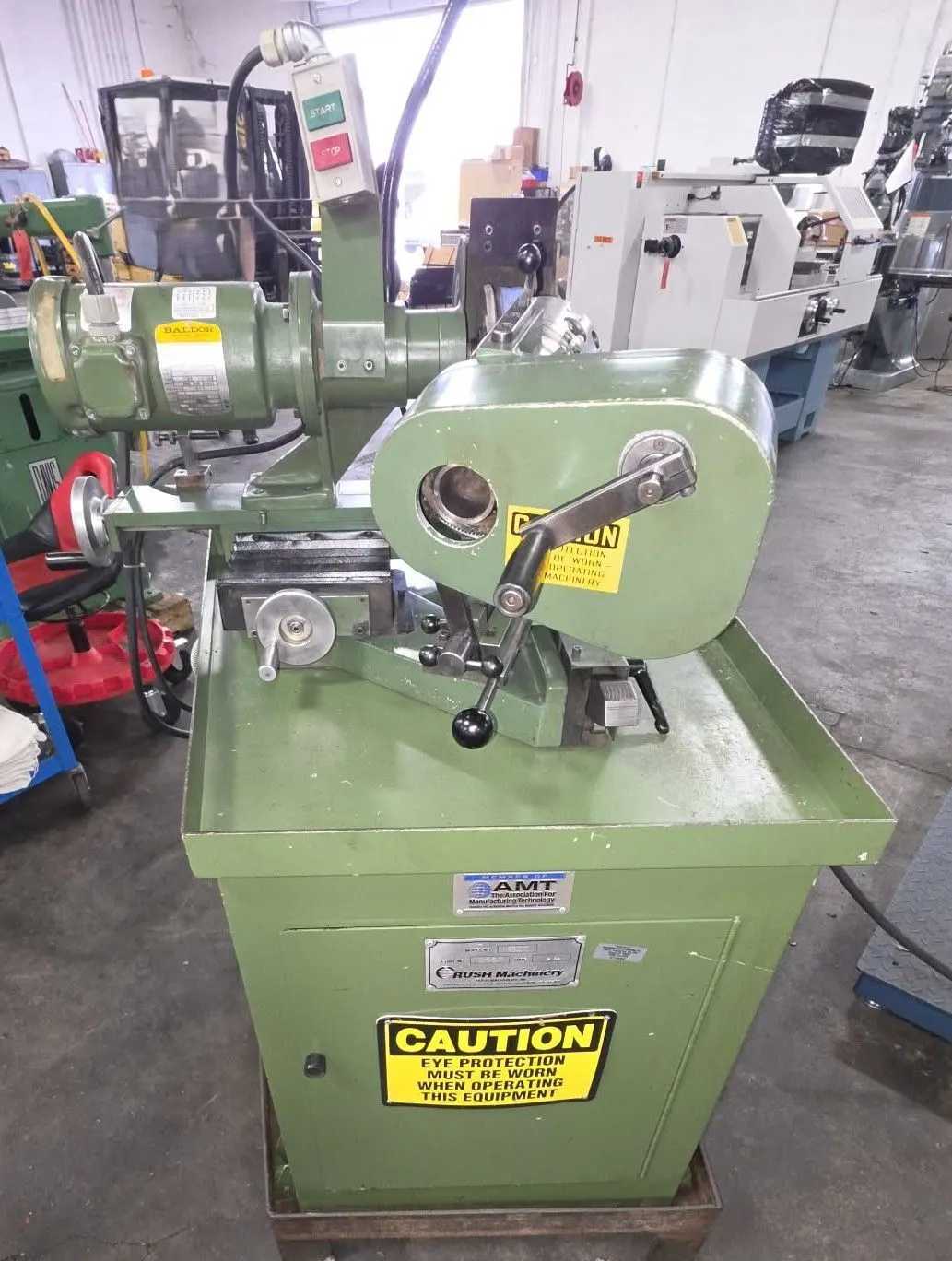

Rush Model 132C Drill & Tool Grinder 0.080" To 1.25" Capacity

Drill Capacity (min) - 0.08" Drill Capacity (max) - 1.25" Power - 0.5 hp Max RPM - 3,450 RPM The Rush Model 132C is a versatile, accurate, and rugged drill and tool grinder designed for rapid setup and high performance. Key Specifications & Capacities Drill/Tool Diameter Range: 0.080″ (2 mm) to 1.25″ (32 mm) Flute Capacity: Grinds tools with 1, 2, 3, 4, 5, 6, 7, 8, or 10 flutes Tool Shanks: Straight shanks from 0.080″ (2 mm) to 1.25″ (32 mm); Morse taper shanks up to #4 Maximum Drill Length: 14″ (356 mm); up to 22″ (559 mm) with the optional spindle extension (P/N SP32) Motor Power: 0.5 hp Maximum RPM: 3,450 RPM Core Features Point Splitting & Web Thinning: Built-in capability for fast grinding of High-Speed Steel (HSS) or carbide drill points. Application Versatility: Easily handles step drills, taps, reamers, countersinks, and end mill ends with minimal setup adjustments. Quick-Change Workhead: The standard workhead can be exchanged in under a minute with an optional air-bearing attachment for grinding end mill outer diameters (ODs). Precision Construction: Includes adjustable tapered gibs on ways, graduated handwheels in thousandths of an inch or metric increments, and a sealed ball-bearing spindle assembly designed to minimize runout. The Rush Model 132C is a versatile, accurate, and rugged drill and tool grinder designed for rapid setup and high performance. Key Specifications & Capacities Drill/Tool Diameter Range: 0.080″ (2 mm) to 1.25″ (32 mm) Flute Capacity: Grinds tools with 1, 2, 3, 4, 5, 6, 7, 8, or 10 flutes Tool Shanks: Straight shanks from 0.080″ (2 mm) to 1.25″ (32 mm); Morse taper shanks up to #4 Maximum Drill Length: 14″ (356 mm); up to 22″ (559 mm) with the optional spindle extension (P/N SP32) Motor Power: 0.5 hp Maximum RPM: 3,450 RPM Core Features Point Splitting & Web Thinning: Built-in capability for fast grinding of High-Speed Steel (HSS) or carbide drill points. Application Versatility: Easily handles step drills, taps, reamers, countersinks, and end mill ends with minimal setup adjustments. Quick-Change Workhead: The standard workhead can be exchanged in under a minute with an optional air-bearing attachment for grinding end mill outer diameters (ODs). Precision Construction: Includes adjustable tapered gibs on ways, graduated handwheels in thousandths of an inch or metric increments, and a sealed ball-bearing spindle assembly designed to minimize runout. The Rush Model 132C is a versatile, accurate, and rugged drill and tool grinder designed for rapid setup and high performance. Key Specifications & Capacities Drill/Tool Diameter Range: 0.080″ (2 mm) to 1.25″ (32 mm) Flute Capacity: Grinds tools with 1, 2, 3, 4, 5, 6, 7, 8, or 10 flutes Tool Shanks: Straight shanks from 0.080″ (2 mm) to 1.25″ (32 mm); Morse taper shanks up to #4 Maximum Drill Length: 14″ (356 mm); up to 22″ (559 mm) with the optional spindle extension (P/N SP32) Motor Power: 0.5 hp Maximum RPM: 3,450 RPM Core Features Point Splitting & Web Thinning: Built-in capability for fast grinding of High-Speed Steel (HSS) or carbide drill points. Application Versatility: Easily handles step drills, taps, reamers, countersinks, and end mill ends with minimal setup adjustments. Quick-Change Workhead: The standard workhead can be exchanged in under a minute with an optional air-bearing attachment for grinding end mill outer diameters (ODs). Precision Construction: Includes adjustable tapered gibs on ways, graduated handwheels in thousandths of an inch or metric increments, and a sealed ball-bearing spindle assembly designed to minimize runout. https://www.youtube.com/watch?v=xPys8eROkD0
