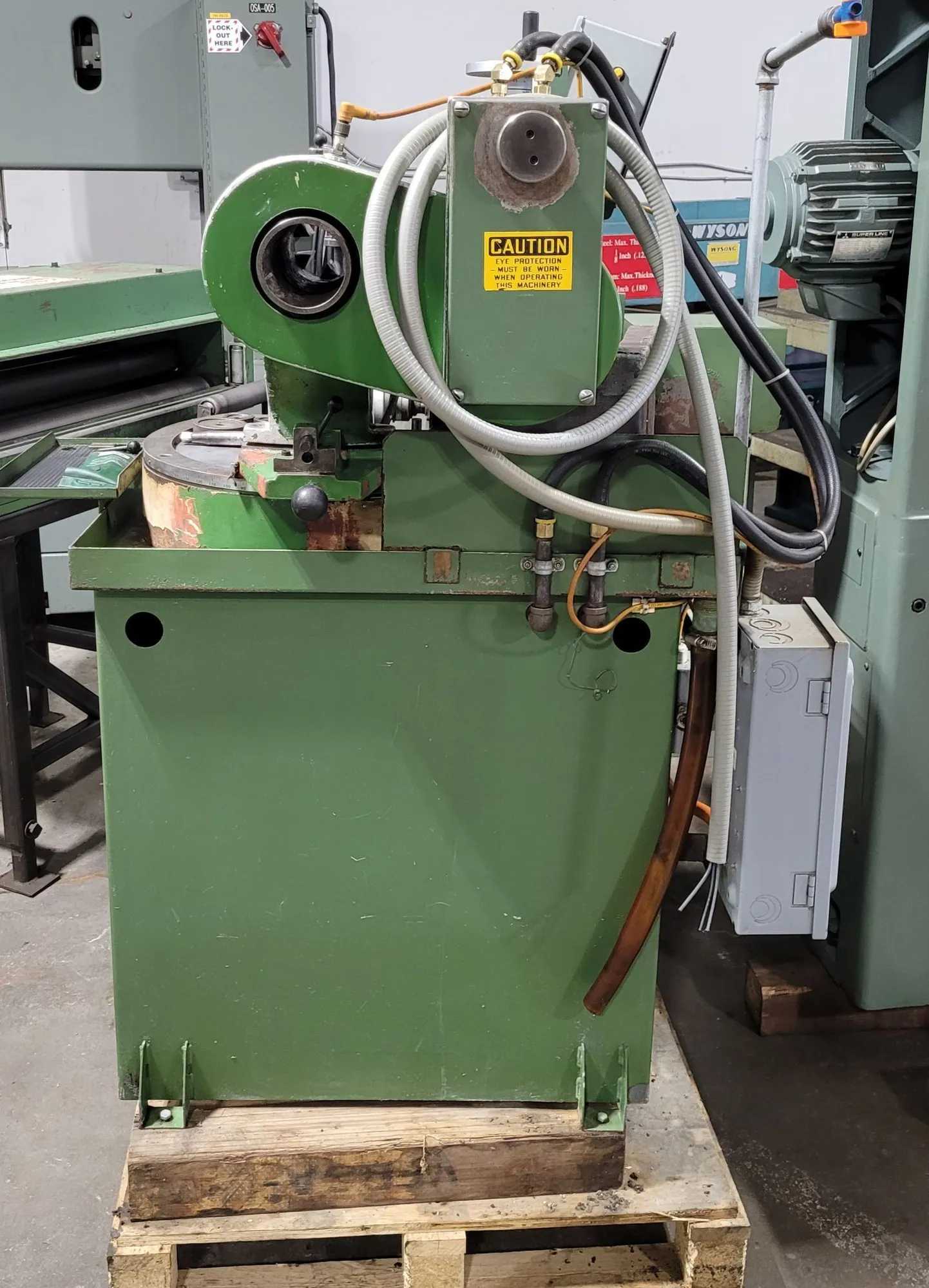

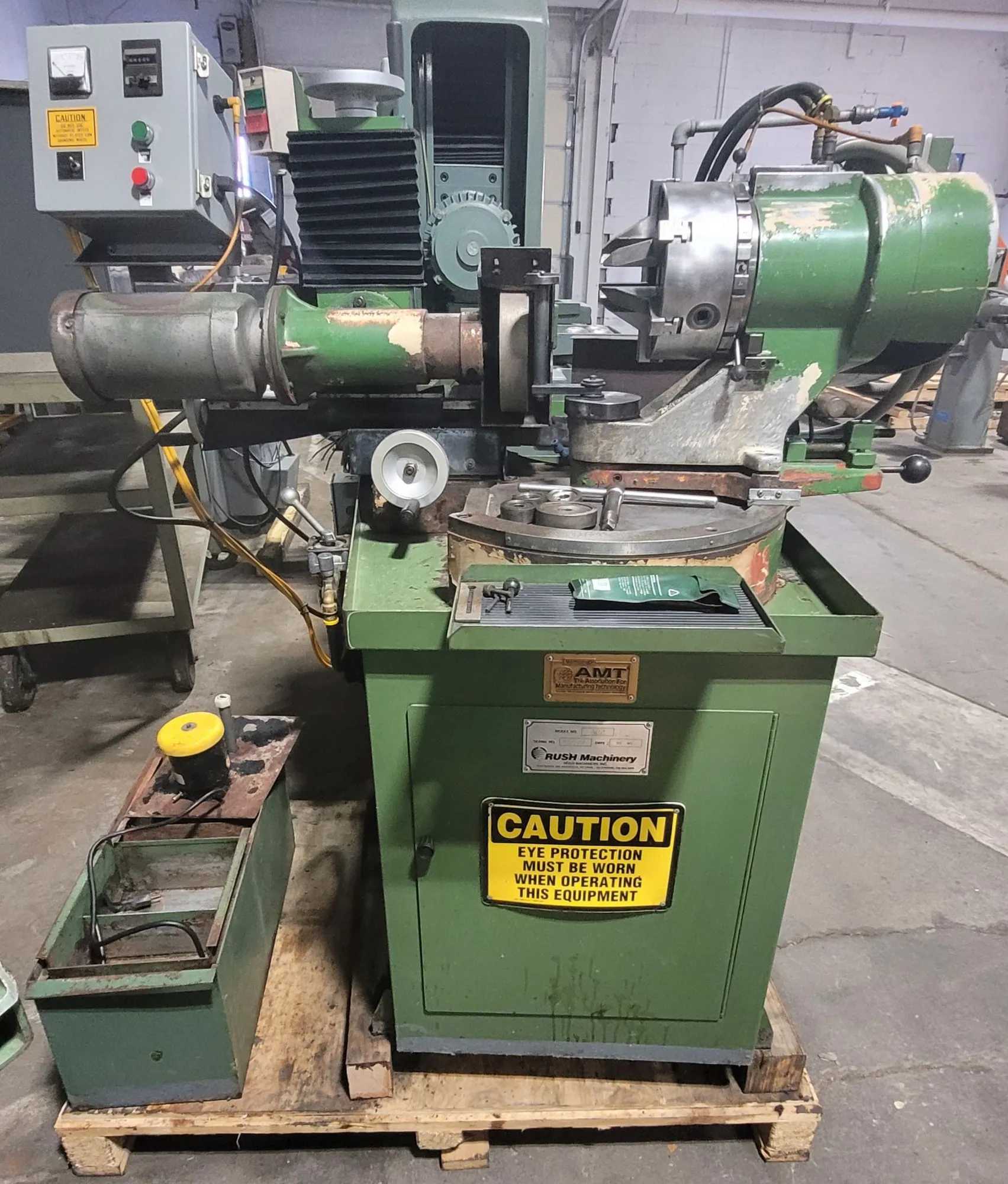

Rush Model 382 Drill and Tool Grinder, 3/16"-3-1/8" Cap, 6-Jaw Chuck, 1 HP, 230-460V

The Rush Model 382 is a heavy-duty semi-automatic drill and tool grinder designed for high-capacity precision sharpening. It features a drill diameter and straight shank diameter range of 3/16 inch to 3-1/8 inches, with a point angle range spanning 40 to over 180 degrees. The unit is equipped with a self-centering 6-jaw chuck and a pneumatic semi-automatic infeed system to facilitate efficient operation. Powered by a 1 HP motor operating at 3450 RPM, the machine is configured for a 230-460V, 3-phase, 60Hz electrical system. This model is capable of grinding tools with 1, 2, 3, 4, 5, 6, 7, 8, or 10 flutes, including drill points, step drills, taps, reamers, countersinks, and end mill ends. Physically, the grinder has overall dimensions of 37 inches in width by 49 inches in depth, stands 64 inches high, and weighs approximately 745 lbs.
