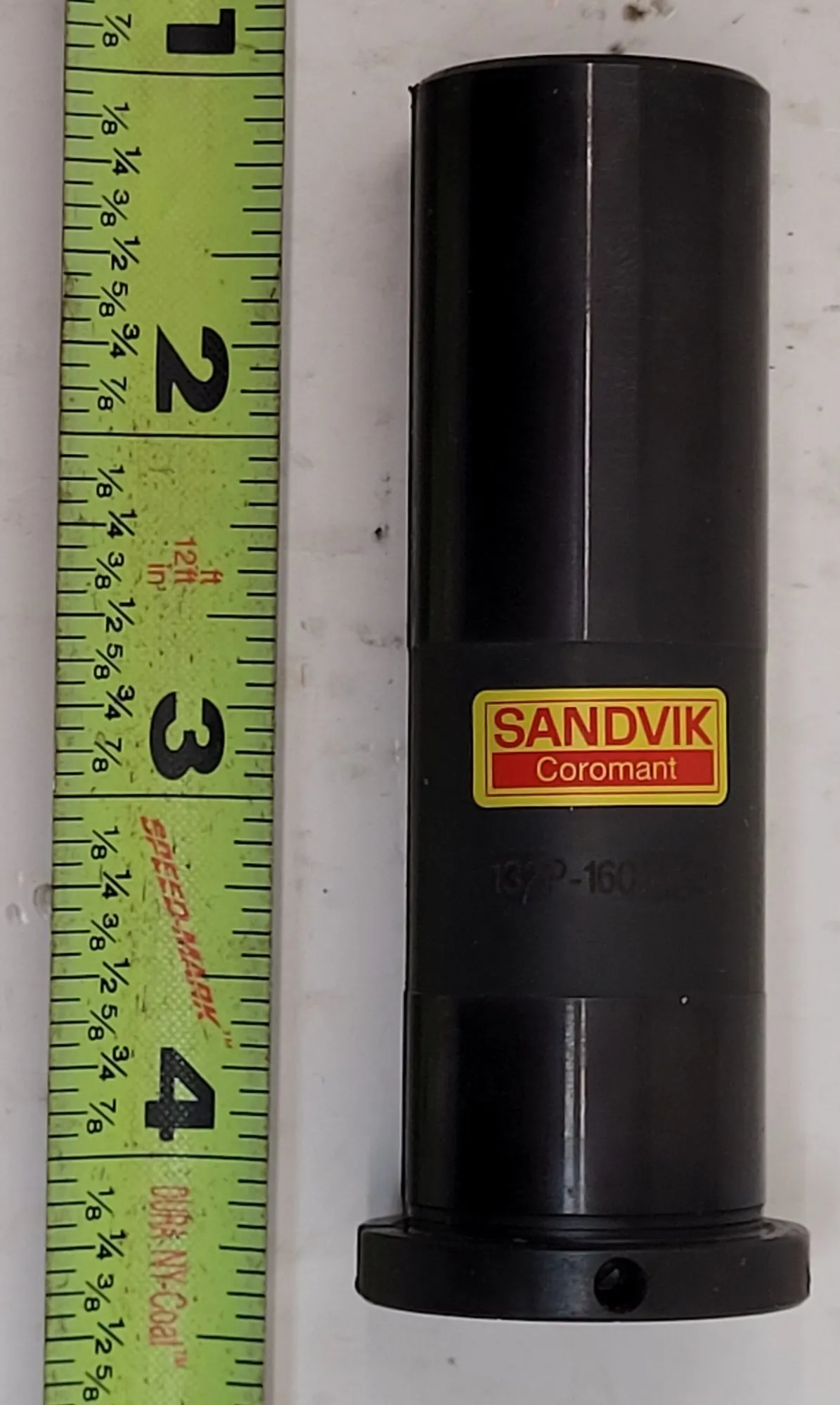

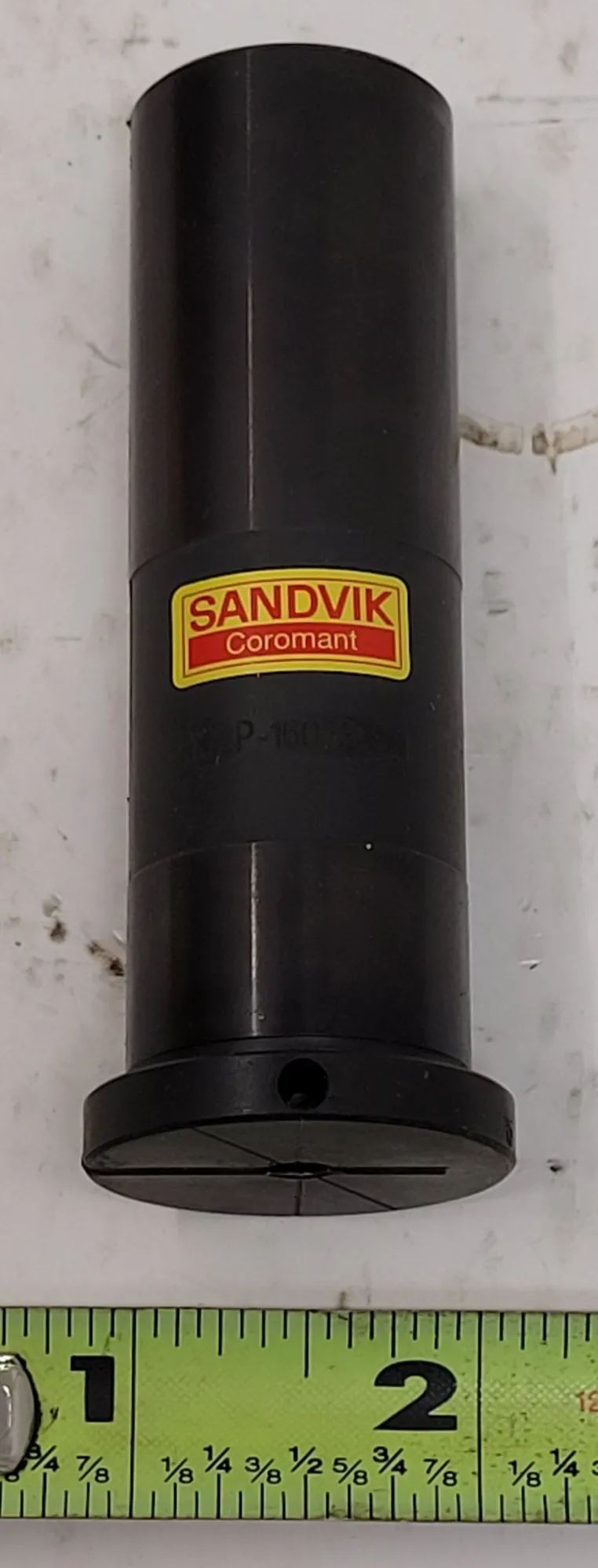

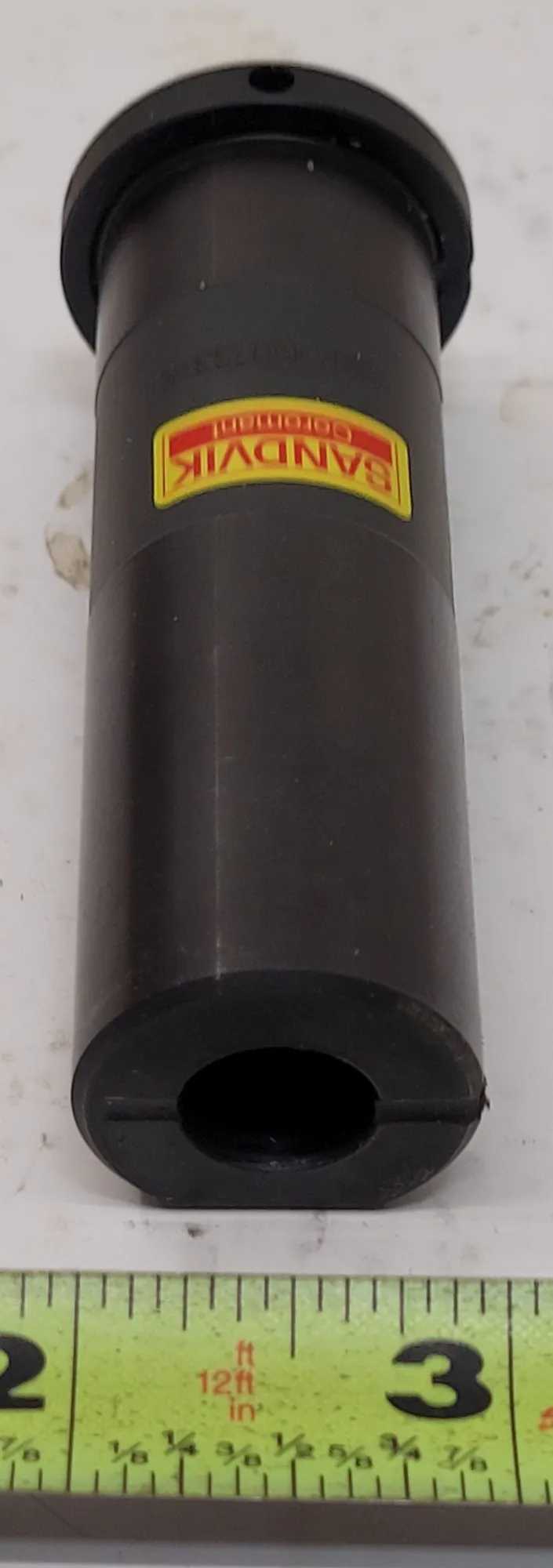

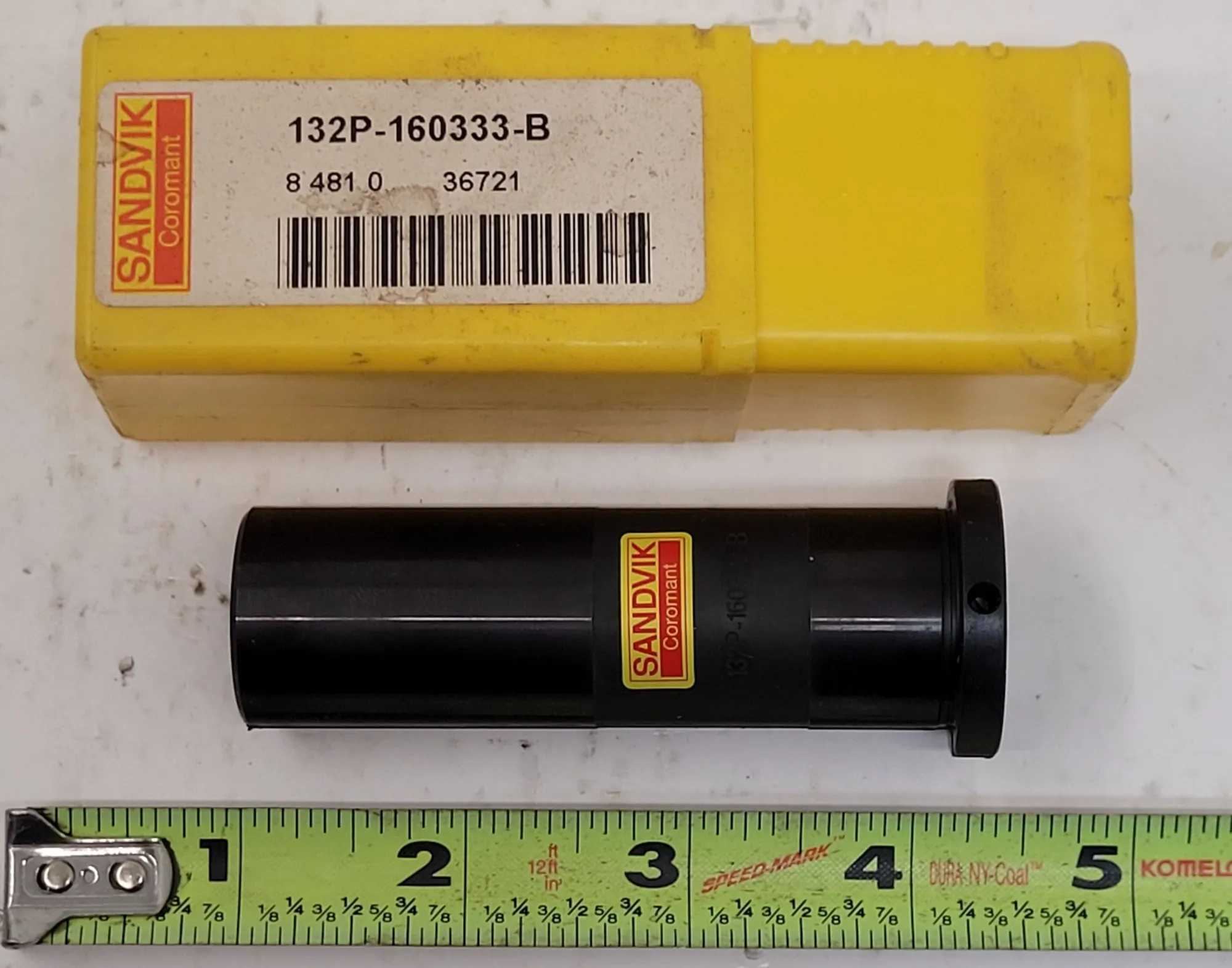

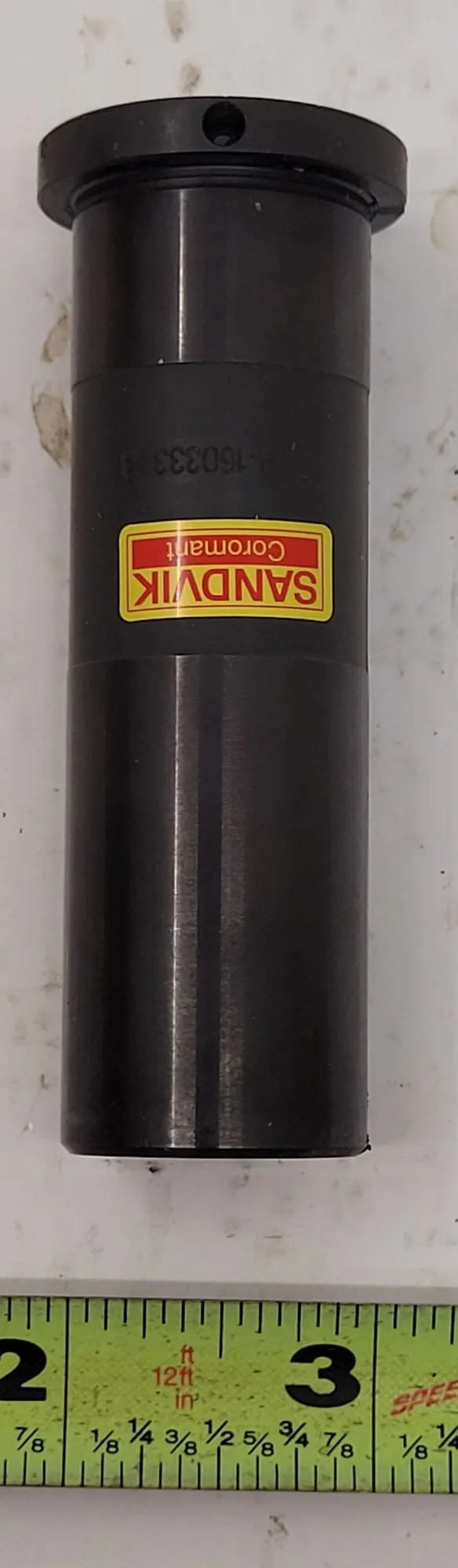

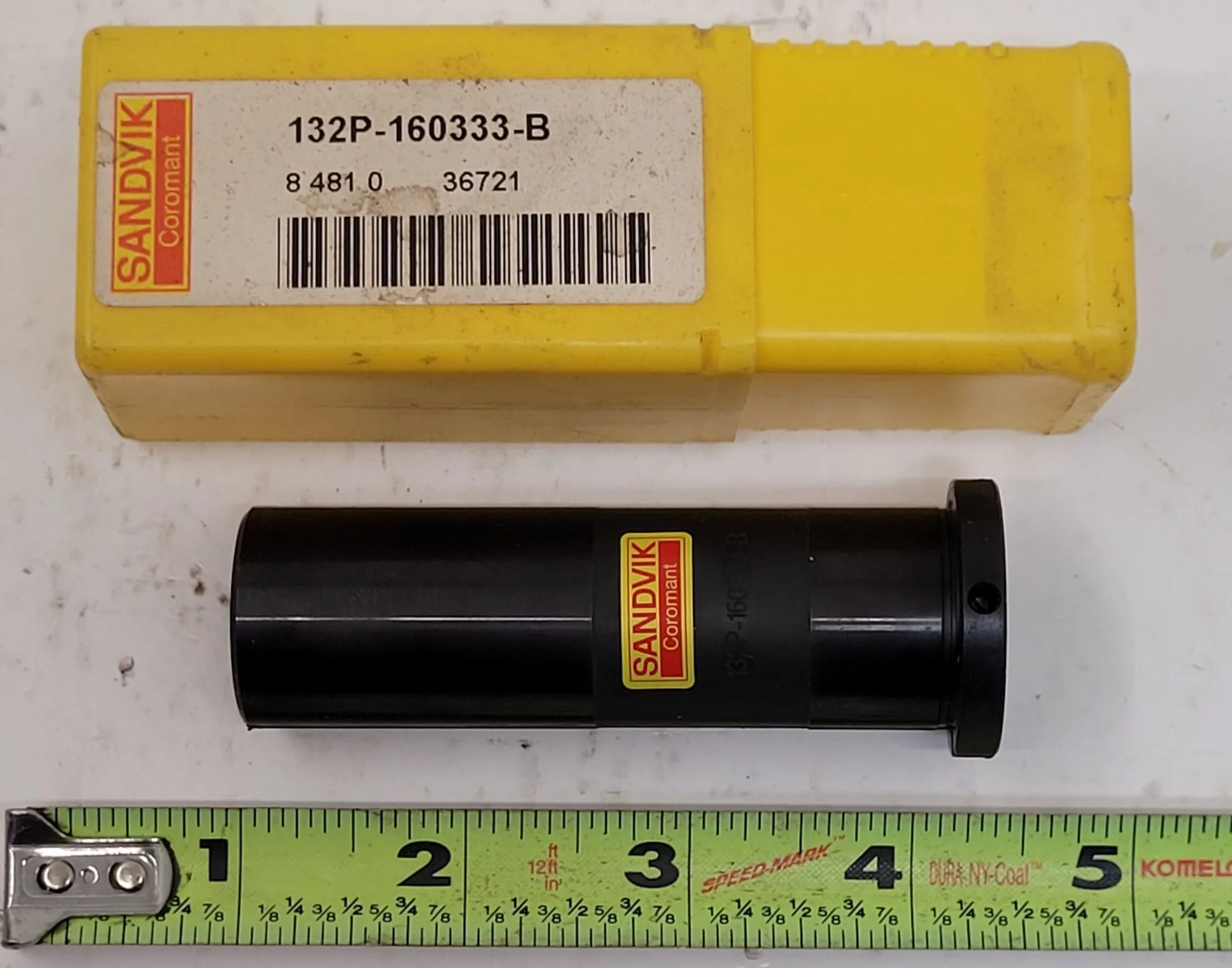

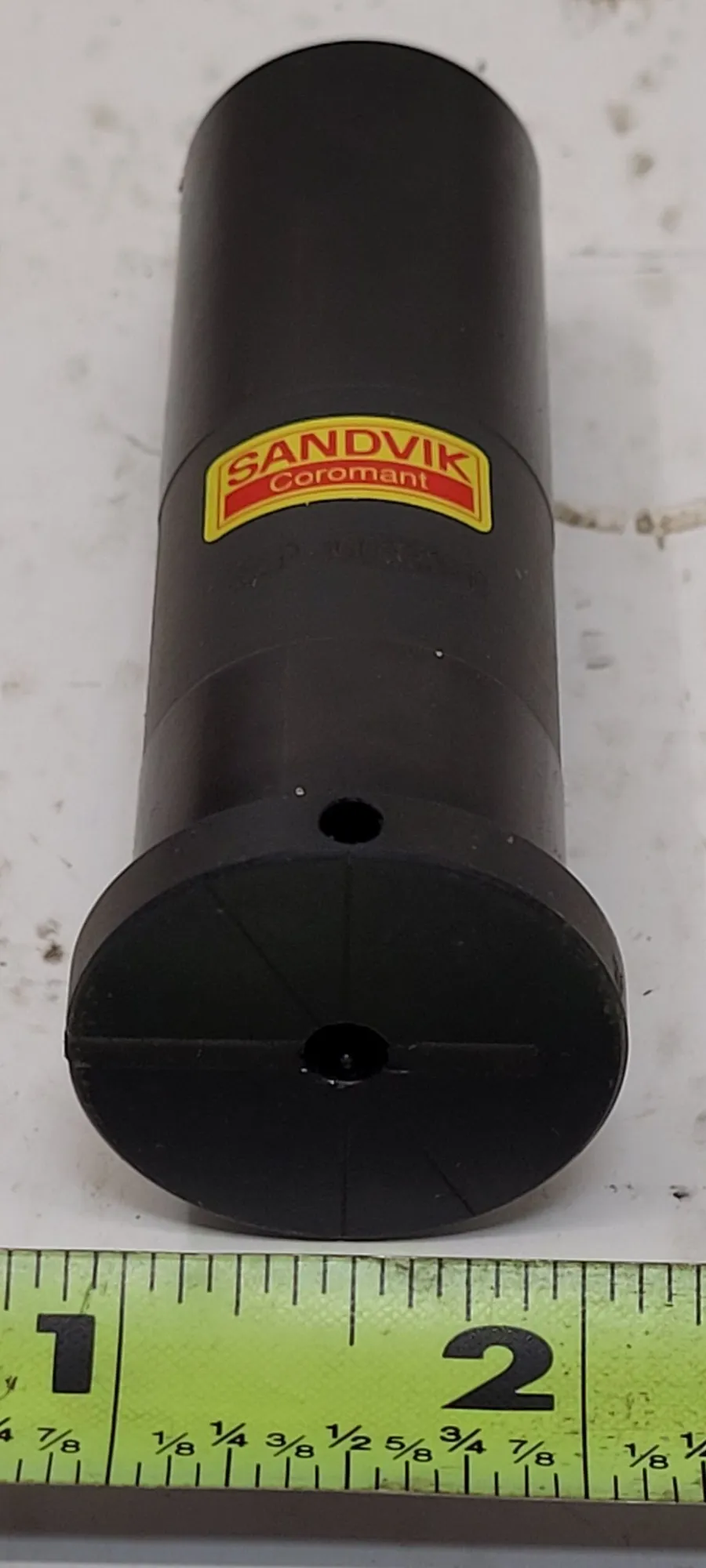

Sandvik Coromant 132P-160333-B Cylindrical Sleeve, Dconms 1 Inch, OAL 3.3465 Inch

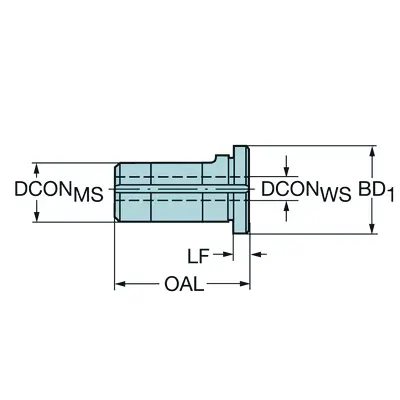

THE SANDVIK COROMANT 132P-160333-B IS A CYLINDRICAL SLEEVE TOOL DESIGNED WITH A CONNECTION DIAMETER MACHINE SIDE (DCONMS) OF 1 INCH AND A CONNECTION DIAMETER WORKPIECE SIDE (DCONWS) OF 0.1875 INCH. IT FEATURES AN OVERALL LENGTH (OAL) OF 3.3465 INCHES, A FUNCTIONAL LENGTH (LF) OF 0.1969 INCH, A BODY DIAMETER (BD) OF 1.2362 INCHES, AND A BODY LENGTH (LB) OF 0.1969 INCH. THE SLEEVE UTILIZES A LOCATION AID PROPERTY AND FEATURES AN AXIAL CONCENTRIC ENTRY AND AXIAL CONCENTRIC EXIT FOR COOLANT FLOW, CAPABLE OF HANDLING A COOLANT PRESSURE OF 290.0755 LBF/IN2. THE MACHINE SIDE CONNECTION IS A CYLINDRICAL SHANK (ISO9766 DRILL SHANK WITH FLANGE) -INCH: 1, AND THE WORKPIECE SIDE CONNECTION IS A CYLINDRICAL CLAMPING (SLEEVE) -INCH: 3/16.
