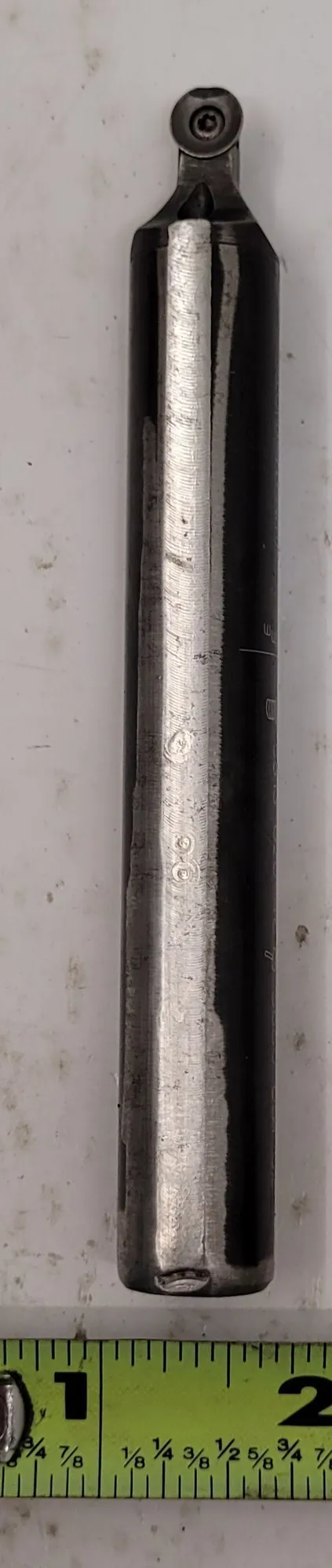

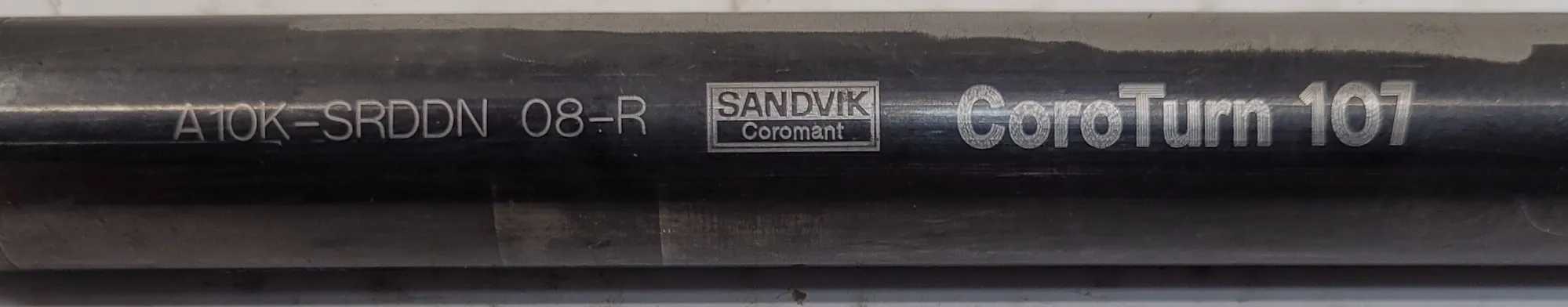

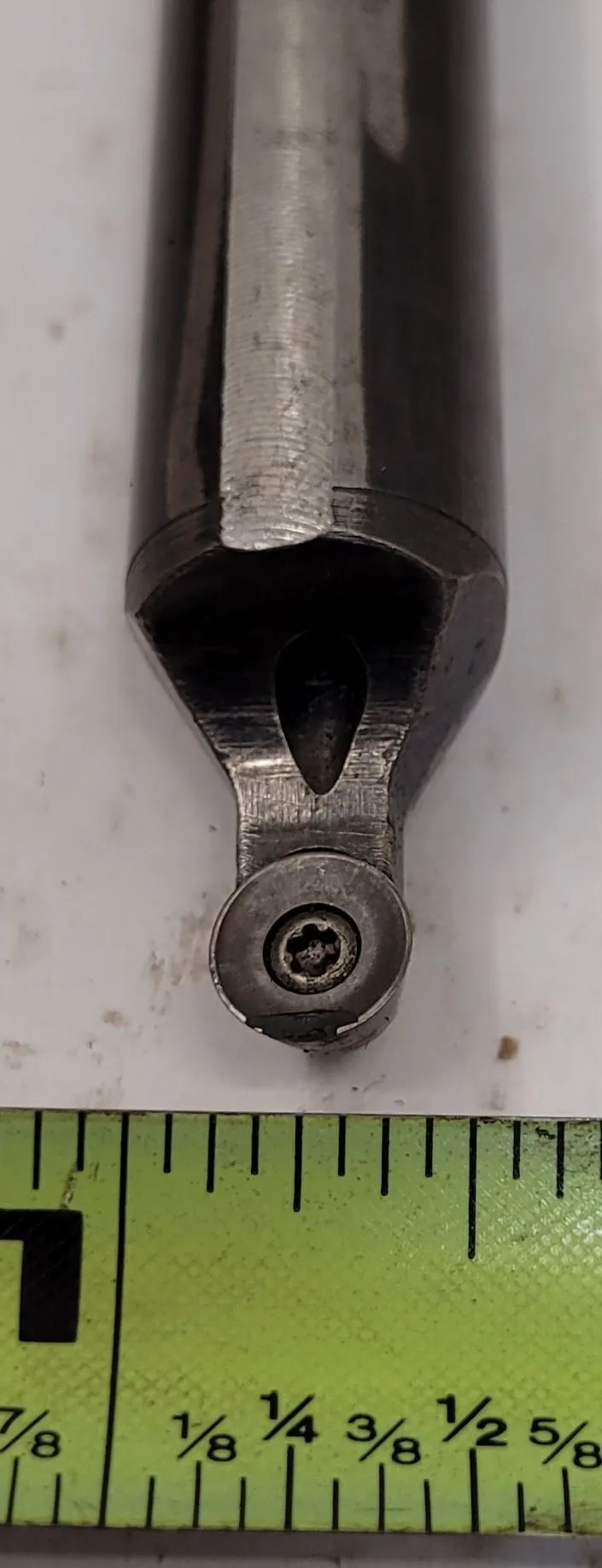

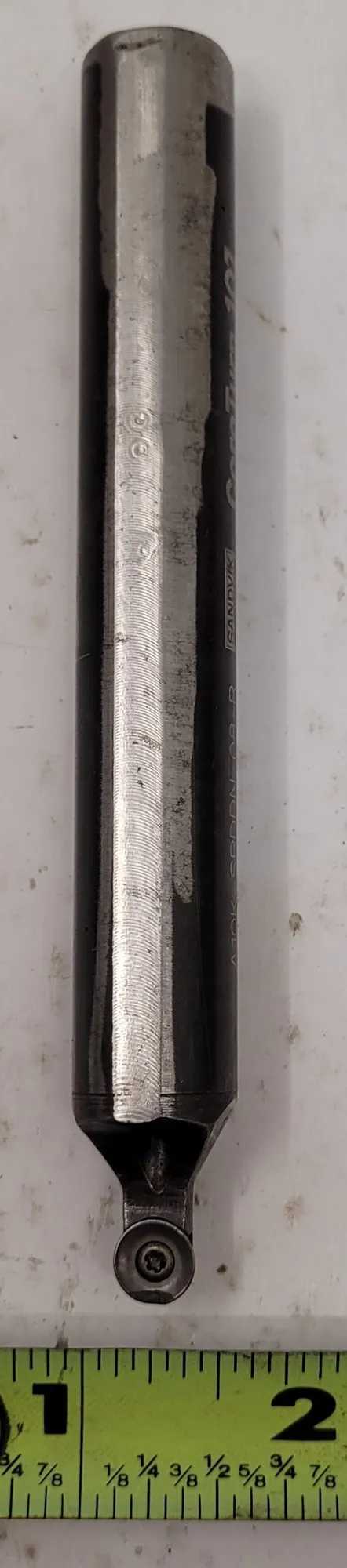

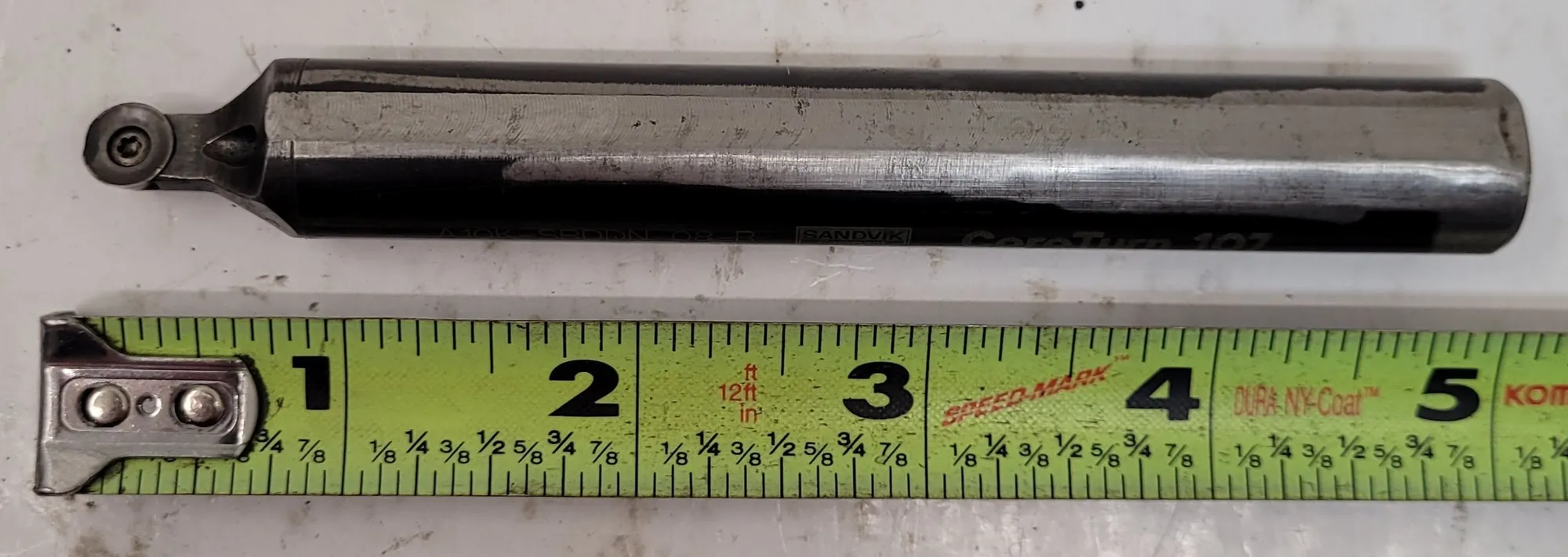

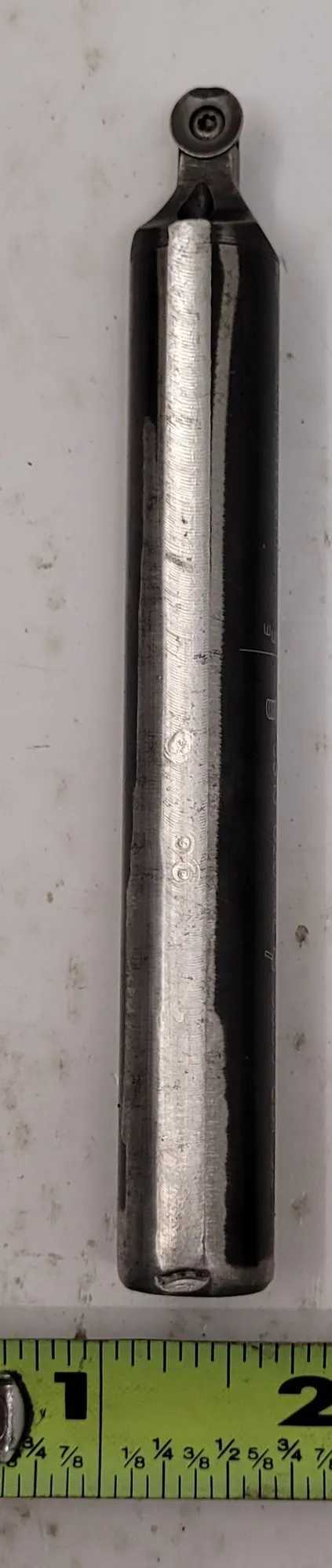

SANDVIK COROMANT A10K-SRDDN 08-R COROTURN 107 BORING BAR

THE SANDVIK A10K-SRDDN 08-R COROTURN 107 BORING BAR, MANUFACTURED BY SANDVIK COROMANT, HAS AN OVERALL LENGTH OF 4.9213 INCHES. IT FEATURES A MAXIMUM RAMPING ANGLE OF 90° AND A MINIMUM BORE DIAMETER OF 0.7874 INCH. BOTH THE WORKPIECE SIDE BODY ANGLE AND MACHINE SIDE BODY ANGLE ARE 0°. THE TOOL OFFERS A MINIMUM OVERHANG OF 0.9375 INCH AND A MAXIMUM OVERHANG OF 2.5 INCHES. ITS USABLE LENGTH IS 0.4945 INCH, AND THE HAND IS NEUTRAL. THE CONNECTION DIAMETER MACHINE SIDE IS 0.625 INCH. THE FUNCTIONAL LENGTH IS 4.9213 INCHES, FUNCTIONAL WIDTH IS 0.1575 INCH, AND FUNCTIONAL HEIGHT IS 0 INCH. THE BODY DIAMETER MEASURES 0.625 INCH.
