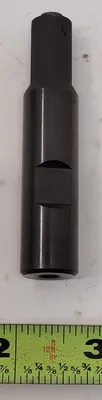

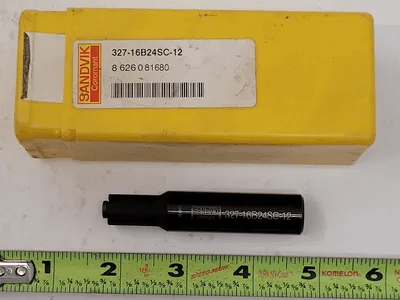

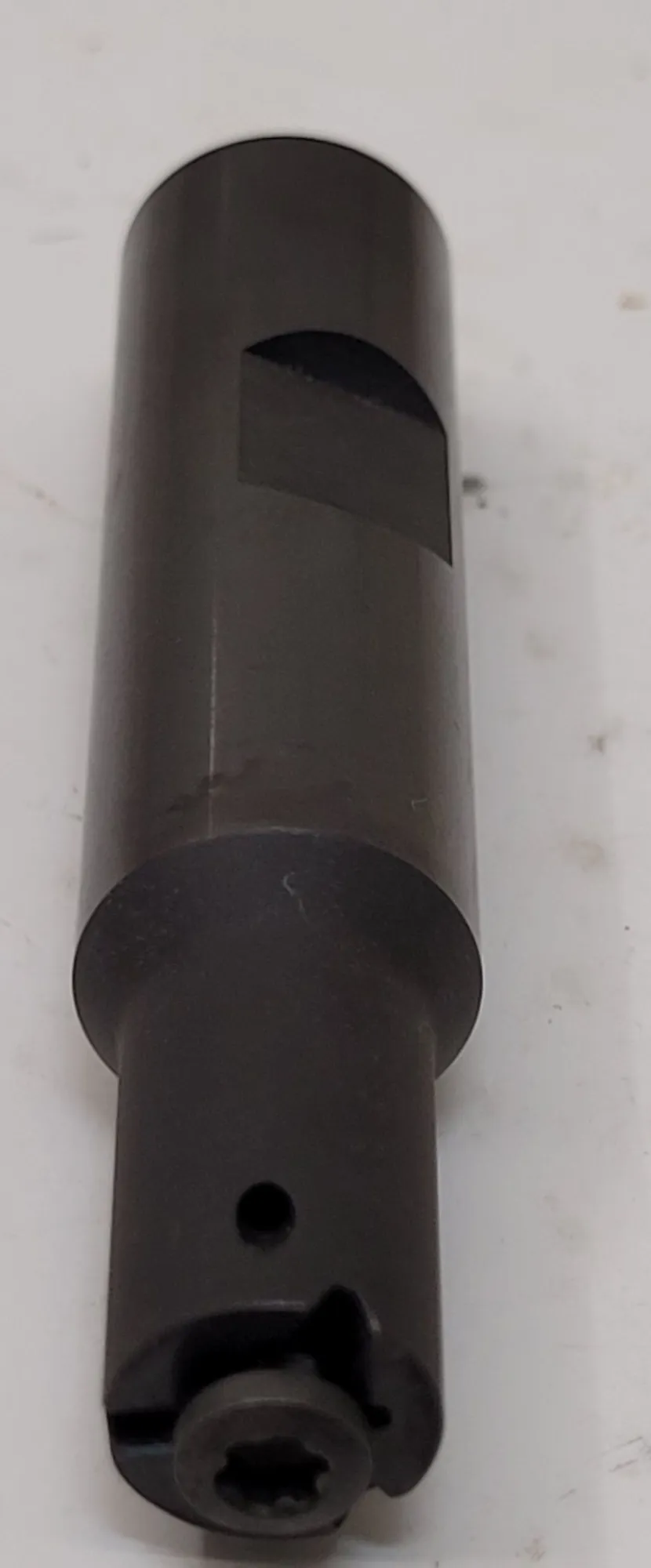

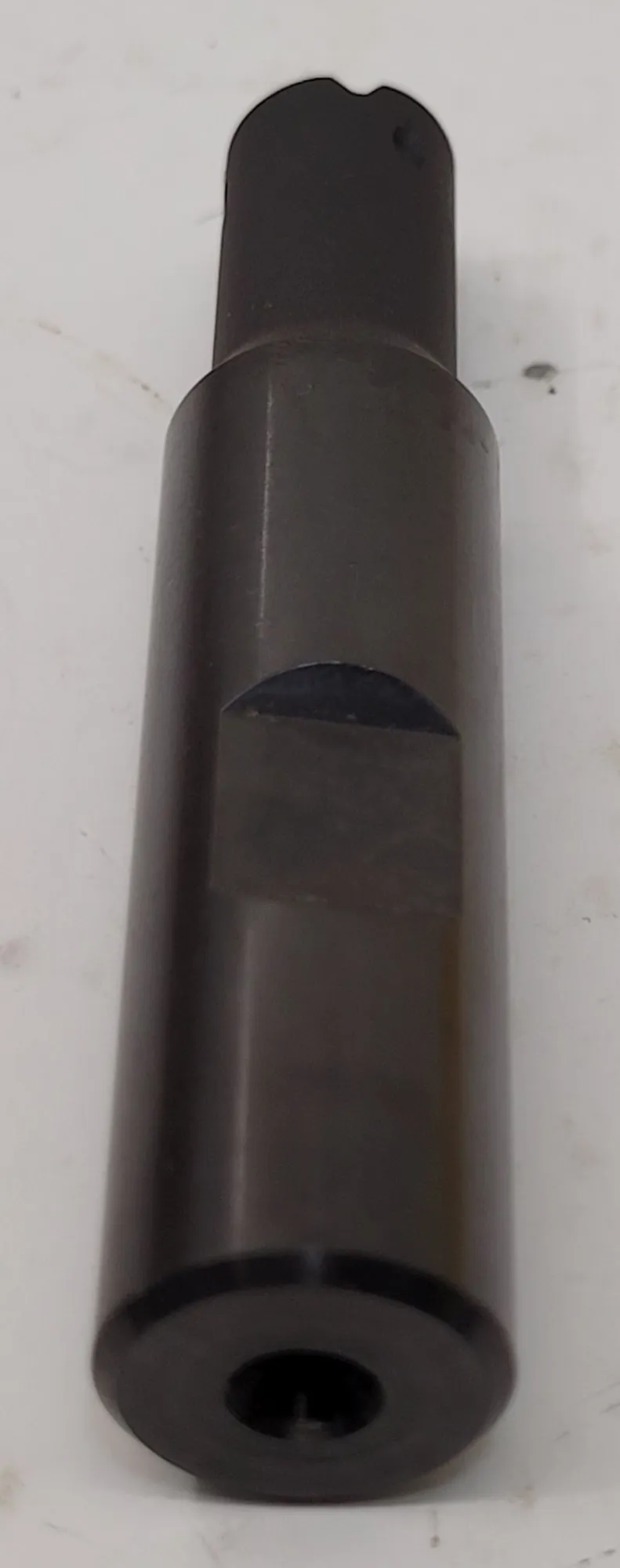

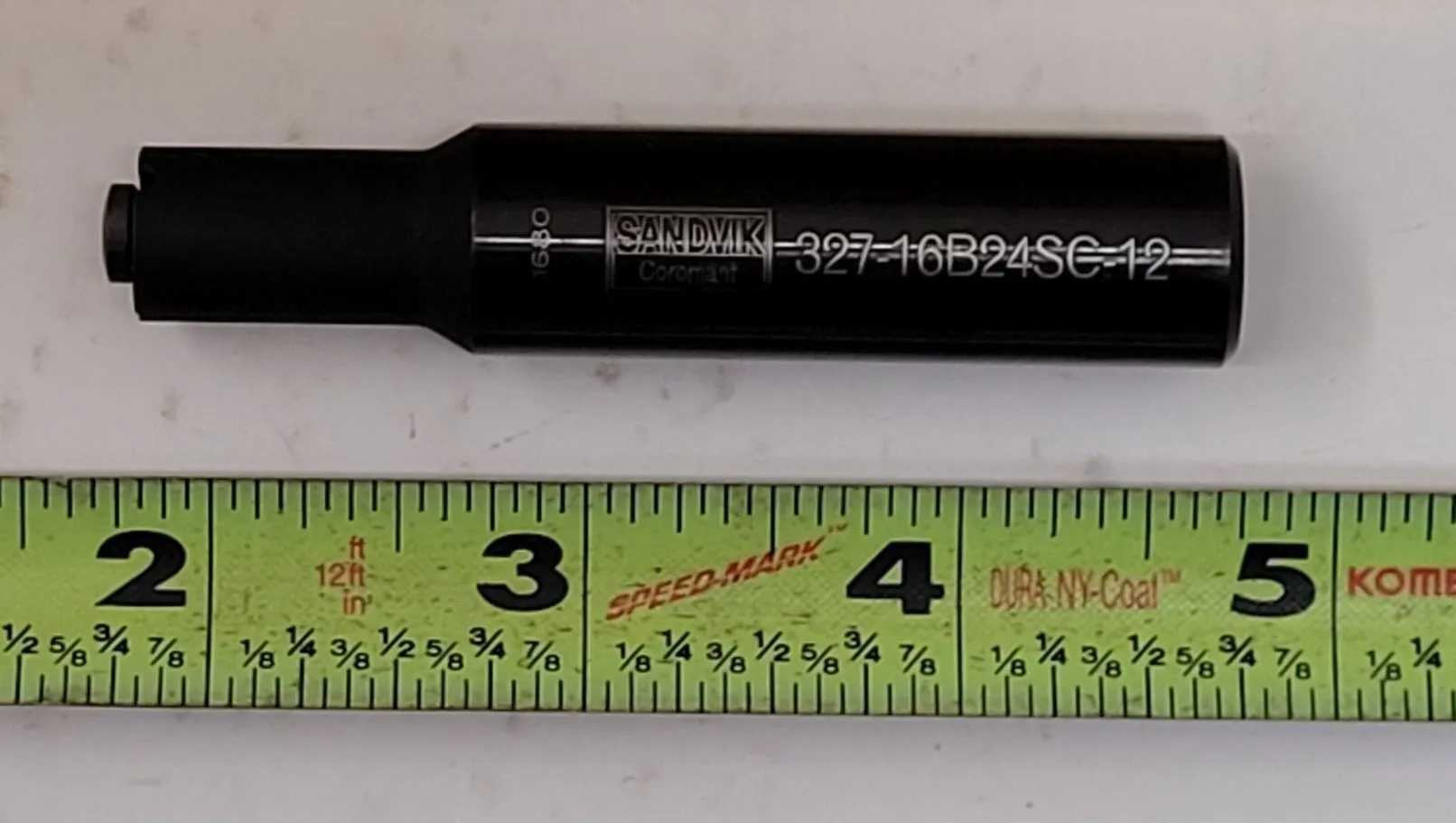

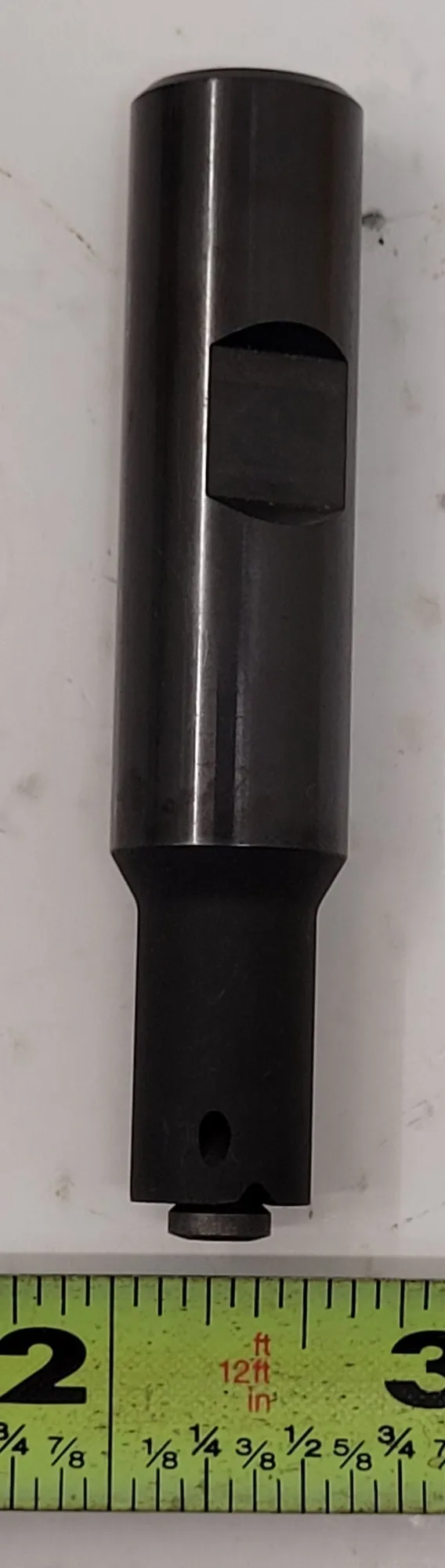

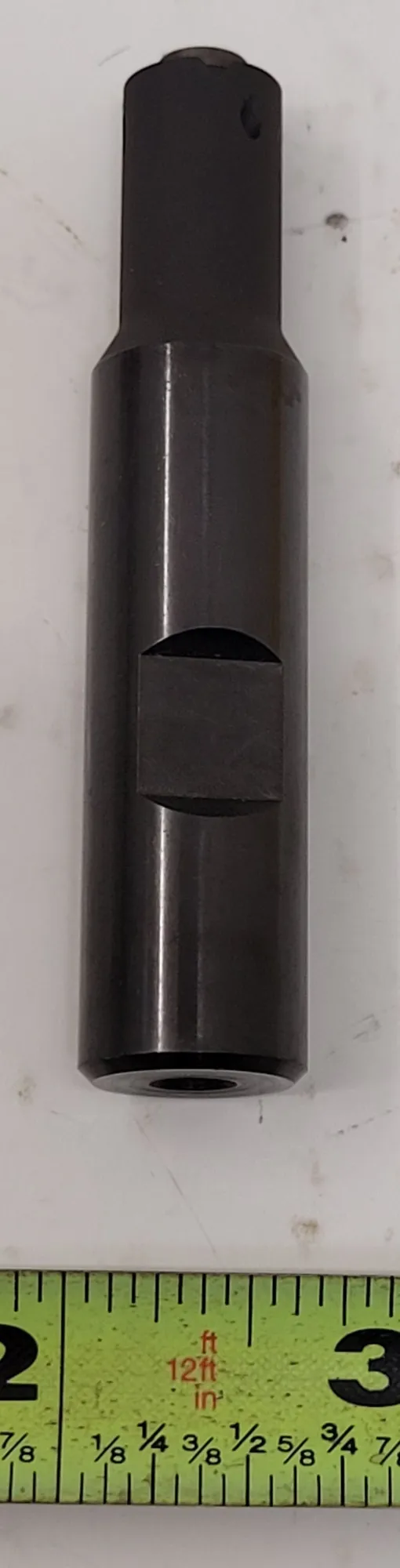

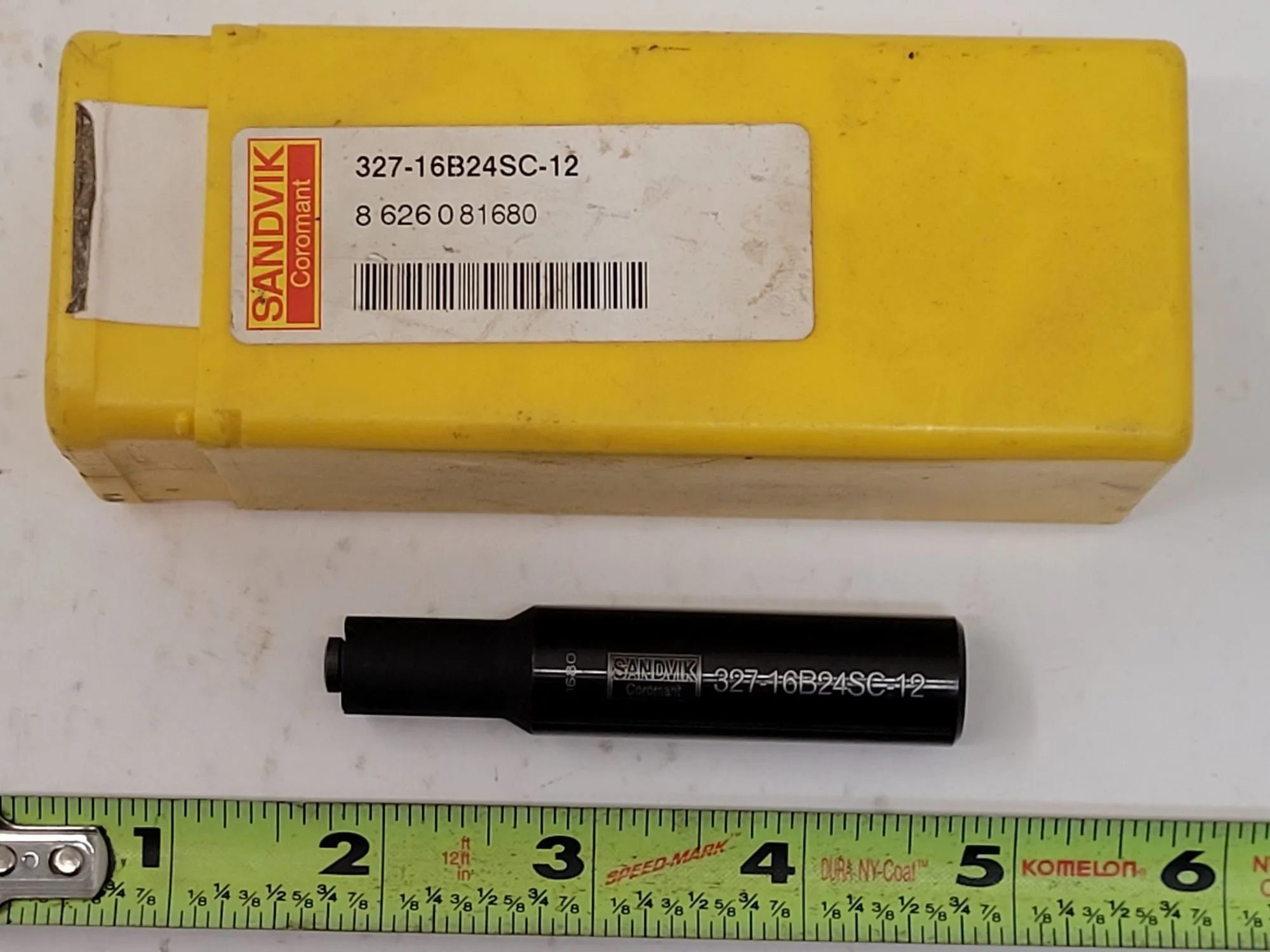

Sandvik Coromant Adaptor 327-16B24SC-12 W/ Weldon Coupling to Coromill 327

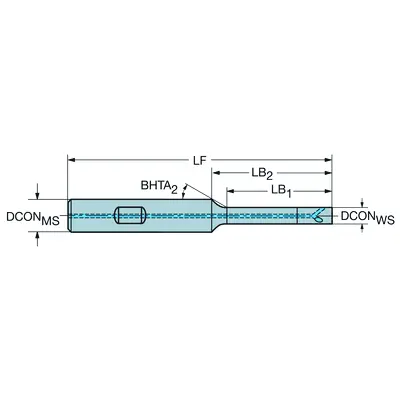

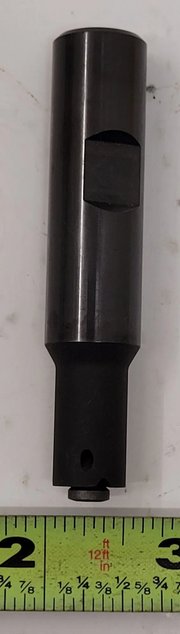

THE SANDVIK COROMANT 327-16B24SC-12 IS AN ADAPTOR FEATURING A WELDON COUPLING TO COROMILL 327 CONNECTION, SIZE 12. ITS SPECIFICATIONS INCLUDE A MAXIMUM ROTATIONAL SPEED OF 40,000 1/MIN AND A TORQUE OF 4.7942 FTLBF. THE OVERALL AND FUNCTIONAL LENGTH IS 2.9252 INCHES. THE CONNECTION DIAMETER ON THE WORKPIECE SIDE (DCONWS) AND THE BODY DIAMETERS (BD_1 AND BD_2) ARE 0.4724 INCH, WHILE THE CONNECTION DIAMETER ON THE MACHINE SIDE (DCONMS) IS 0.6299 INCH WITH A G6 TOLERANCE. THE ADAPTOR IS CONSTRUCTED FROM STEEL, FEATURES A 0° KAPPA (Z-AXIS ROT), AND HAS BODY LENGTHS OF 0.7205 INCH (LB_1) AND 0.878 INCH (LB_2). COOLANT MANAGEMENT INCLUDES AN AXIAL CONCENTRIC ENTRY AND AN AXIAL INCLINED EXIT, SUPPORTING A COOLANT PRESSURE OF 290.0755 LBF/IN2.
