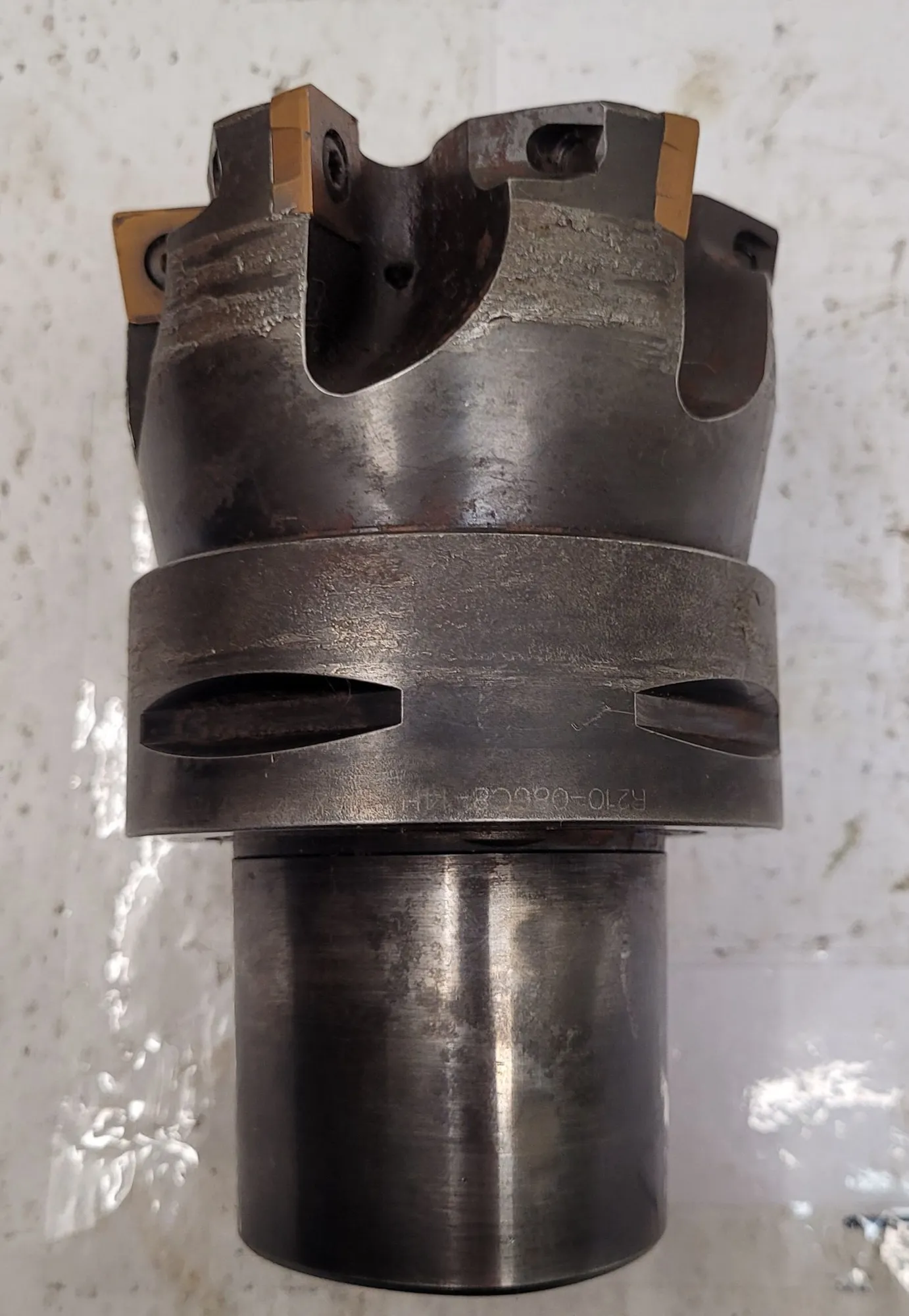

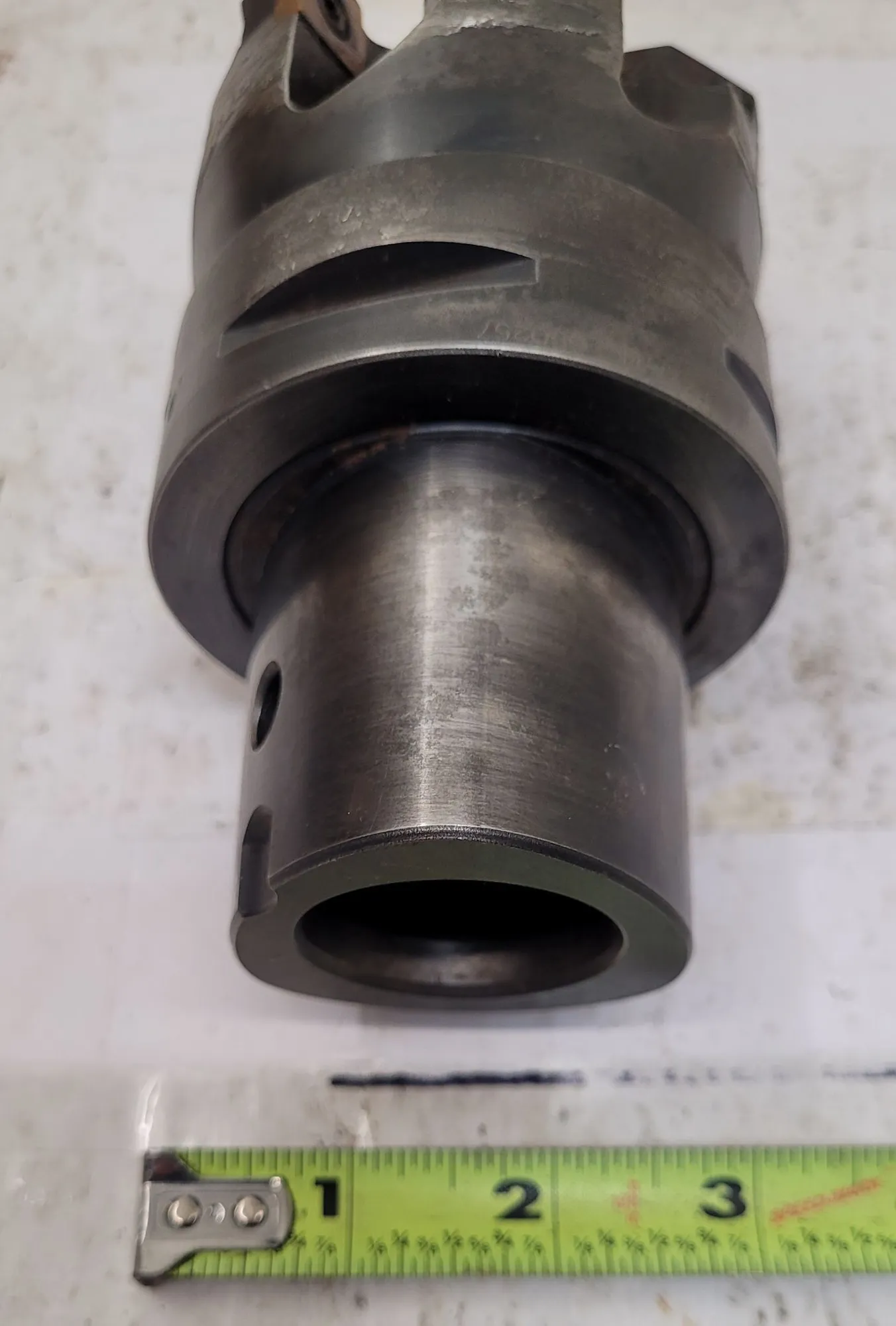

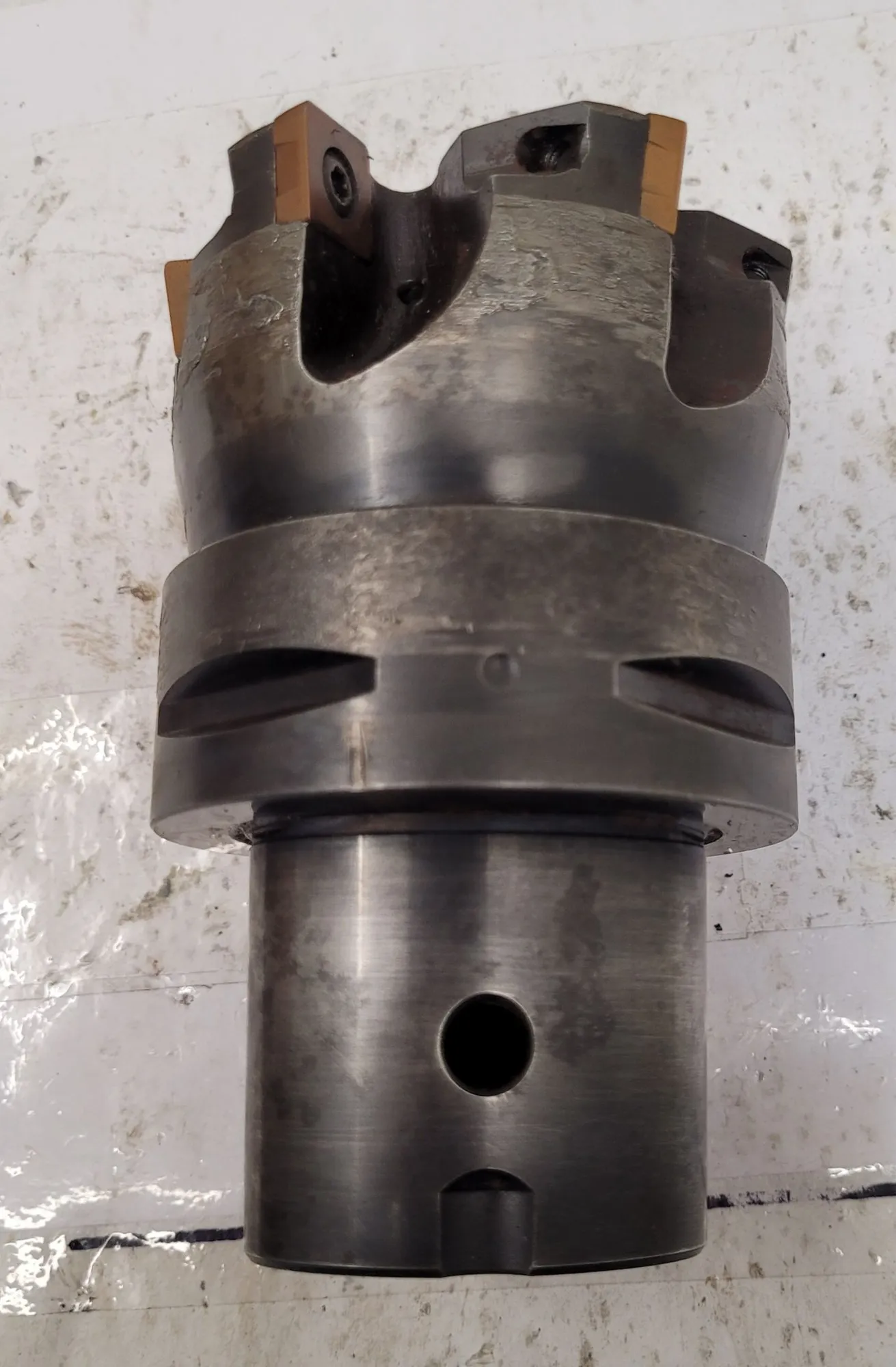

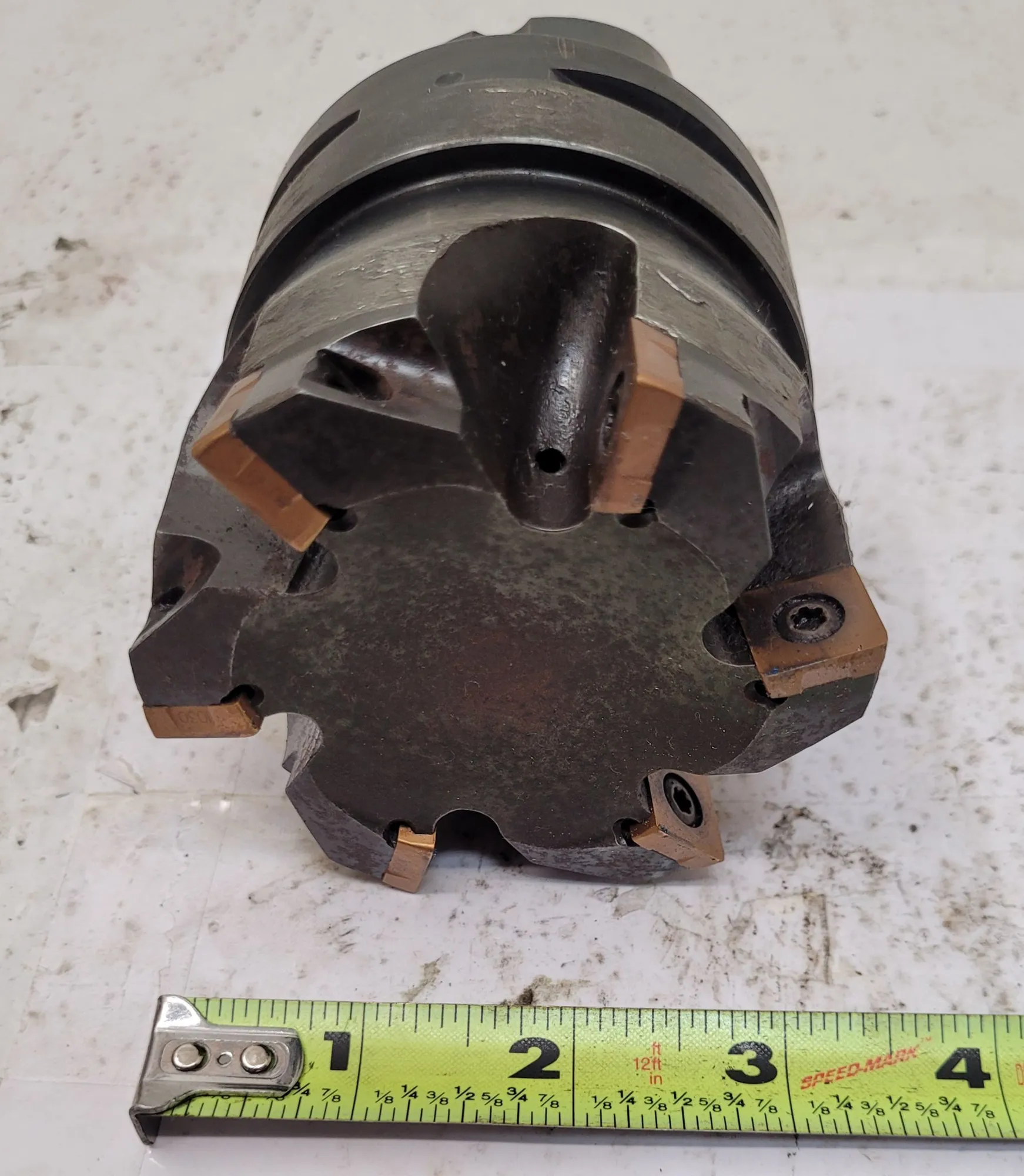

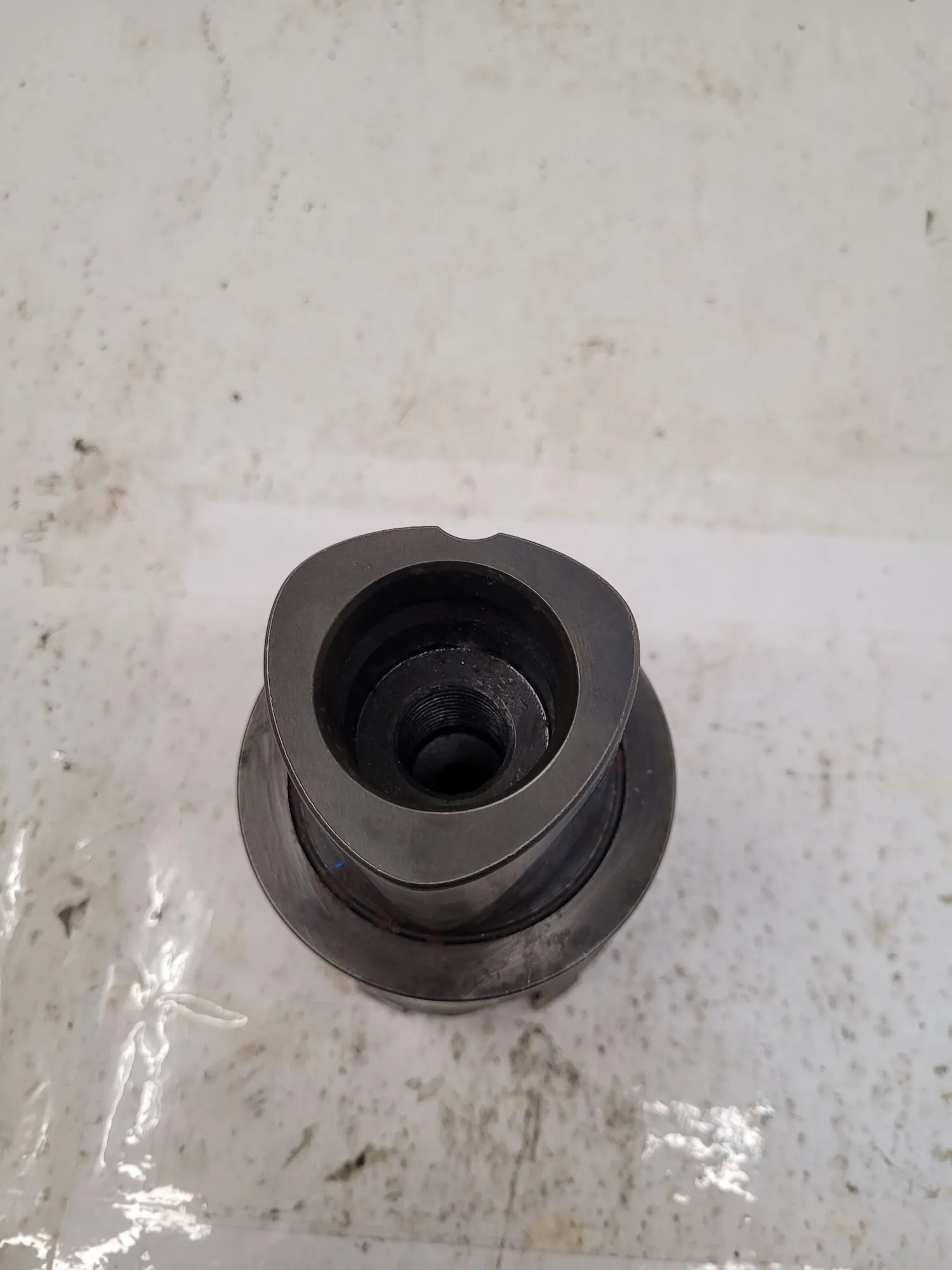

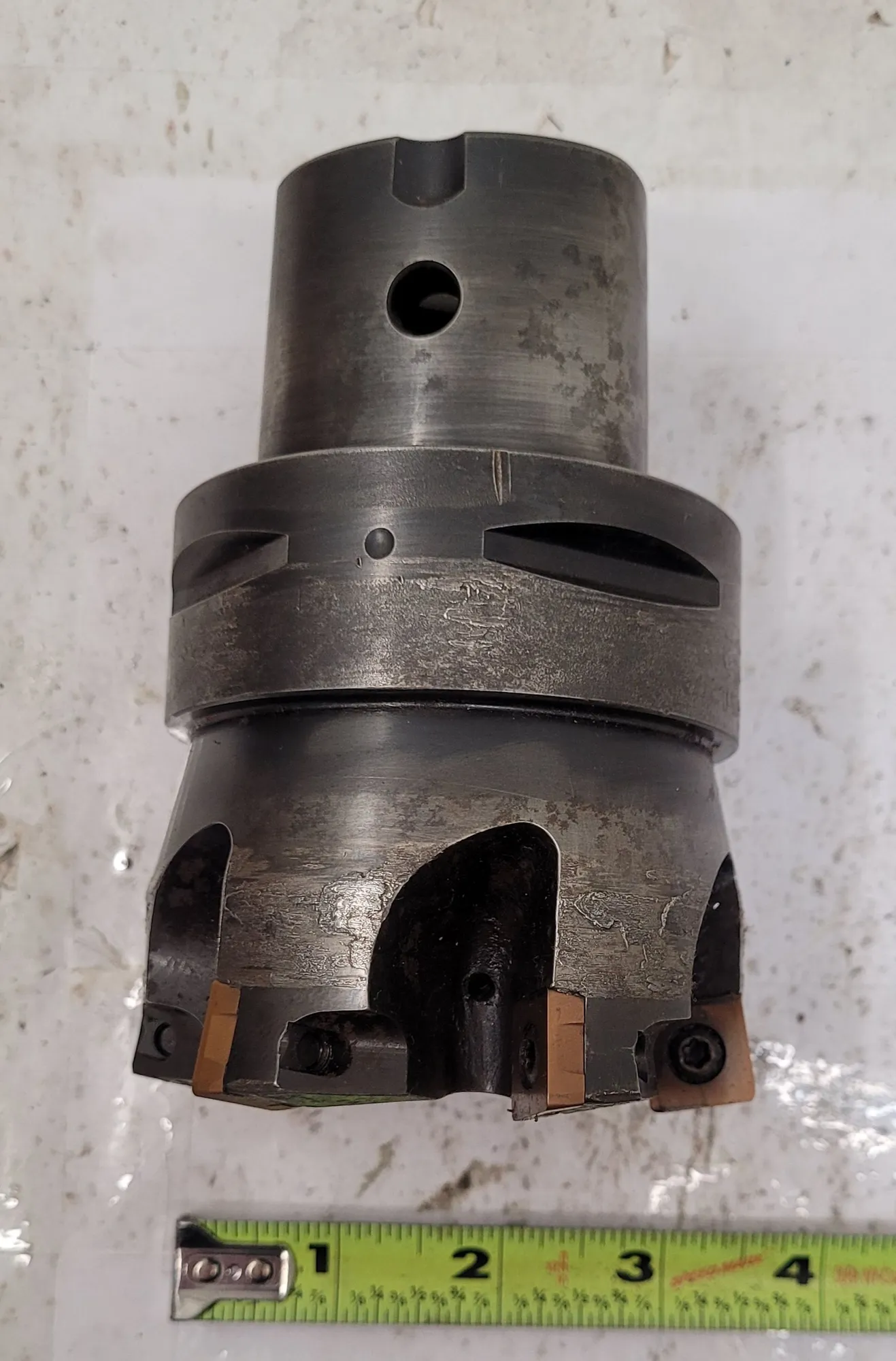

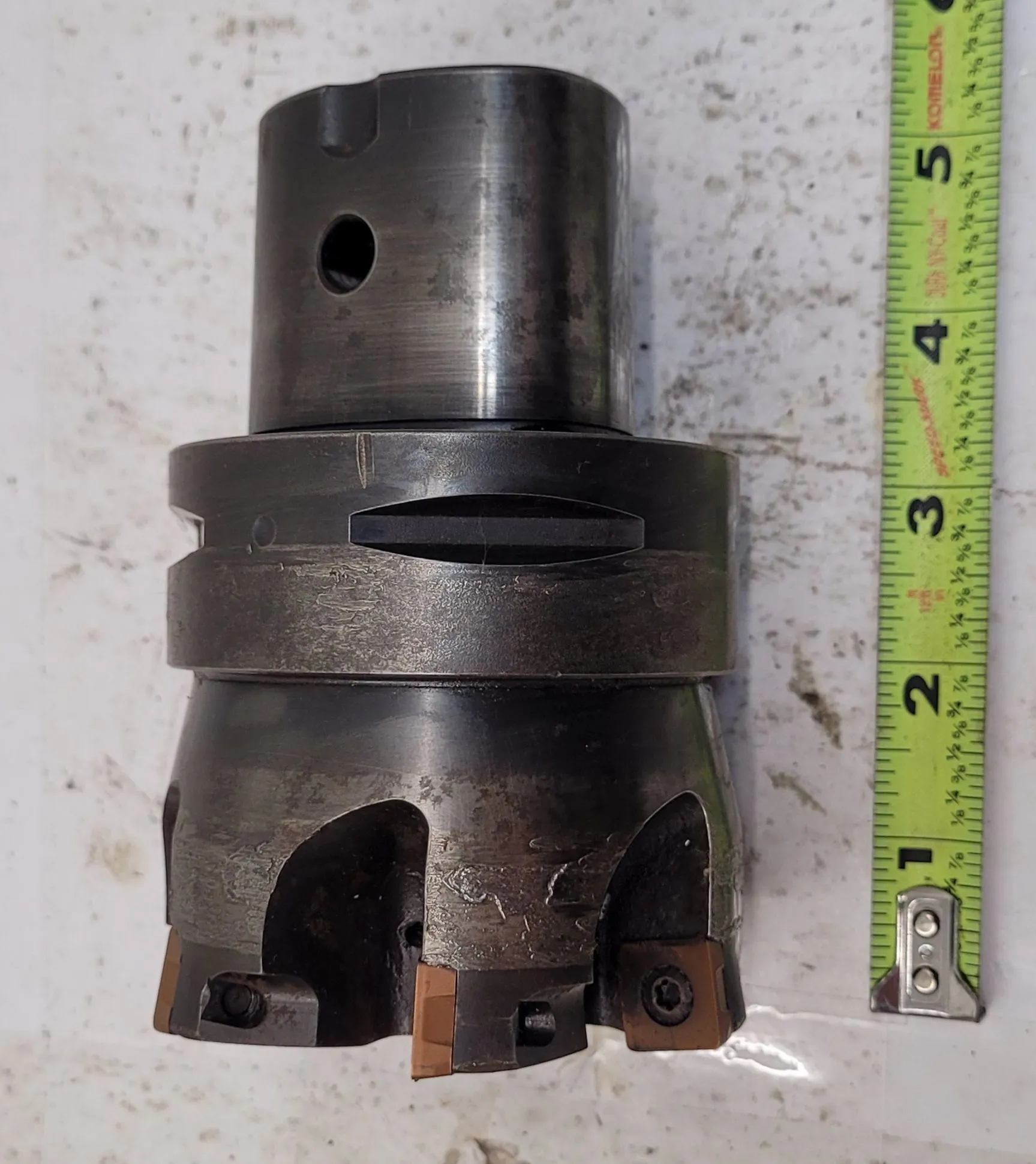

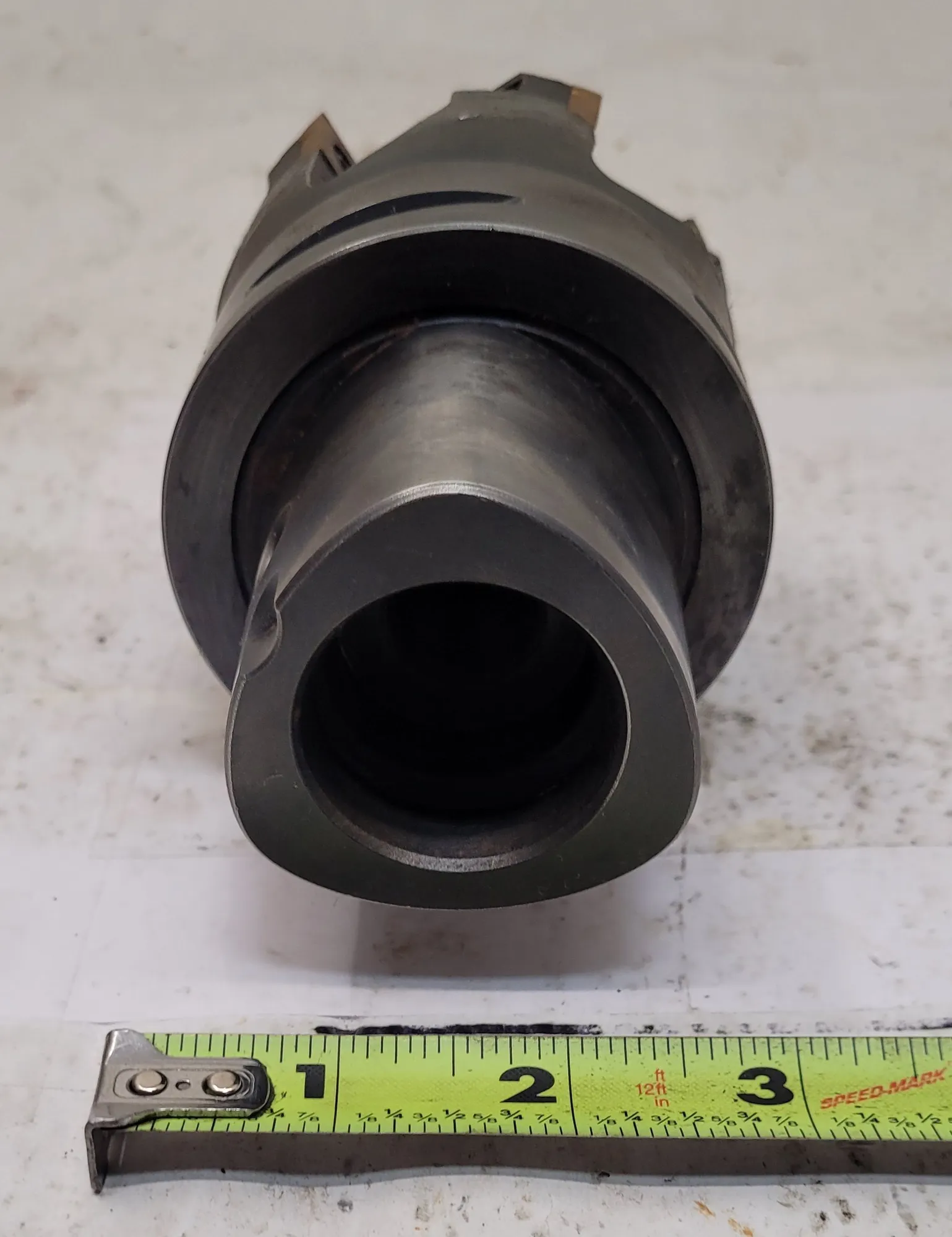

SANDVIK COROMANT COROMILL 210 FACE MILL CUTTER, MODEL R210-086C8-14H (2.44 IN CUTTING DIA)

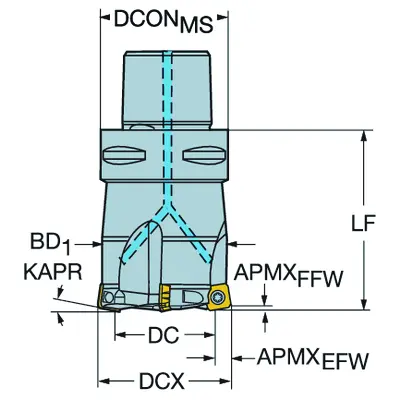

THE SANDVIK COROMILL 210 FACE MILL CUTTER, PART NUMBER R210-086C8-14H, IS DESIGNED FOR RIGHT-HAND OPERATION WITH A MAXIMUM ROTATIONAL SPEED OF 14,700 RPM. THIS TOOL FEATURES A 10° CUTTING EDGE ANGLE (KAPR) AND HAS A CUTTING DIAMETER (DC) OF 2.4409 INCHES, WITH A MAXIMUM CUTTING DIAMETER (DCX) OF 3.3858 INCHES. IT INCLUDES 6 CUTTING ITEMS (CICT_2) AND UTILIZES A CLAMP WITH SCREW THROUGH HOLE CLAMPING TYPE (MTP). THE MAXIMUM DEPTH OF CUT IS 0.5118 INCHES (APMX_EFW) OR 0.0787 INCHES (APMX_FFW). THE MAXIMUM RAMPING ANGLE (RMPX) IS 2.2°, AND THE MAXIMUM PLUNGE DEPTH (AZ) IS 0.0787 INCHES. THE CUTTER HAS A FUNCTIONAL LENGTH (LF) OF 3.1496 INCHES, A BODY DIAMETER (BD) OF 3.2146 INCHES, AND A BODY LENGTH (LB) OF 3.1496 INCHES.
