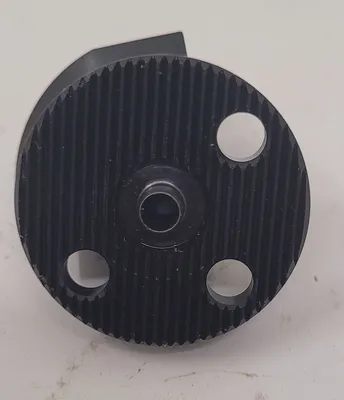

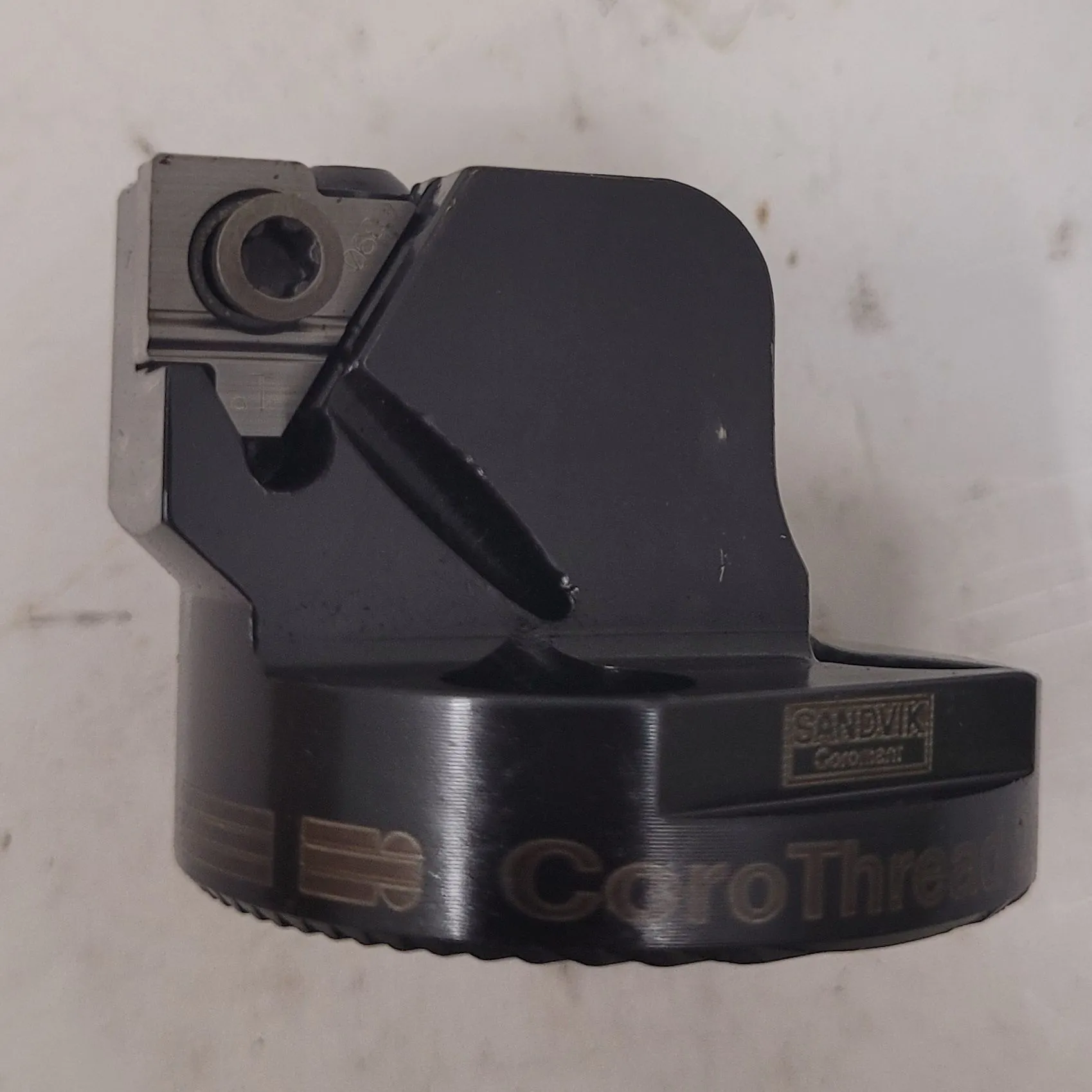

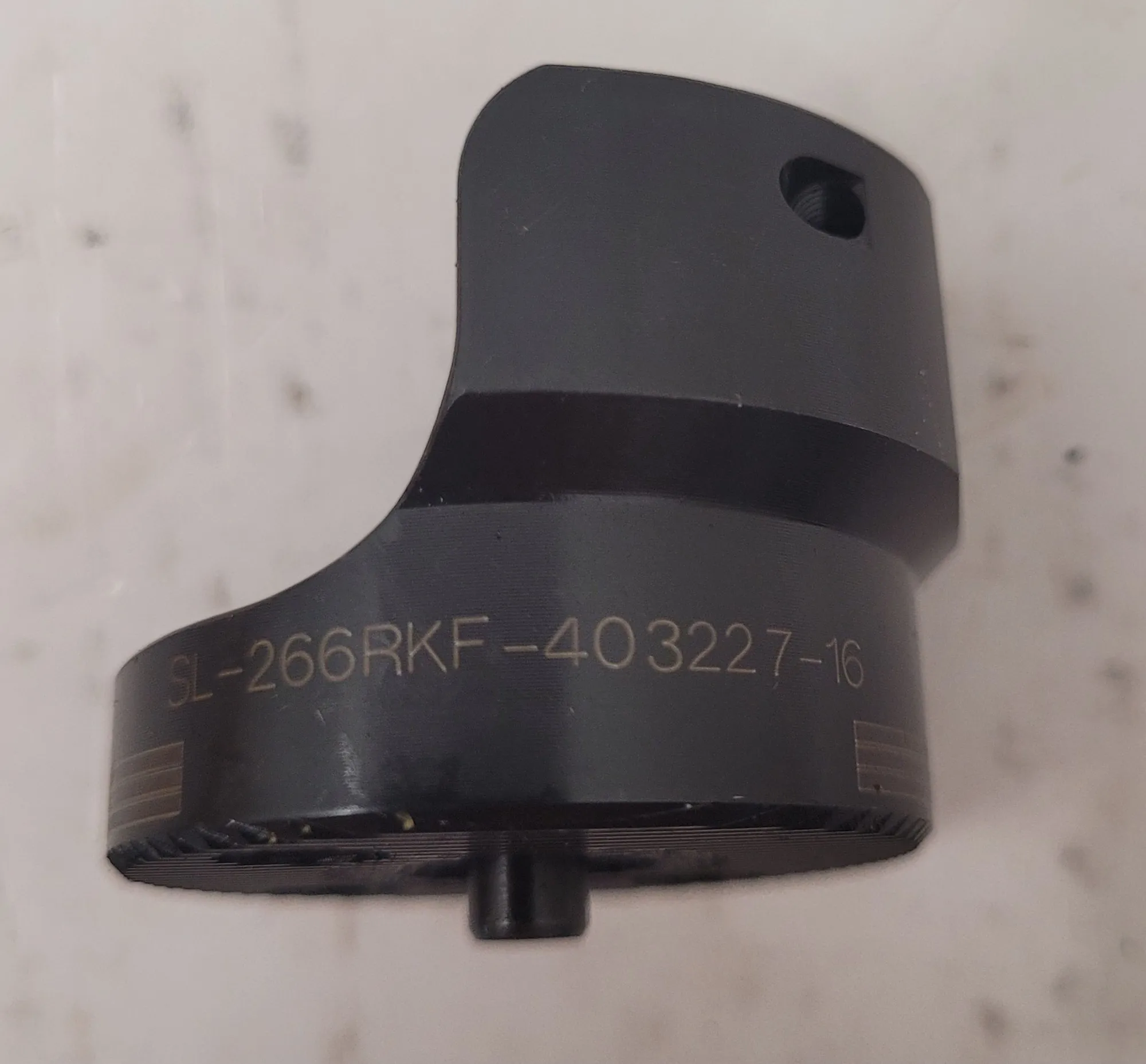

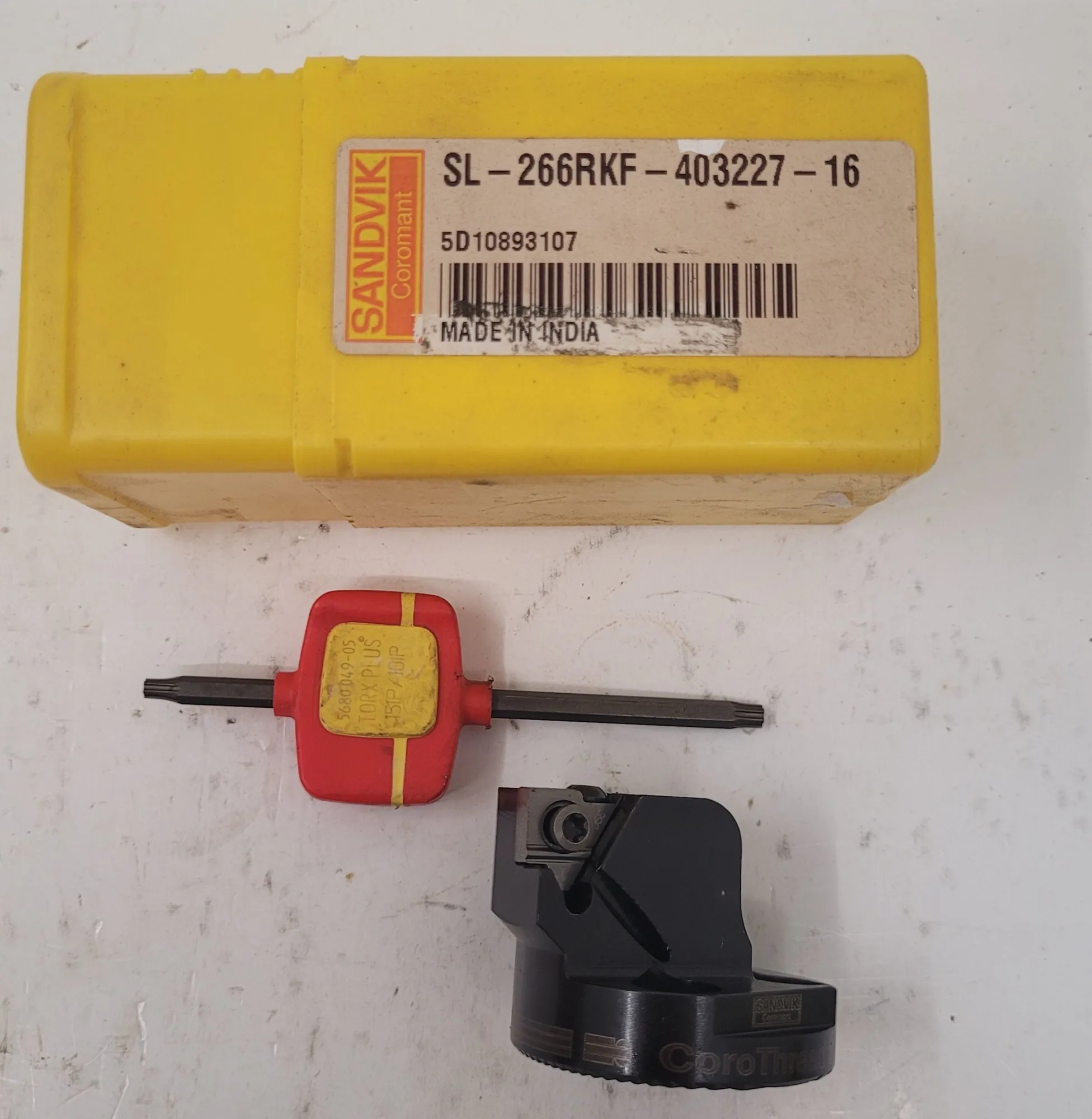

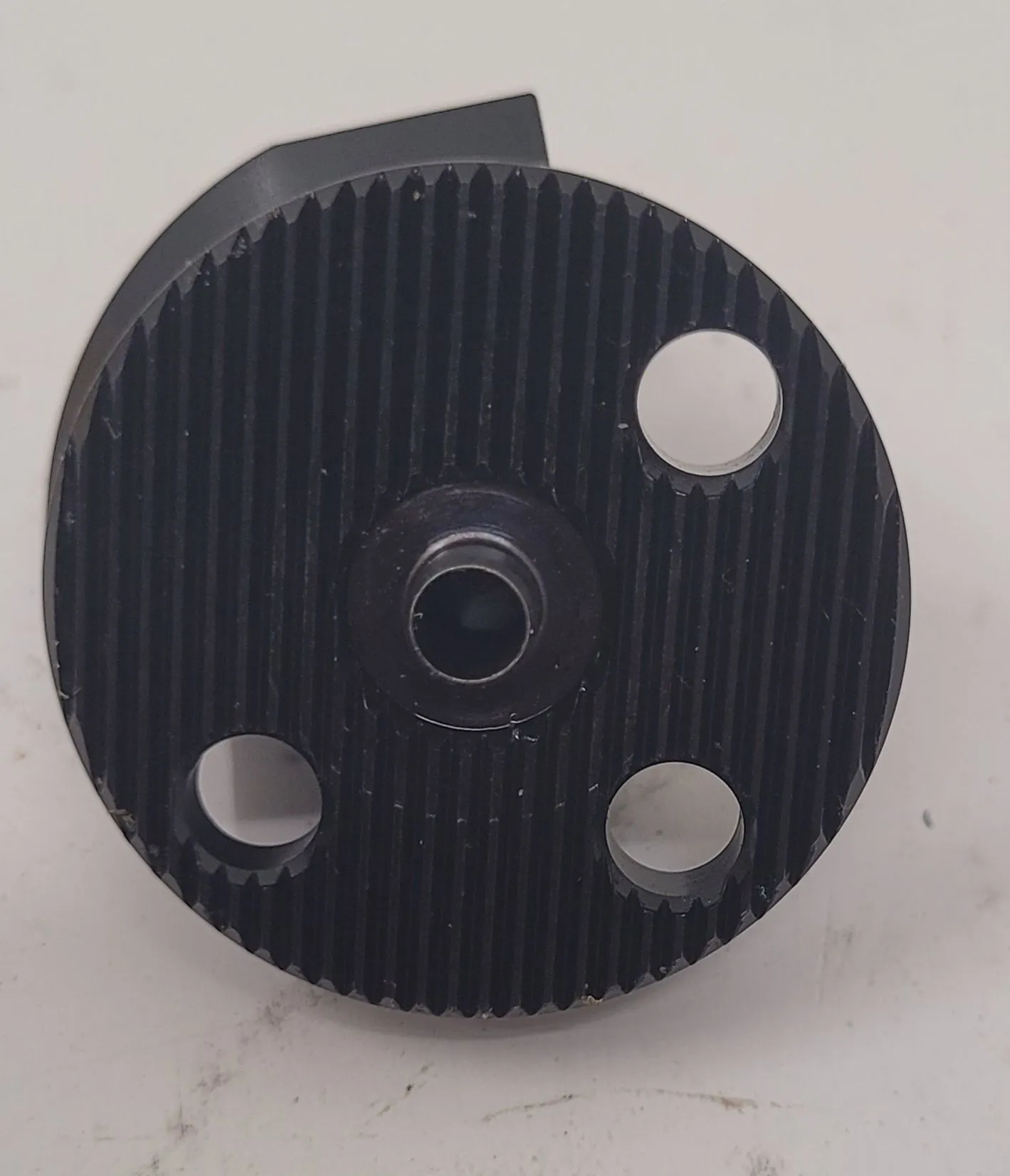

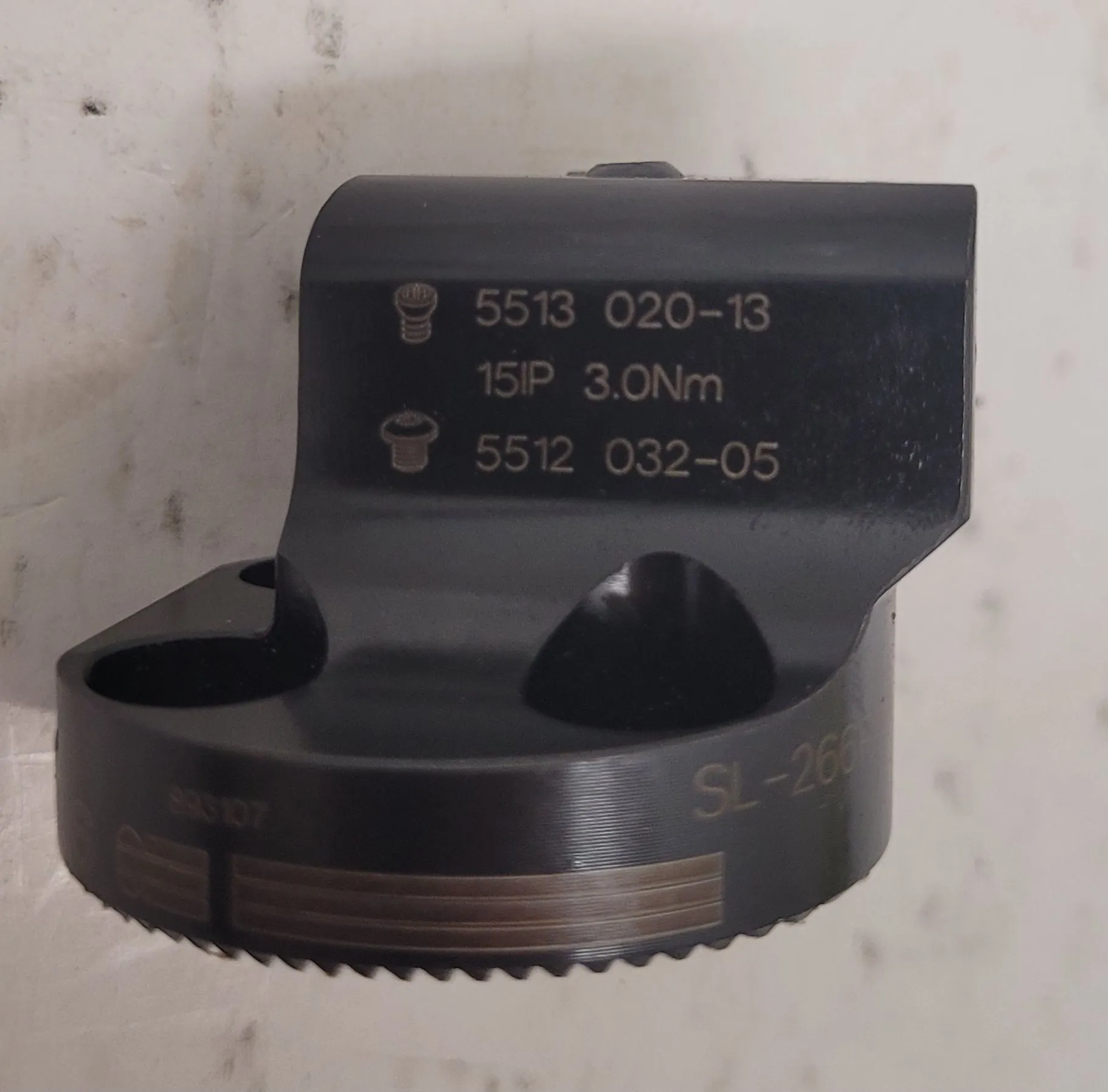

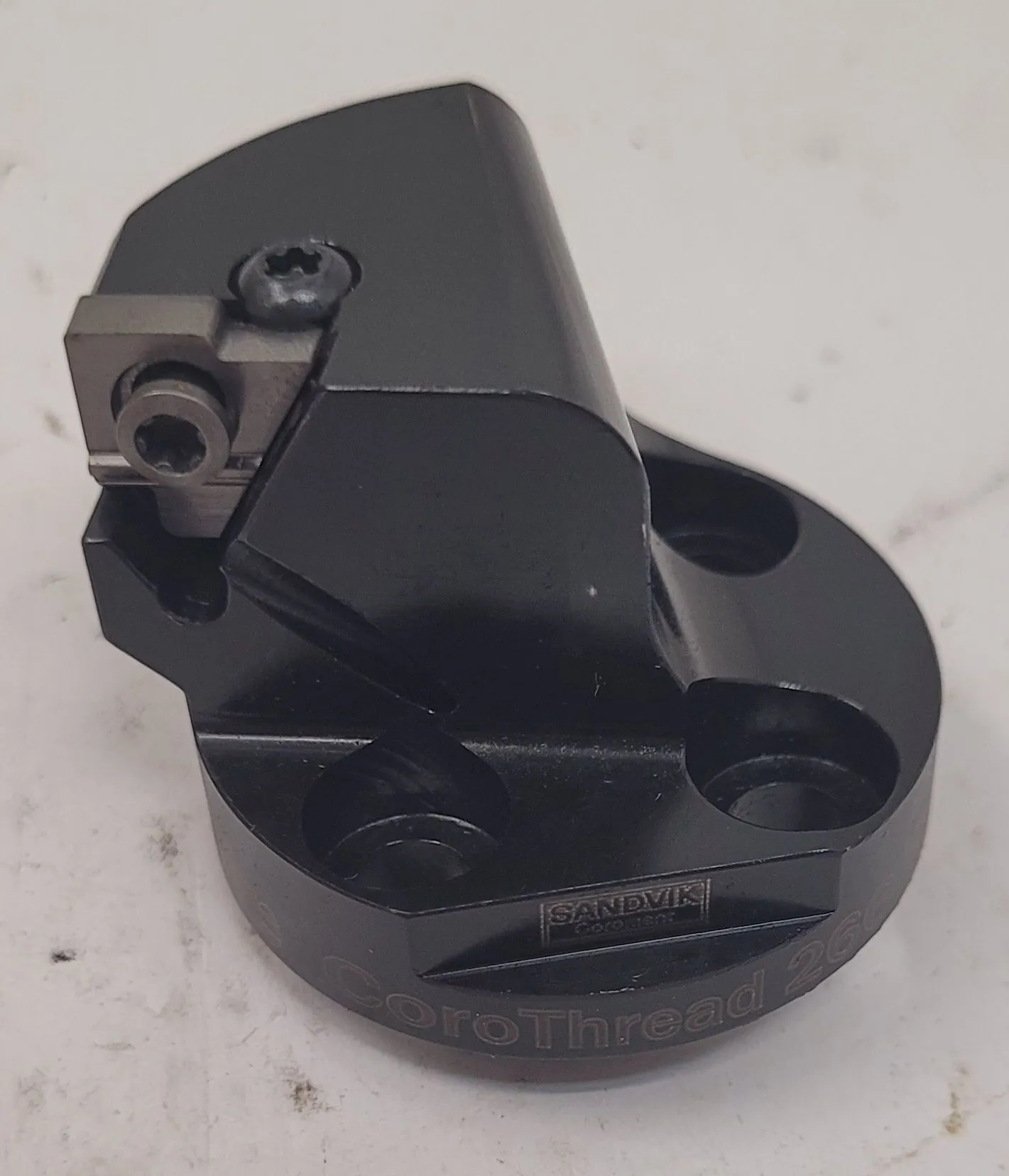

SANDVIK COROMANT SL-266RKF-403227-16 COROTHREAD 266 THREAD TURNING HEAD

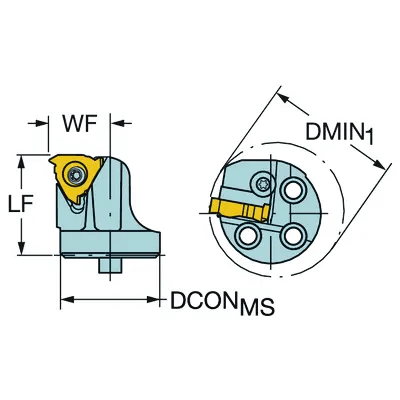

THIS IS A SANDVIK COROMANT SL-266RKF-403227-16 COROTHREAD 266 HEAD DESIGNED FOR RIGHT-HAND THREAD TURNING OPERATIONS. KEY TECHNICAL SPECIFICATIONS INCLUDE A MINIMUM BORE DIAMETER (DMIN) OF 1.9685 INCHES AND A MAXIMUM OVERHANG (OHX) OF 1.2598 INCHES. THE CONNECTION DIAMETER MACHINE SIDE (DCONMS) IS 1.5748 INCHES. THE HEAD FEATURES A FUNCTIONAL LENGTH (LF) OF 1.2598 INCHES, A FUNCTIONAL WIDTH (WF) OF 1.063 INCHES, AND AN OVERALL LENGTH (OAL) OF 1.4094 INCHES. THE FUNCTIONAL HEIGHT (HF) IS 0 INCHES. IT IS COMPATIBLE WITH AN INSERT SEAT - METRIC (SSC_M) SIZE OF 16 AND AN INSERT SEAT SIZE CODE IMPERIAL VIEW (SSC_N) OF 3/8.
