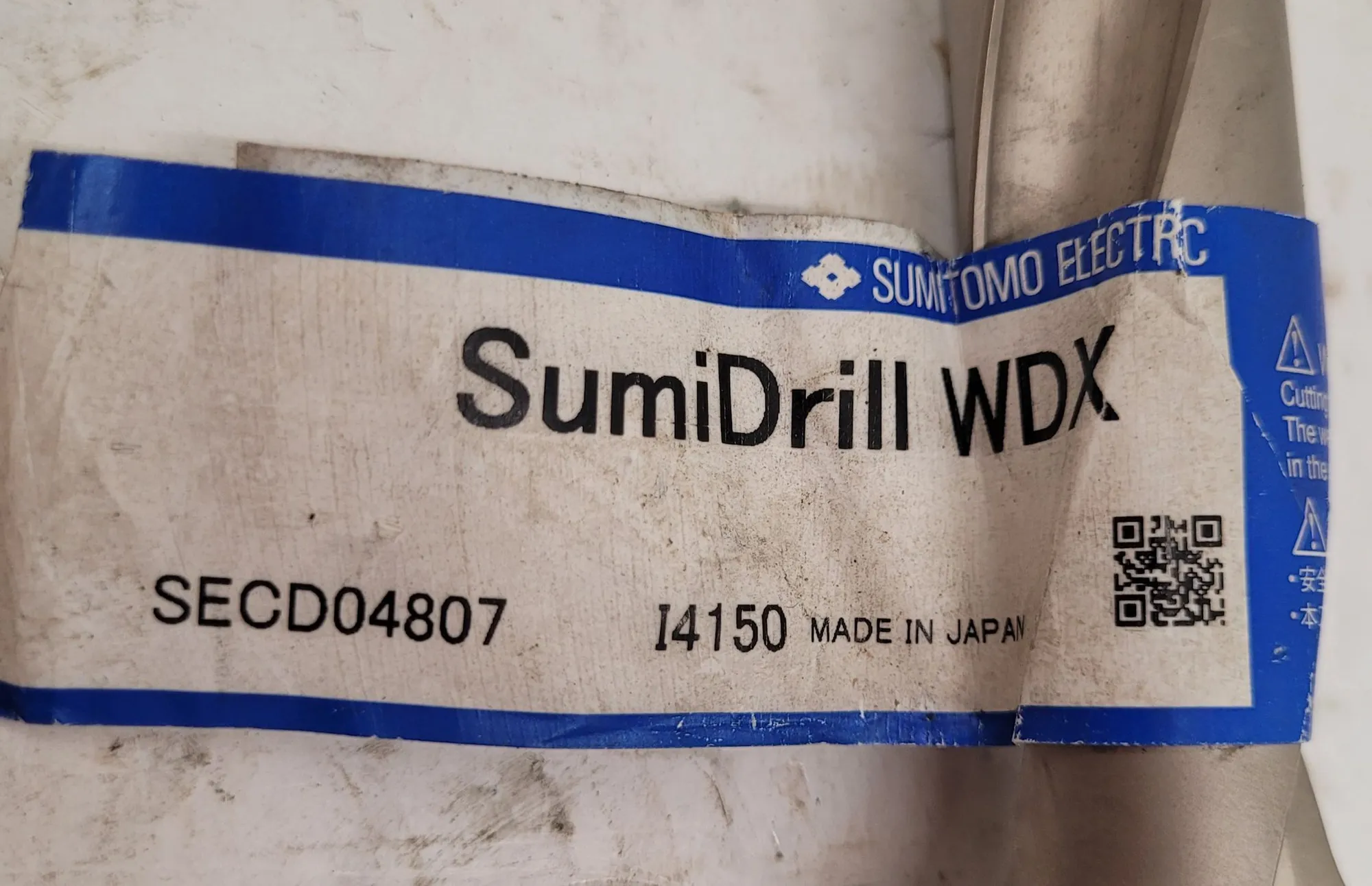

Sumidrill WDX220D3S25 Indexable Drill, 22mm Max Dia, Straight-Cylindrical Shank

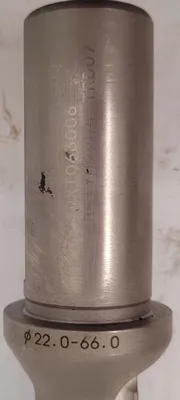

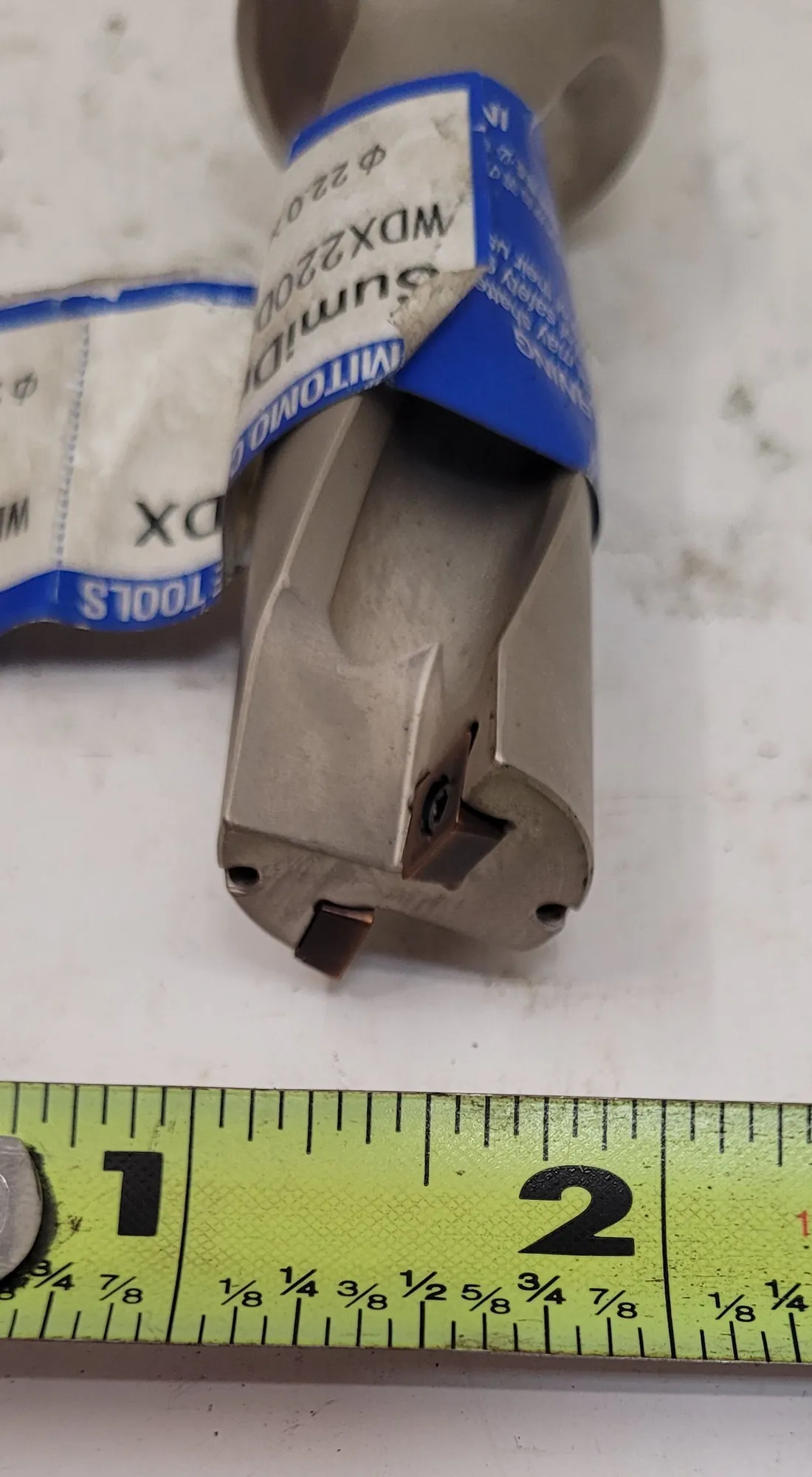

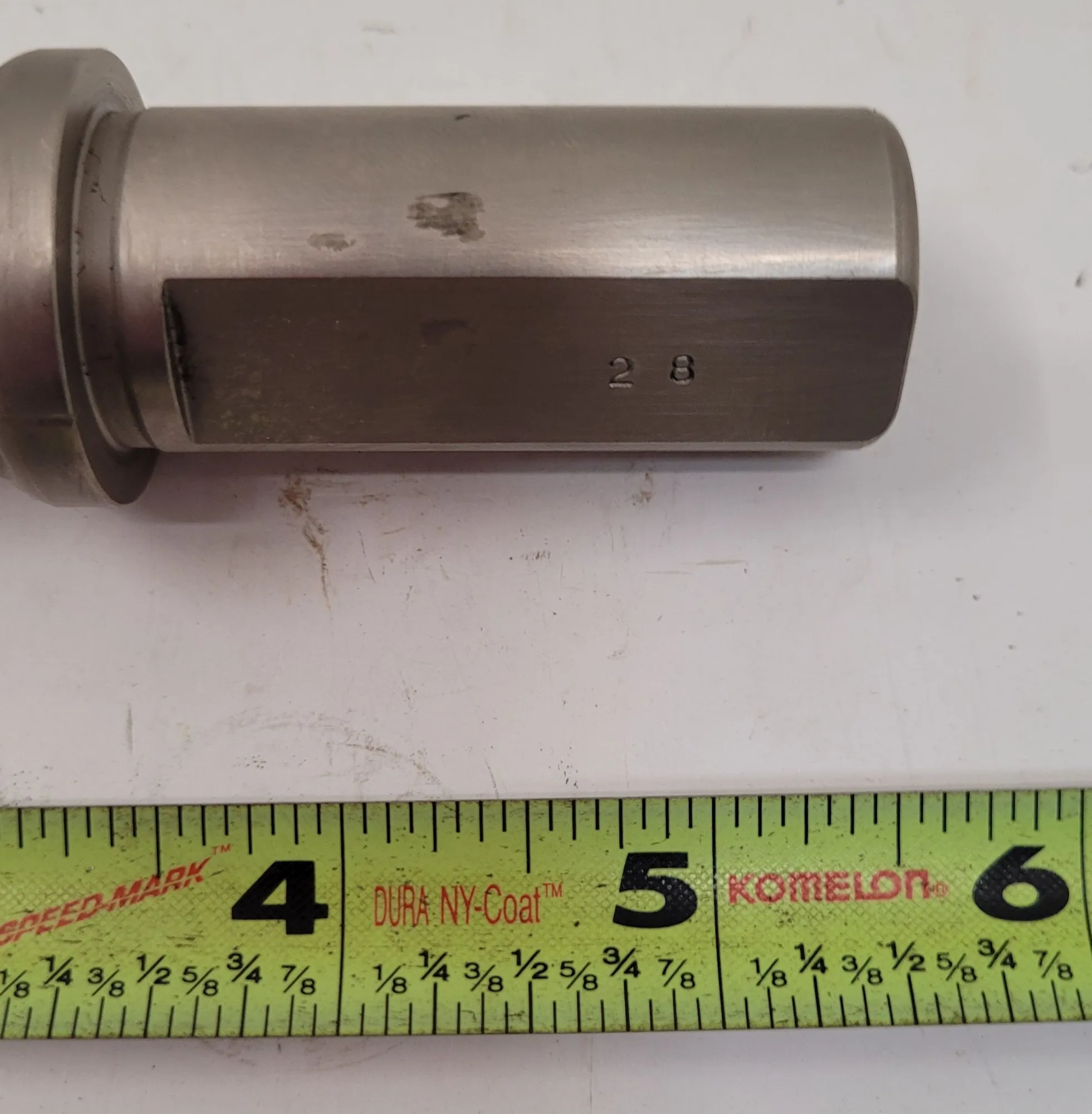

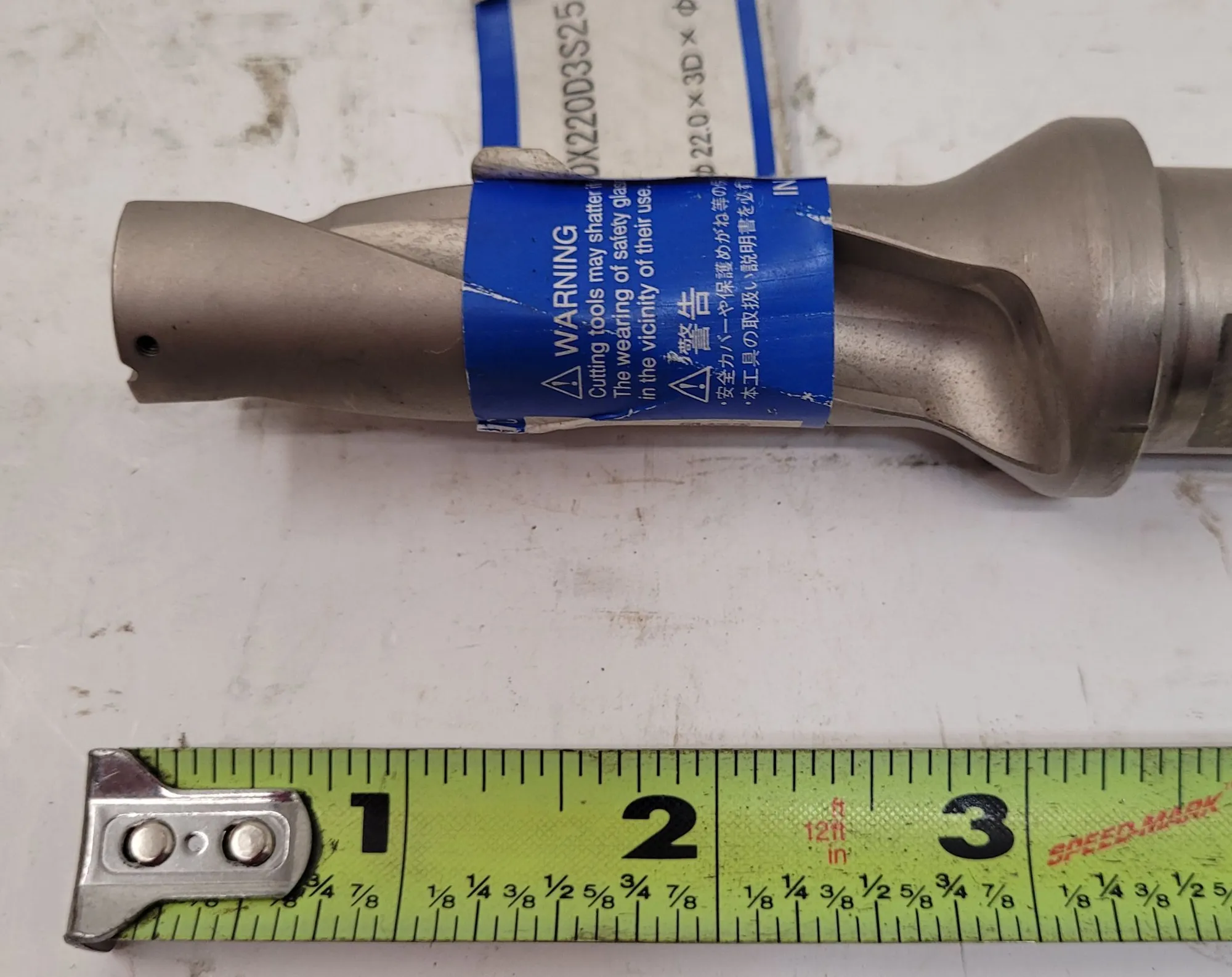

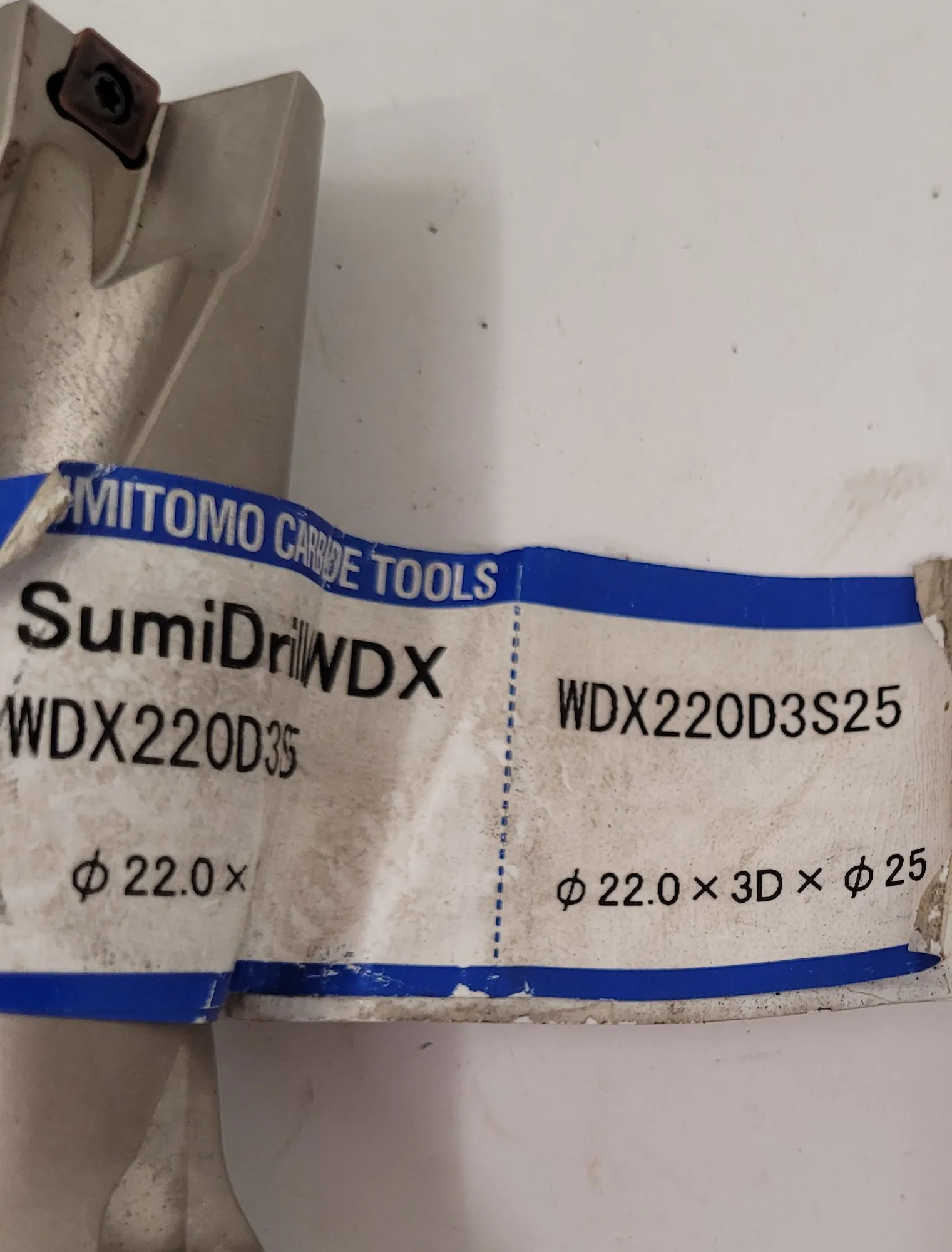

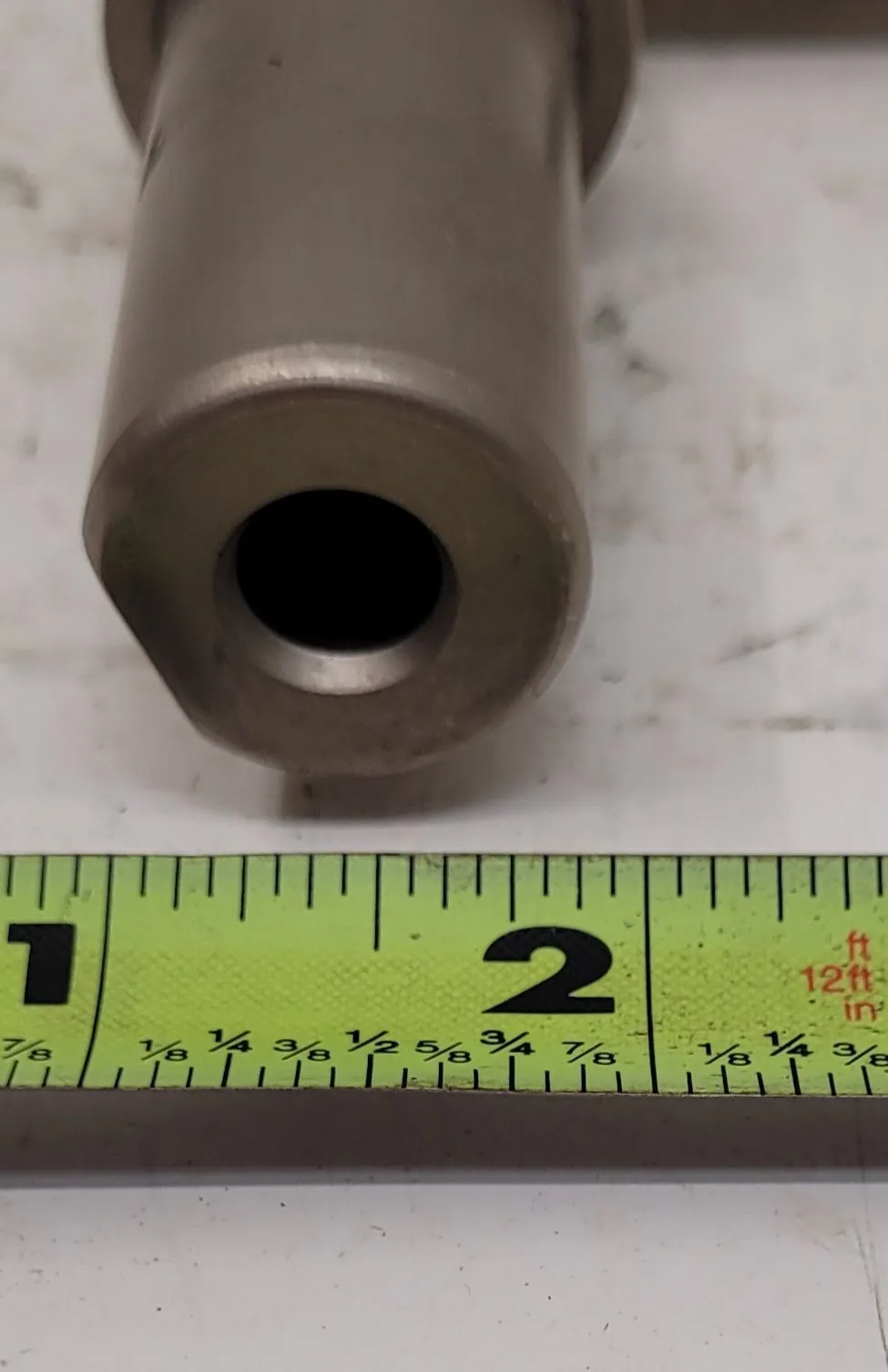

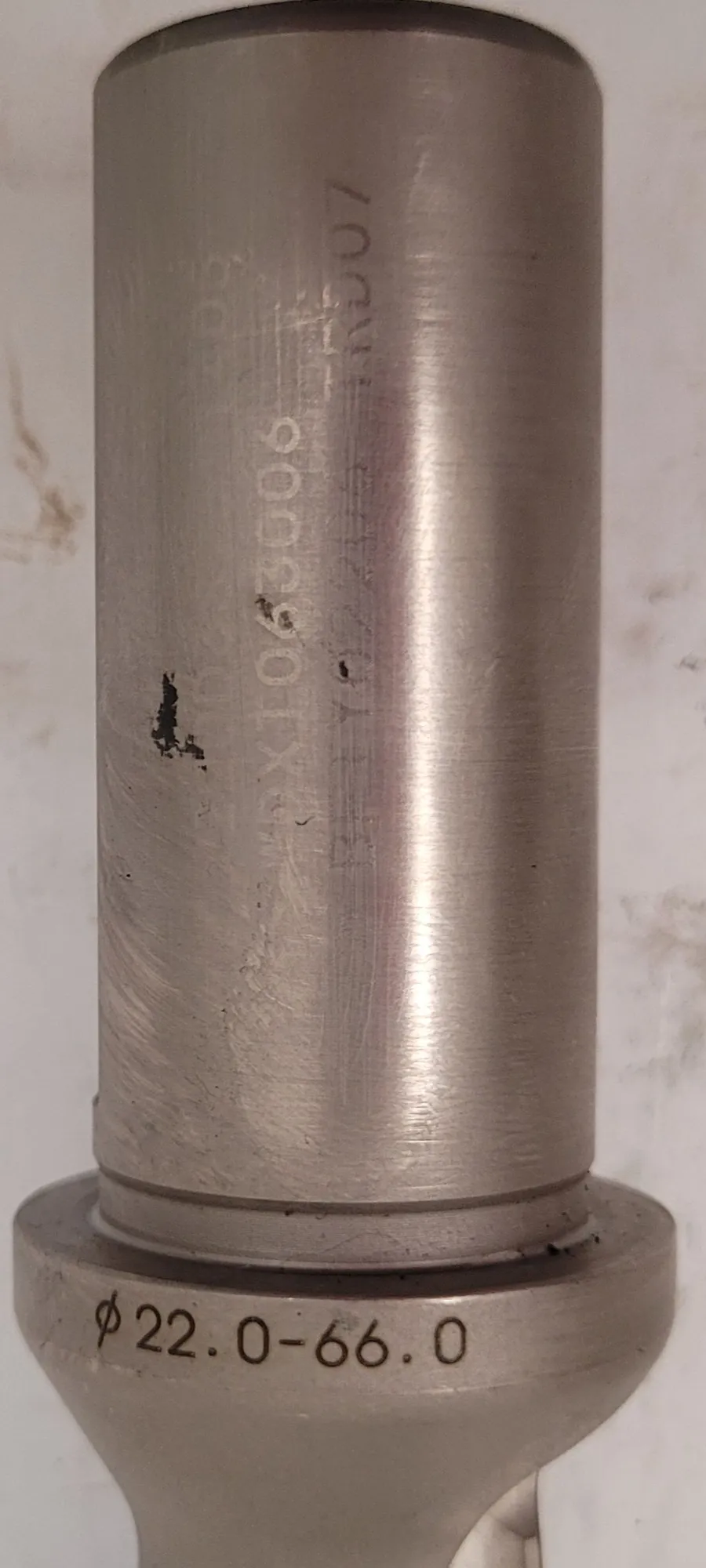

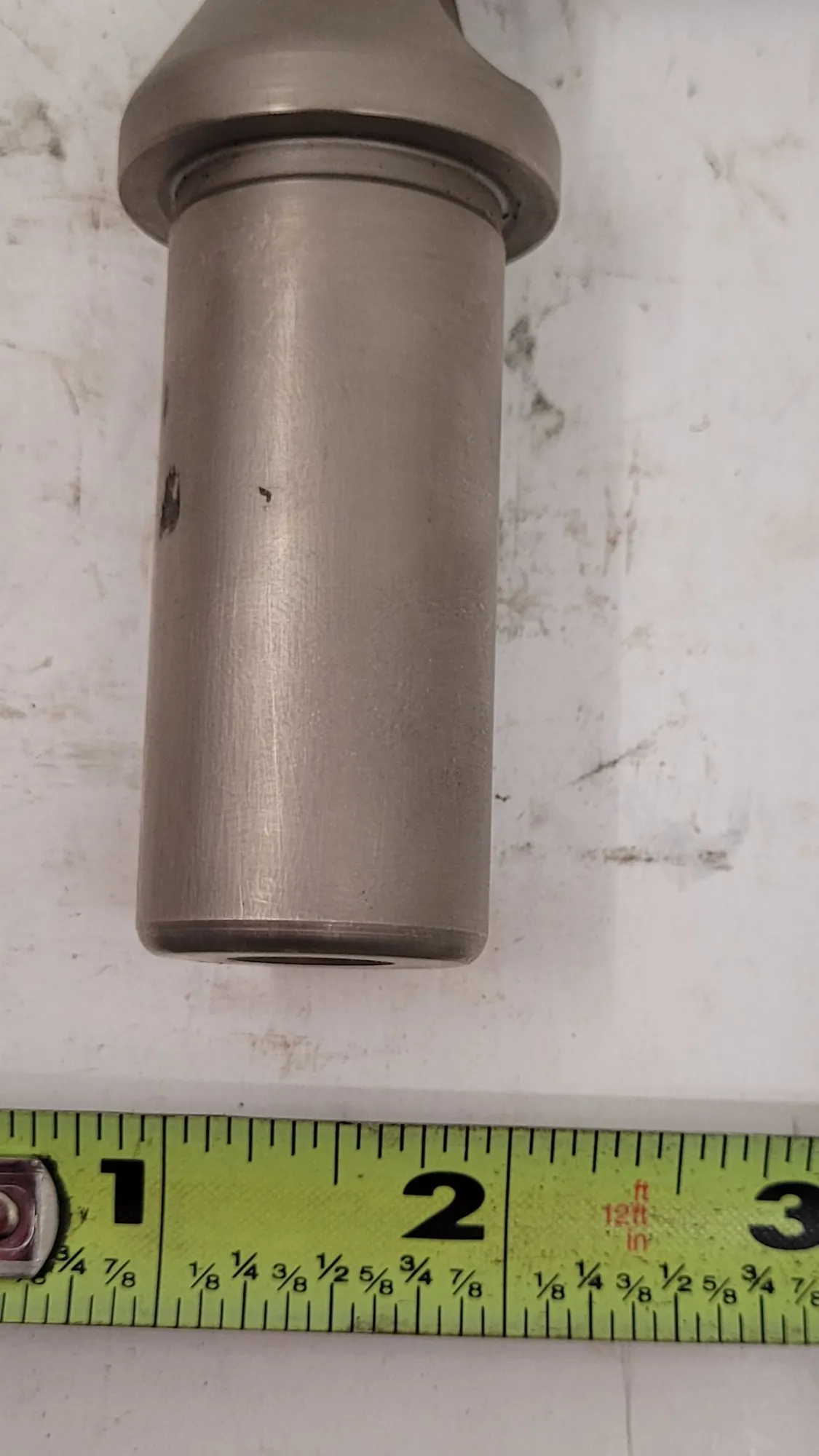

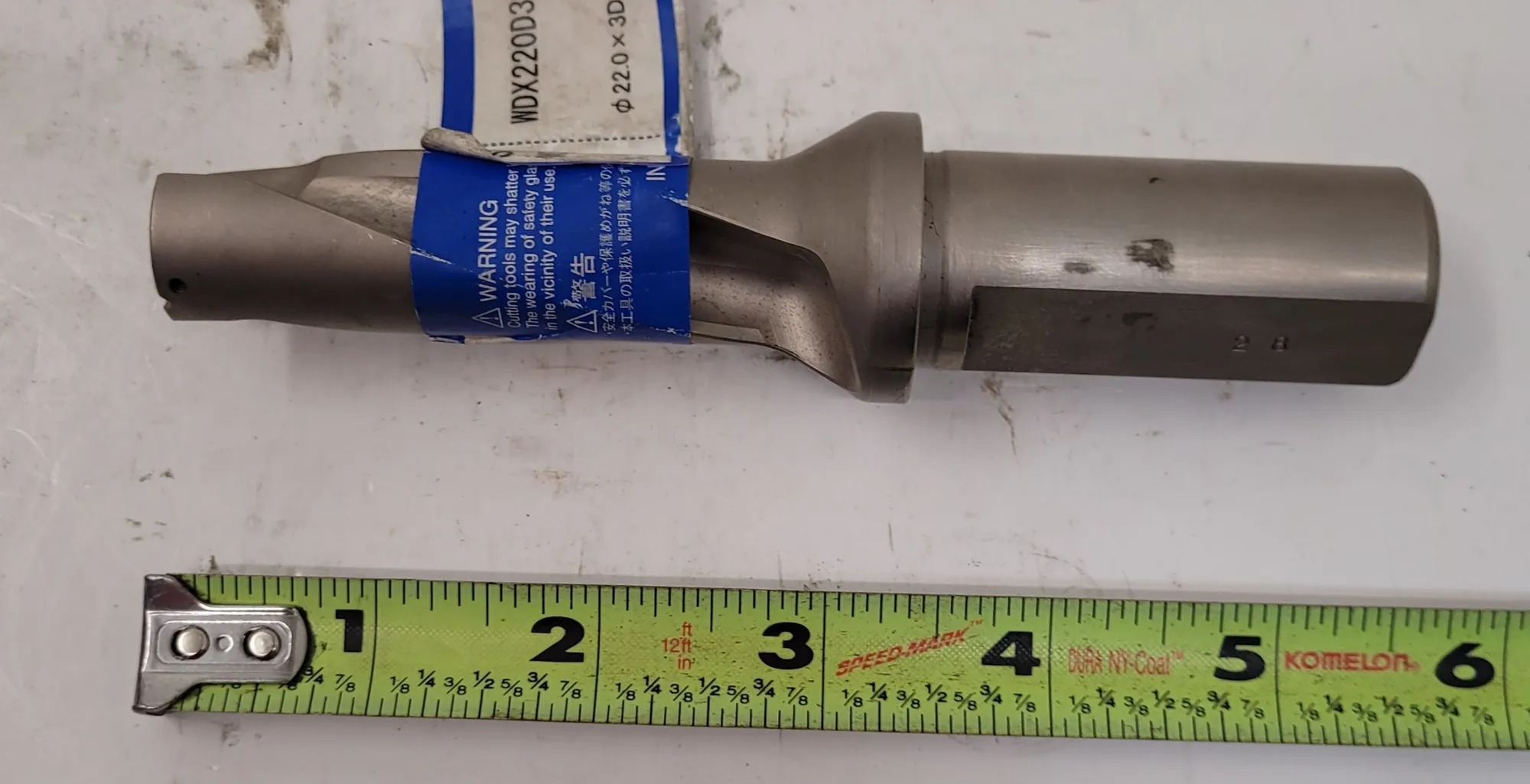

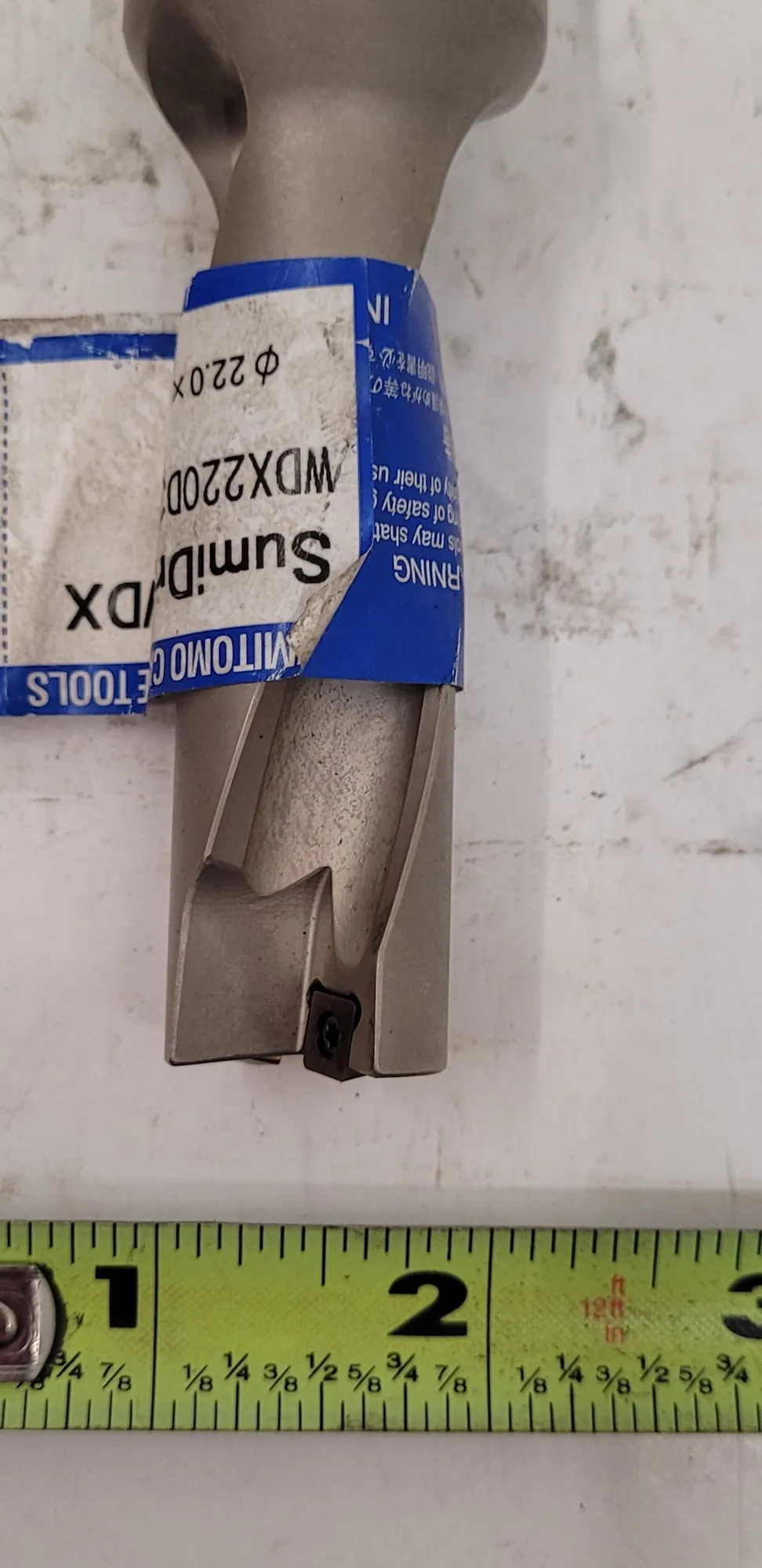

The Sumidrill WDX220D3S25 is an advanced indexable drill designed for precision and efficiency in drilling applications. It features a maximum drill diameter of 22mm and a maximum drill depth of 69mm, with a drill depth by diameter ratio of 3XD. The drill is equipped with a straight-cylindrical shank measuring 25mm in diameter and 56mm in length, and it supports a right-hand cutting direction. The tool is constructed from durable steel and includes two drill inserts compatible with WDXT 063006. The flute length matches the maximum drill depth at 69mm, ensuring optimal chip evacuation. The body length of the drill is 84mm, while the neck and collar diameters are both 33mm. The Sumidrill WDX220D3S25 is designed with a coolant through feature, enhancing its performance by reducing heat and extending tool life. This drill is ideal for applications requiring precise and efficient drilling, with a maximum drill depth range of 50mm to 75mm.
