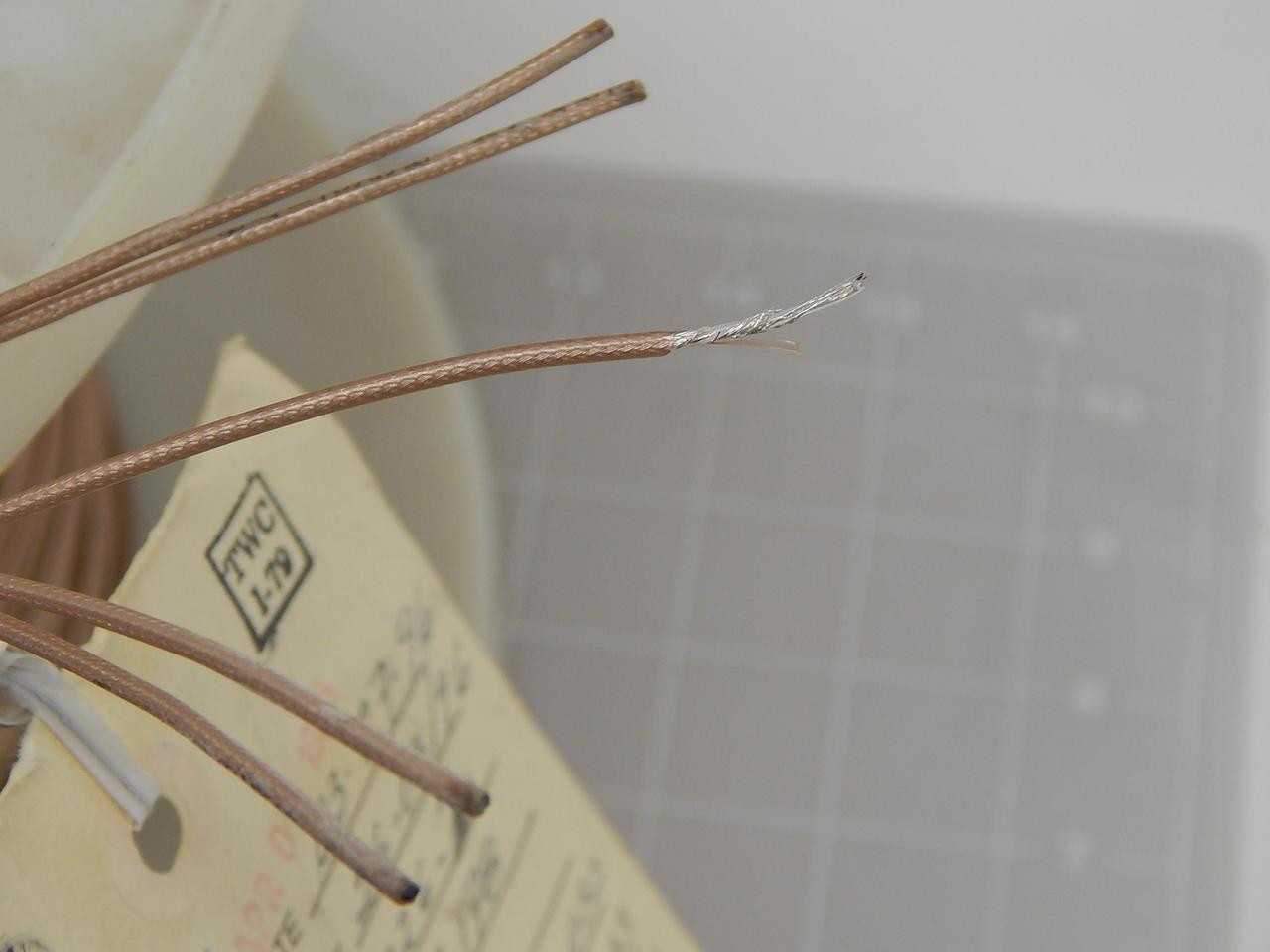

THERMAX M17/93-RG178 RF COAXIAL CABLE, 50 OHM IMPEDANCE, 1.83 MM OD, -55 TO +200 C TEMP

THE THERMAX M17/93-RG178 IS AN RF COAXIAL CABLE MANUFACTURED TO MILITARY SPECIFICATION M17/93. THIS 50-OHM CABLE FEATURES A SILVER-PLATED COPPER-CLAD STEEL (SPCCS) INNER CONDUCTOR, A SOLID POLYTETRAFLUOROETHYLENE (PTFE) DIELECTRIC, AND A SILVER-PLATED COPPER BRAID SHIELD. THE OUTER JACKET IS CONSTRUCTED FROM FLUORINATED ETHYLENE PROPYLENE (FEP), DESIGNED FOR HIGH-TEMPERATURE APPLICATIONS. IT EXHIBITS A NOMINAL OUTER DIAMETER OF APPROXIMATELY 0.072 INCHES (1.83 MM) AND A NOMINAL CAPACITANCE OF APPROXIMATELY 29 PF/FT (95 PF/M). THE NOMINAL VELOCITY OF PROPAGATION IS ABOUT 70%, WITH AN OPERATING TEMPERATURE RANGE TYPICALLY FROM -55°C TO +200°C, MAKING IT SUITABLE FOR HIGH-PERFORMANCE RADIO FREQUENCY TRANSMISSION APPLICATIONS.
