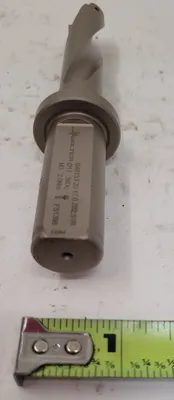

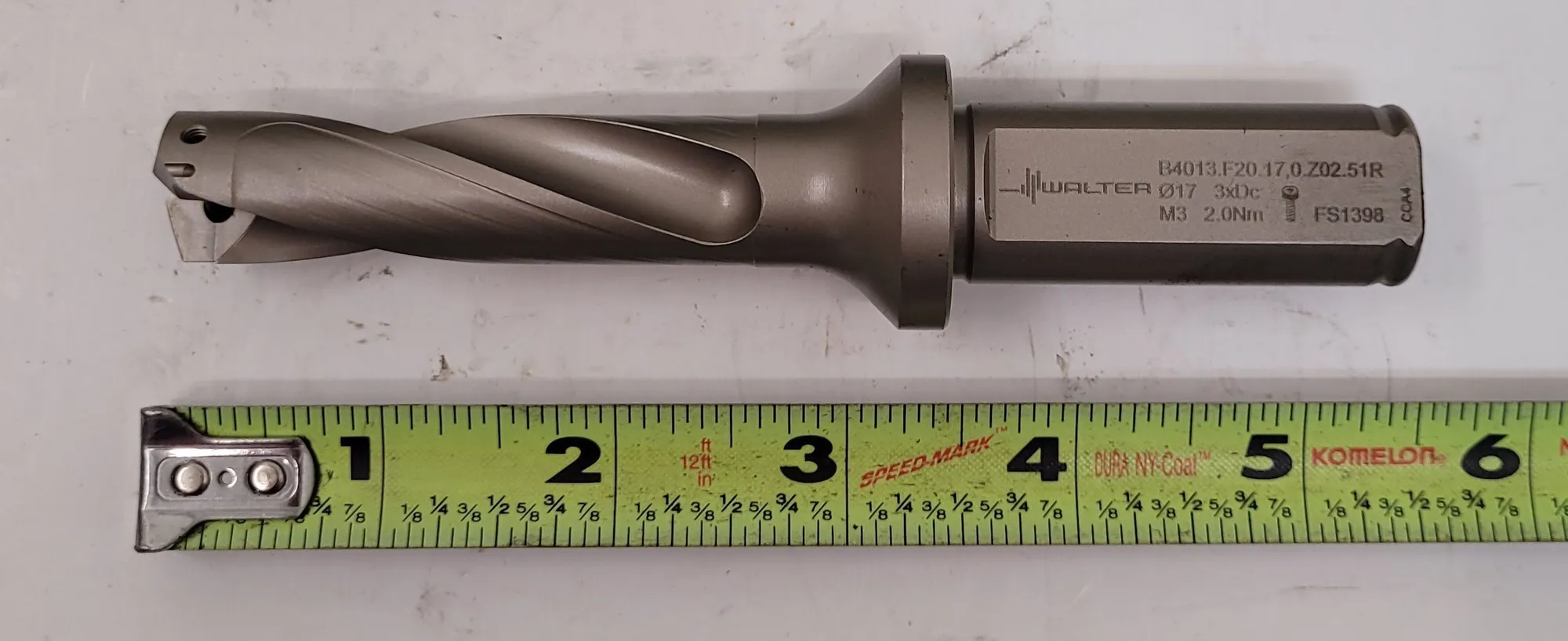

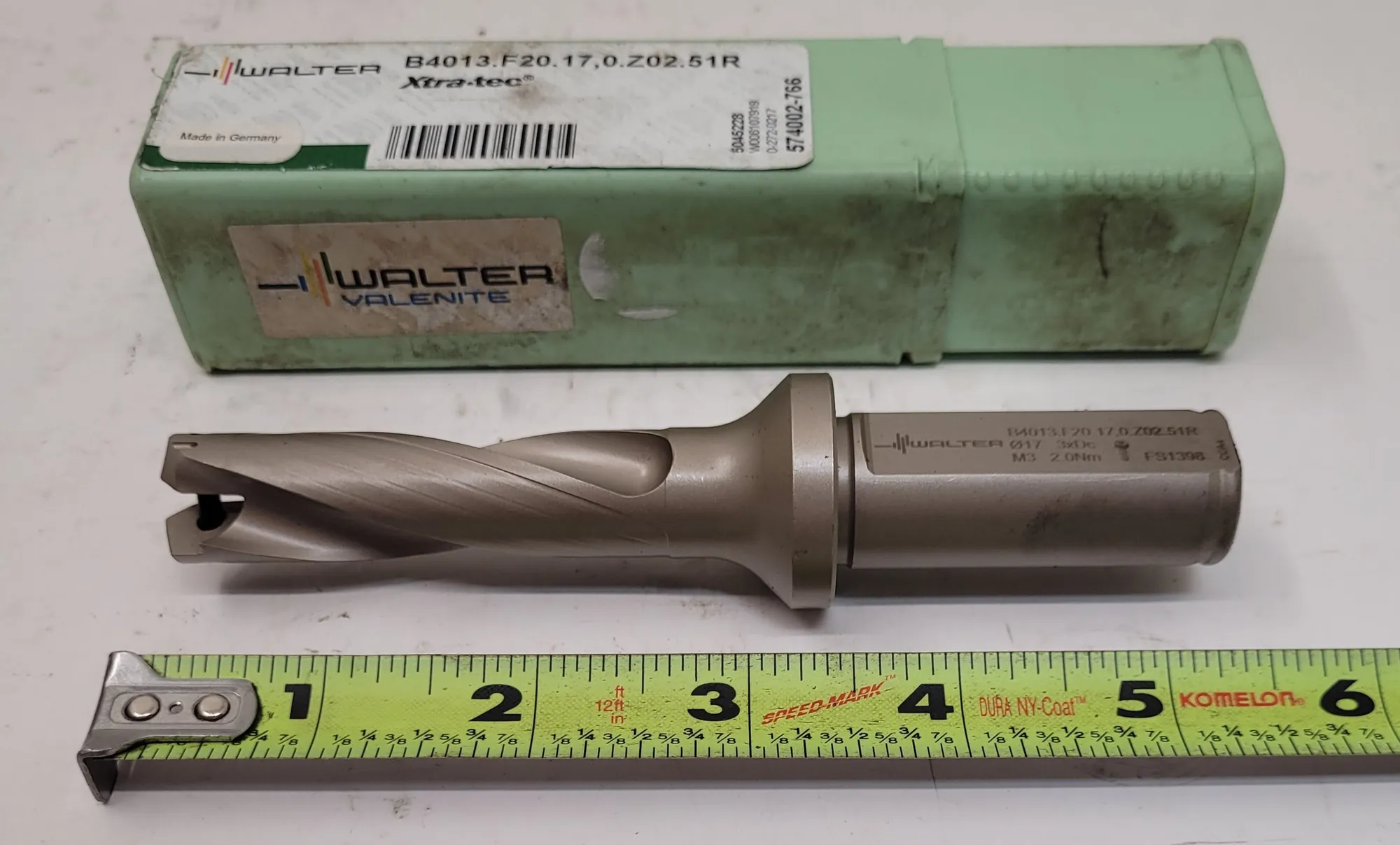

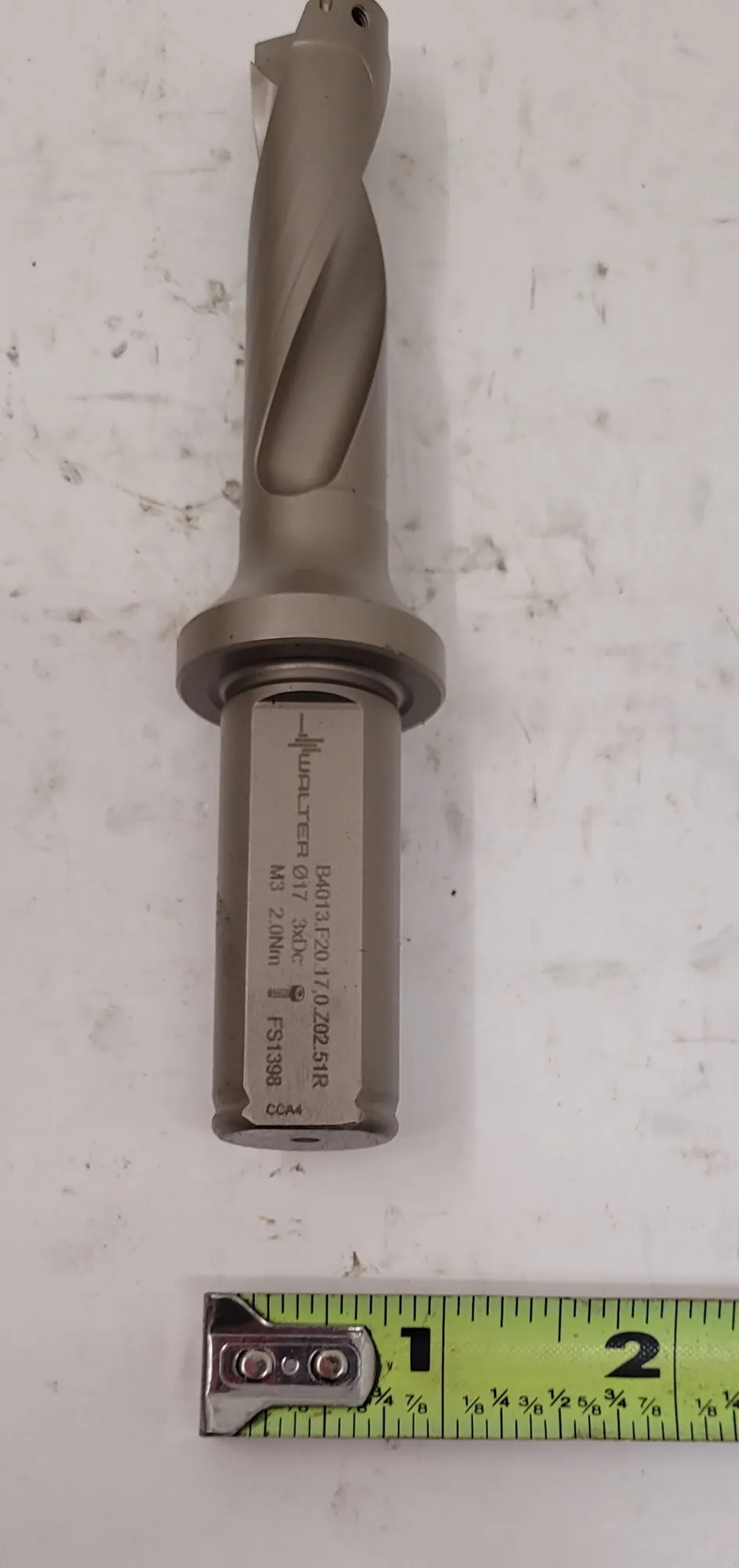

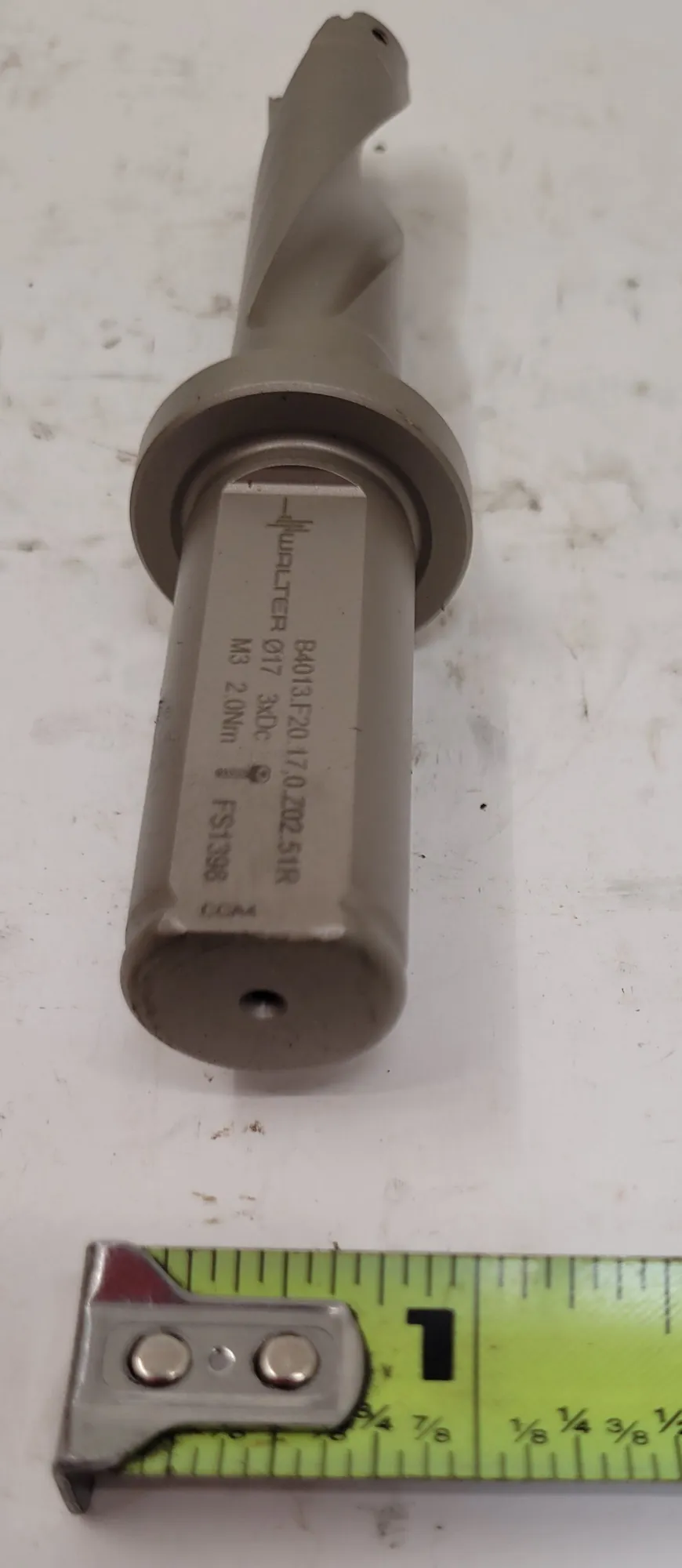

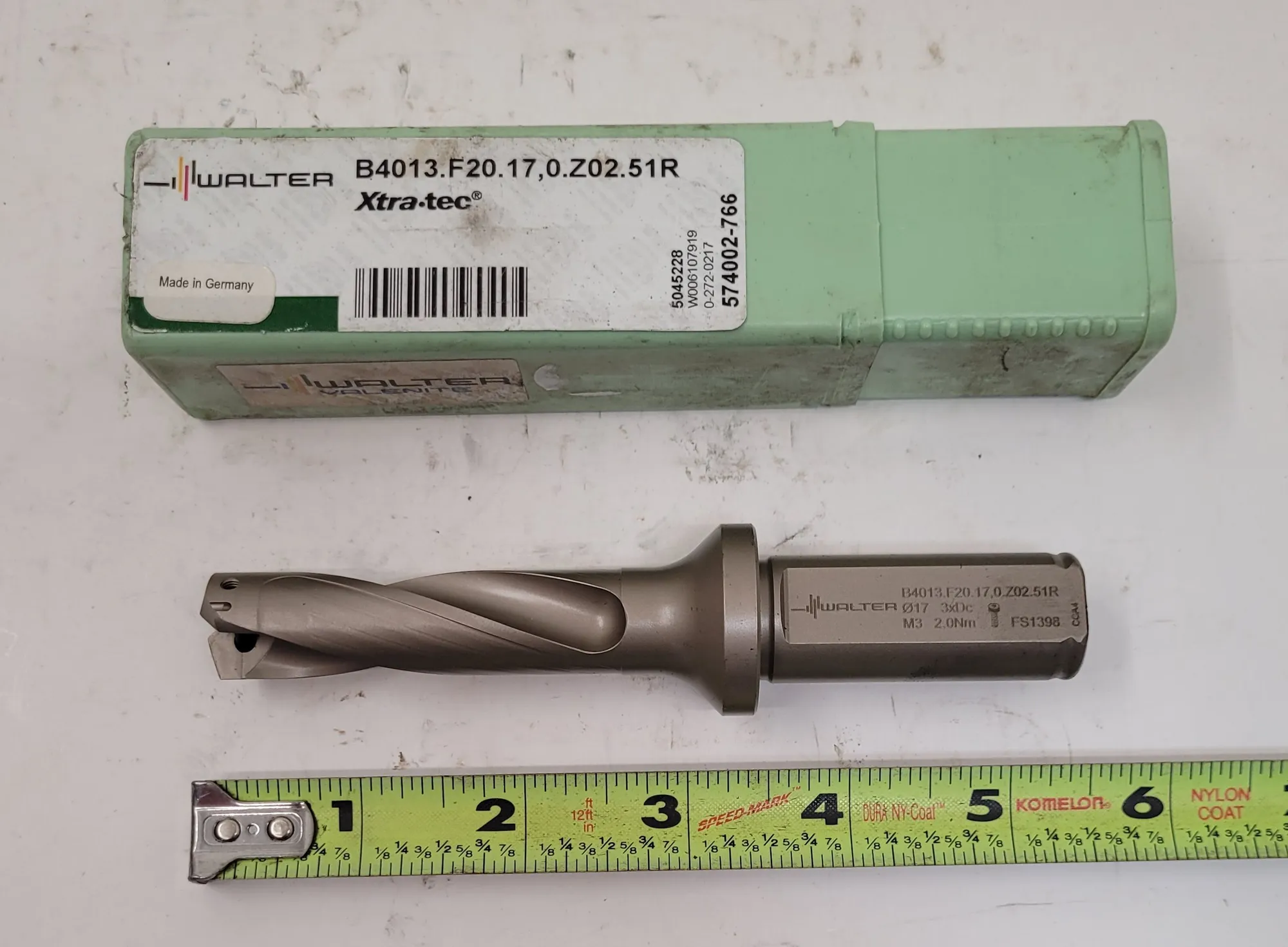

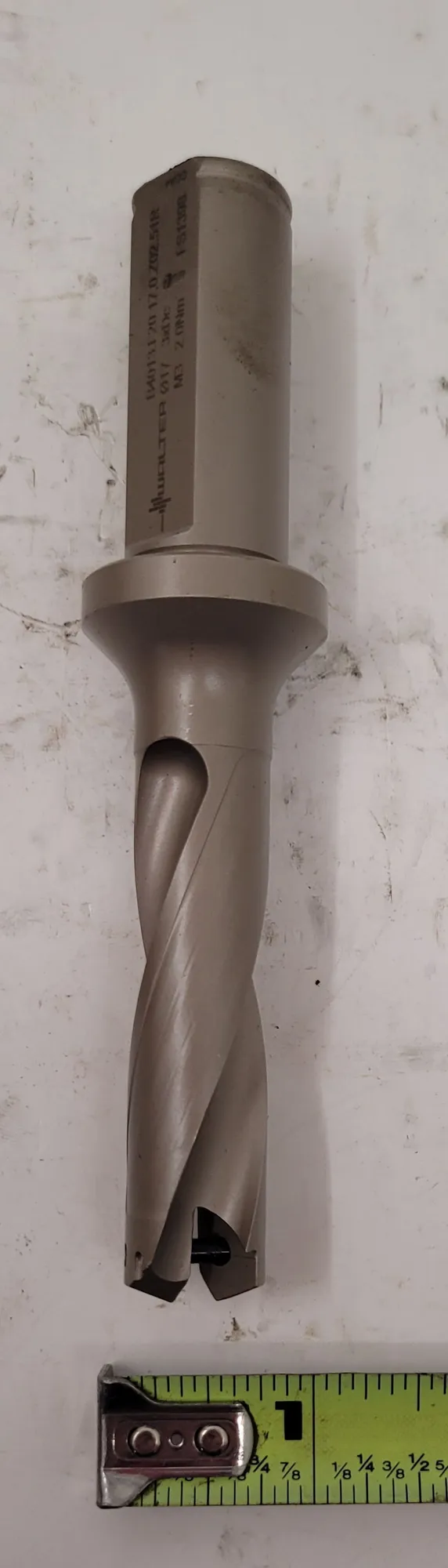

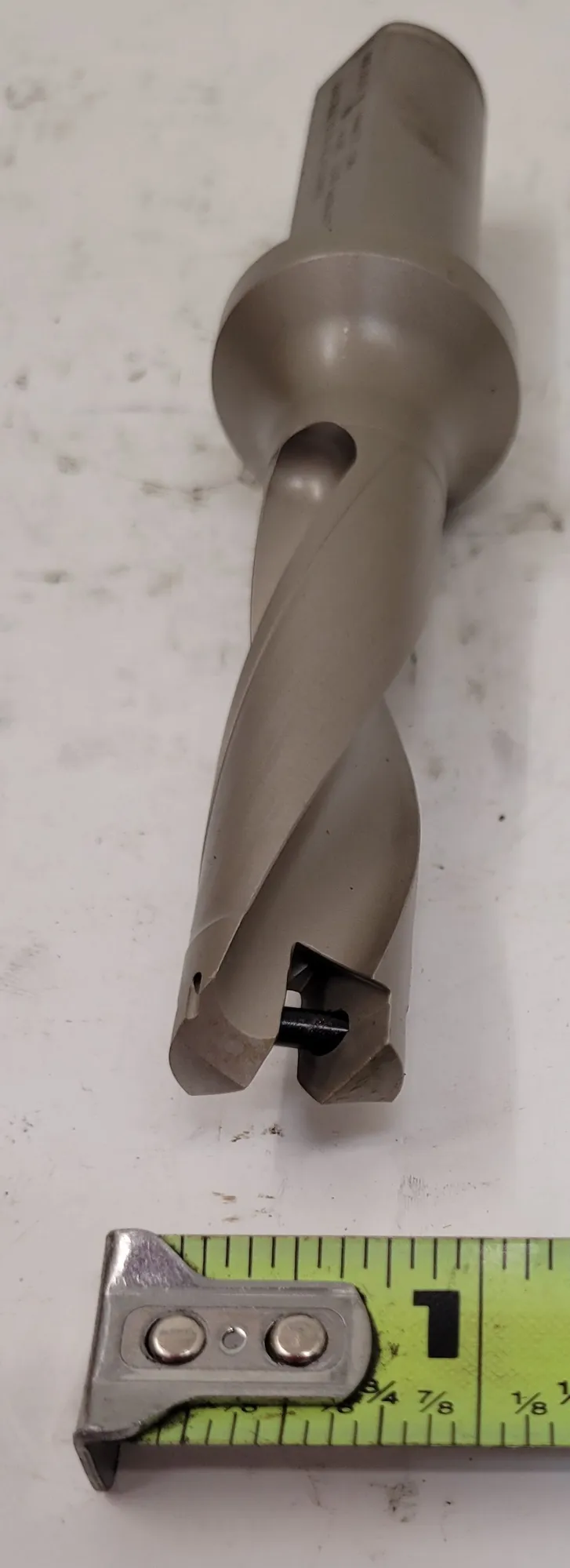

Walter Xtra-Tec B4013.F20.17,0.Z02.51R 17mm Indexable Insert Drill, Right Hand, 2 Flutes

The Walter Xtra-Tec B4013.F20.17,0.Z02.51R is a high-precision indexable insert drill designed for right-hand use, featuring a 17mm diameter. It is equipped with two helixed flutes, enhancing chip evacuation and cutting efficiency. The drill offers a minimum cutting diameter of 0.669 inches and a maximum of 0.708 inches, making it versatile for various drilling applications. It has a protruding length of 3.464 inches and a usable length of 2.125 inches, with an overall length (OAL) of 5.433 inches. The chip flute measures 0.121 inches, contributing to effective chip management. The functional length of the drill is 3.342 inches, ensuring optimal performance in diverse machining tasks.
