1997 CINCINNATI CB II 350 TON PRESS BRAKE, 14FT BED, 3-AXIS CNC (UPGRADED 2015)
Equipment Overview
Share Link- OEM
- CINCINNATI
- Model
- CB II 350 TON
- Year of Manufacture
- 1997
- Category
- PRESS BRAKES
Market Value Calculator
A+Technical Description

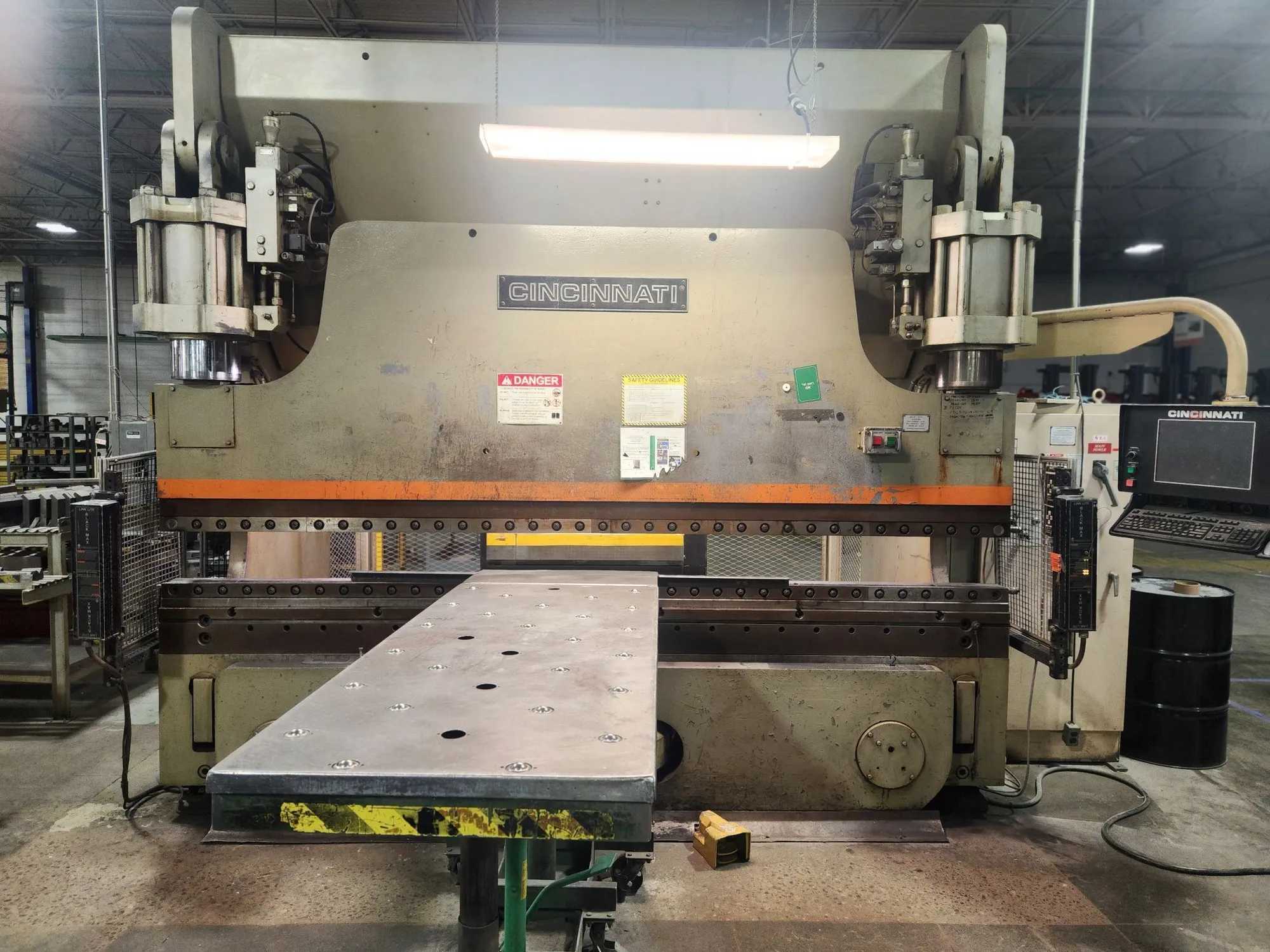

THIS 1997 CINCINNATI CB II 350 TON PRESS BRAKE IS A HYDRAULIC MACHINE WITH A PRESS CAPACITY OF 350 TONS. IT FEATURES AN OVERALL LENGTH OF BED AND RAM OF 14 FEET, OR 168 INCHES, AND A DISTANCE BETWEEN HOUSINGS OF 12 FEET 6 INCHES. THE MACHINE HAS A 10-INCH THROAT DEPTH. THE STROKE LENGTH IS 16 INCHES, WITH AN OPEN HEIGHT OF 24 INCHES AND A CLOSED HEIGHT OF 8 INCHES. BENDING CAPACITY IS RATED AT .375 INCHES BY 12 FEET 5 INCHES. THE MAIN MOTOR IS 15 HP ACCORDING TO THE PROVIDED DATA, AND THE MACHINE WEIGHS APPROXIMATELY 44,000 LBS, WITH DIMENSIONS OF 170 INCHES LONG BY 64 INCHES FRONT-TO-BACK BY 146 INCHES HIGH. THE PRESS BRAKE IS EQUIPPED WITH A CINCINNATI PC BASED 3-AXIS CNC TOUCH SCREEN CONTROL (UPGRADED IN 2015), A 2-AXIS CNC BACK GAUGE, AND A LOWER CROWNING DIE.
Technical Attributes
- Bed Length
- 14 ft
- # of Axes
- 3
- Control System
- CINCINNATI PC based 3-axis CNC
- Open Height
- 24 ''
- Throat Depth
- 10 ''
- Distance Between Frames
- 12 ft
- Stroke Length
- 16 ''
- Max Tonnage
- 350 t
